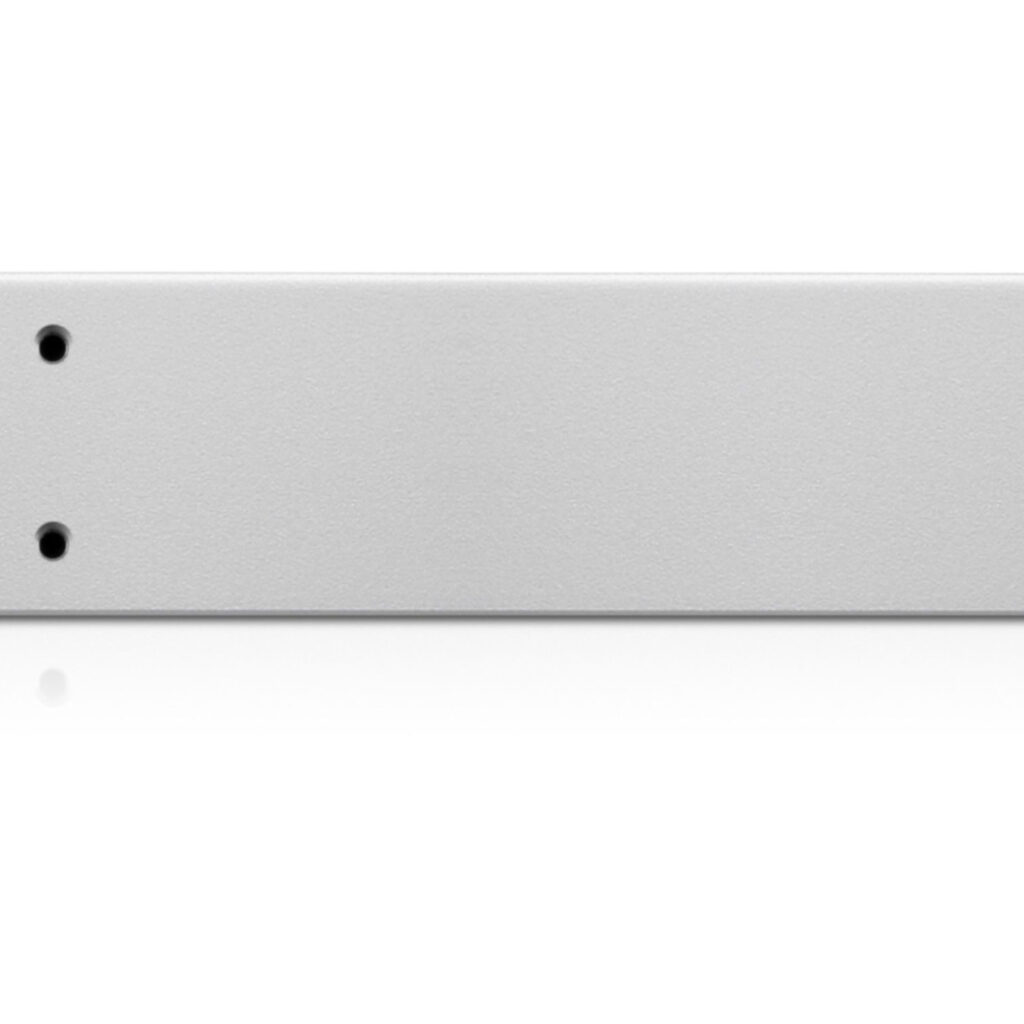

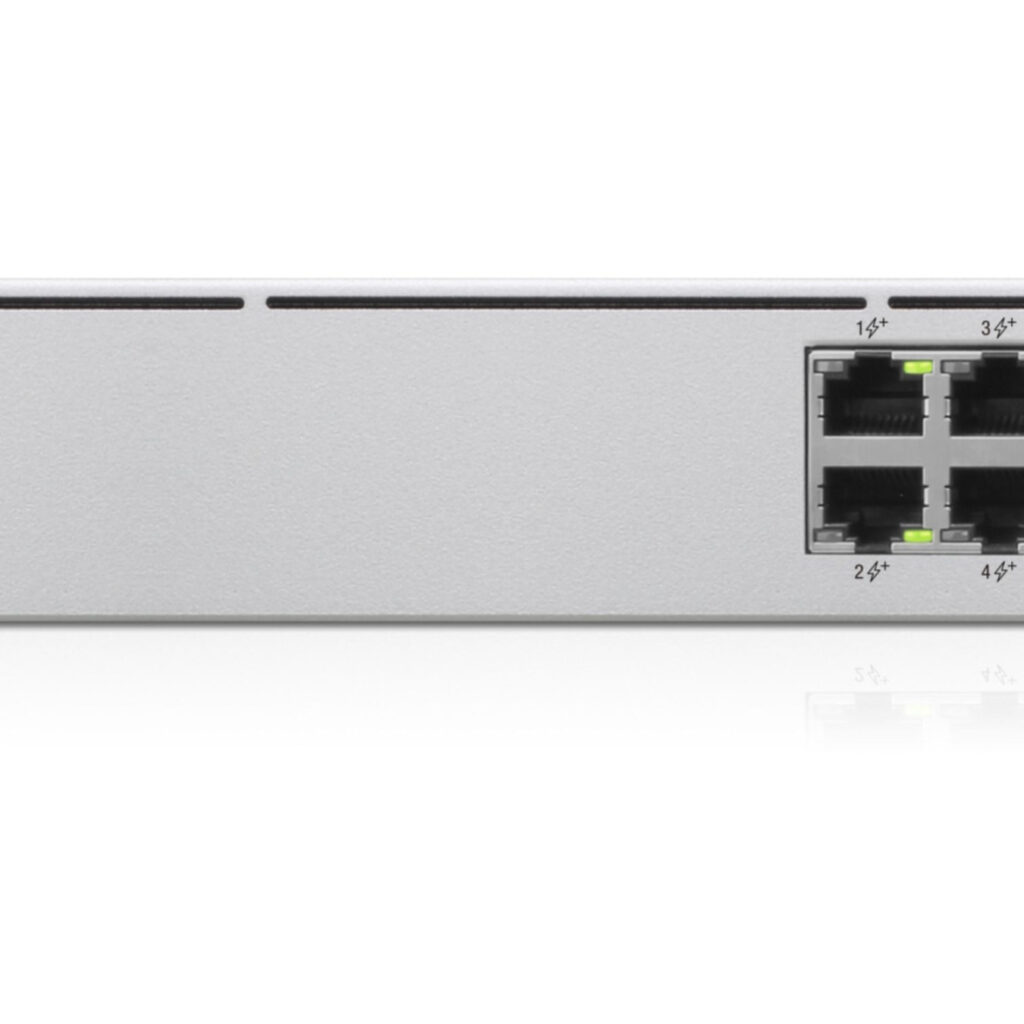

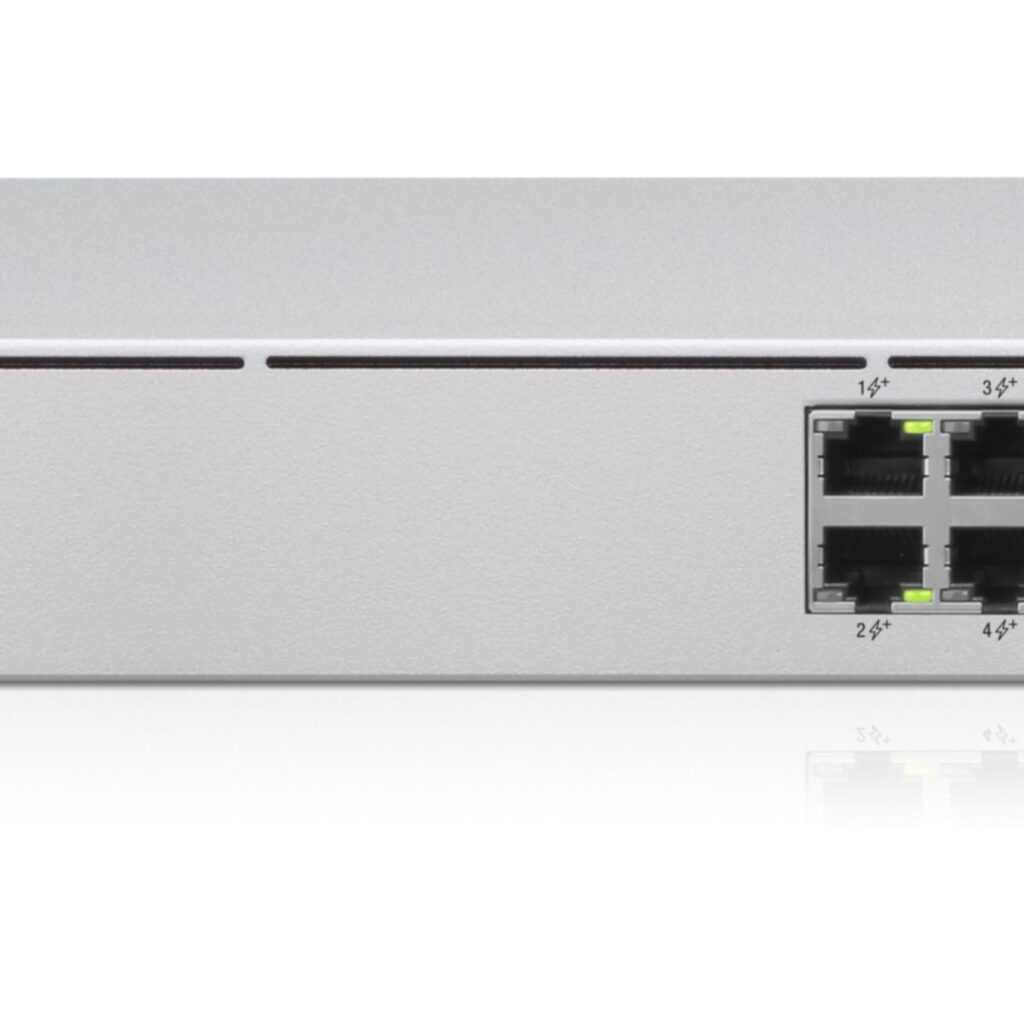

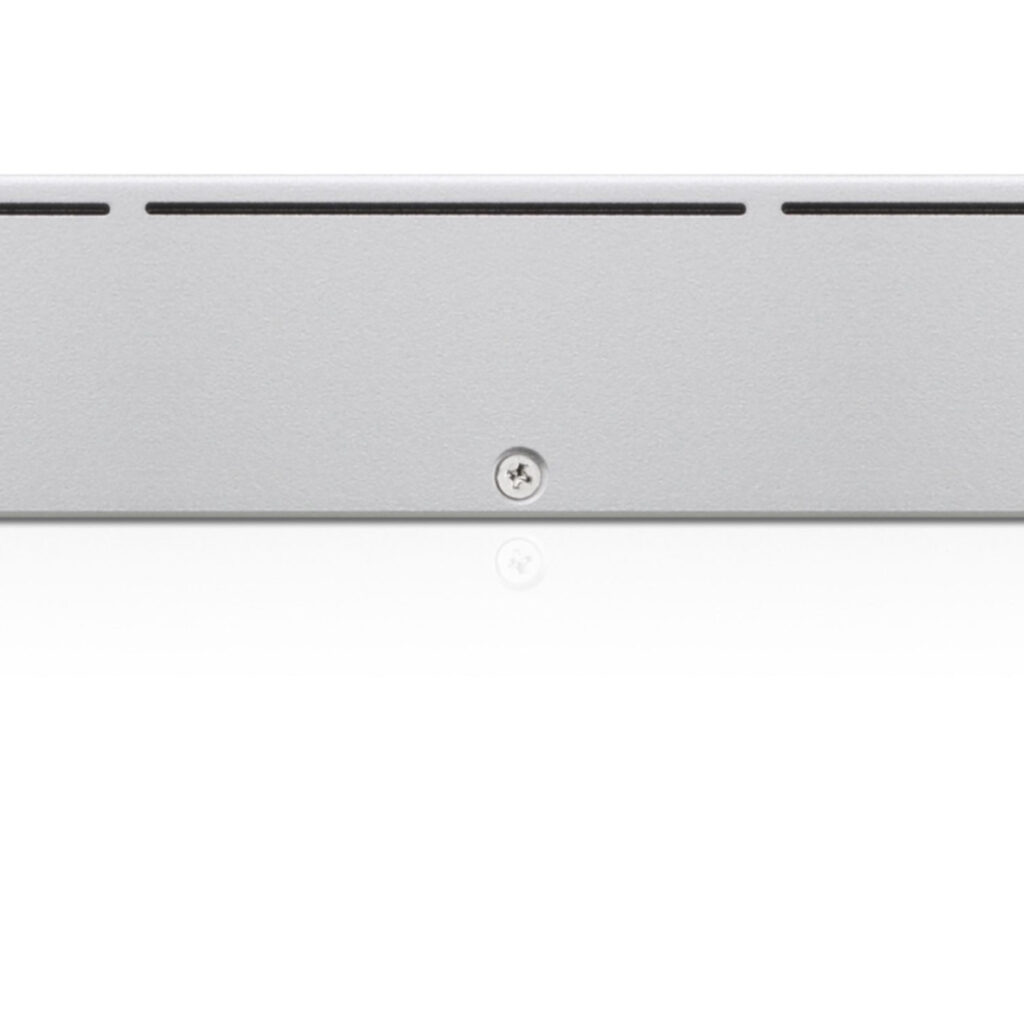

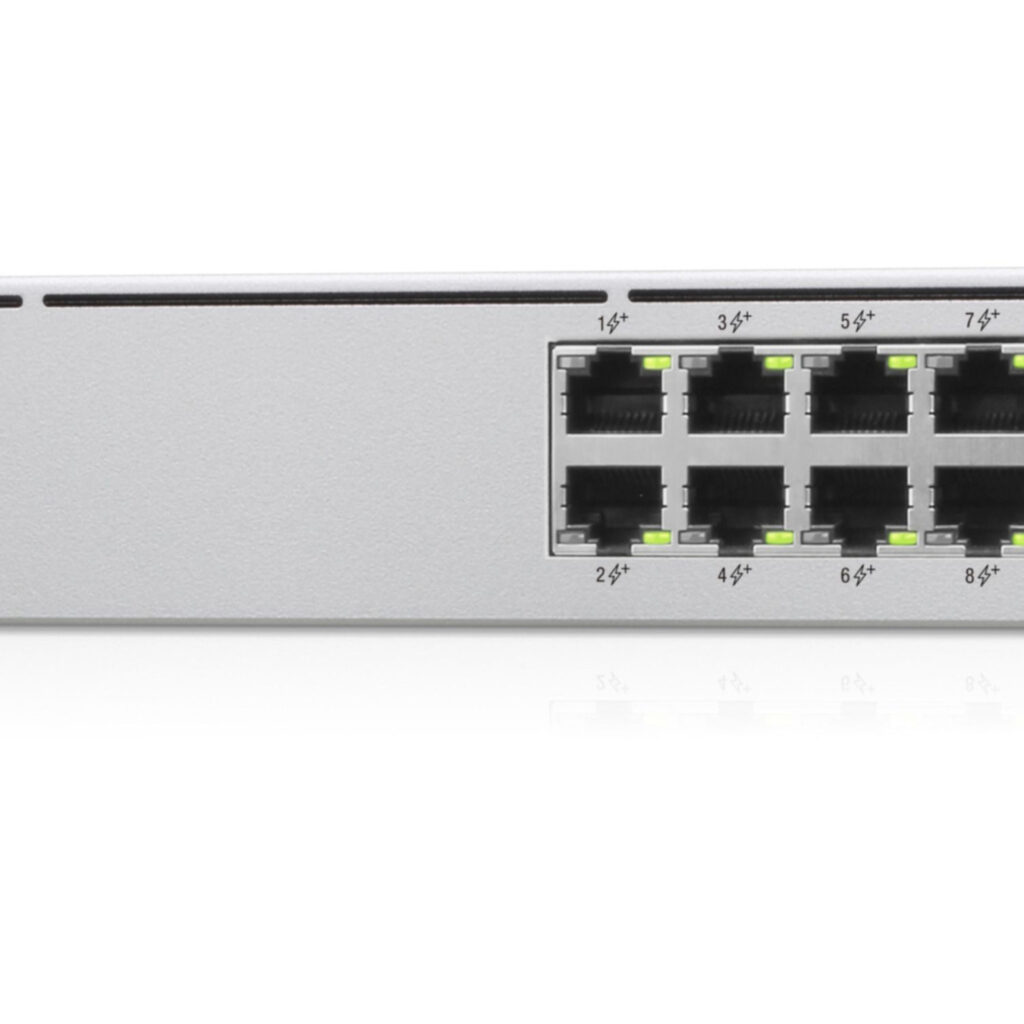

Ubiquiti UniFi Switch - USW-16-POE - 16-Port Gigabit Managed L2/L3 PoE, 2 SFP, Touchscreen
16x Gigabit RJ45 ports with PoE (IEEE 802.3af/at), 2x SFP, Managed L2/L3, 36 Gbit/s switching capacity, near-silent cooling and redundant power support.
Available in 4–6 business days : 31 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.
| Switch type | Managed |
| Switch layer | L2/L3 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Switching capacity | 36 Gbit/s |
| Throughput | 18000 Mpps |
| Forwarding rate | 26.78 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 44 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 32 W |
| Total Power over Ethernet (PoE) budget | 48 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 2.8 kg |
| Certification | CE, FCC, IC |
| Harmonized System (HS) code | 85176990 |
