Ubiquiti AirMax AM-5AC21-60 Antenna - 5.1–5.8 GHz, 21 dBi - White, Wall-Mount
High-gain wall-mount sector antenna for 5.1–5.8 GHz with 21 dBi gain. Dual polarization, VSWR 1.5:1. White finish; ideal for long-range point-to-multipoint links.
Available in 6–10 business days : 9 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The airMAX®ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Breakthrough Design and Performance
The airMAX®ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2×2, dual-polarity performance for airMAX networks.
Superior Noise Immunity
Featuring reduced sidelobes and backlobes, the airMAX®ac Sector Antennas are engineered to reject noise interference in co‑location deployments.
Market-Leading Beam Performance
Compare the diagram of the airMAX®ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.
Industrial-Strength Construction
airMAX®ac Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

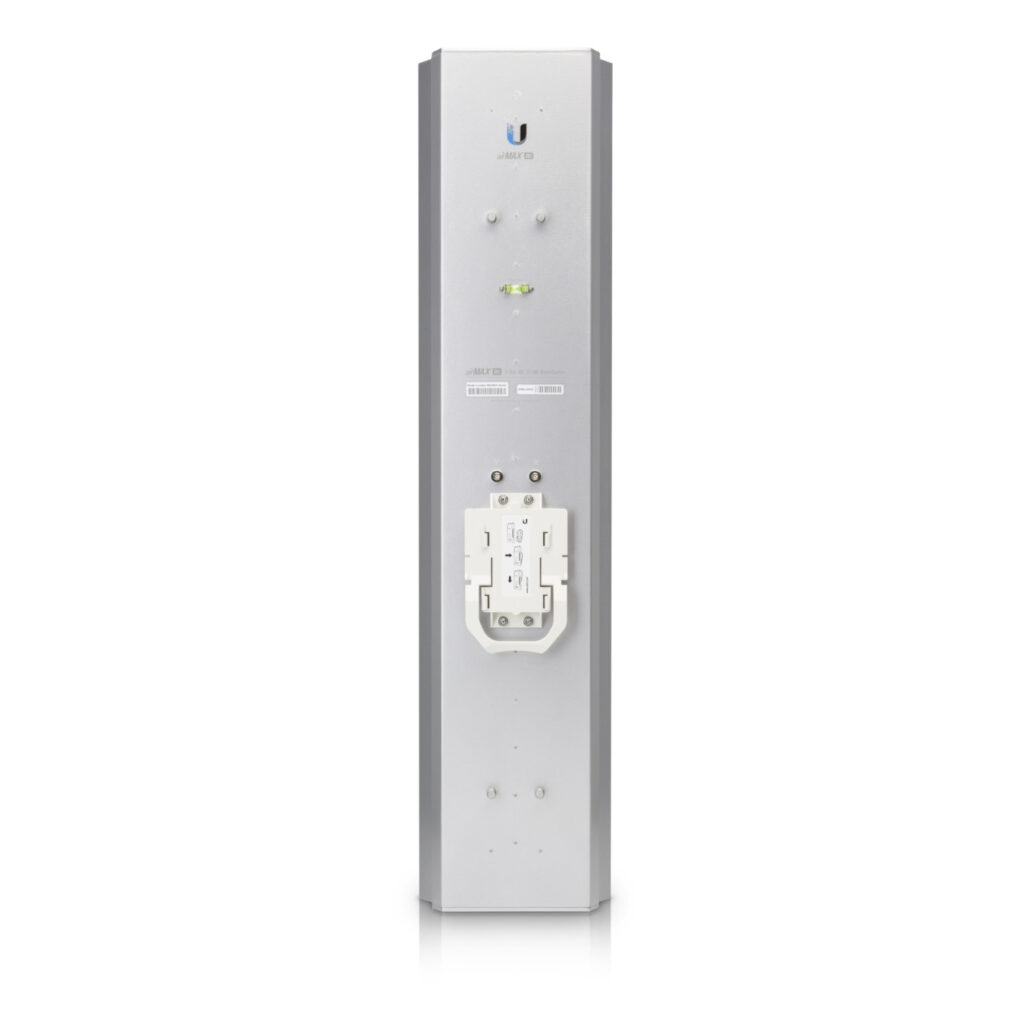

Every airMAX®ac Antenna has a built-in Rocket™mount, so no tools are needed to install the Rocket BaseStation.
| Frequency band | 5.1 - 5.8 GHz |
| Horizontal beam width | 60° |
| Vertical beam width | 60° |
| Antenna gain level (max) | 21 dBi |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Product colour | White |
| Mounting | Wall |
| Width | 173 mm |
| Depth | 78 mm |
| Height | 750 mm |
| Weight | 4.8 kg |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
