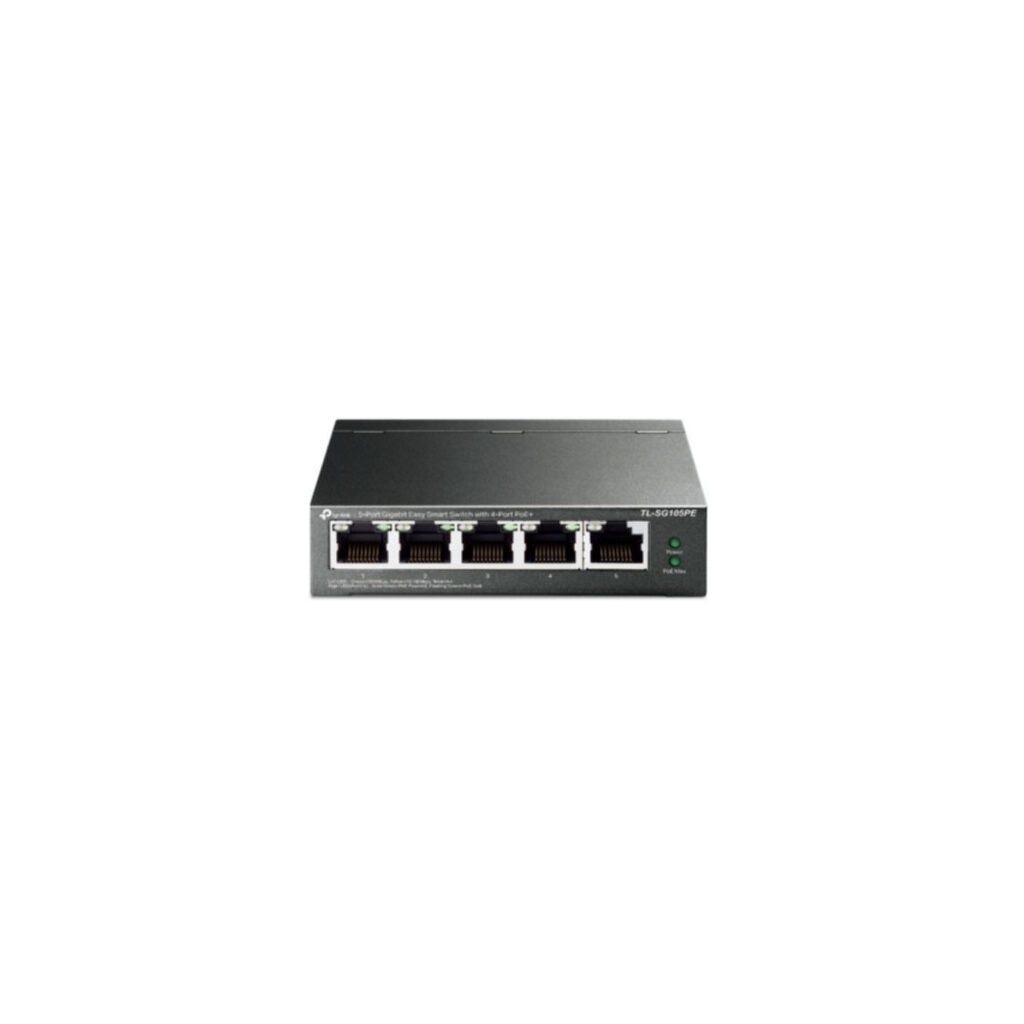

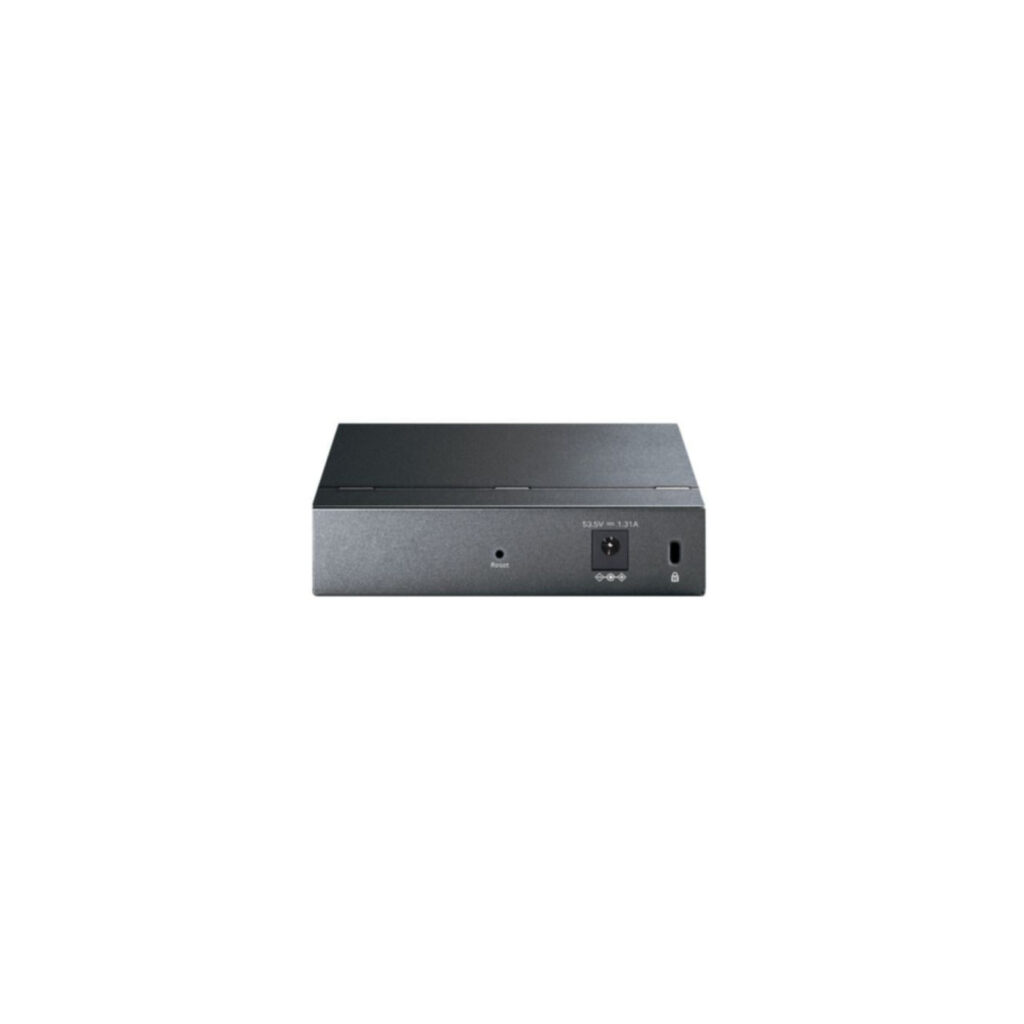

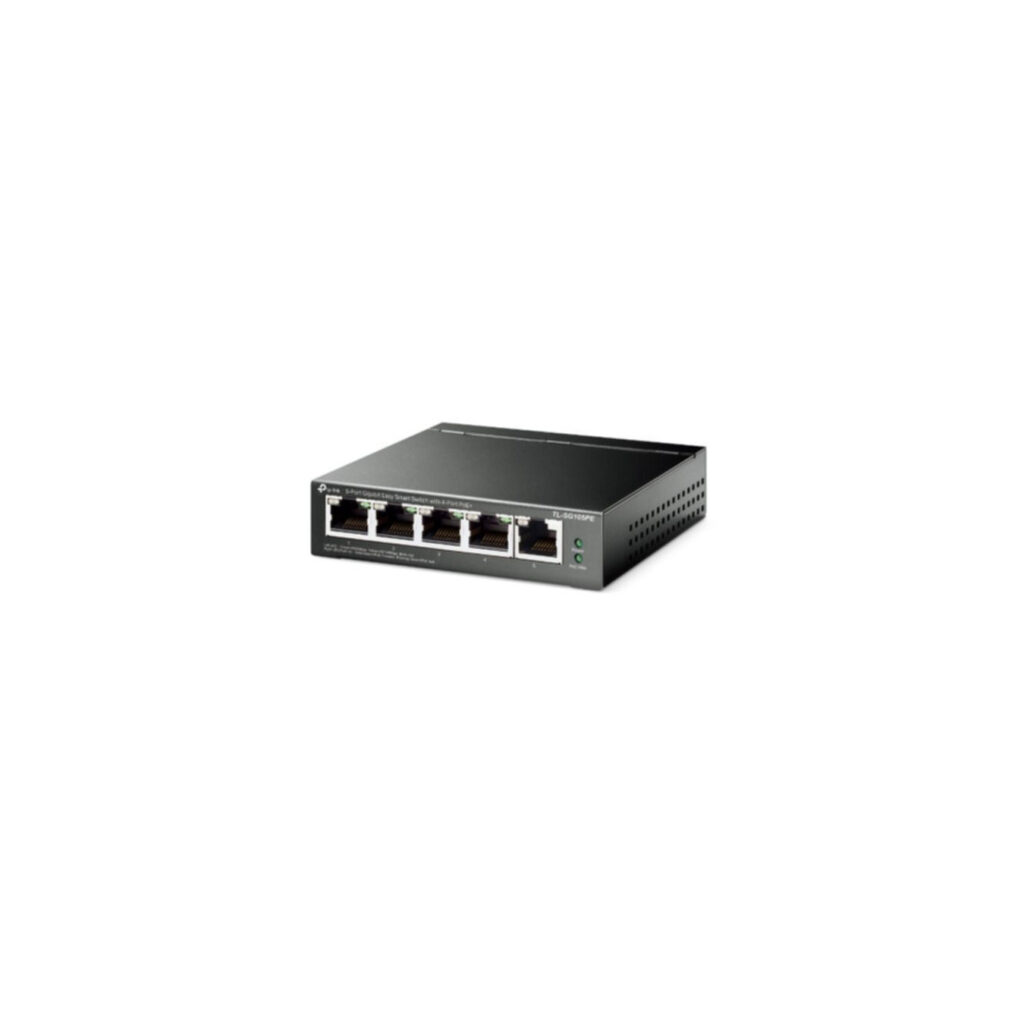

TP-Link TL-SG105PE - 5-Port Gigabit PoE+ Managed L2 Switch, 65W Budget, Black, Fanless
Compact 5-port Gigabit managed L2 switch (TL-SG105PE) with 4 PoE+ ports, 65W PoE budget, web-managed, fanless design — ideal for small offices and IP cameras.
Available in 4–6 business days : 16 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE…. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Feature | User guide |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-FX. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6 |
| Virtual LAN features | Port-based VLAN. Tagged VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Number of queues | 4 |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| Product colour | Black |
| LED indicators | Activity. Link. PoE. Power. Speed. Status |
| Power source | DC |
| Input current | 1.31 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 75.16 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 256.3 BTU/h |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 770 g |
| Certification | FCC. CE. RoHS |
| Harmonized System (HS) code | 85176990 |
