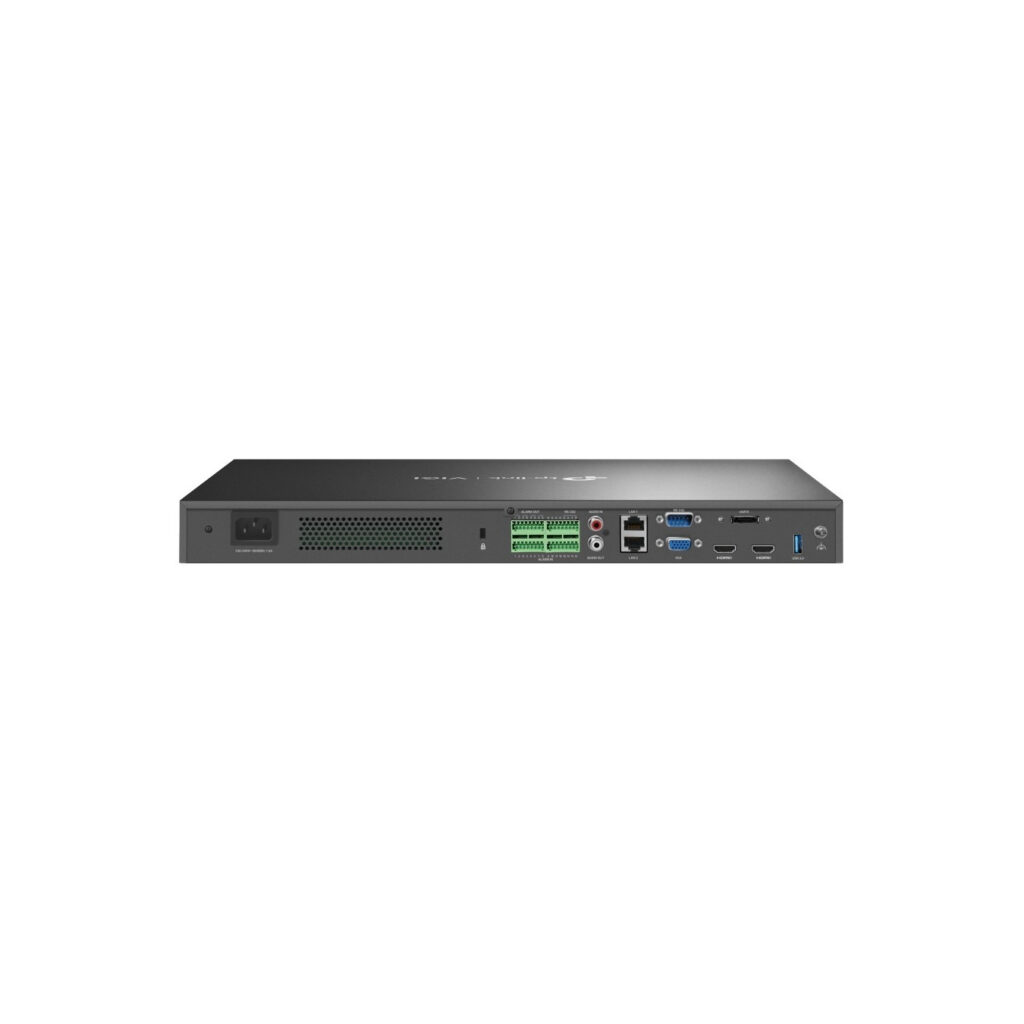

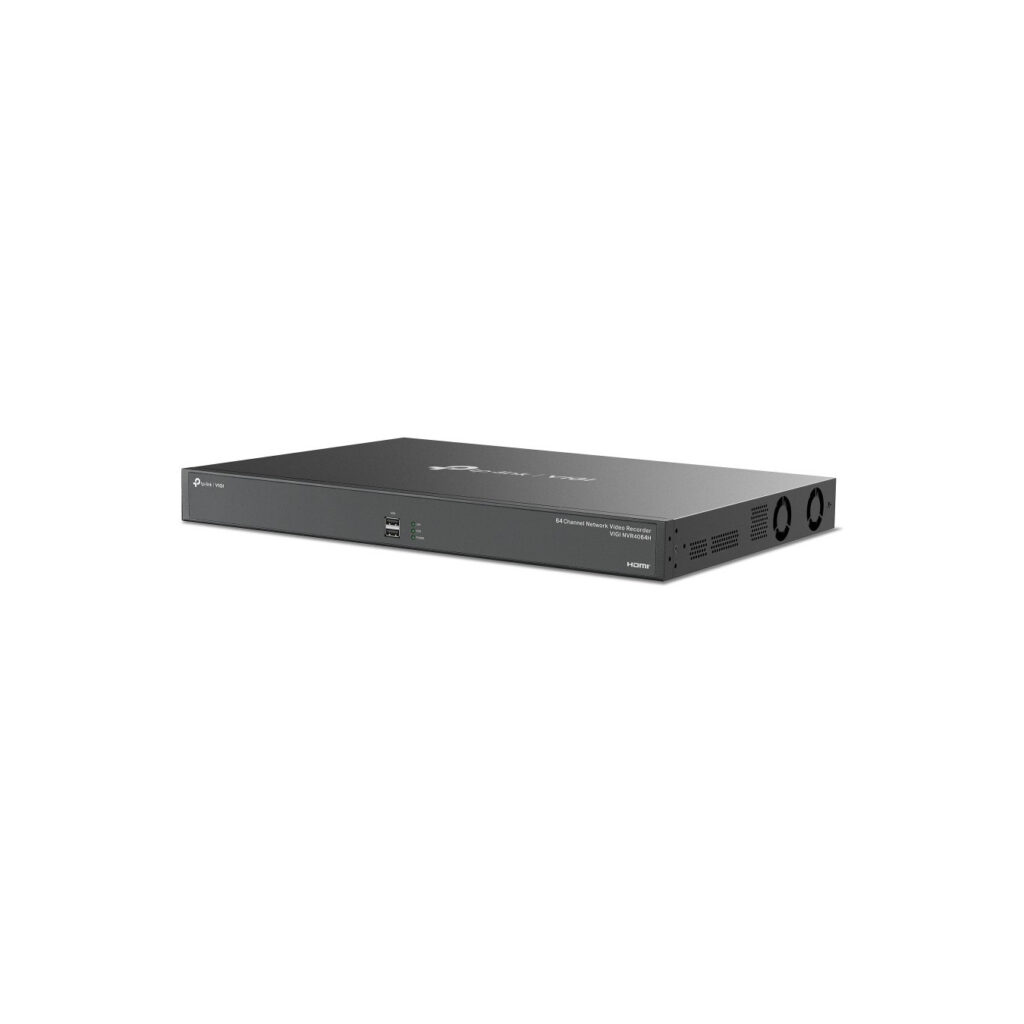

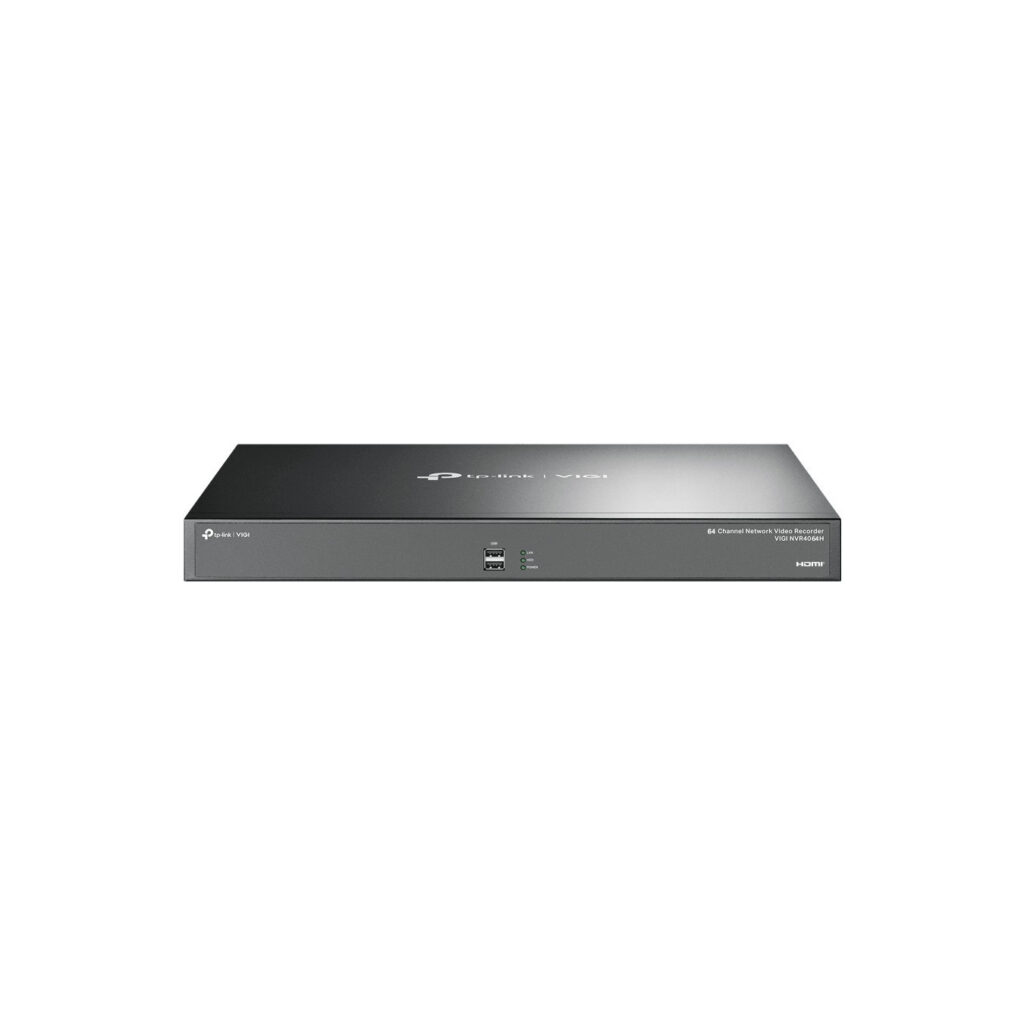

TP-Link Omada VIGI NVR4064H - 64-Channel 4-Bay 4K NVR - Black, up to 64TB, 2xHDMI+VGA
64-channel 4K NVR (3840×2160) with H.265/H.264, 4 HDD bays (up to 64TB), 320 Mbps I/O, 2x HDMI + VGA outputs, 2-way audio, Android/iOS support.
Available in 6–10 business days : 6 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link VIGI 64 Channel Network Video Recorder. Video input channels: 64 channels. Maximum resolution: 3840 x 2160 pixels. Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 64 TB. HDD interface: SATA. Ethernet LAN data rates: 10.100.1000 Mbit/s. Supported network protocols: UPnP (Plug and Play). NTP (Network Timing). SMTP. DNS. TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. RTSP….. Product colour: Black. Power consumption (max): 48.38 W. AC input voltage: 100 – 240 V. AC input frequency: 50/60 Hz
| Video input channels | 64 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p. 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160/30Hz. 1920x1080/60Hz. 1680x1050/60Hz. 1440x900/60Hz. 1280x1024/60Hz. 1280x720/60Hz |
| Feature | Buzzer off |
| Audio formats supported | G.711 A-law. G.711 μ-law. G.726 |
| Video formats supported | H.264. H.264+. H.265. H.265+ |
| Playback modes | Digital zoom. Fast play. Forward. Full screen. Pause. Play. Stop |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 320 Mbit/s |
| Recording modes | Manual. Schedule |
| Audio system | 2-way |
| HDD capacity | 0 GB |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| RS-232 ports | 1 |
| Supported network protocols | UPnP (Plug and Play). NTP (Network Timing). SMTP. DNS. TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. RTSP. SSL/TLS. RTP. IPv4. ARP |
| Product colour | Black |
| Power consumption (max) | 48.38 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 1.5 A |
| Mobile operating systems supported | Android. iOS |
| Browser supported | Chrome (57+). Firefox (52+). Edge (91+) |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Compliance certificates | BSMI. CE. Federal Communications Commission (FCC). KC. UKCA. VCCI |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4 kg |
| Package width | 440 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 5 kg |
