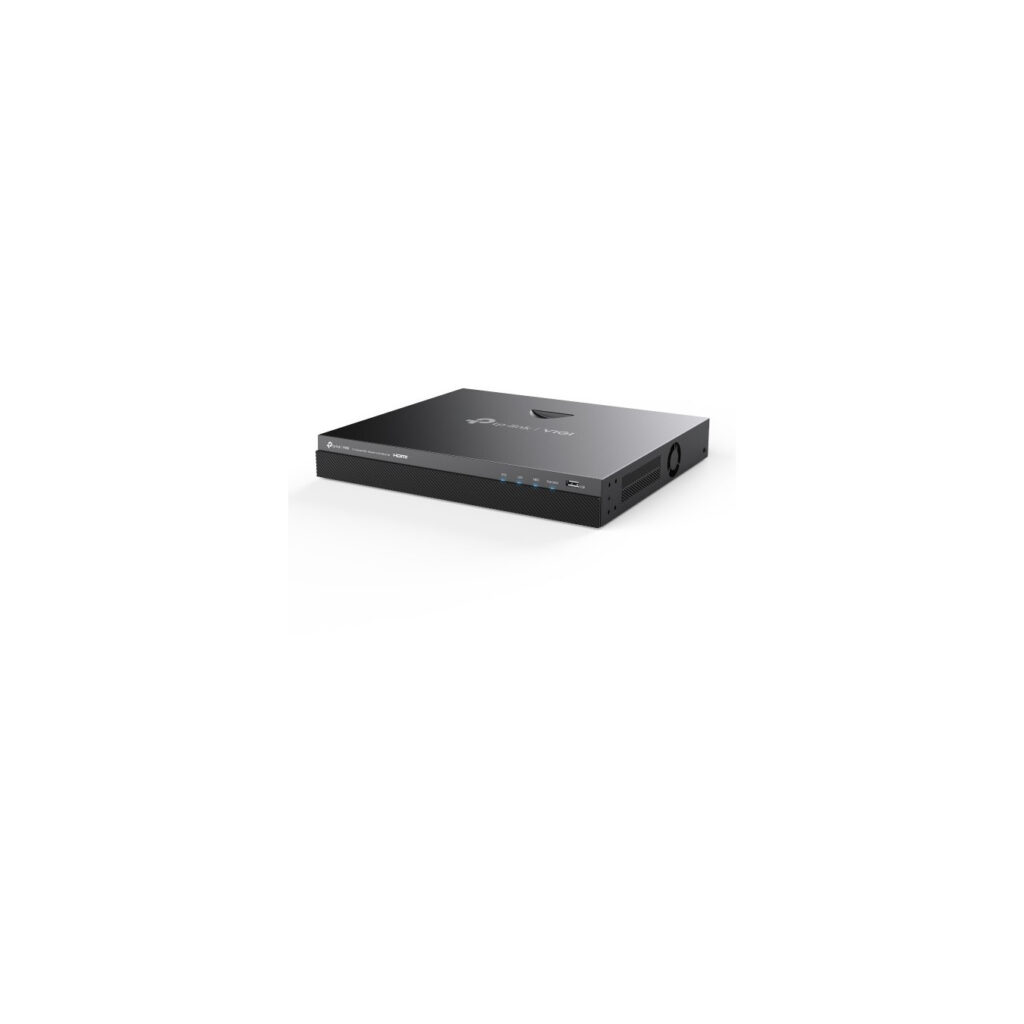

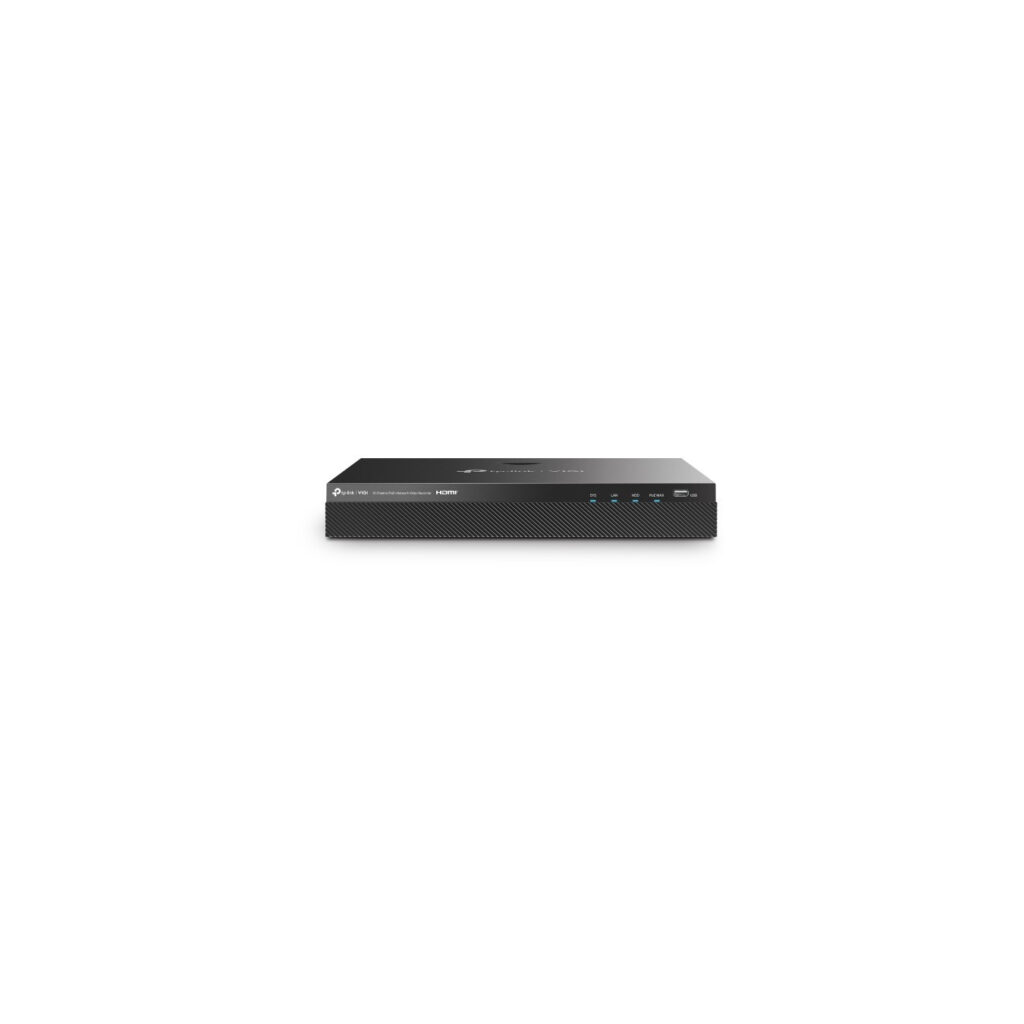

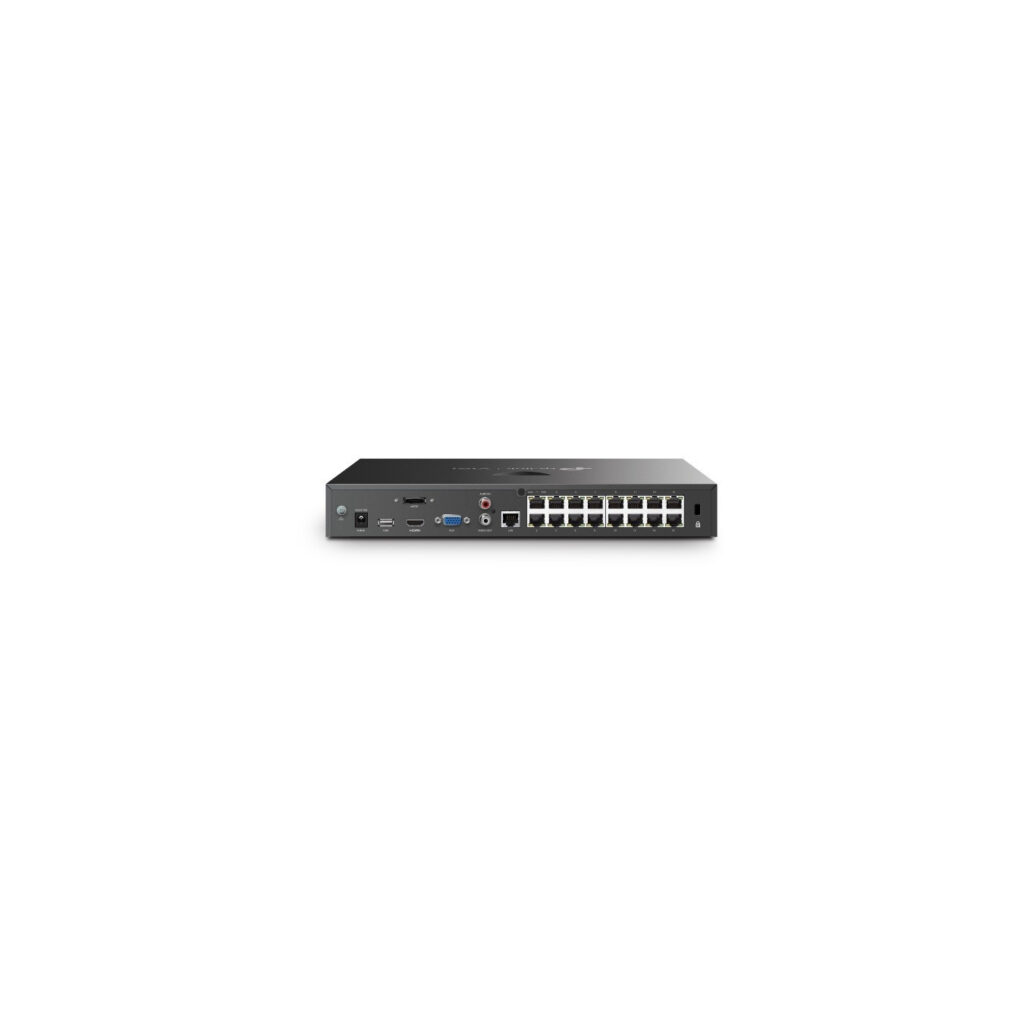

TP-Link Omada VIGI NVR2016H-16MP - 16-Channel PoE+ NVR, 4K (3840x2160) Support, HDMI+VGA Output, 140W PoE Budget, Black
16-channel PoE+ NVR with 16×PoE ports, 4K recording (3840×2160), H.265/H.264 support, HDMI+VGA outputs, 2×SATA up to 10TB, 140W PoE budget, 30 fps.
Available in 6–10 business days : 8 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels. Maximum resolution: 3840 x 2160 pixels. Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB. HDD interface: SATA. Ethernet LAN data rates: 10.100.1000 Mbit/s. Networking standards: IEEE 802.3af. IEEE 802.3at. Supported network protocols: UPnP (Plug and Play). NTP (Network Timing). Product colour: Black. Certification: CE. EAC. UKCA. RCM. Triman. BSMI. VCCI. FCC. IC. HDMI. Power consumption (max): 40 W. Output current: 2.43 A. Output voltage: 53.5 V
| Video input channels | 16 channels |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p. 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Feature | Quick installation guide |
| Audio formats supported | G.711 A-law. G.711 μ-law. G.726 |
| Video formats supported | H.264. H.264+. H.265. H.265+ |
| Playback modes | Digital zoom. Fast play. Forward. Full screen. Pause. Play. Stop |
| Maximum frame rate | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Recording modes | Manual. Schedule |
| HDD capacity | 0 GB |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| Audio output | 1 |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | UPnP (Plug and Play). NTP (Network Timing) |
| Product colour | Black |
| Certification | CE. EAC. UKCA. RCM. Triman. BSMI. VCCI. FCC. IC. HDMI |
| Power consumption (max) | 40 W |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Width | 330 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
| Cables included | AC |
