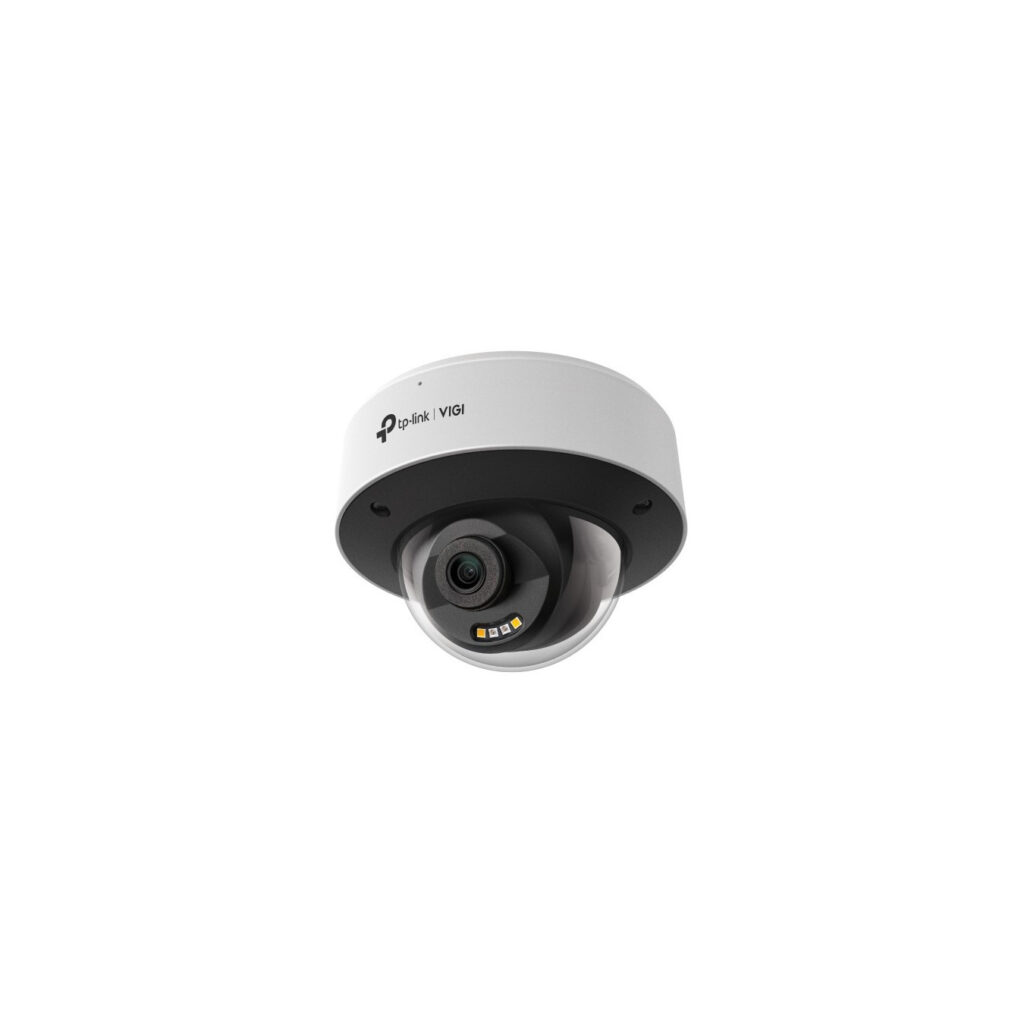

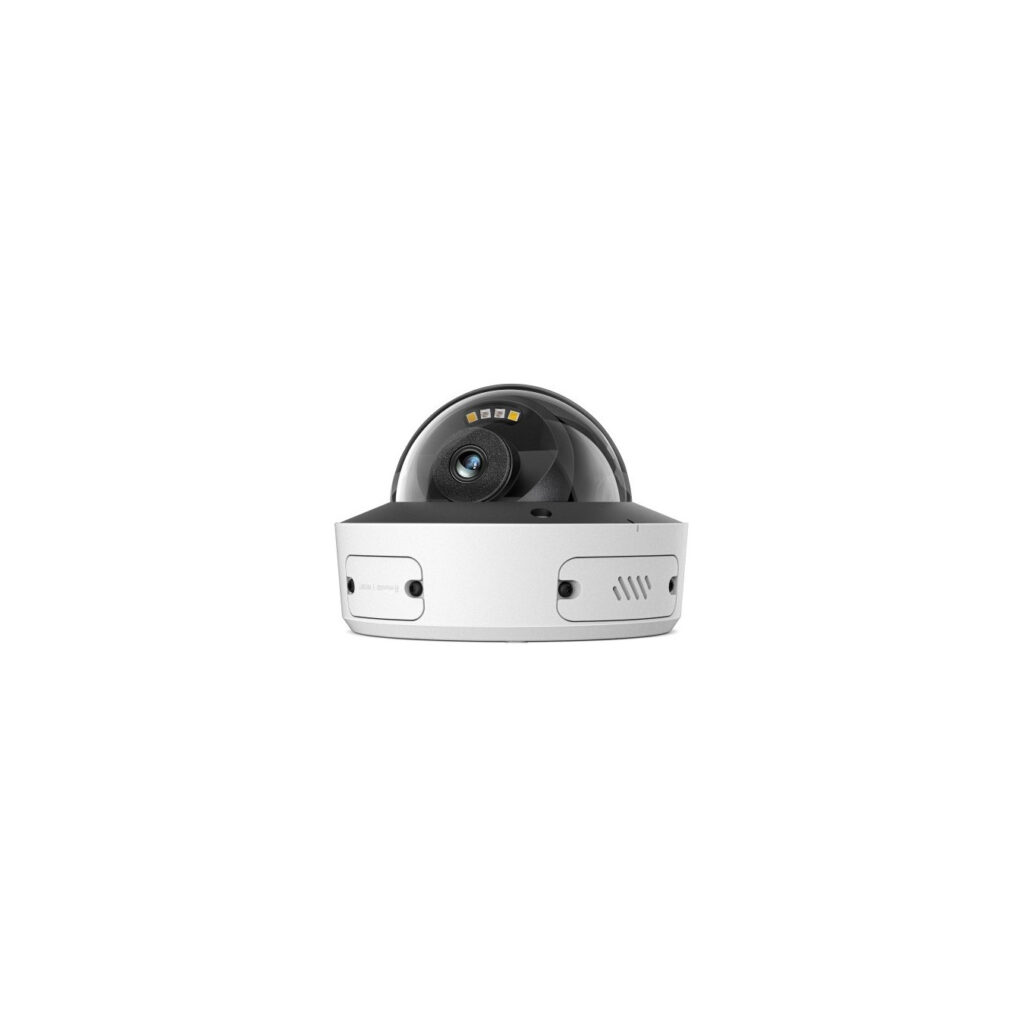

TP-Link Omada InSight S285 - 8MP (4K) Full-Color Dome Camera 2.8mm, IP67 White, PoE
Outdoor 8MP (4K) full-color dome IP camera, 2.8mm lens, PoE/DC, IP67 & IK10 rated, IR/white LEDs, 2-way audio, up to 85 m detection, 3840×2160, 11 W max.
Available in 6–10 business days : 25 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link InSight S285. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Ceiling. Product colour: White. Form factor: Dome. Lens viewing angle. horizontal: 110°. Lens viewing angle. vertical: 58.1°. Lens viewing angle. diagonal: 133.5°. Sensor type: CMOS. Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Detect distance: 85 m. Observe distance: 35 m. Recognize distance: 17 m
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 85 m |
| Feature | Manual |
| Dynamic range | 120 dB |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Minimum illumination | 0 lx |
| Lens viewing angle. horizontal | 110° |
| Lens viewing angle. vertical | 58.1° |
| Lens viewing angle. diagonal | 133.5° |
| Tilt angle range | 0 - 75° |
| Camera shutter speed | 1/3 to 1/10000 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Detect distance | 85 m |
| Observe distance | 35 m |
| Recognize distance | 17 m |
| Maximum aperture number | 1.6 |
| Identify distance | 8 m |
| Fixed focal length | 2.8 mm |
| LED type | IR/White |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 2688 x 1520. 3840 x 2160 |
| Image quality adjustment | Brightness. Contrast. Mirror. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 8 Mbps. Sub-Stream: 64 Kbps to 512 Kbps |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Detection distance | 85 m |
| Alert notification type | Push notification |
| Power source type | DC. PoE |
| Power consumption (max) | 11 W |
| Power consumption (Power over Ethernet (PoE)) | 12.3 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 122 mm |
| Depth | 122 mm |
| Height | 89 mm |
| Weight | 620 g |
| Number of cameras | 1 |
