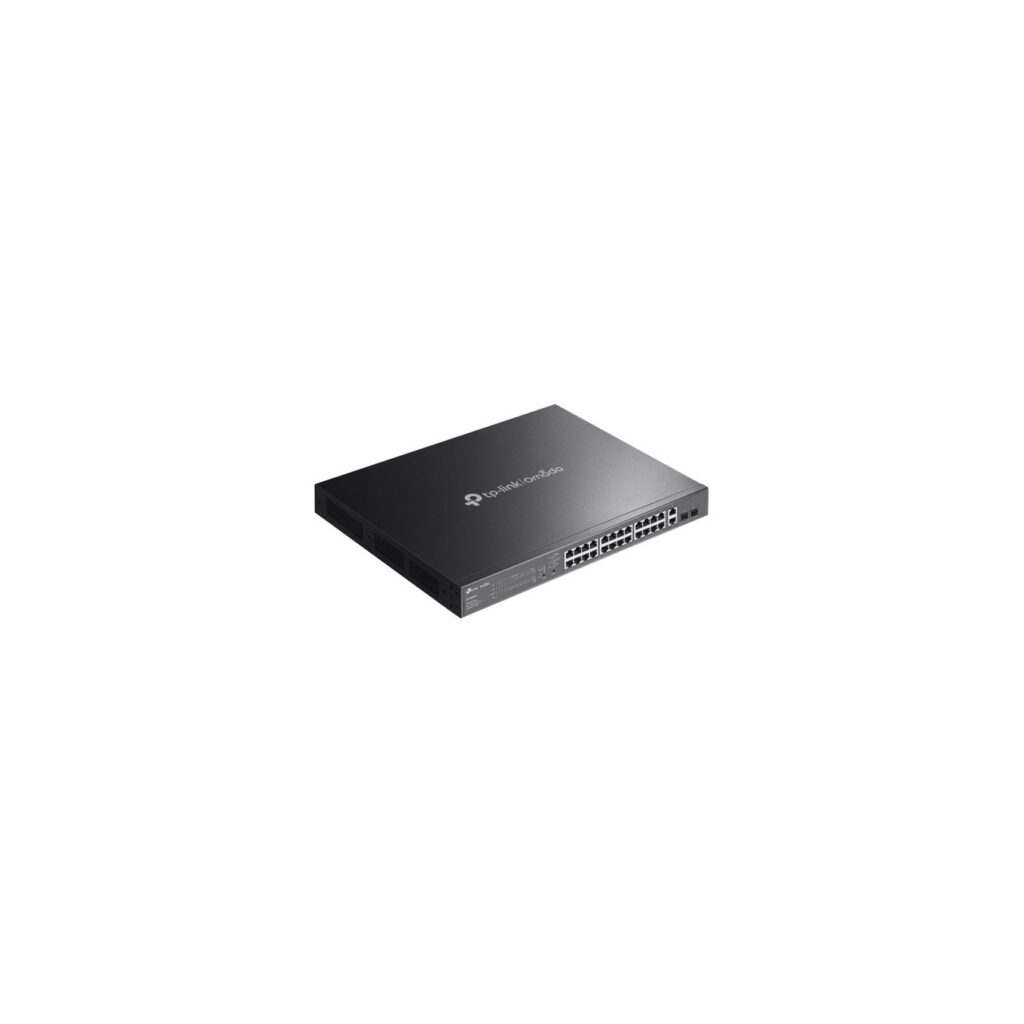

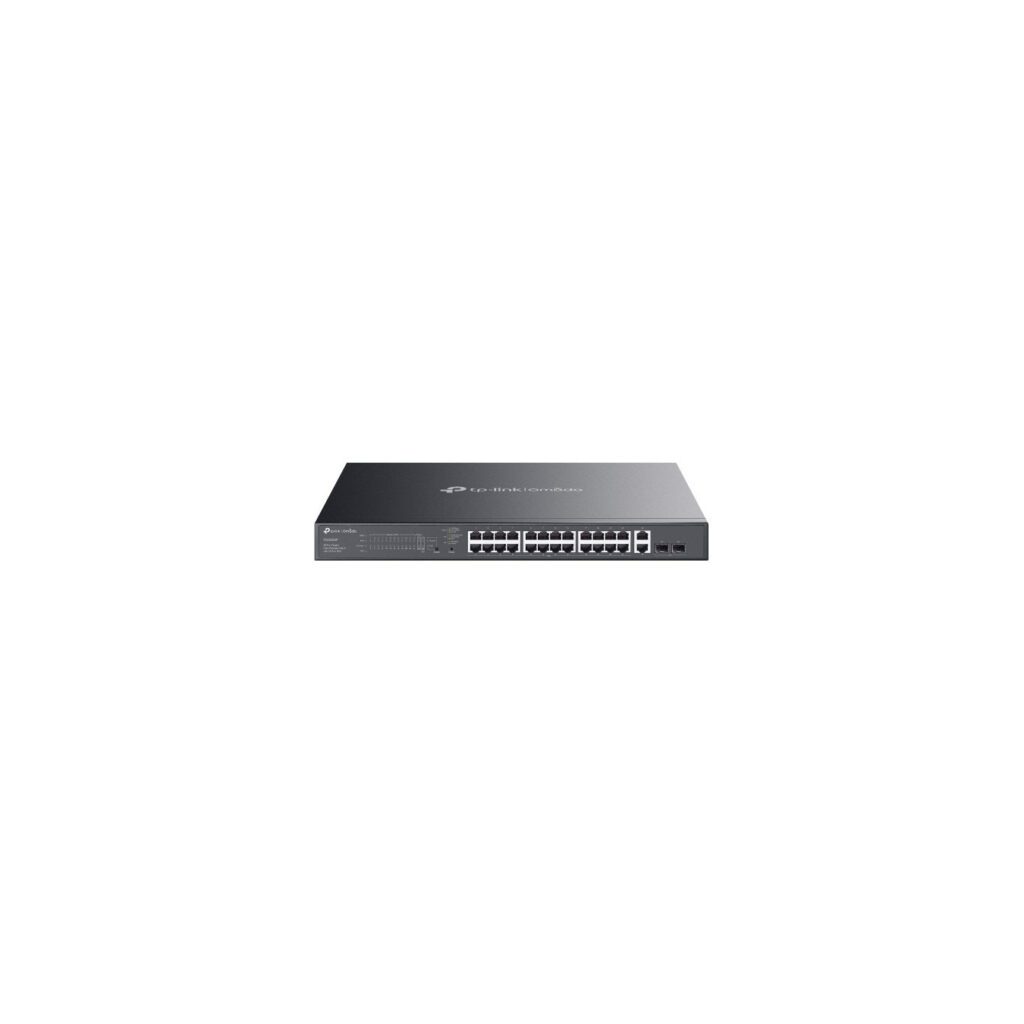

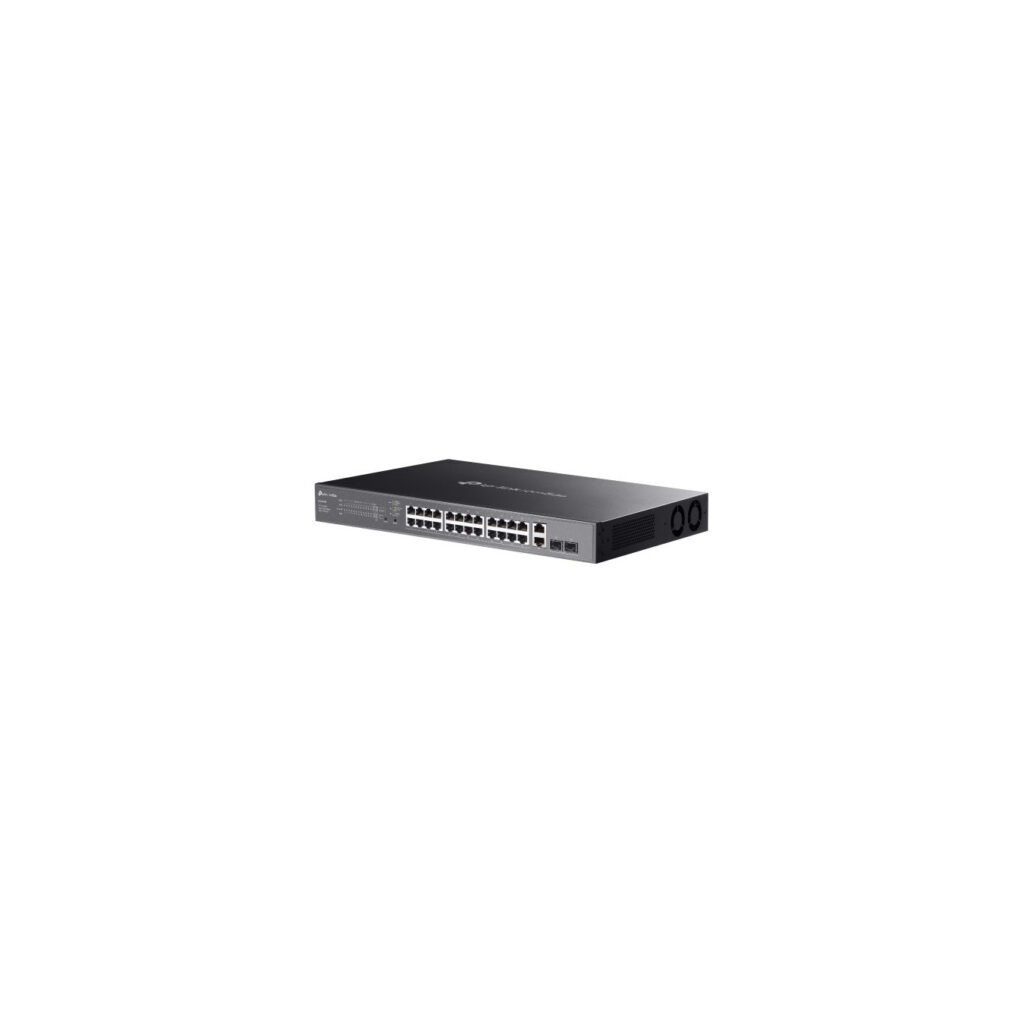

TP-Link Omada ES228GMP - 28-Port Gigabit Managed L2 Switch, 24x PoE+ Ports, 2x SFP, Rackmount
TP-Link Omada ES228GMP — 28-port Gigabit managed L2 switch with 24 PoE+ Gigabit ports, 2 SFP uplinks, 56 Gbps switching capacity and rack-mount kit.
Available in 6–10 business days : 9 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link Omada ES228GMP. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i….. Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 26 |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-X. 1000BASE-T. 1000BASE-X |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | MTU VLAN. Port-based VLAN. Tagged VLAN |
| Number of VLANs | 32 |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| DHCP features | DHCP client |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Product colour | Black |
| Housing material | Metal |
| Number of fans | 2 fan(s) |
| Flash memory | 64 MB |
| Noise level | 46.2 dB |
| Mean time between failures (MTBF) | 224143 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 454.8 W |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 384 W |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1546.15 BTU/h |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Cables included | AC |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
| Certification | FCC. CE. RoHS |
