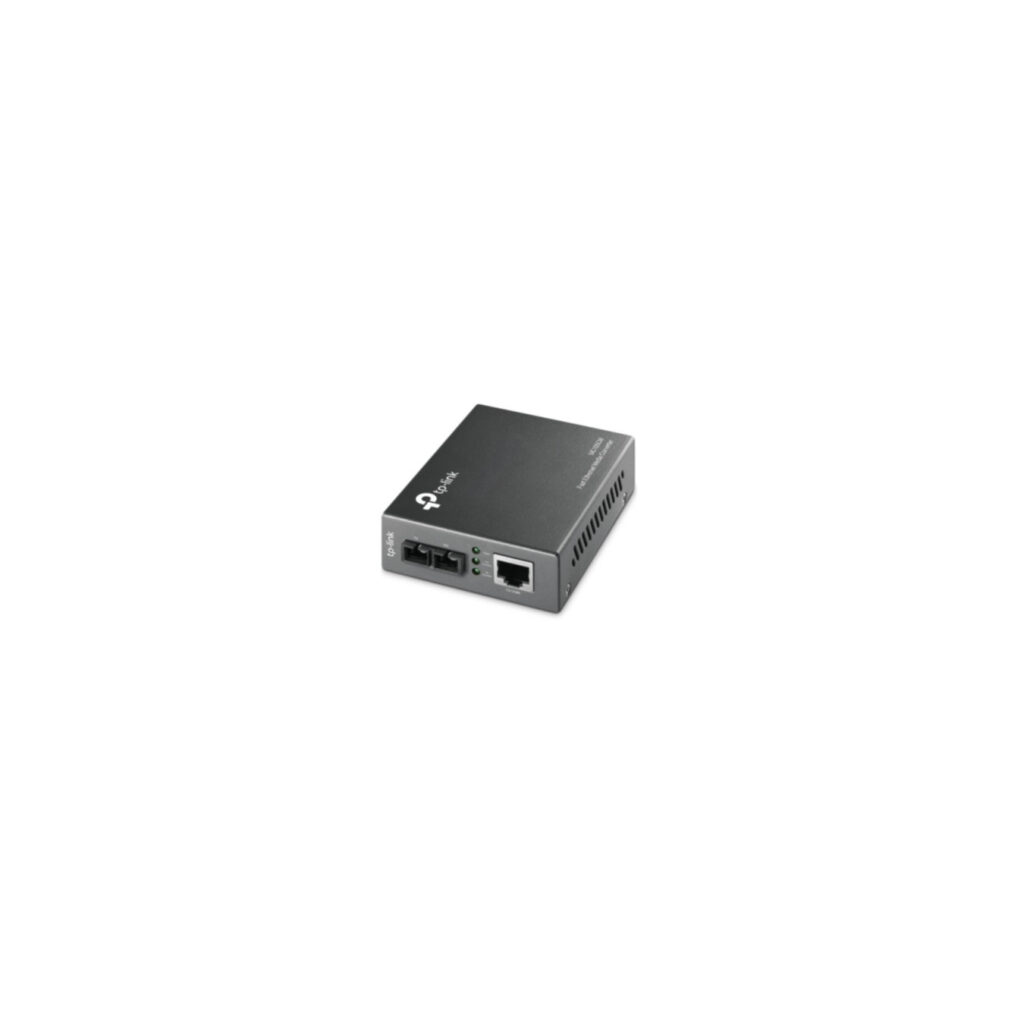

TP-LINK MC100CM - Media Converter - 100Mbps Multi-Mode SC 1310nm, Black
100 Mbps media converter (MC100CM) connecting 100Base-FX multi-mode SC fiber to 100Base-TX copper; 1310 nm LX, auto MDI/MDI-X, full/half duplex, up to 2 km.
Available in 8–10 business days : 1 piece
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power consumption (max) | 2.4 W |
| Width | 95 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Manual | Yes |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
