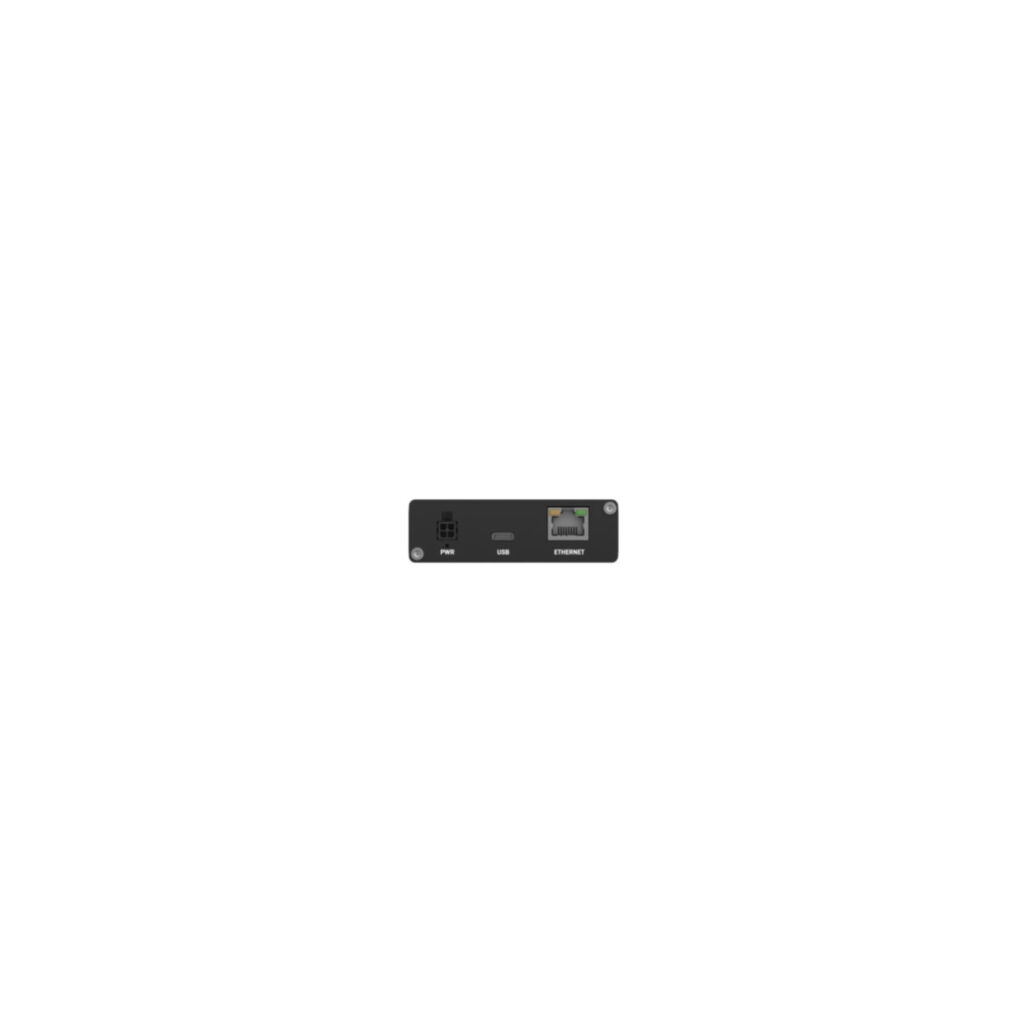

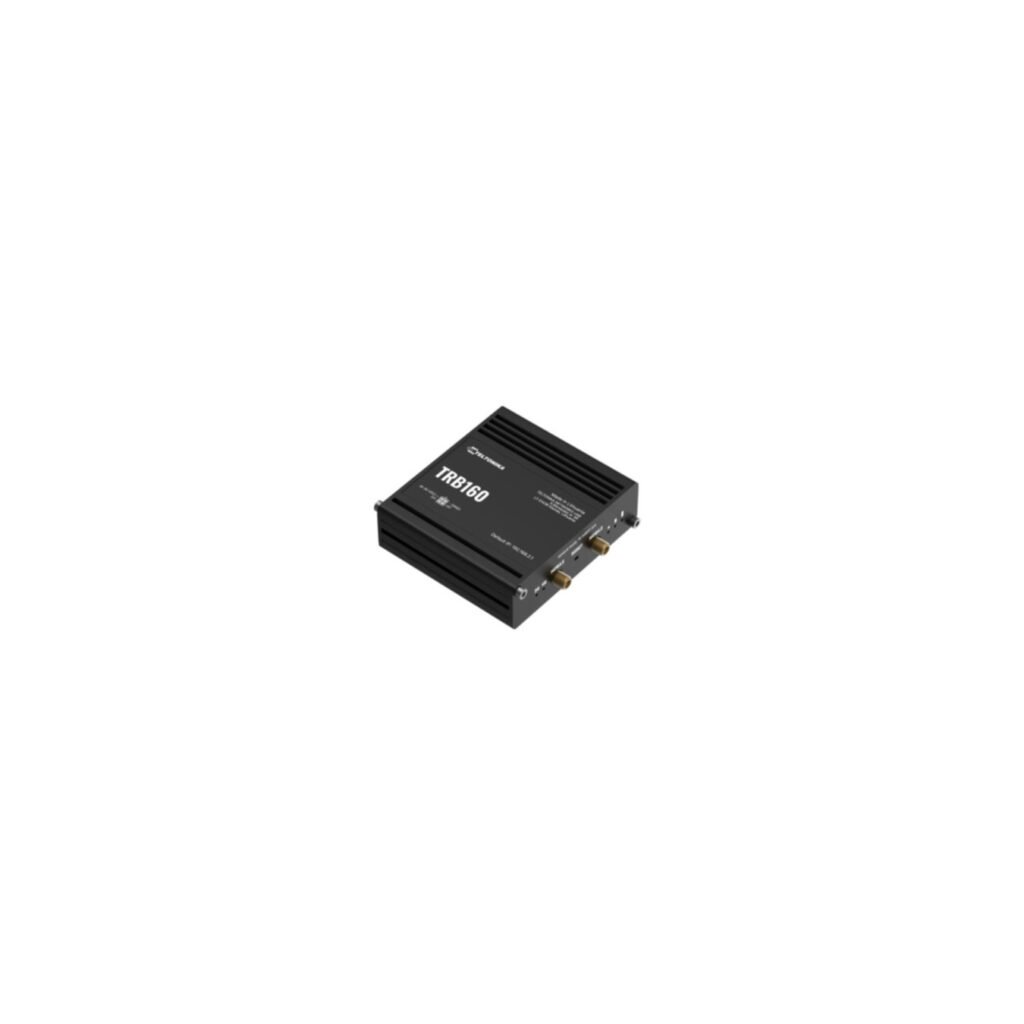

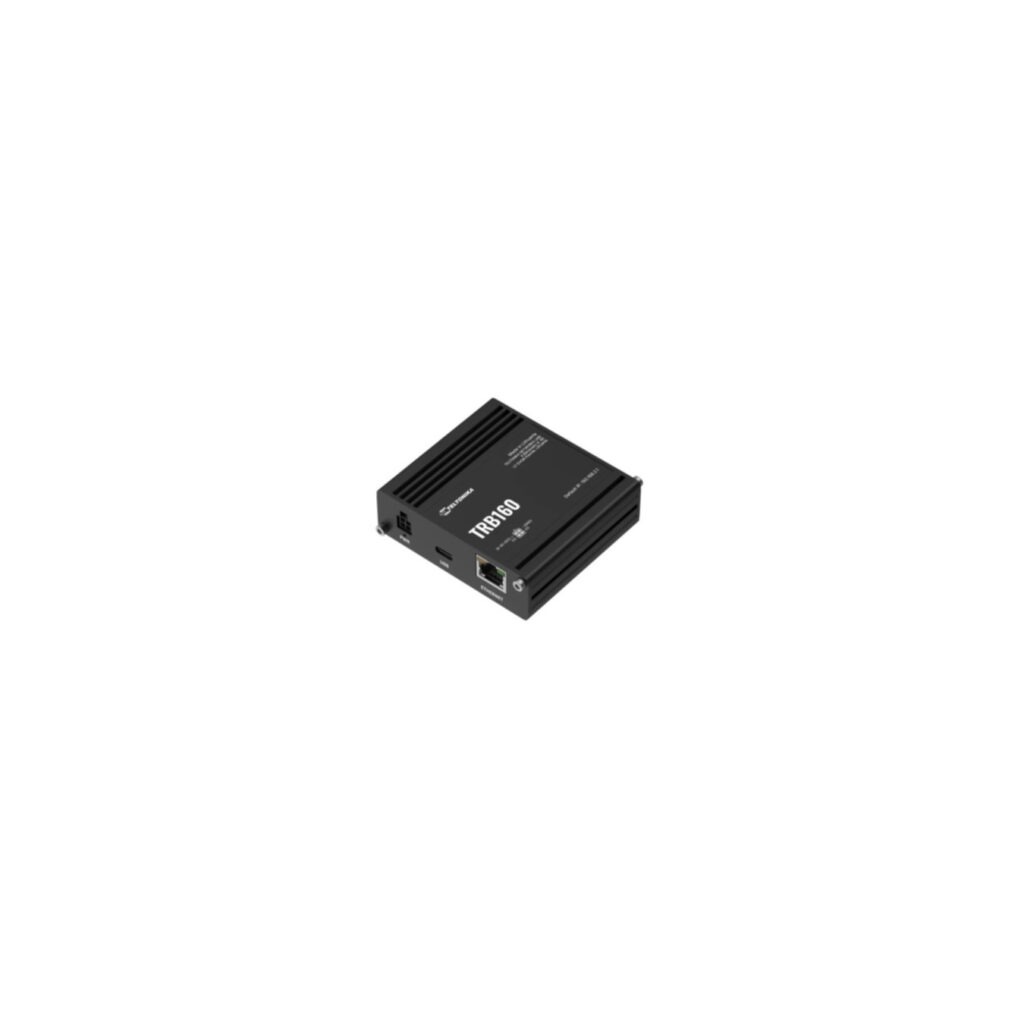

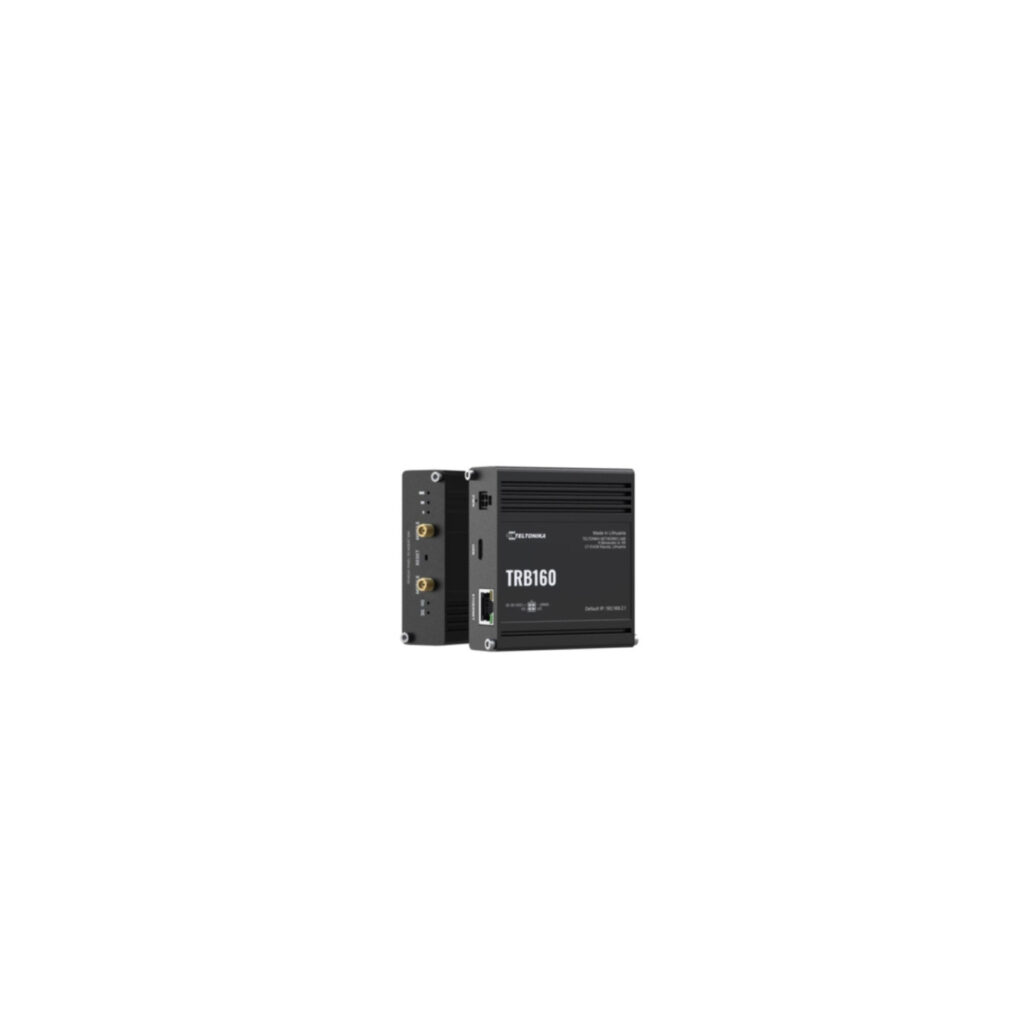

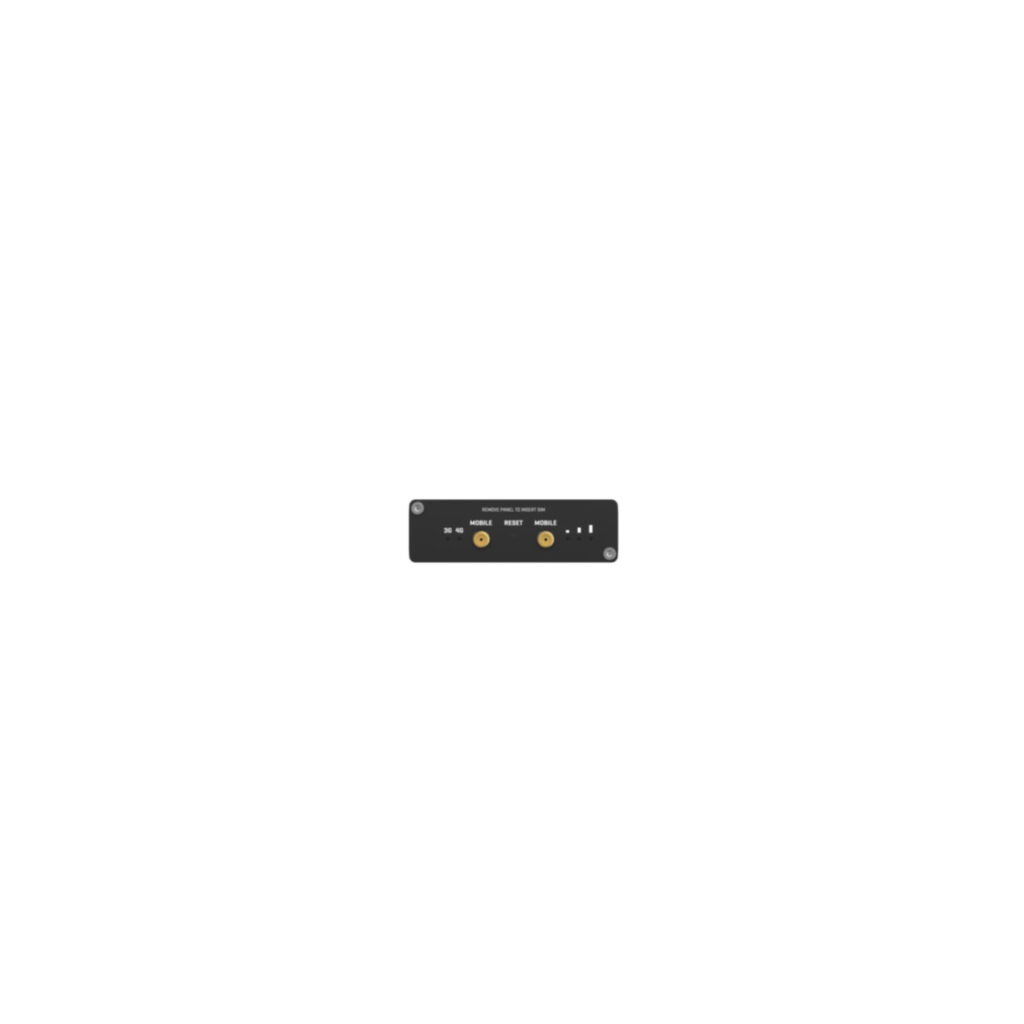

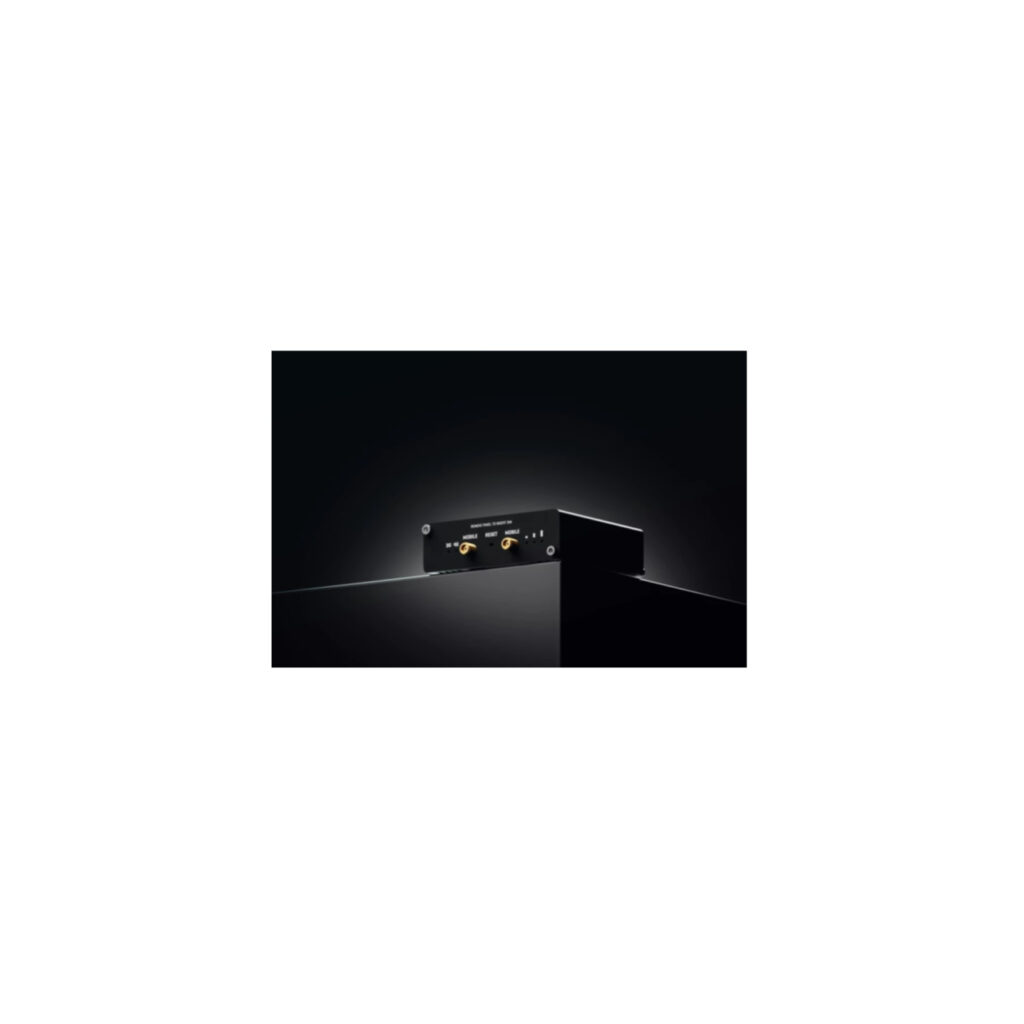

Teltonika TRB160 - Energy-Efficient LTE Cat 6 IoT Gateway - Steel, 128MB RAM, 256MB Flash, 1.2GHz Cortex-A7, USB-C
Ultra-small, energy-efficient IoT gateway with LTE Cat 6 (up to 300 Mbps), Gigabit Ethernet, USB-C power/data, SMA external antenna support, 128MB RAM.
Available in 6–10 business days : 30 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.
| Product colour | Steel |
| Enclosure material | Aluminium |
| International Protection (IP) code | IP30 |
| Enclosure International Protection (IP) code | IP30 |
| Antenna type | External |
| Antenna connector type | SMA |
| Antennas quantity | 1 |
| Short Message Service (SMS) | Yes |
| Control display unit | No |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | Cortex-A7 |
| Processor frequency | 1200 MHz |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Data link protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
| DMZ support | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 4G LTE category | 4 |
| Mobile network generation | 4G |
| Data network | 3G, 4G |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Firewall security | Yes |
| VLAN support | Yes |
| Network address translation (NAT) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Quality of Service (QoS) support | Yes |
| Power consumption (max) | 3.3 W |
| Input voltage | 5 V |
| Power over Ethernet (PoE) | Yes |
| DC input voltage | 9 - 30 V |
| Width | 74.2 mm |
| Depth | 83 mm |
| Height | 25 mm |
| Weight | 172 g |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
