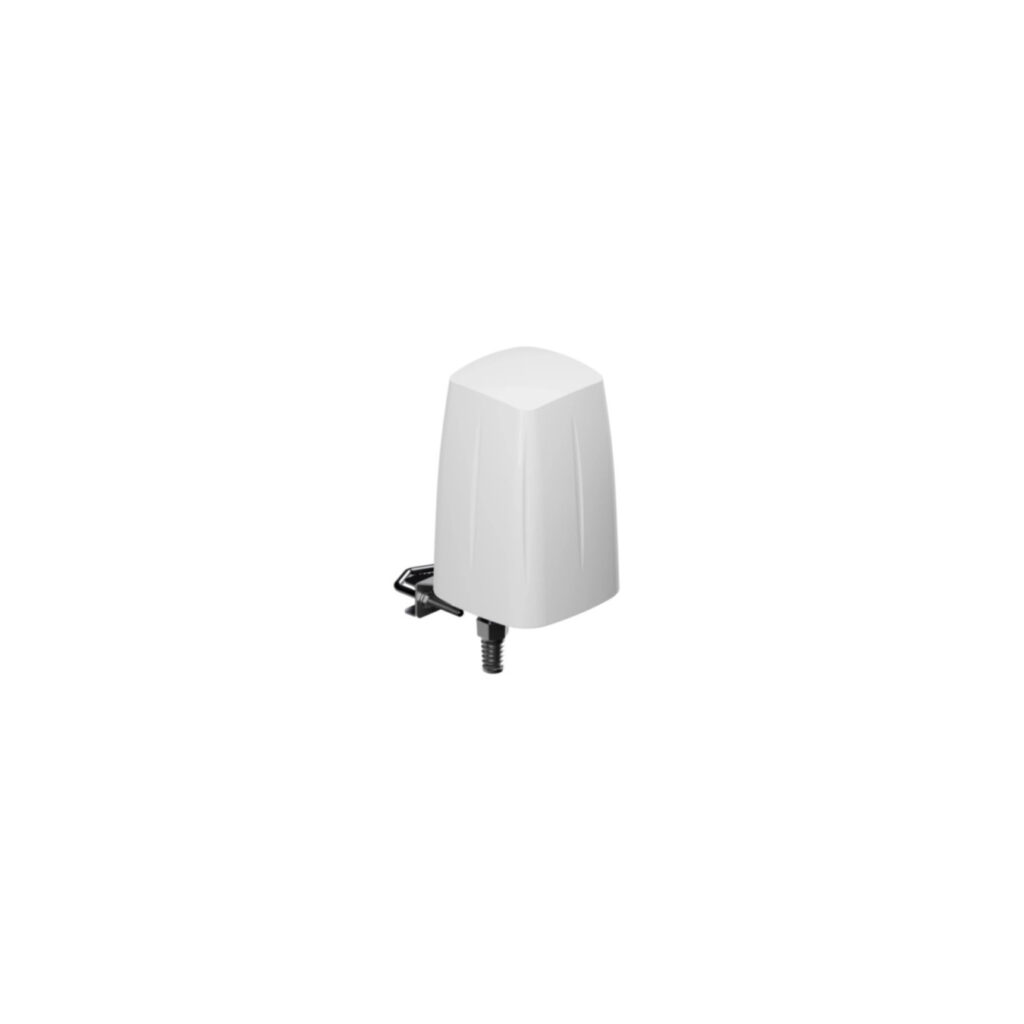

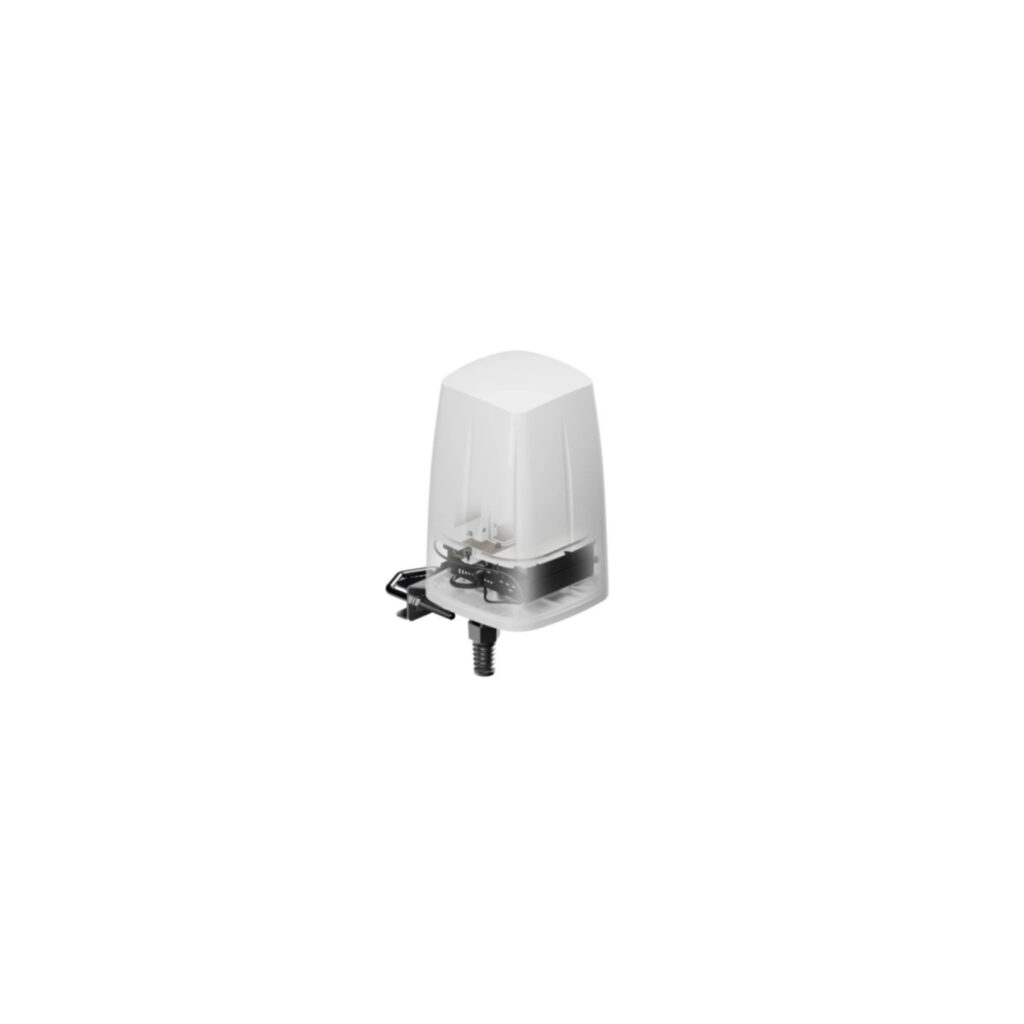

Teltonika TPR1IC97 Antenna - Omni LTE/Wi‑Fi 617–4300 MHz - SMA Male, IP67, RHCP
167.00 €
High-gain omni-directional Teltonika TPR1IC97 antenna for RUTX11/RUTM11 routers. SMA male, IP67, RHCP, 617–4300 MHz, Wi‑Fi 2.4–6 GHz, Bluetooth supported.
Available in 6–10 business days : 25 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
PR1IC970
OUTDOOR LTE/WI-FI/GPS/BLUETOOTH ANTENNA FOR RUTX11 AND RUTM11 ROUTERS
| Frequency band | 0.617 - 4.3 GHz |
| Impedance | 50 Ω |
| Bandwidth note | 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz |
| Antenna gain level (max) | 28 dBi |
| Wi-fi frequency range | 2.4 - 6 GHz |
| Bluetooth | Yes |
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
| Connector gender | Male |
| Polarization | RHCP polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.50 |
| International Protection (IP) code | IP67 |
| Mounting | Ceiling/wall |
| Input voltage | 2.5 - 6.5 V |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | -40 - 75 °C |
| Width | 160 mm |
| Depth | 189 mm |
| Height | 347 mm |
| Weight | 1.5 kg |
