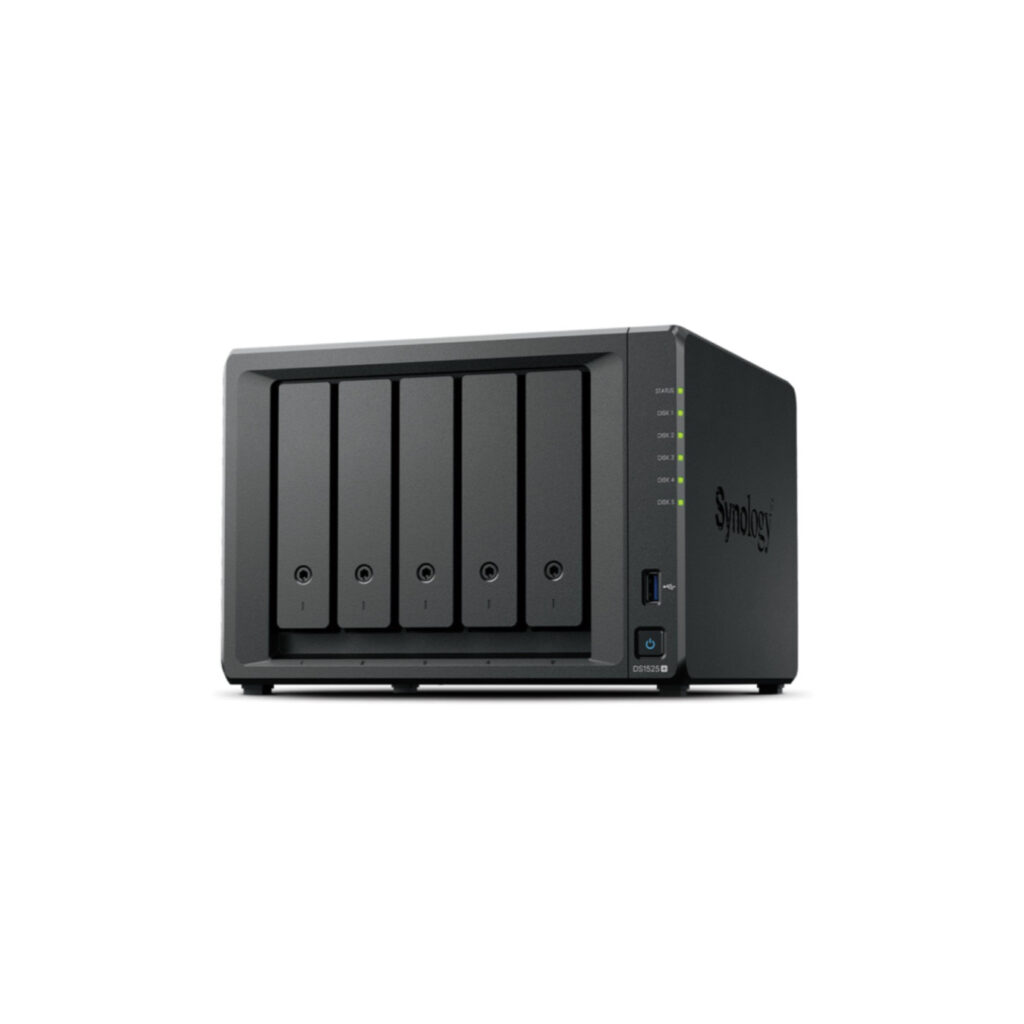

Synology DiskStation DS1525+ - 5-Bay NAS, AMD V1500B 2.2GHz, 2x2.5GbE, 2x M.2
1 862.50 €
5-bay scalable NAS with AMD Ryzen V1500B 2.2GHz, dual 2.5GbE, 2 M.2 slots, hot-swappable bays and expandable up to 300 TB raw storage.
Available in 6–10 business days : 2 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
A storage solution that can adapt with your evolving needs
5-bay with expansion
Up to 300 TB of raw storage with expansion unit1,2
High-speed storage
Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write3, and 10GbE option4
Versatile applications
Back up multiple endpoints, manage 40 IP cameras5, or safely sync and share files across sites
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | M.2, Serial ATA |
| Storage drive sizes supported | 3.5, M.2, 2.5 |
| Maximum supported storage capacity | 300 TB |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 15 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 9.2 cm |
| Fan diameter 2 | 9.2 cm |
| Drive bay locking | Yes |
| LED indicators | Yes |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Yes |
| Number of users | 1024 user(s) |
| Noise level | 22.6 dB |
| Snapshot | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| On/off switch | Yes |
| Browser supported | Chrome,Firefox,Edge,Safari |
| System log | Yes |
| Power supply location | External |
| Power supply unit (PSU) capacity | 120 W |
| Power consumption (typical) | 44.56 W |
| Power consumption (HDD standby) | 13.63 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 230 mm |
| Depth | 223 mm |
| Height | 166 mm |
| Weight | 2.67 kg |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
