Sonoff Zigbee 3.0 Smart Switch - ZBMINI-L - Zigbee 3.0
No neutral required; single-live-wire Zigbee 3.0 smart switch with external rocker switch support; DIN rail mount optional; 6A, 1380W.
Available to order: 5 pieces (2–3 business days)Order today22 NovAt our store24–25 NovDelivered to you26–30 Nov
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Questions? Call 22 270068
- 5 piecesAvailable to order
- 4–6 business daysdelivered to you
- 2–3 business daysat our store in Nicosia
- Pay your waycards, Apple Pay, Google Pay or in store
Key specs
At a glance
- 6ACurrent
- Smart SwitchType
- 1380WWattage
Product information
Details

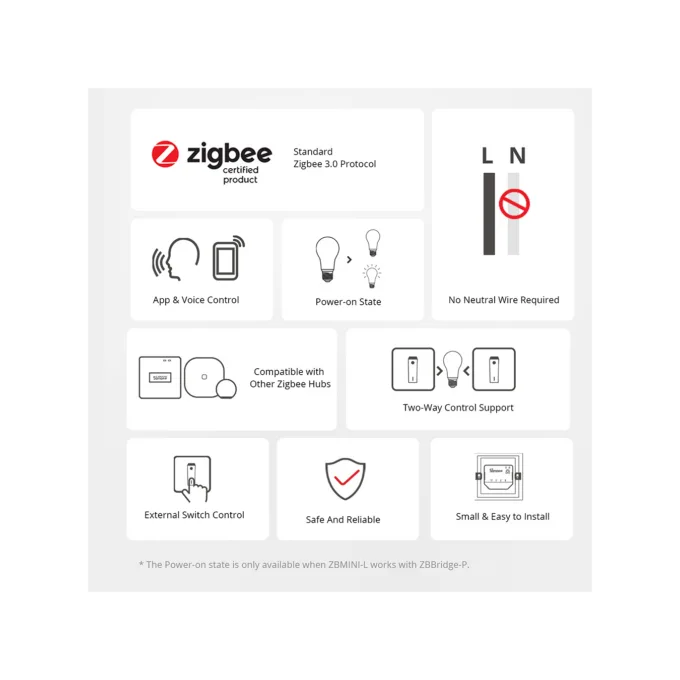

- No Neutral Wire Required : Single live wire Zigbee 3.0 protocol smart switch, fits all the situations of the electrical wiring for the home
- External Switch Connected : Supported rocker light switch and push-button wall switch
- Compatible with other Zigbee Hubs : Supports being added to any Zigbee hub developed according to the standard protocol, including Amazon Alexa Echo Speaker (Built-in Zigbee Hub), Samsung SmartThings Hub, SONOFF Zigbee Bridge Pro, ZBBridge, SONOFF Zigbee Dongle Plus
- Two-way Control : By installing ZBMINI-L in one of your existing two- or multi-way control junction boxes to make the connected light smart
- Safety and Reliability : In addition to the CE, FCC certification, ZBMINI-L has also passed the TÜV certification
- Input : 100-240V/AC/50/60Hz-6A-Max
- Output : 100-240V/AC/50/60Hz-6A-Max
- Max load : Resistive load :1380W Max @230V, 720W Max @120V / LED:300W Max @230V, 150W Max @120V
- Communication distance : Up to 50m (Empty environment)
- Wireless connection : Zigbee 3.0
- Working temperature : -10~40℃
- Casing material : PC V0
- Product Size : 54x45x24mm
- Certification : TUV/CE/FCC/UKCA/RoHS
| Current | 6A |
| Type | Smart Switch |
| Din Rail Mount | Optional (With DIN Rail Tray) |
| Output | 1 X Line Out/1 X Dry Contact |
| Mode | Interlock/self-locking/inching |
| Wattage | 1380W |
