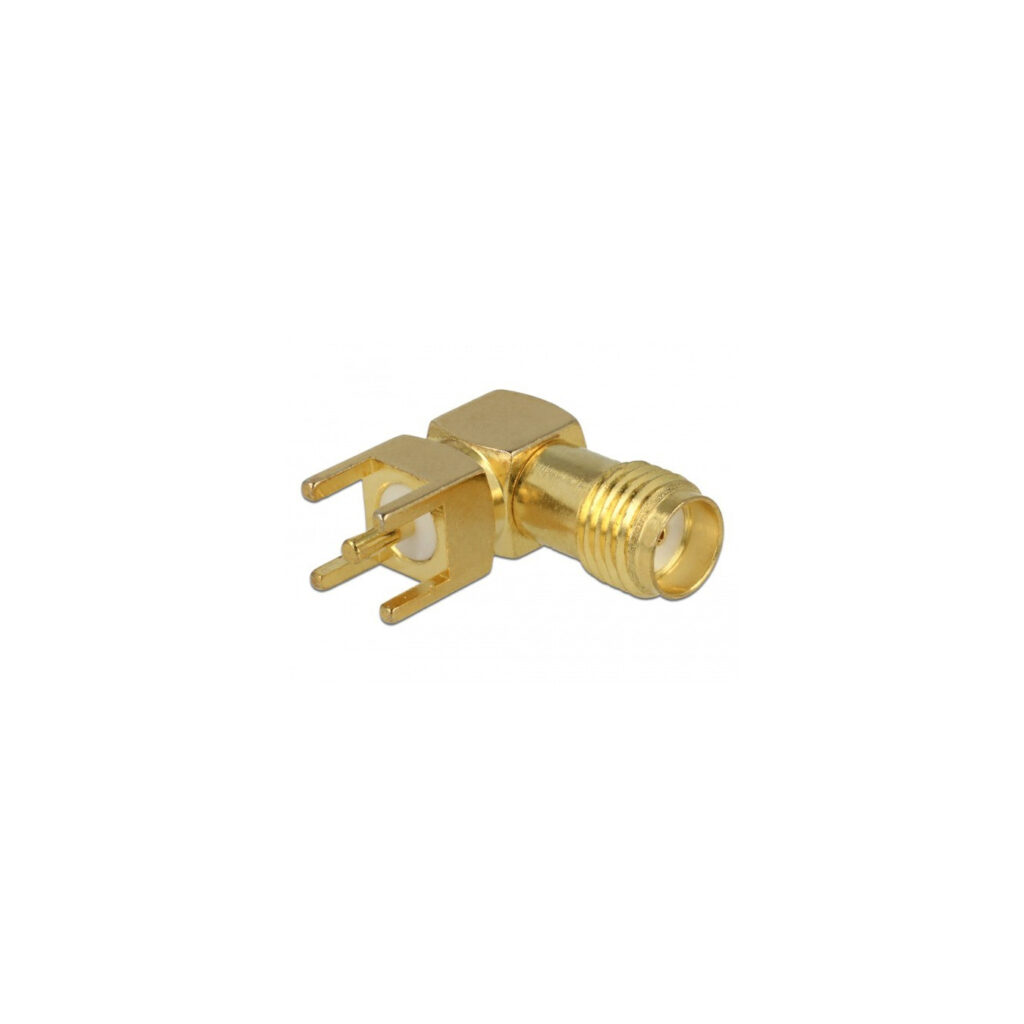

SMA socket 90° PCB
11.50 €
The Delock socket 65849 is suitable for soldering mounting on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
Item no.: 1454227
Available to order: 500 piecesOrder today12 NovAt our store20–26 NovDelivered to you24 Nov – 1 Dec
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Delock socket 65849 is suitable for soldering mounting on circuit boards. The gold coating prevents corrosion and ensures an optimal connection.
| Typ | socket |
| Color | gold |
| EAN | 4043619658497 |
| Manufacturer no. | 65849 |
| Manufactured in | China |
| Operating temperature | -55 °C to 165 °C |
| Feature | Pins gold-plated brass, insulation: PFTE, housing: gold-plated brass |
| More information | Connection: 1x SMA socket 90°, frequency range 0 - 6 GHz, impedance 50 Ohm, VSWR 1.2 thread type 1/4" - 36 UNS - 2A, thread length 5mm, voltage strength 500V / 50Hz, soldering mounting: 5 soldering points |
| Notice | System requirements: Suitable board for mounting the SMA connector |
| Dimensions | Width: 15.3mm x Height: 14mm x Depth: 6mm |
| Weight | 20 Gramm |
