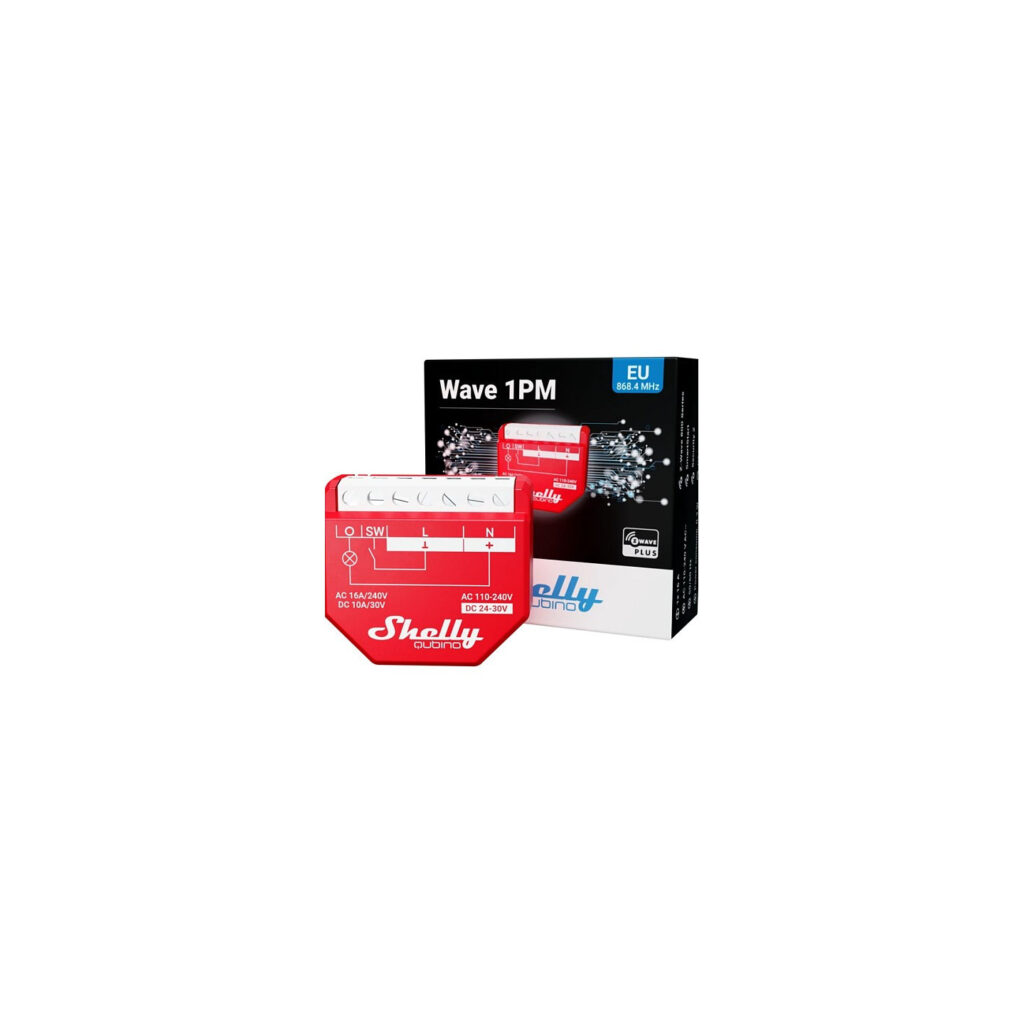

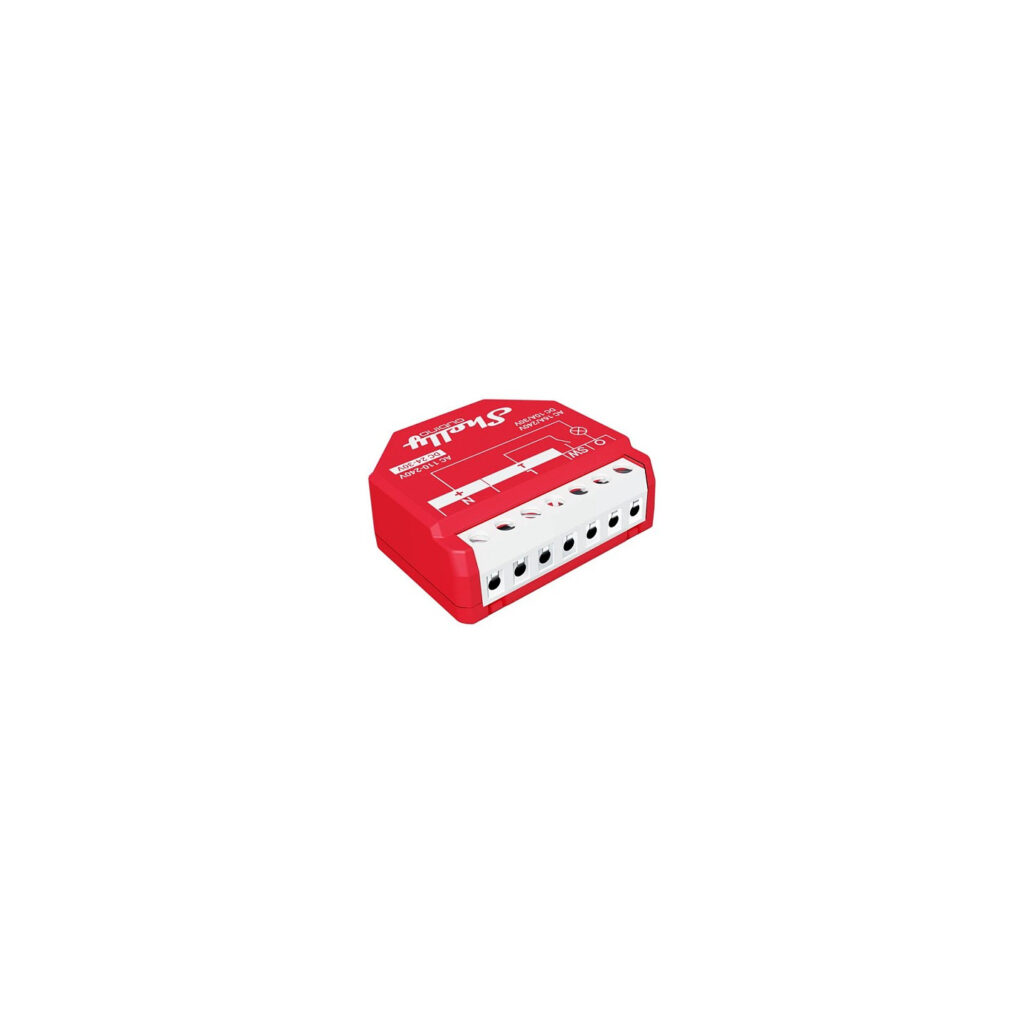

Shelly Relais 'Wave 1PM' max. 16A 1 Kanal Unterputz Messfunktion
Shelly Qubino Wawe 1PM. Intelligenter Schalter. Kunststoff. 25 dBmW. Z-Wave. 868.4 MHz. 40 m
Available in 6–10 business days : 500 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Shelly Qubino Wawe 1PM. Typ: Intelligenter Schalter. Gehäusematerial: Kunststoff. Sendeleistung: 25 dBmW. AC Eingangsspannung: 110 – 240 V. DC Spannungsrange: 24 – 30 V. Schaltleistung: 16 A. Breite: 42 mm. Tiefe: 16 mm. Höhe: 37 mm. Menge pro Packung: 1 Stück(e)
| Typ | Intelligenter Schalter |
| Gehäusematerial | Kunststoff |
| Sendeleistung | 25 dBmW |
| Unterstützte Funkprotokolle | Z-Wave |
| Funkfrequenz | 868.4 MHz |
| Maximum Innenabstand | 40 m |
| Produktfarbe | Rot |
| Drahtgrößenbereich | 0.5 - 1.5 mm² |
| Befestigungstyp | Wand |
| Feature | Für die Nutzung im Innenbereich geeignet |
| AC Eingangsspannung | 110 - 240 V |
| DC Spannungsrange | 24 - 30 V |
| Schaltleistung | 16 A |
| Nennstrom | 0.3 A |
| Maximale Schaltspannung (AC) | 240 V |
| Maximale Schaltspannung (DC) | 30 V |
| Maximaler Schaltstrom (AC) | 16 A |
| Maximaler Schaltstrom (DC) | 10 A |
| Breite | 42 mm |
| Tiefe | 16 mm |
| Höhe | 37 mm |
| Gewicht | 27 g |
| Betriebstemperatur | -20 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 30 - 70% |
| Menge pro Packung | 1 Stück(e) |
