Seasonic Core-GX-850 850W 80+ Gold Fully Modular ATX 3.1 White
Seasonic Core-GX-850 850W 80 PLUS Gold fully modular white PSU. ATX 3.1 & PCIe 5.1 compliant with 12V-2×6 connector, OptiSink design, HDB 120mm fan, 7-year warranty. Compact 140mm depth for mid-range builds.
Available in 4–6 business days : 20 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Seasonic Core-GX-850 White ATX 3.1

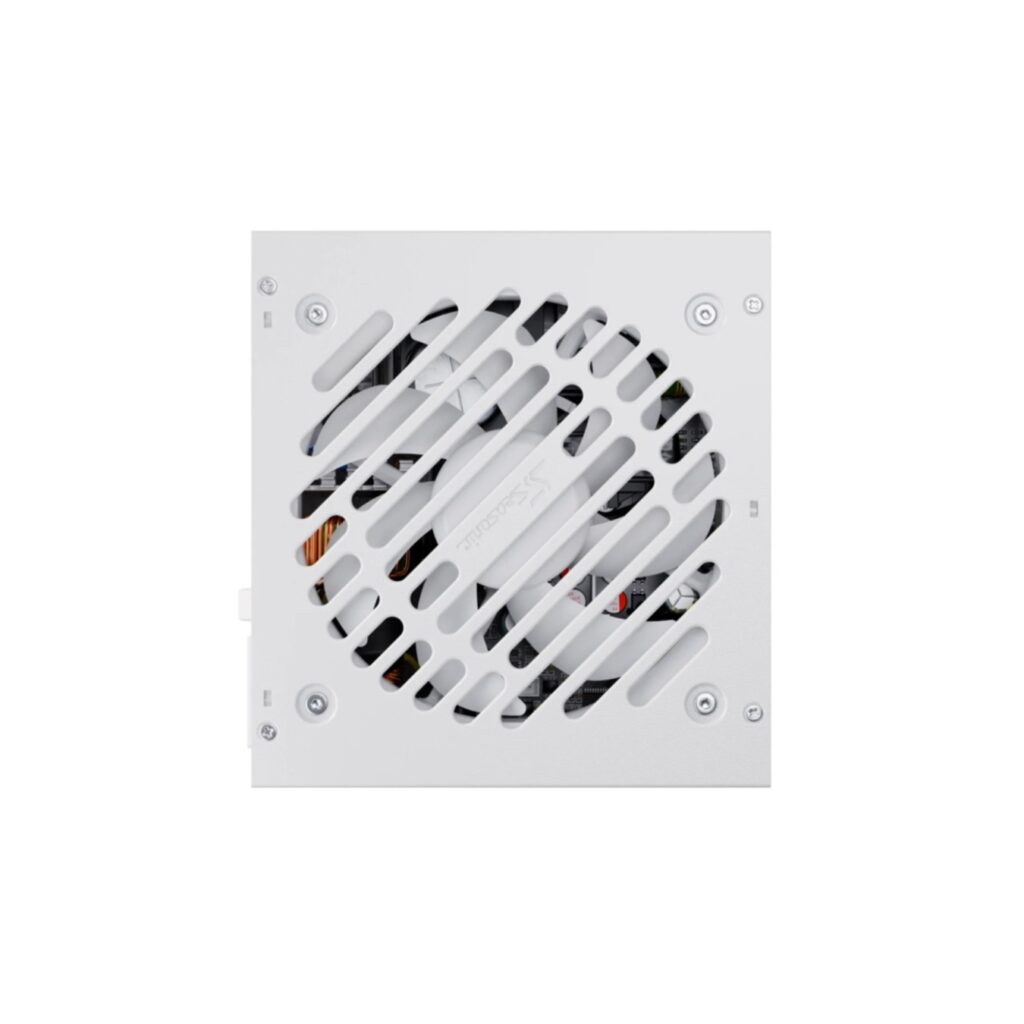

The Seasonic CORE GX White series meets ATX 3.1 and PCIe 5.1 standards, delivering 850W with 80 PLUS Gold efficiency. Fully modular with white braided cables, it’s ideal for gamers and builders seeking performance at a fair price. Features a 120mm Hydro Dynamic Bearing fan and Smart Silent Fan Control for optimal cooling and low noise.
OptiSink Design & Reliability
New PCB layout with automated SMT production reduces errors and enhances heat dissipation up to 8x better. Compact components improve airflow, allowing any orientation installation. Includes full protections: OCP, OVP, OPP, OTP, SCP, UVP. Backed by 7-year warranty.
Connectivity

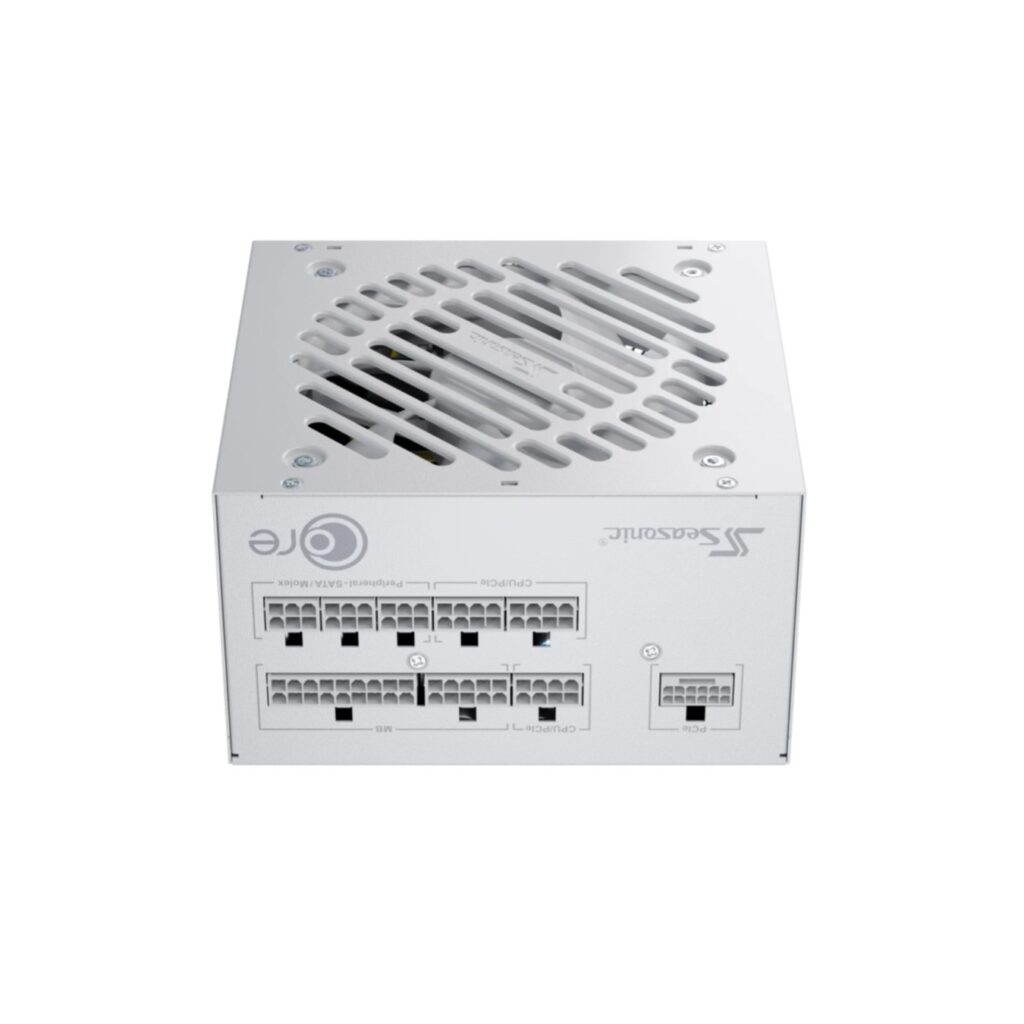

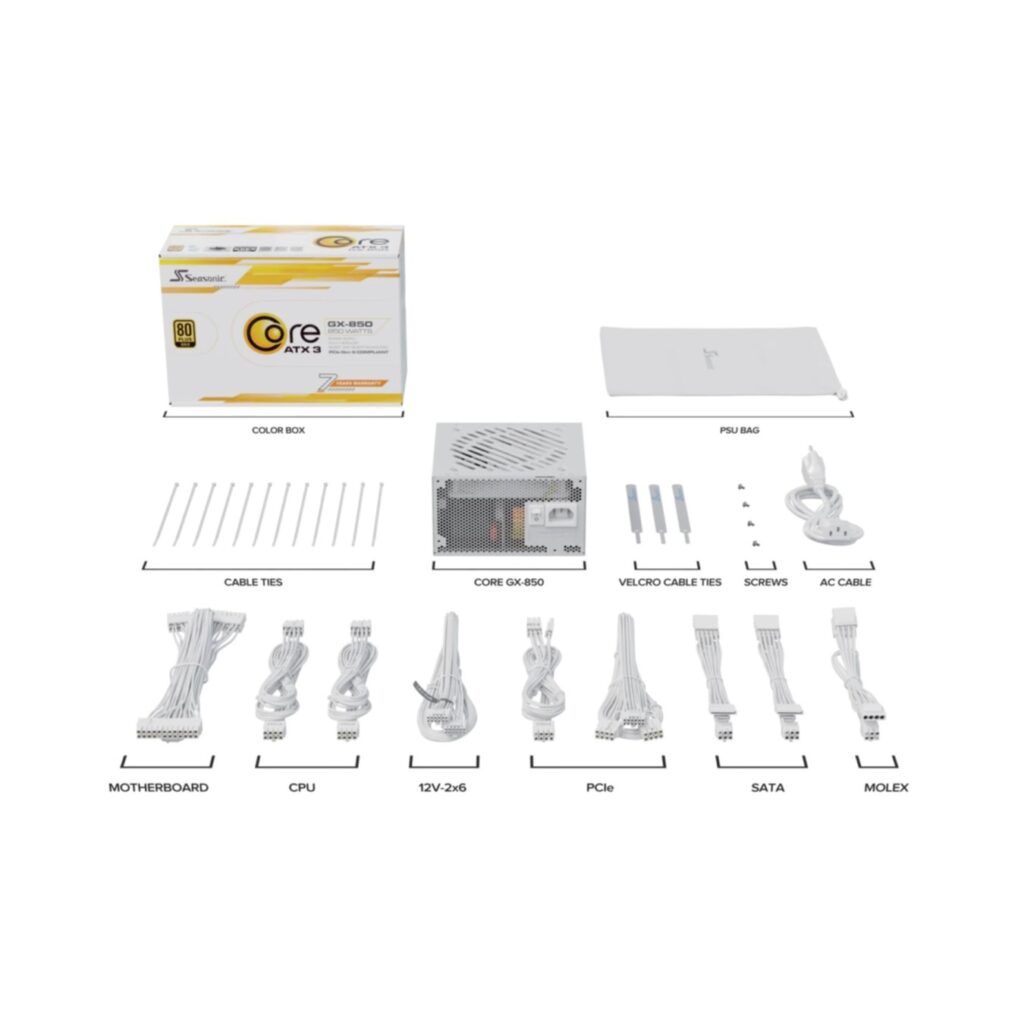

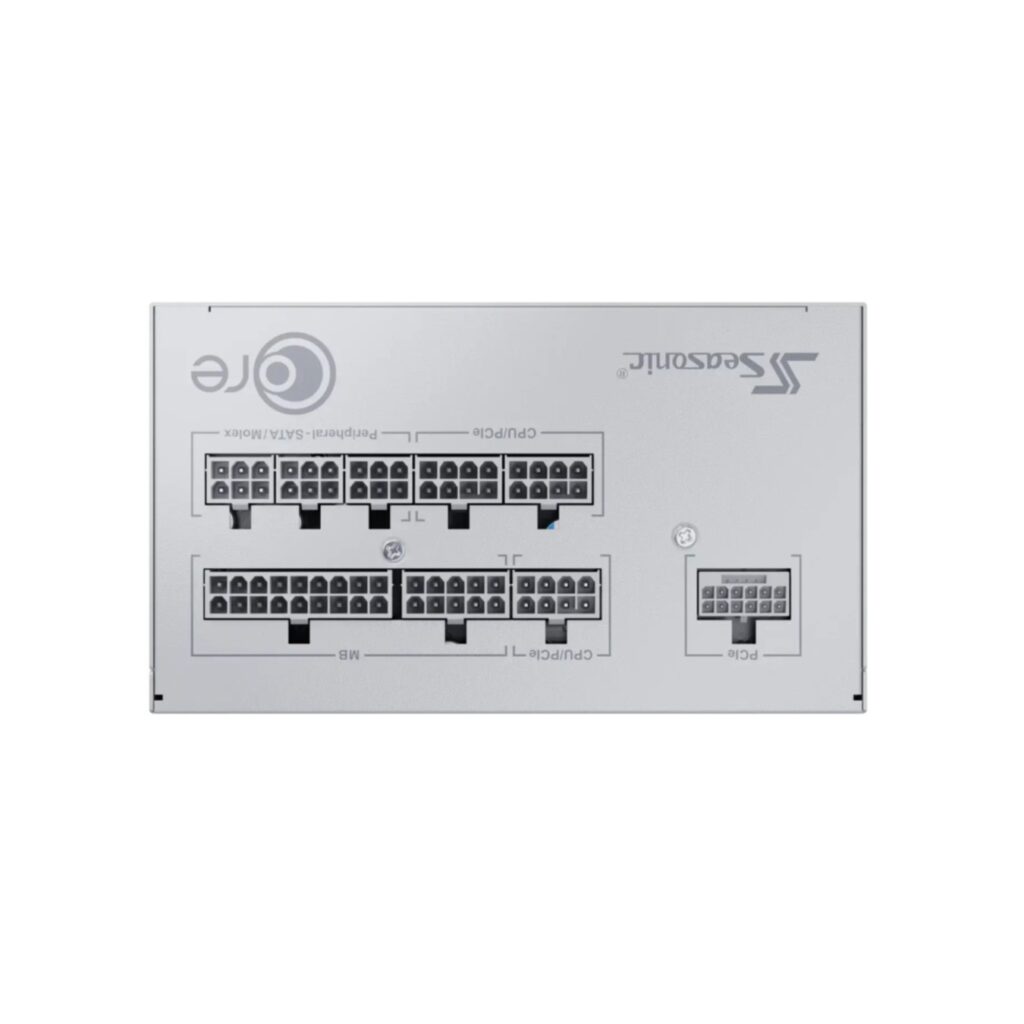

1x 20+4pin ATX, 1x 4+4pin EPS, 1x 12V-2×6 (600W), 3x 6+2pin PCIe, 3x SATA, 3x Molex. Supports high-end GPUs and modern systems.
- ✅ 80 PLUS Gold certified (up to 93% efficiency)
- ✅ Native PCIe 5.1 12V-2×6 connector
- ✅ Fully modular white cables
- ✅ 140mm depth, ATX form factor
- ✅ 7-year Seasonic warranty
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 11 - 5.5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) | 1 (12V-2x6) |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | Hydro Dynamic Bearing |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Mean time between failures (MTBF) | 100000 h |
| Warranty | 7 years |
