Riser Card PCI Express x1 to x16 with 60 cm USB Cable
Delock PCI Express riser card for PCIe x1 to x16 with a 60 cm USB 3.0 cable; no USB signals transmitted via this cable; exchange not possible.
Available in 6–10 business days : 100 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

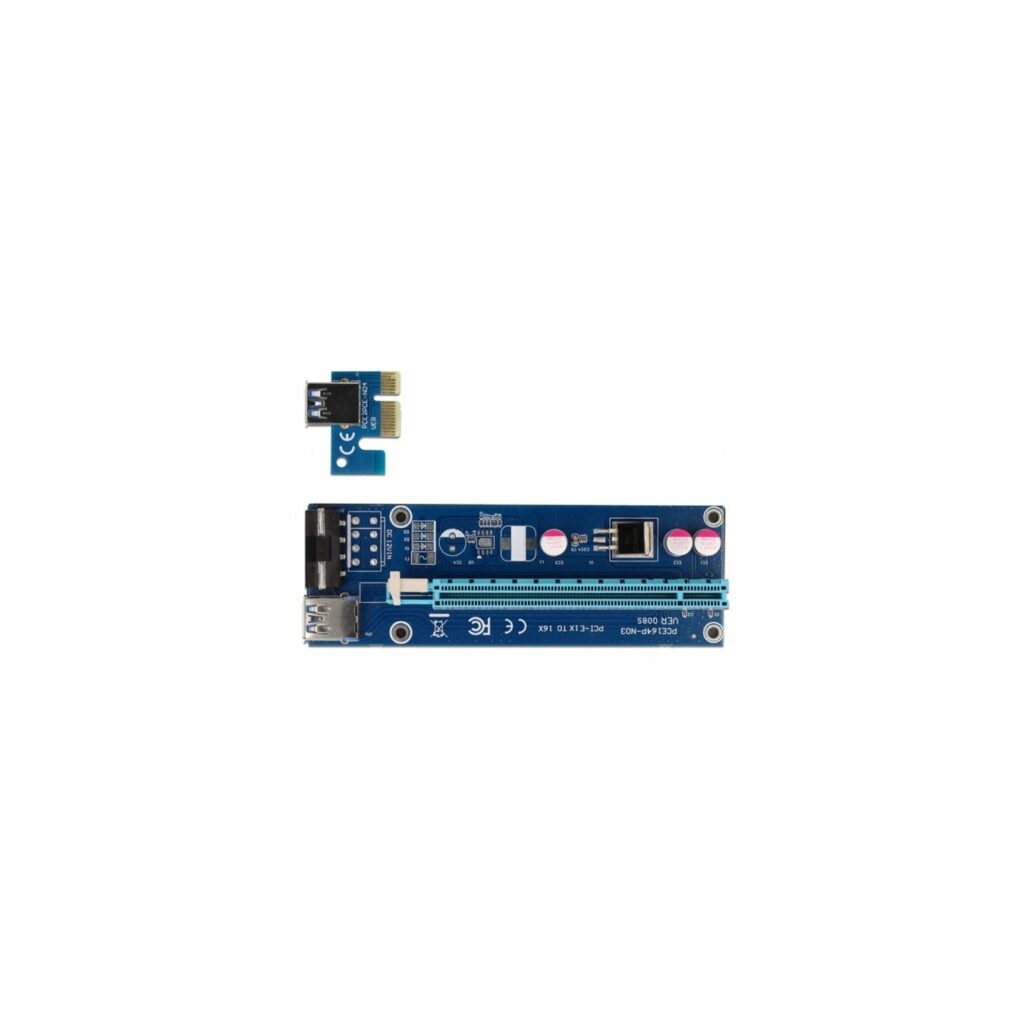

The Delock PCI Express riser card can be inserted into any PCI Express x1 slot on the mainboard. The x16 PCI Express slot can then be mounted in a different position in the case. This means that a graphics card can be operated in every single PCIe slot on a motherboard, even if the graphics card is wider than a single slot. By using multiple riser cards, multiple graphics cards can be operated on one motherboard at the same time, e.g. B. for mining cryptocurrencies.
| Typ | Riser Card |
| EAN | 4043619414307 |
| Manufacturer no. | 41430 |
| slot | PCIe x1 |
| Cable length | 20 cm |

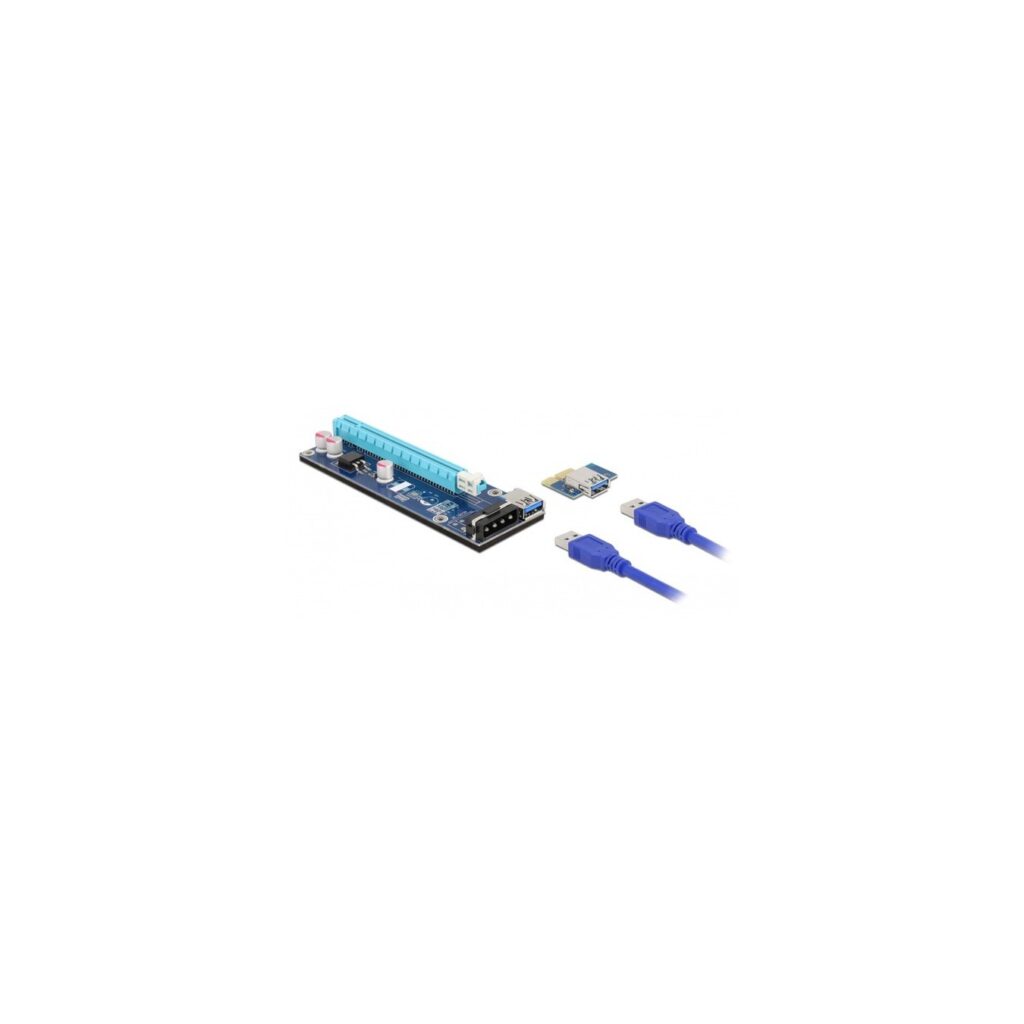

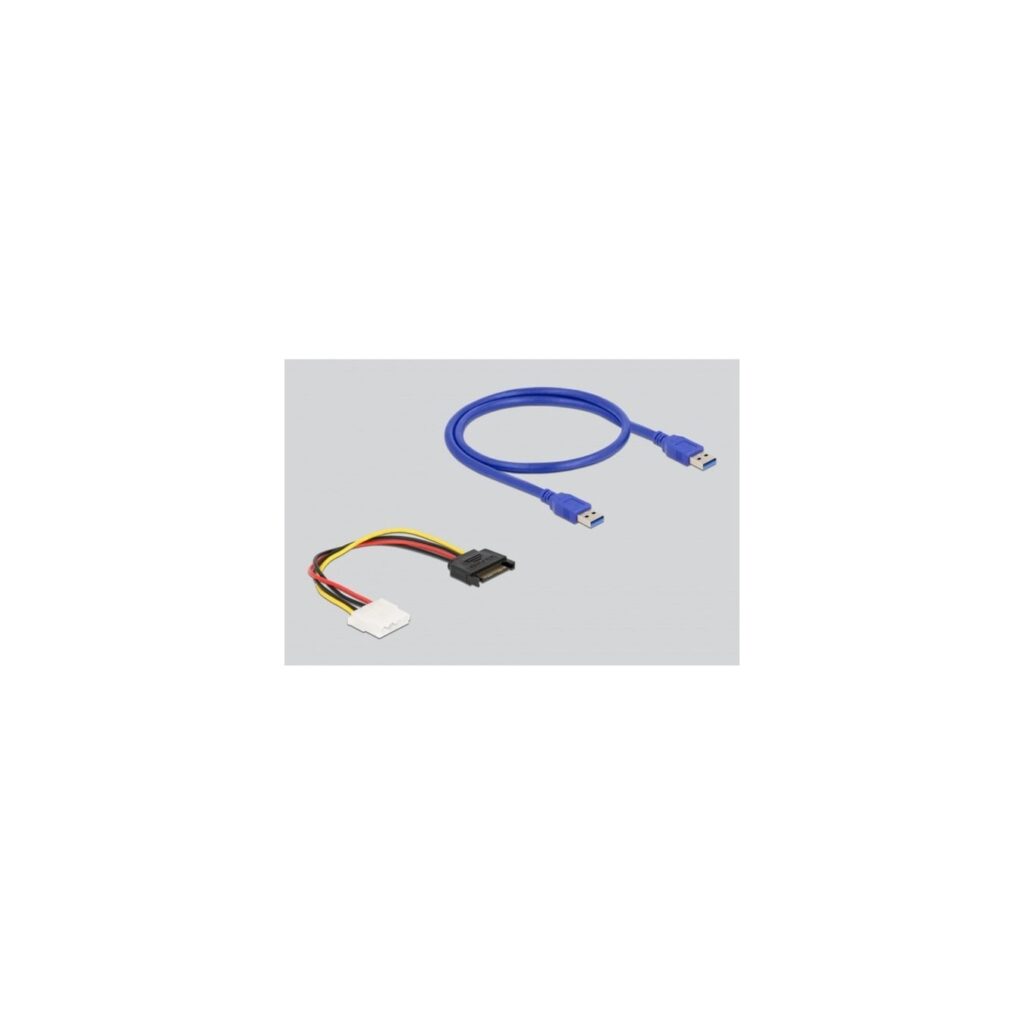

| Feature | Connections mainboard side: 1x USB 3.0 Type-A socket | Riser side: 1x USB 3.0 Type-A socket, 1x 4-pin power connector | Data transfer rate up to 800 MB/s | 3x FP Solid capacitors ensure secure power supply for the graphics card 4x mounting holes on the riser card | Bottom with insulating, non-slip pad | Cable data: 1x riser cable USB 3.0 Type-A male to male approx. 60 cm (including connections) | 1x power cable SATA to 4-pin power plug approx. 20 cm (incl. connectors) | Dimensions of the riser card (LxWxH): approx. 128.25 x 43.50 x 21.20 mm |
| More information | The scope of delivery includes a USB 3.0 riser cable with a length of 60 cm. No USB signals are transmitted via this cable, so exchanging it for another or a longer cable is not possible. |
| Dimensions | Depth/Length: 128.25mm |
