PULSE Mainboard - A620AM - Mainboard
115.00 €
AM5-ready SAPPHIRE PULSE A620AM motherboard based on AMD A620 chipset; supports Socket AM5 CPUs and DDR5 memory up to 64 GB (2x DIMMs).
Available in 6–10 business days : 10 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

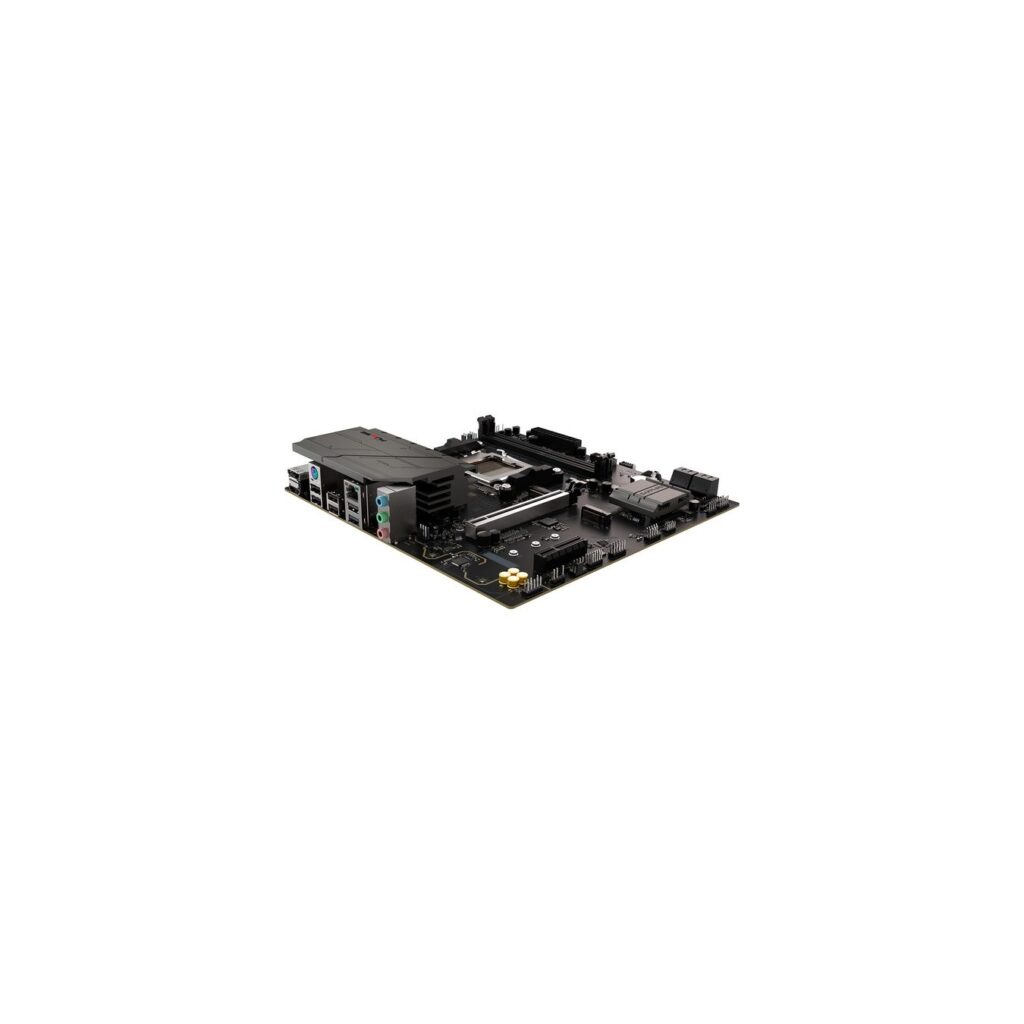

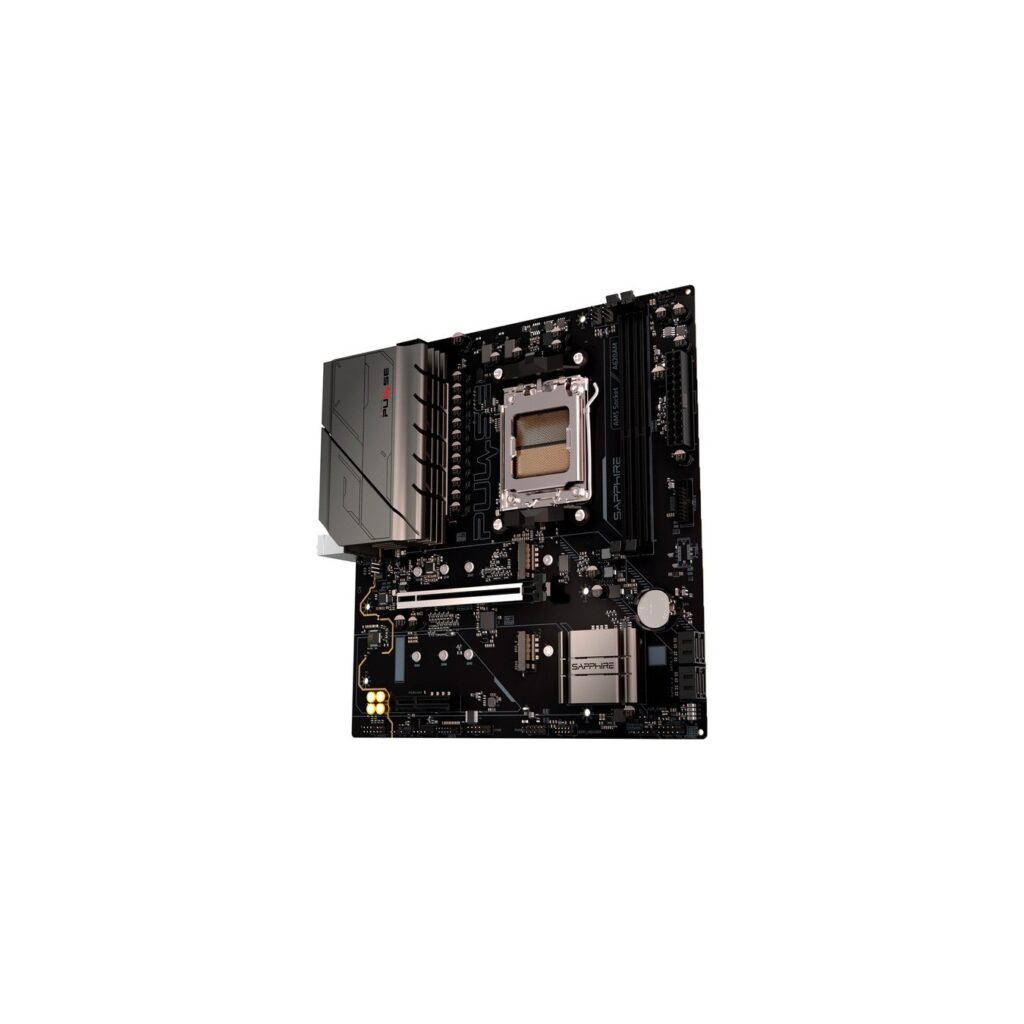

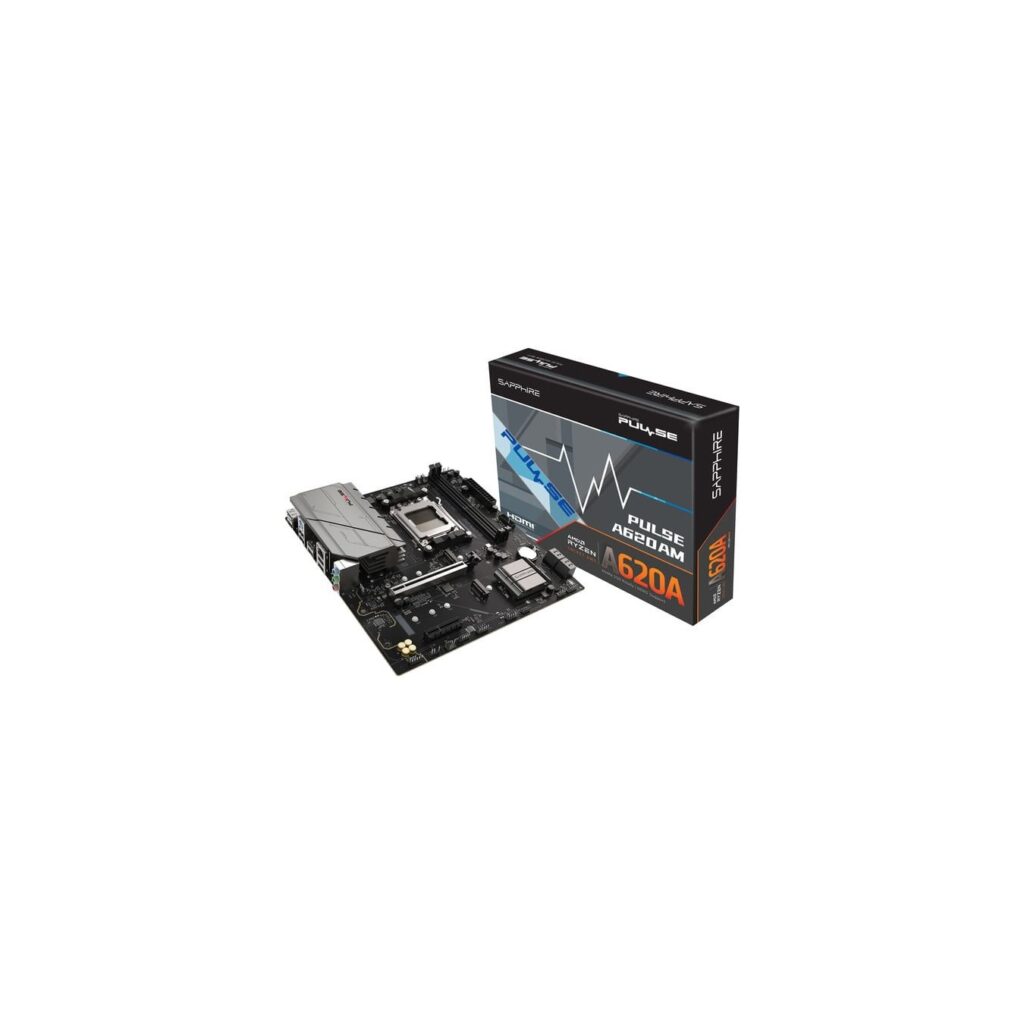

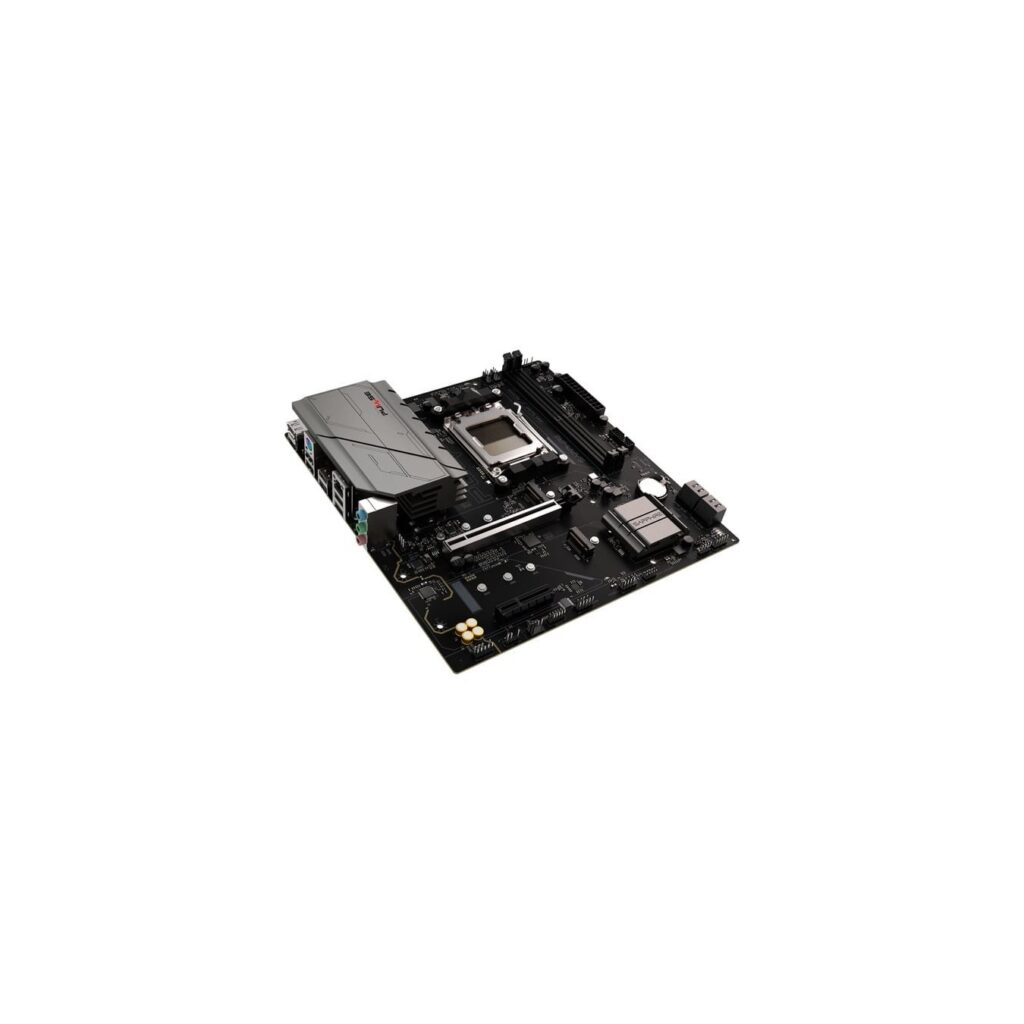

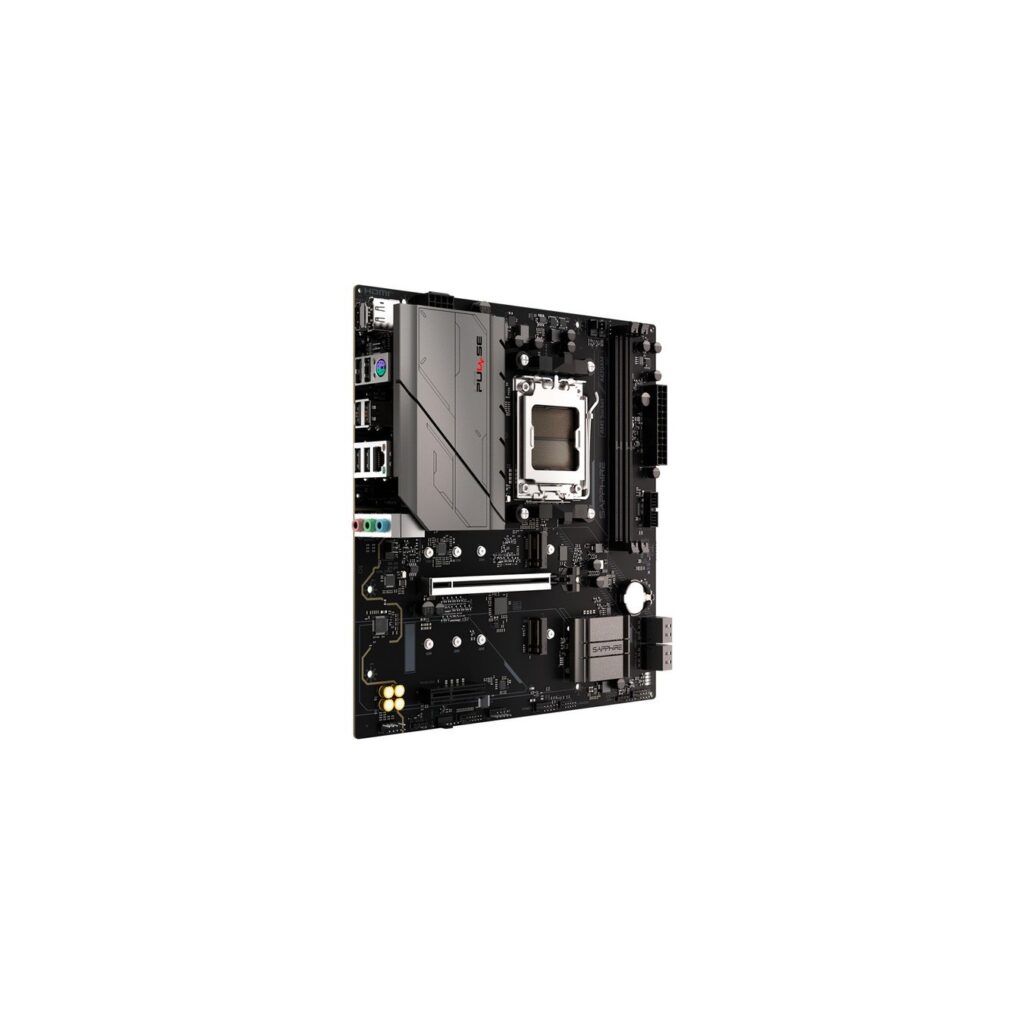

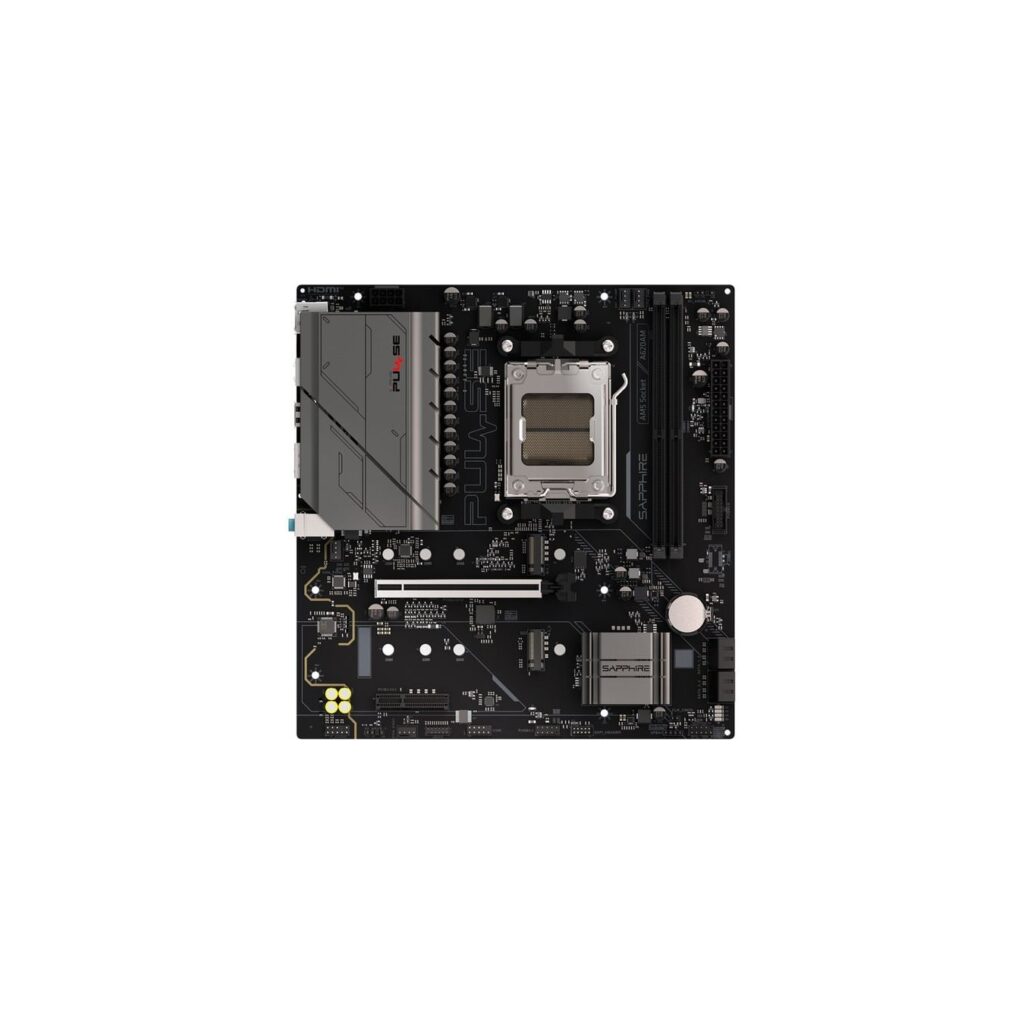

The SAPPHIRE PULSE A620AM is based on the AMD A620 chipset and supports AMD processors for Socket AM5. It has two DDR5 slots for up to 64 GB of memory. The SAPPHIRE PULSE A620AM’s additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The SAPPHIRE PULSE A620AM also has 6-channel sound, a Gigabit LAN interface, four SATA3 ports, two M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4895106296879 |
| Manufacturer no. | 52118-03-40G |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD A620 |
| Slots - PCIe x16 | 1x (of which: 1x PCIe x16) |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 64 GB |
| Connections (external) - Mouse/Keyboard Combo (PS/2) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | AMD A620 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD A620 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC897 |
| LAN | Realte RTL8111111111 Gb E |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Dimensions | Width: 235mm x Height: 244mm |
