PNY Quadro RTX 4000 Ada - 20GB GDDR6 - PCIe 4.0 x16, 4x DisplayPort, SFF, 70W

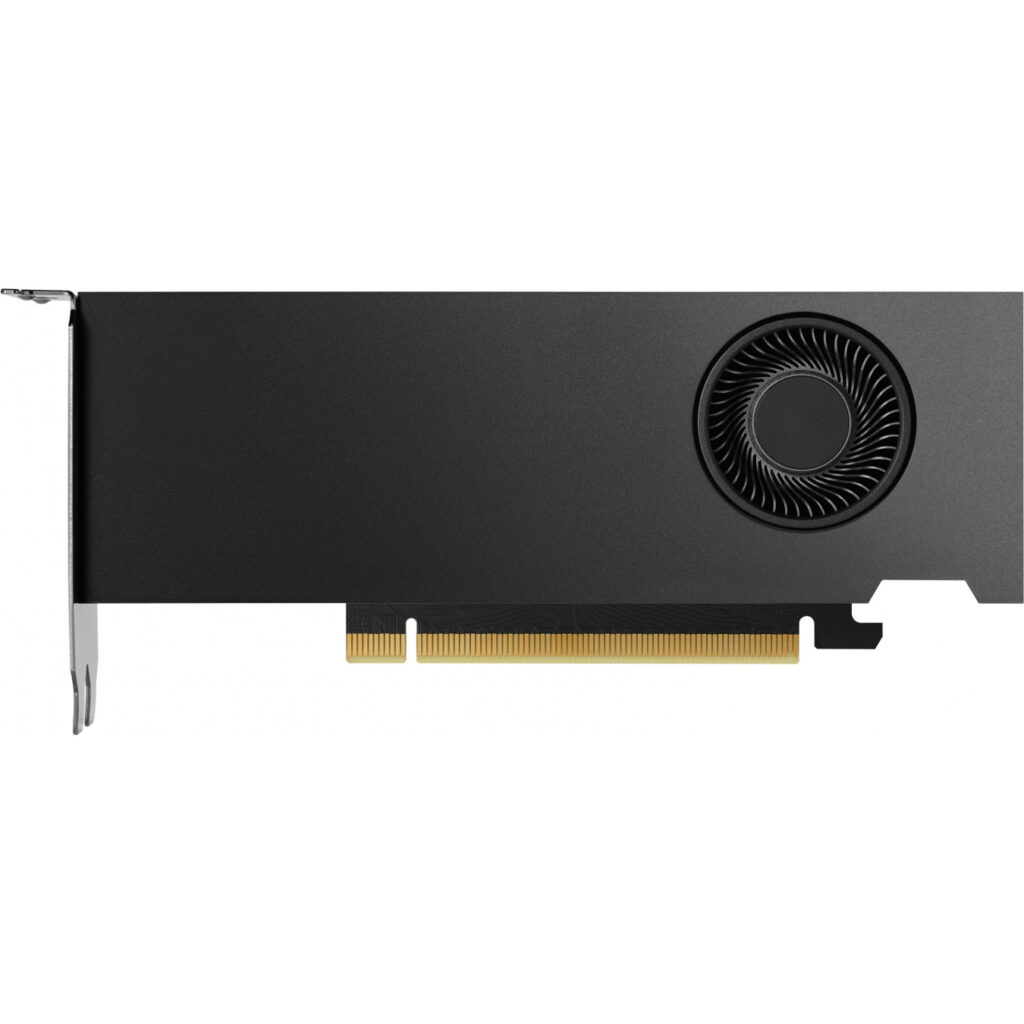

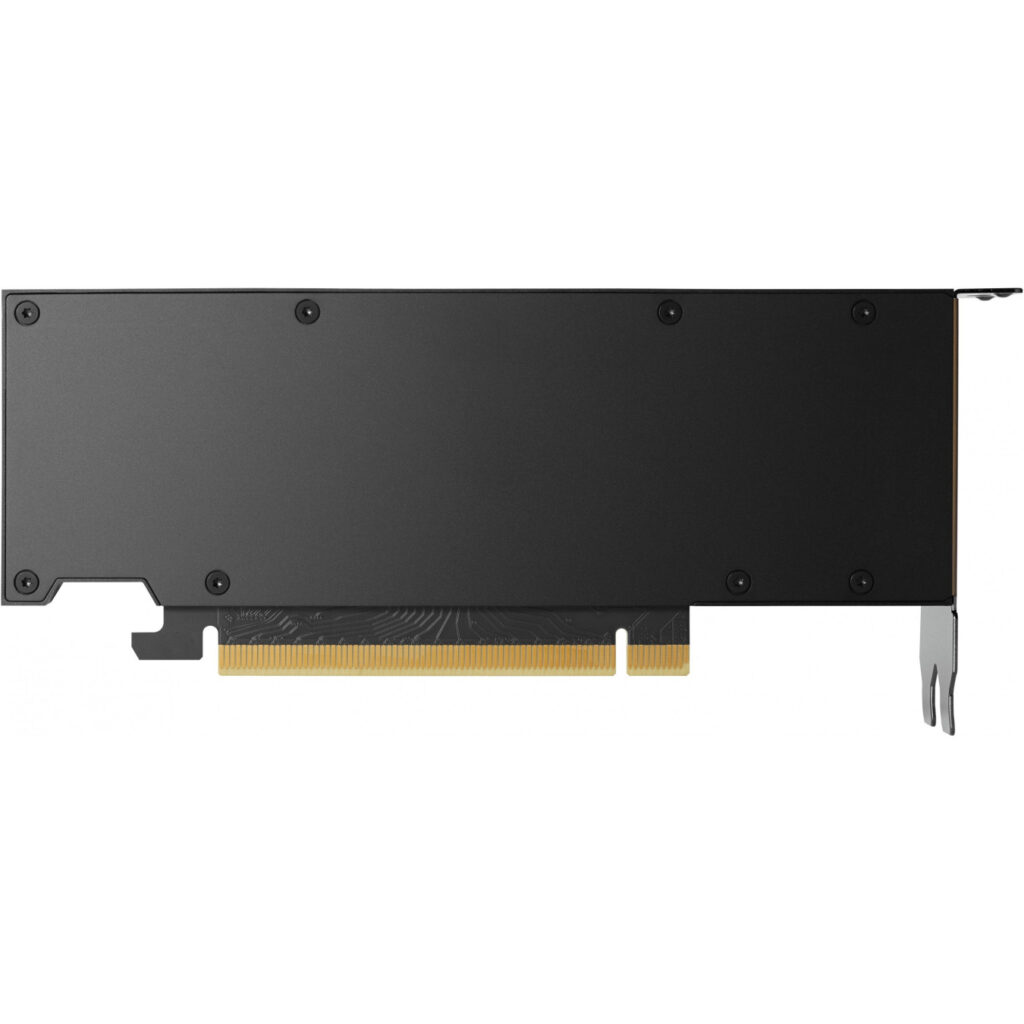

The PNY Quadro RTX 4000 Ada is a small form factor (SFF) professional graphics card powered by NVIDIA’s Ada Lovelace architecture on the AD104 GPU. It features 20GB GDDR6 memory with a 160-bit bus delivering up to 360 GB/s bandwidth, ideal for demanding CAD, visualization, and AI workloads in compact systems.

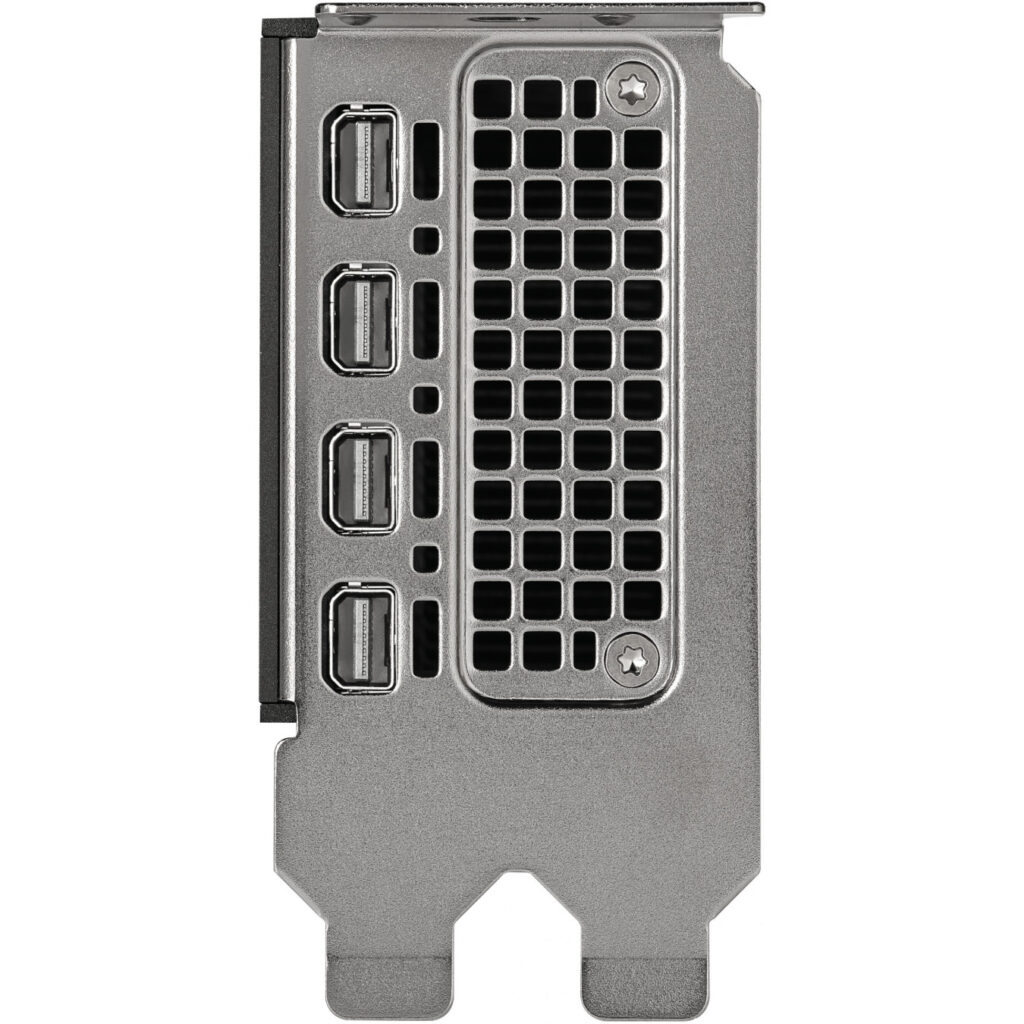

With a low 70W TDP, it draws power directly from the PCIe slot—no external connectors required. The single-fan active cooling solution keeps it efficient in 2-slot configurations (167.6 x 68.5 mm). Supports 4x DisplayPort 1.4a outputs for up to four 8K displays (7680×4320@60Hz), DirectX 12 Ultimate, and OpenGL 4.6.

• 6144 CUDA cores, 48 RT cores, 192 Tensor cores for ray tracing and AI acceleration
• PCIe 4.0 x16 interface for high-speed data transfer
• HDCP 2.2, ECC memory support disabled
• CE/RoHS compliant, single-slot ready for SFF workstations
• Excellent for SolidWorks, V-Ray, Unreal Engine, and Blender
