PCIe x16Karte to 5x M.2 Key B
103.00 €

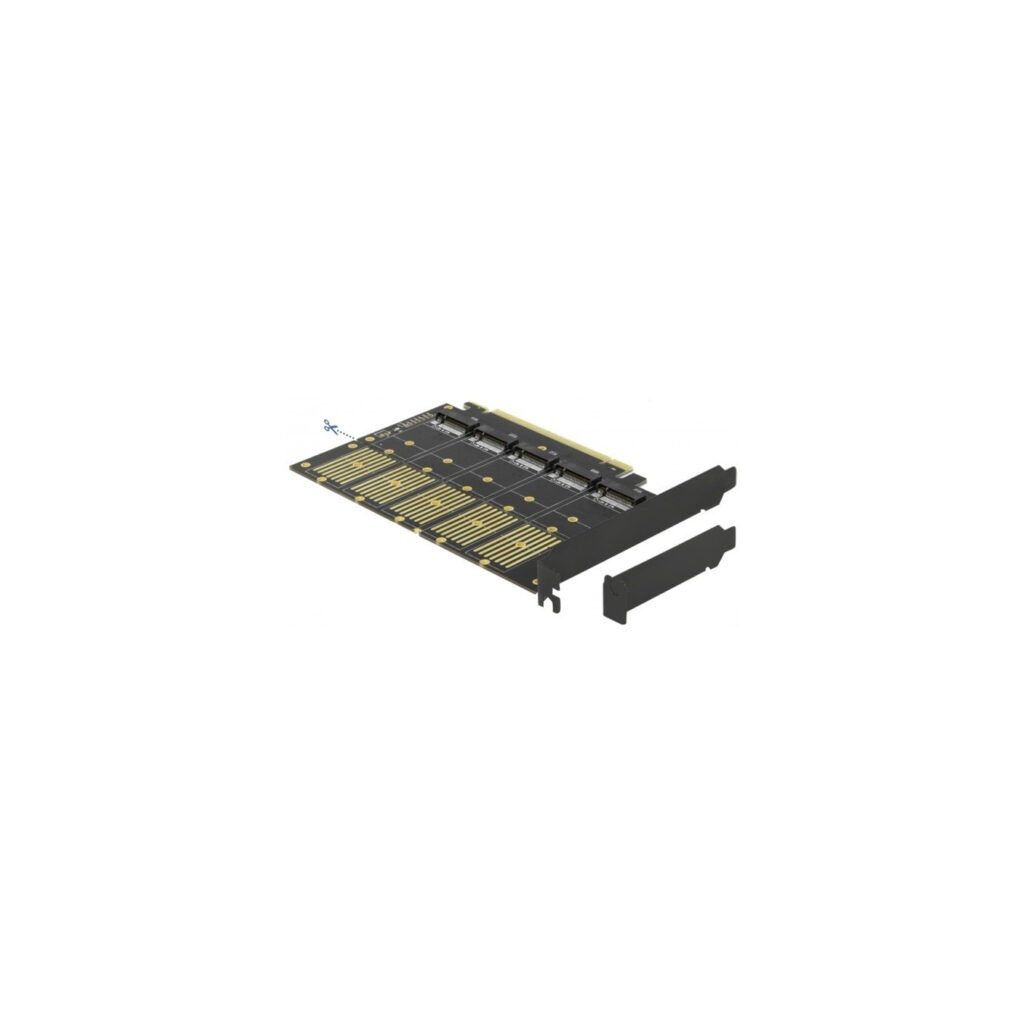

The Delock PCIe x16 card > 5x M.2 Key B expands the PC by five M.2 slots. Up to five M.2 SATA modules in 2280, 2260, 2242, 2230 format can be connected to the card. It is also poss…
Available in 6–10 business days : 40 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

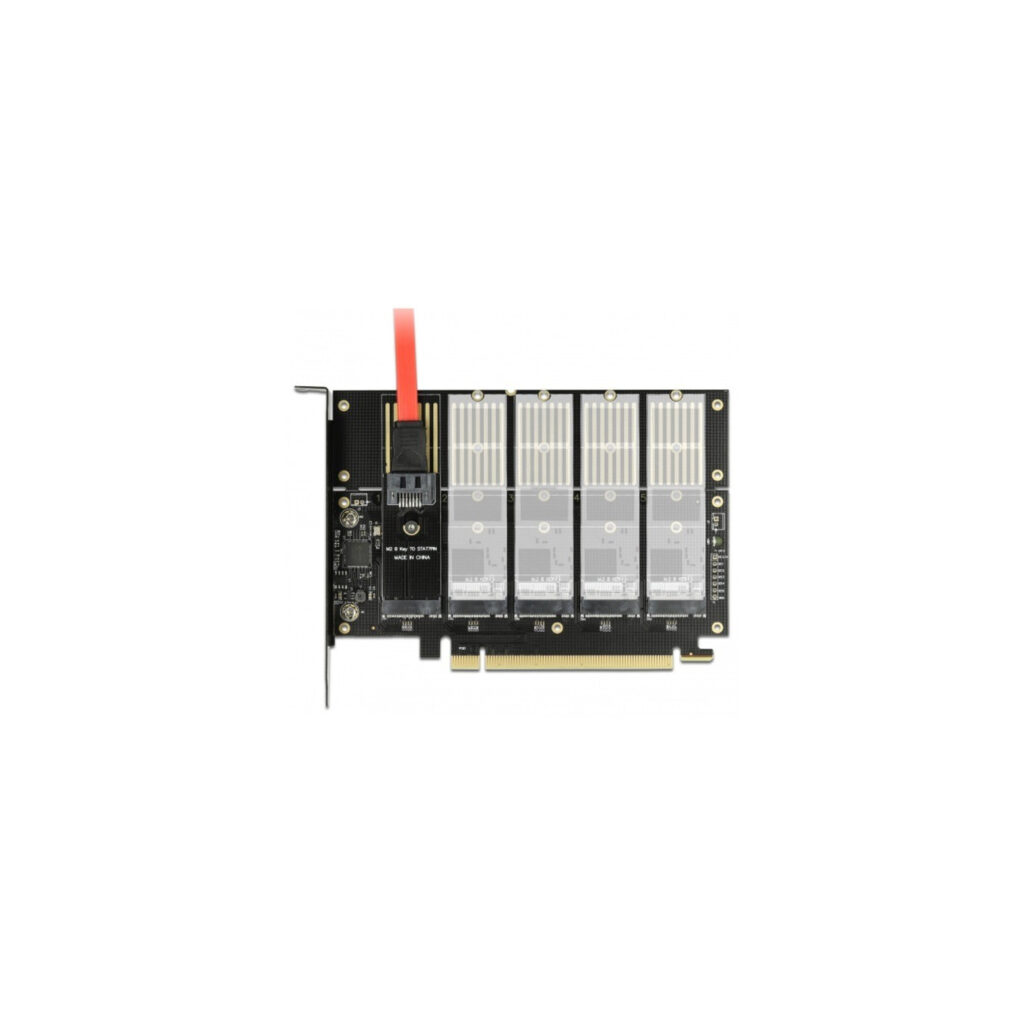

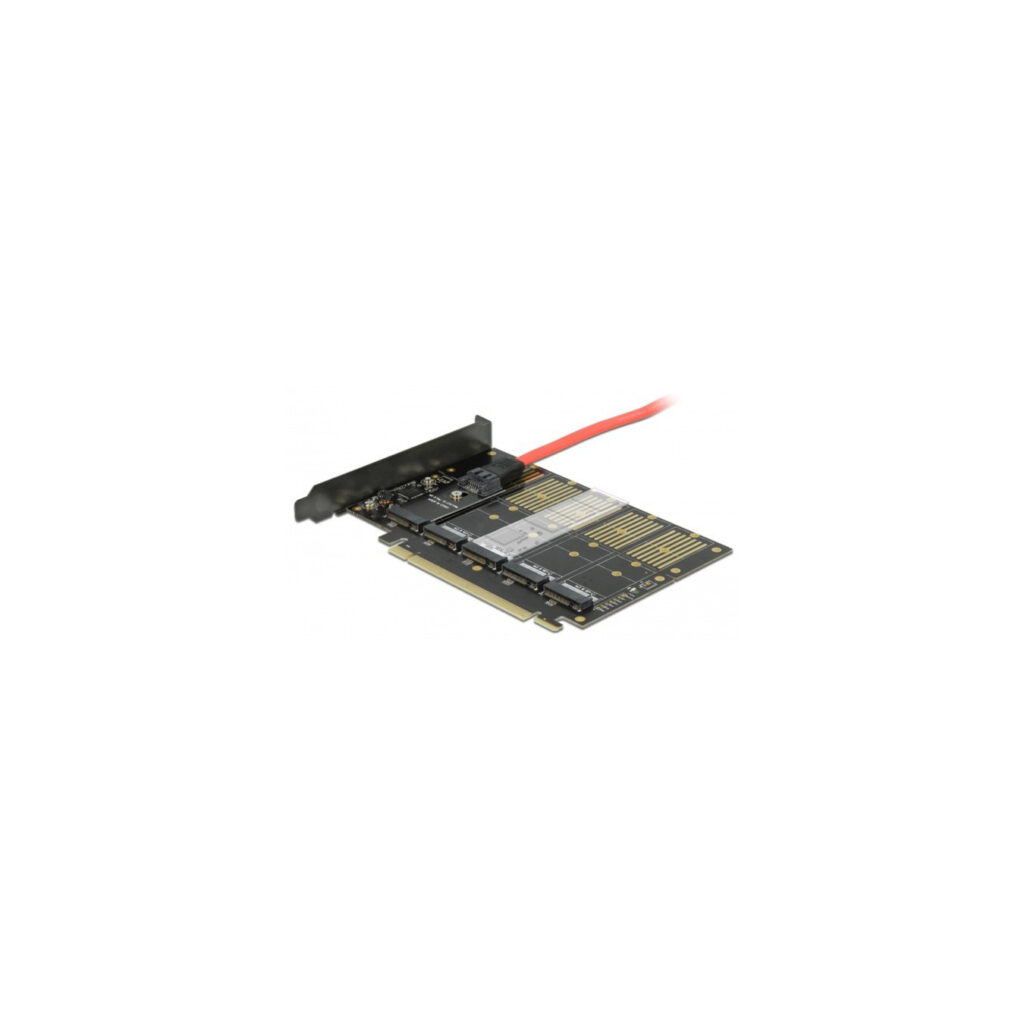

The Delock PCIe x16 card > 5x M.2 Key B expands the PC by five M.2 slots. Up to five M.2 SATA modules in 2280, 2260, 2242, 2230 format can be connected to the card. It is also possible to connect up to five SATA devices to the card. Adapters and SATA cables are included in the scope of delivery. A combination of SATA devices and M.2 SSDs is also possible
| EAN | 4043619904358 |
| Manufacturer no. | 90435 |
| Controller Art | M.2 |
| slot | PCIe x16 Version 3.0 |
| Chip | JMicron JMB585 |
| Protocol | Serial-ATA/600 |
| Data throughput | 6 GBit/s |
| Connections - internal | 5x M.2 |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |

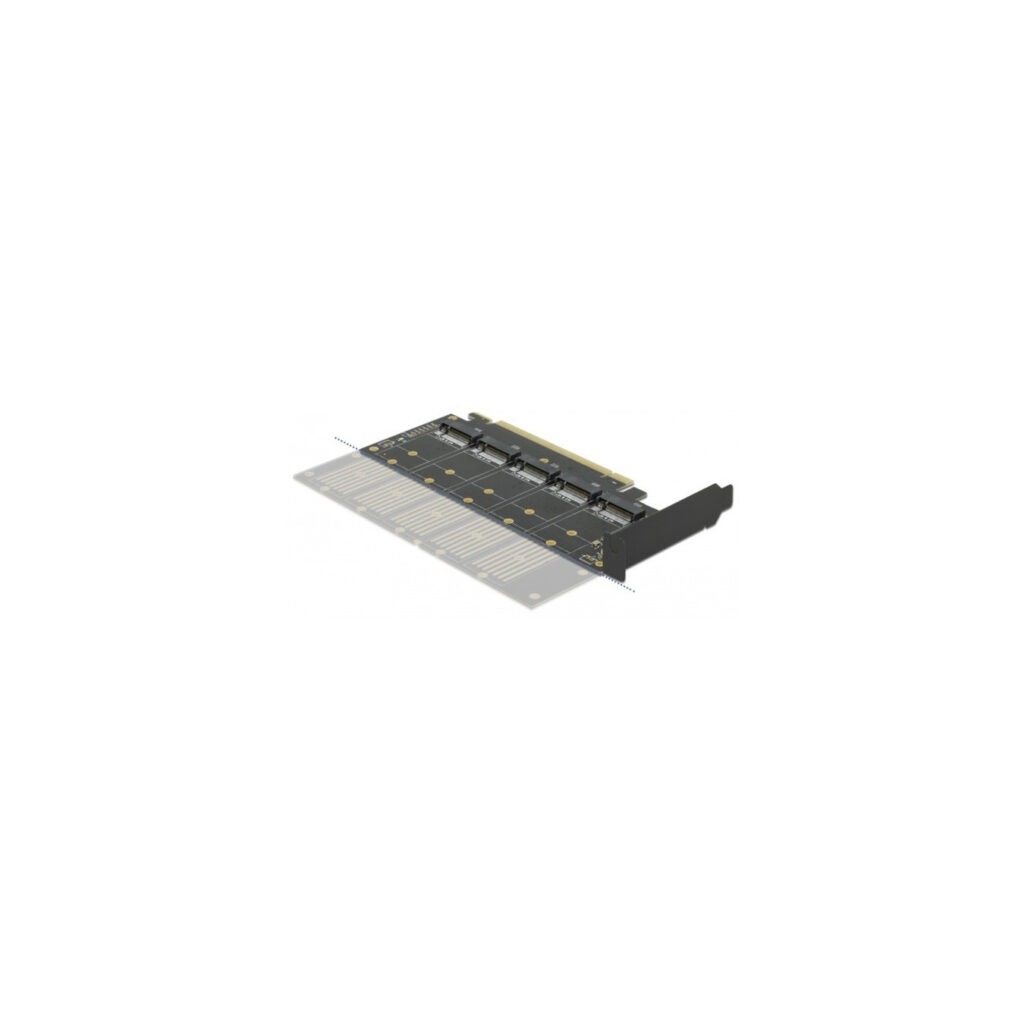

| Feature | Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible | Supports Native Command Queuing (NCQ) | Supports S.M.A.R.T. | Supports TRIM | Supports DevSleep | Hot Swap | Bootable |
| More information | Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on SATA basis |

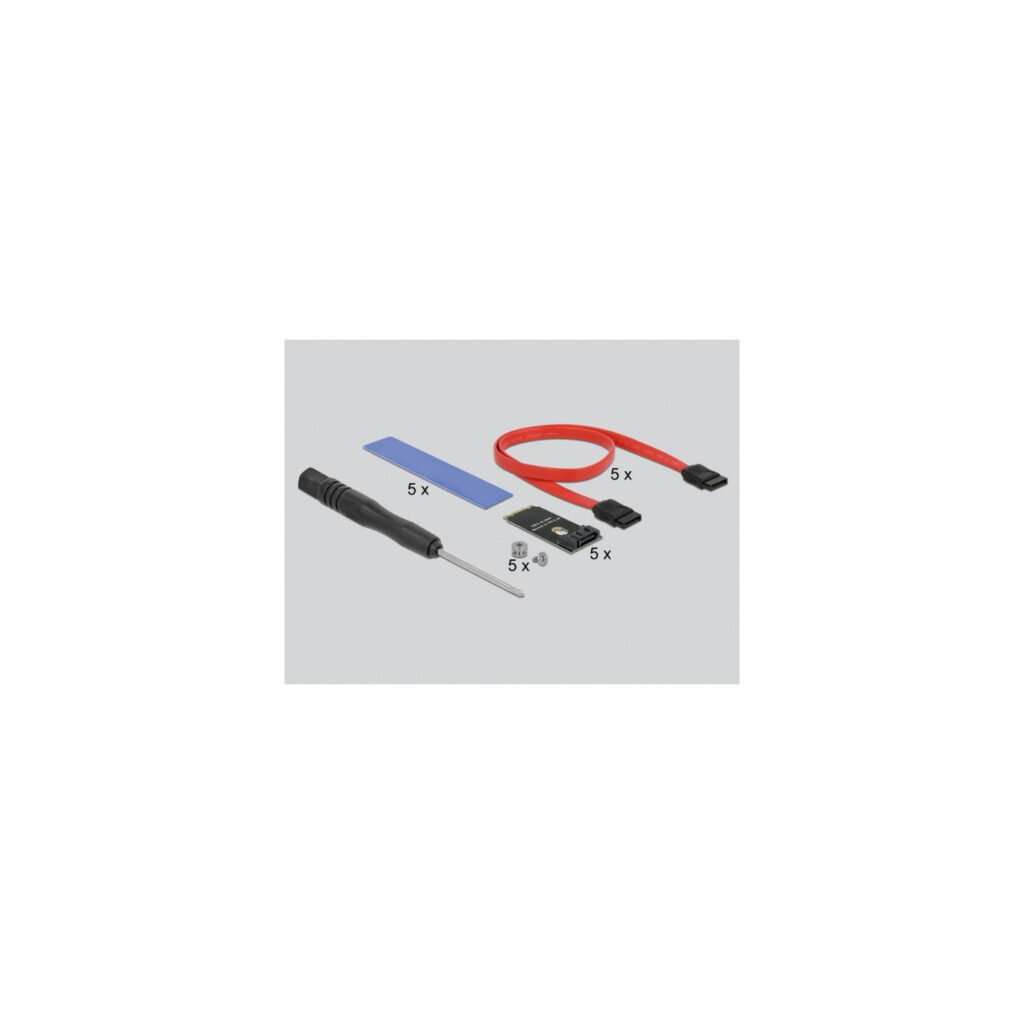

| Accessories - available | Low profile cover, 5 x M.2 to SATA adapter, 5 x SATA cable, length approx. 50 cm, screwdriver, mounting material, operating instructions |
