PCIe x16 Card - 1 x M.2 Key B + 1 x NVMe M.2 Key M + 1 x mSATA, Interface Card
DeLOCK PCIe x16 interface card with two M.2 slots (Key B and NVMe M) and one mSATA slot.
Available in 6–10 business days : 83 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

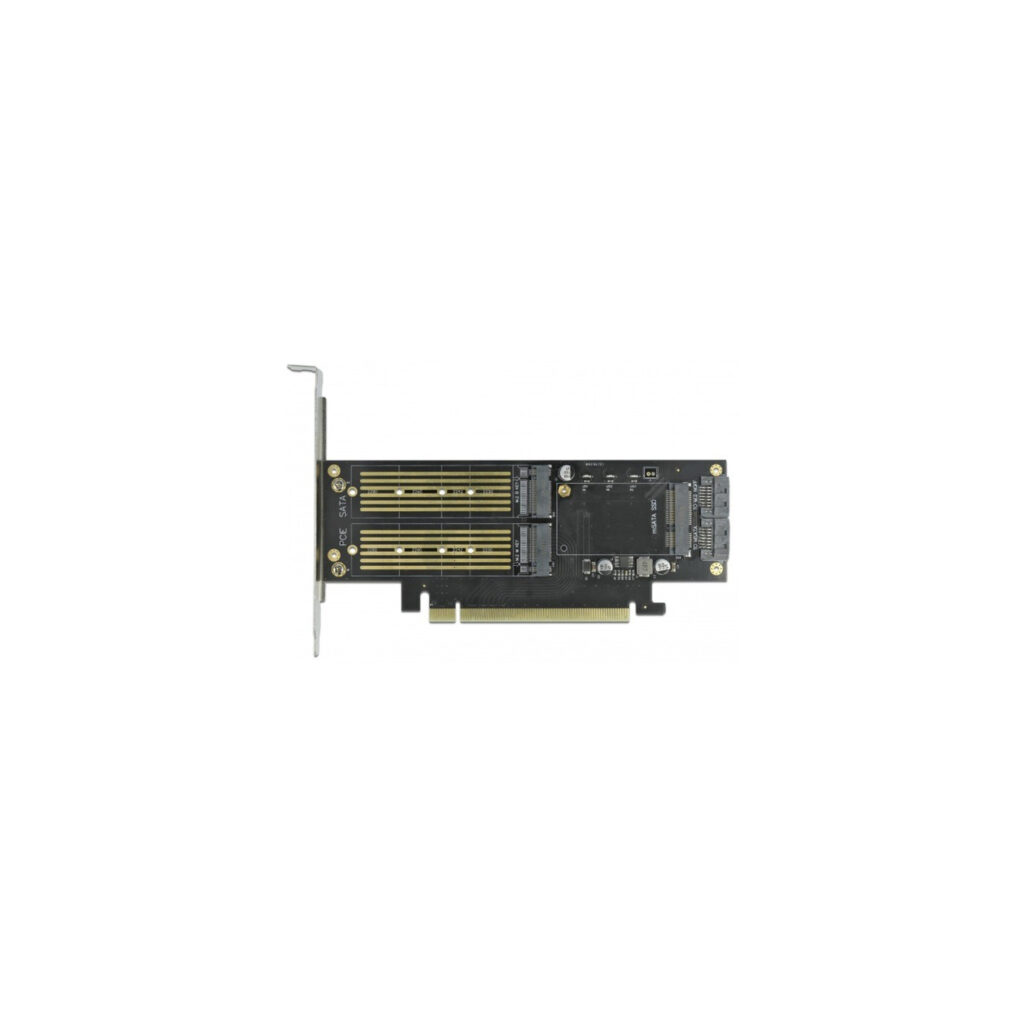

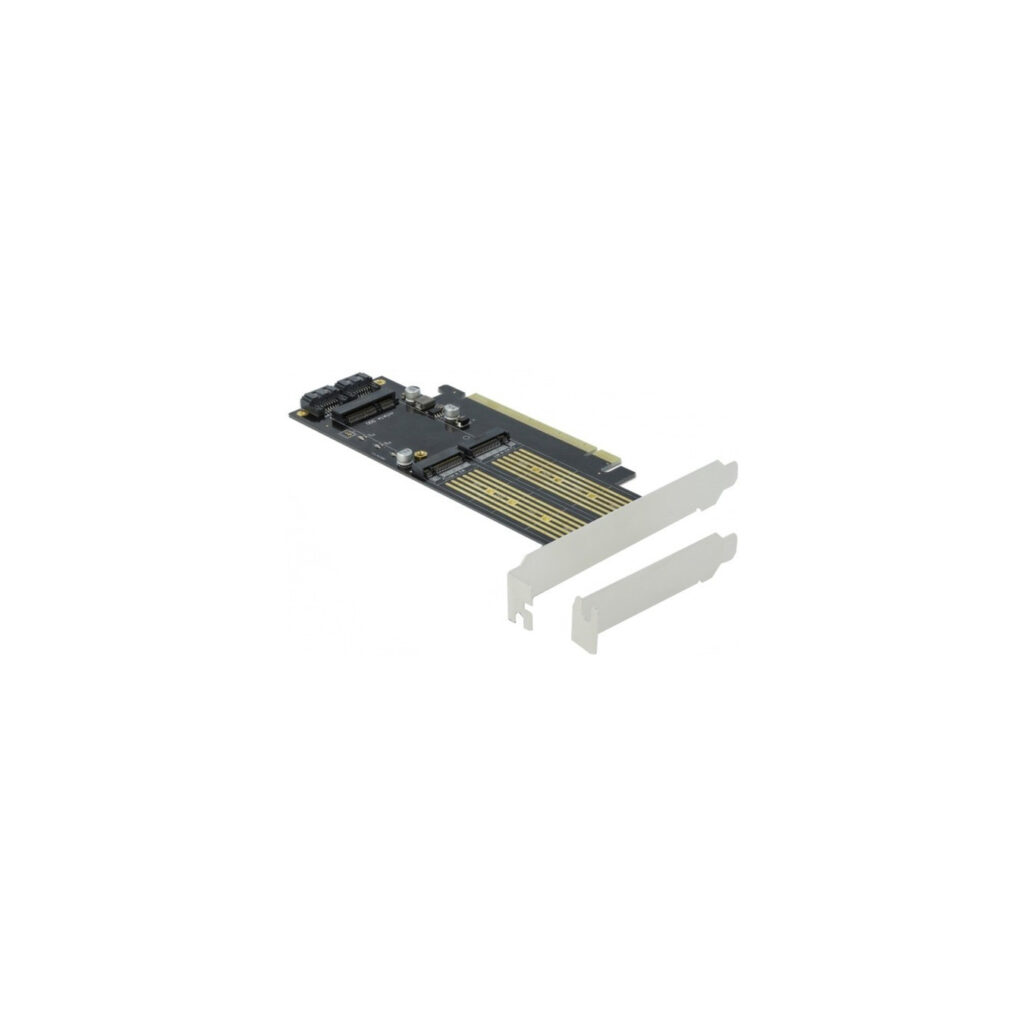

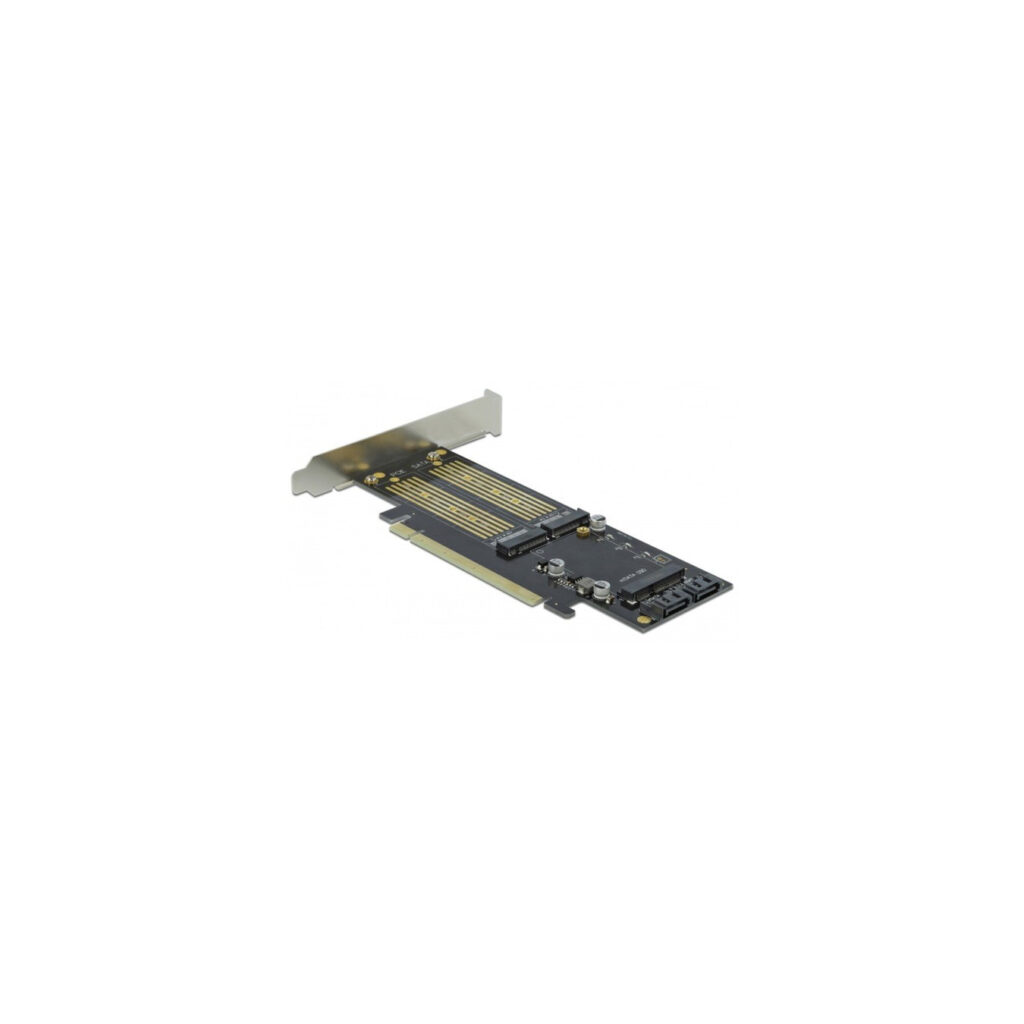

The DeLOCK PCIe x16 card > 1 x M.2 Key B + 1 x NVMe M.2 Key M + 1 x mSATA card expands the PC with two M.2 slots and one mSATA slot. An M.2 SATA module in 2280, 2260, 2242, 2230 format can be connected to this card and connected to the mainboard via SATA cable. An M.2 NVMe / PCIe module in 2280, 2260, 2242, 2230 format can also be connected. In addition, mSATA storage can be connected and connected to the mainboard via SATA cable. All slots can be used individually or simultaneously.
| Typ | Interface card |
| EAN | 4043619904860 |
| Manufacturer no. | 90486 |
| Controller Art | M.2 |
| slot | PCIe x16 Version 3.0 |
| Chip | JMicron JMB585 |
| Protocol | Serial-ATA/600 |
| Data throughput | 6 GBit/s |
| Connections - internal | 1x mSATA, 2x M.2 |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | Bootable | Supports NVM Express (NVMe) | supports Native Command Queuing (NCQ) | Supports S.M.A.R.T. | Supports TRIM | Supports DevSleep | Hot Swap |
| More information | Supports an M.2 module in 2280, 2260, 2242 and 2230 format with Key B or Key B+M on SATA basis and an M.2 module in 2280, 2260, 2242 and 2230 format with Key M or Key B+M on PCIe basis |

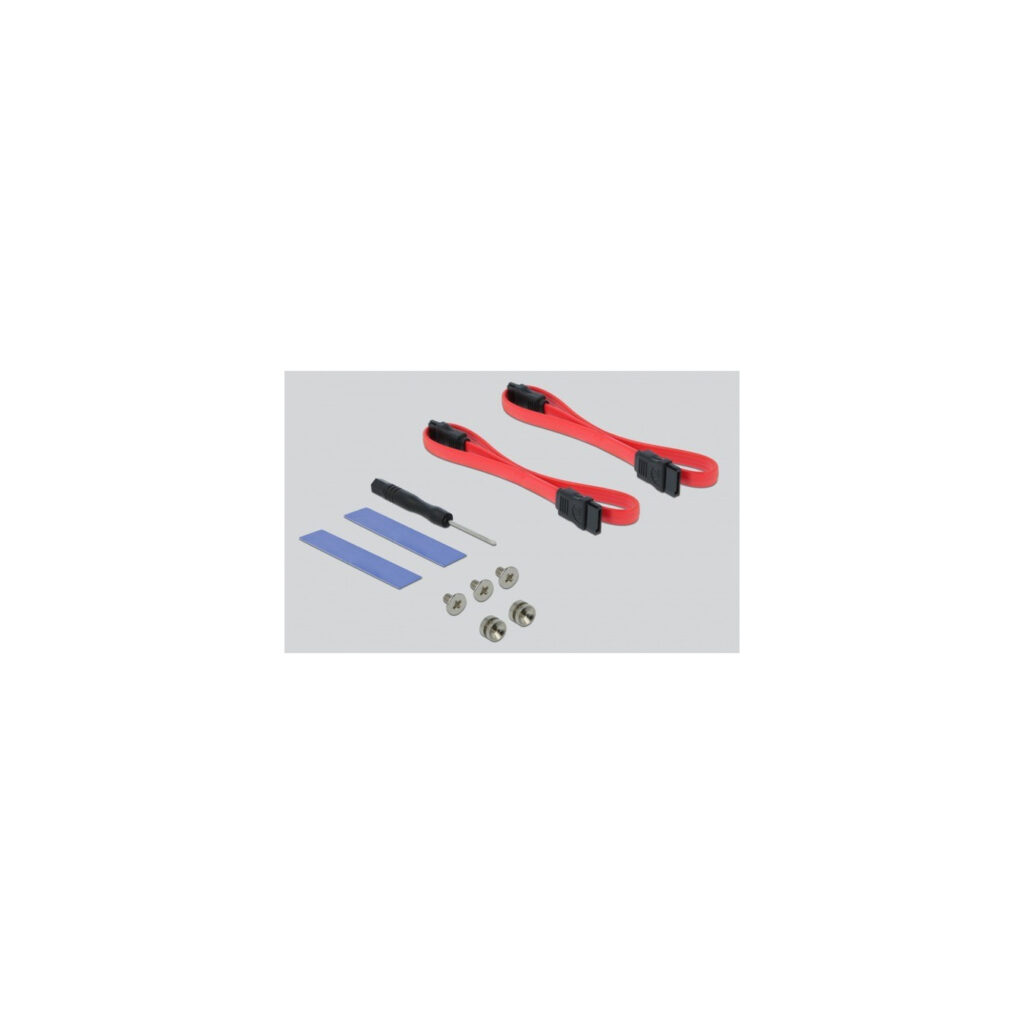

| Accessories - available | Low profile cover, 2 x SATA cables, length approx. 35 cm, mounting material, screwdriver, 2 x heat pad, operating instructions |
