PCIe Card - 4x internal M.2 B with RAID, RAID card
175.50 €
Delock PCIe RAID card adds four M.2 slots (2280/2260/2242/2230) with SATA interface; supports modules on both sides.
Available in 6–10 business days : 25 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

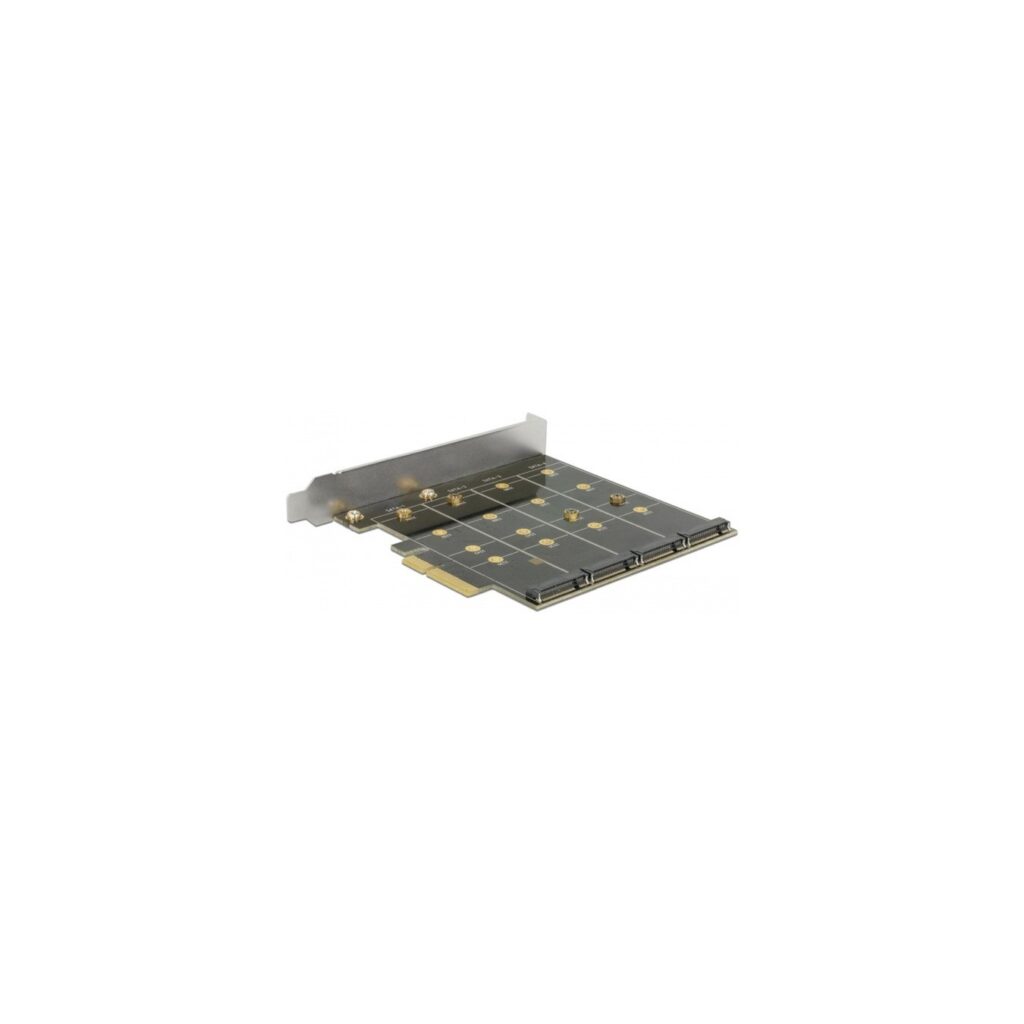

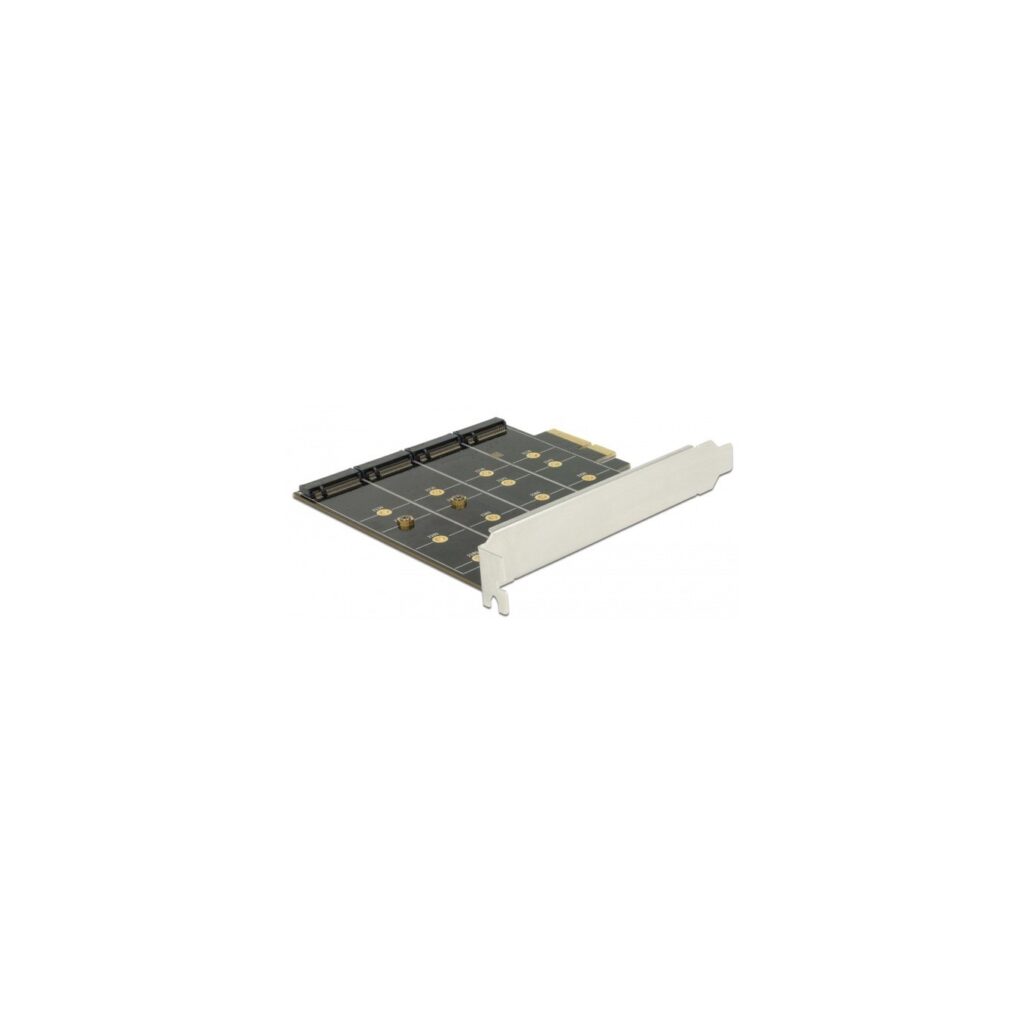

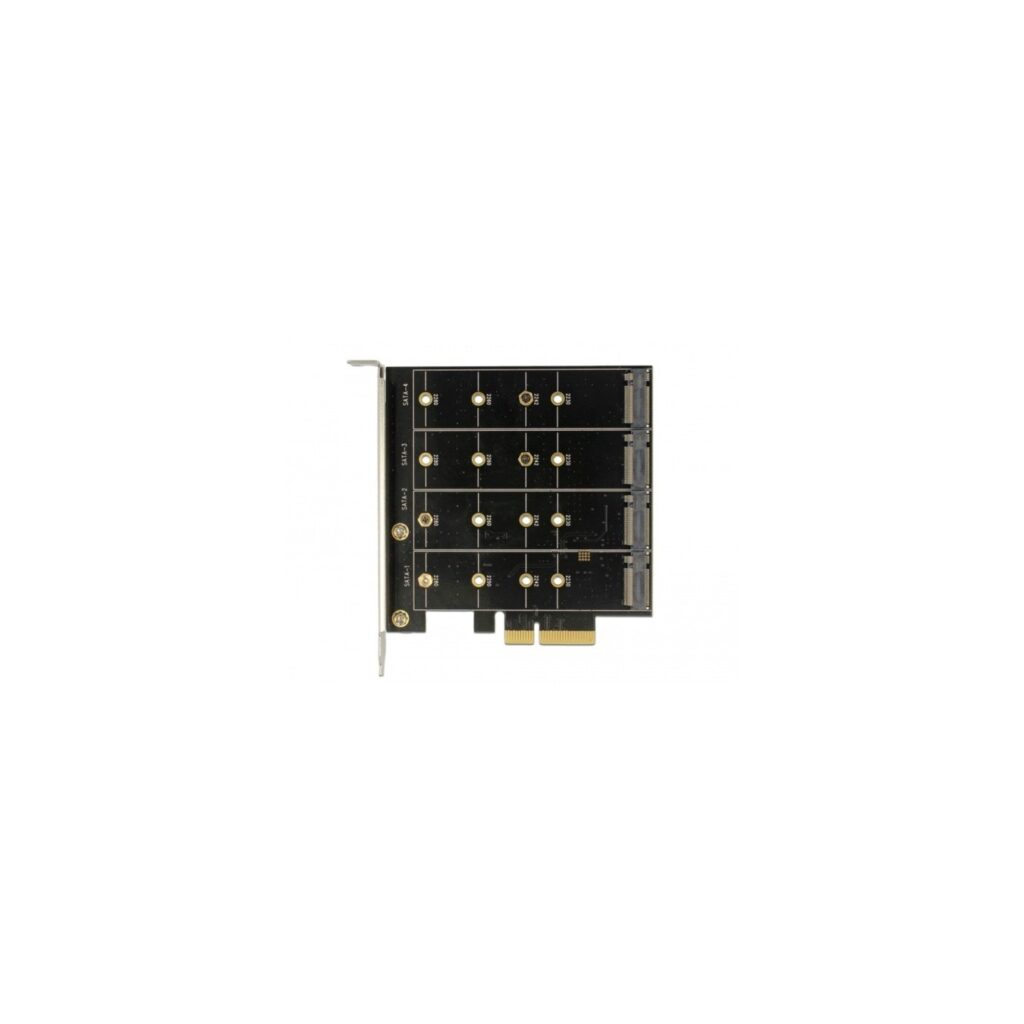

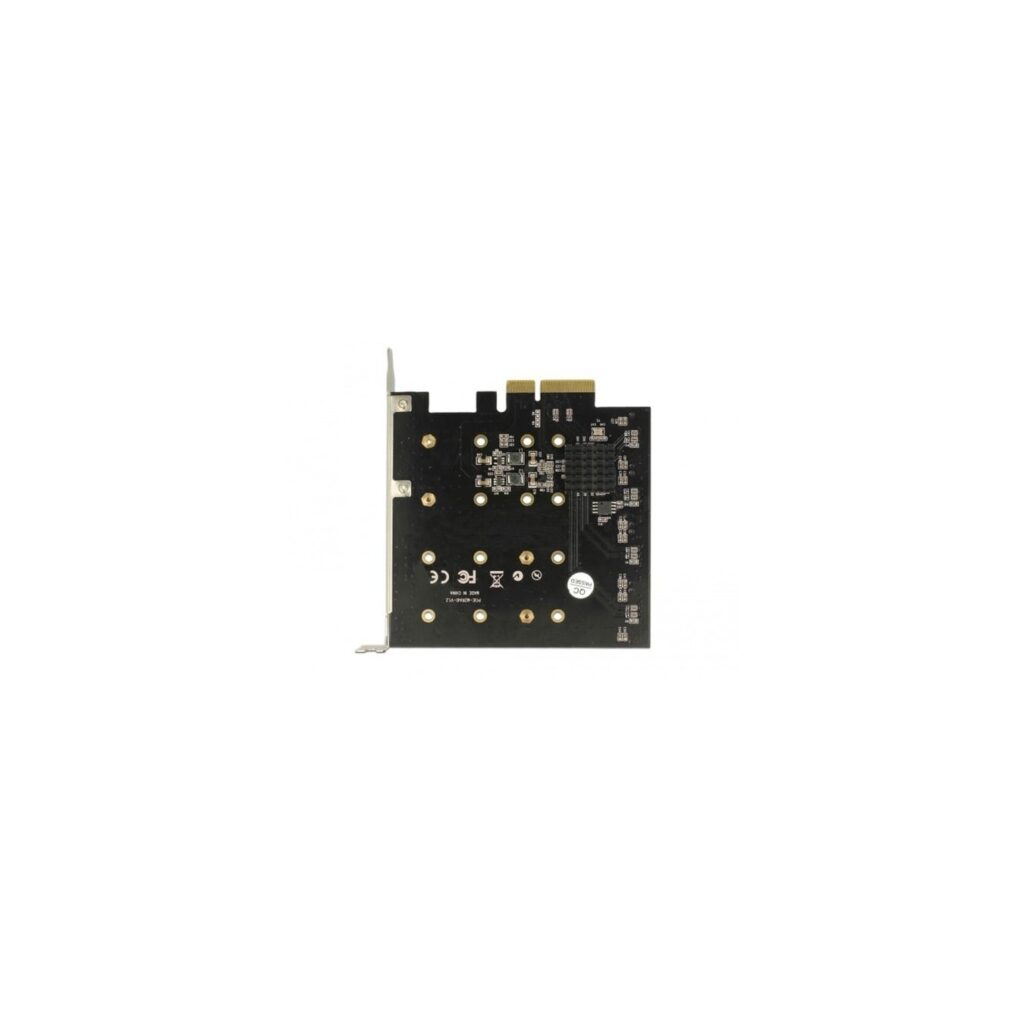

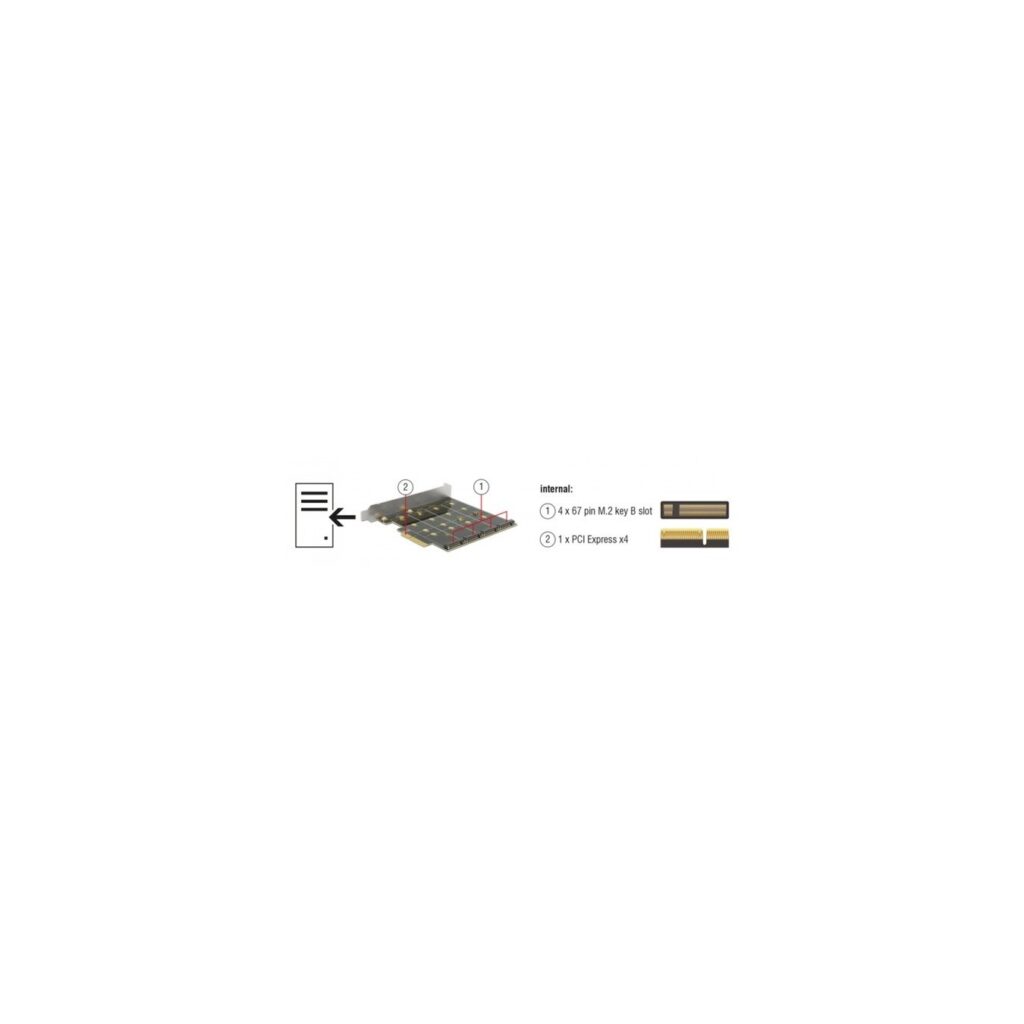

This PCI Express card from Delock expands the PC with four M.2 slots. Up to four M.2 SATA modules in 2280, 2260, 2242, 2230 format can be connected to the card. When using more than one SSD, it is possible to use different RAID levels.
| Typ | RAID-Card |
| EAN | 4043619898886 |
| Manufacturer no. | 89888 |
| Controller Art | Serial-ATA, M.2 |
| slot | Version 2.0 |
| Chip | Marvell 88SE9230 |
| Protocol | Serial-ATA/600 |
| Data throughput | 6 GBit/s |
| Operating System - Supported | Linux, Windows 8, Windows 10 |
| Raid-Level - direct | 0, 1, 10 |
| Feature | Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key B or Key B+M on SATA basis; Interface: SATA |
| More information | Use of modules equipped on both sides possible |
