PCI Express x4 Card - 1 x M.2 Key B + 1 x NVMe M.2 Key M, Controller
41.50 €
Delock PCIe x4 card with 1x M.2 Key B and 1x NVMe M.2 Key M; supports M.2 modules in sizes 22110, 2280, 2260, 2242, 2230 (B for SATA, M for PCIe).
Available in 6–10 business days : 31 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

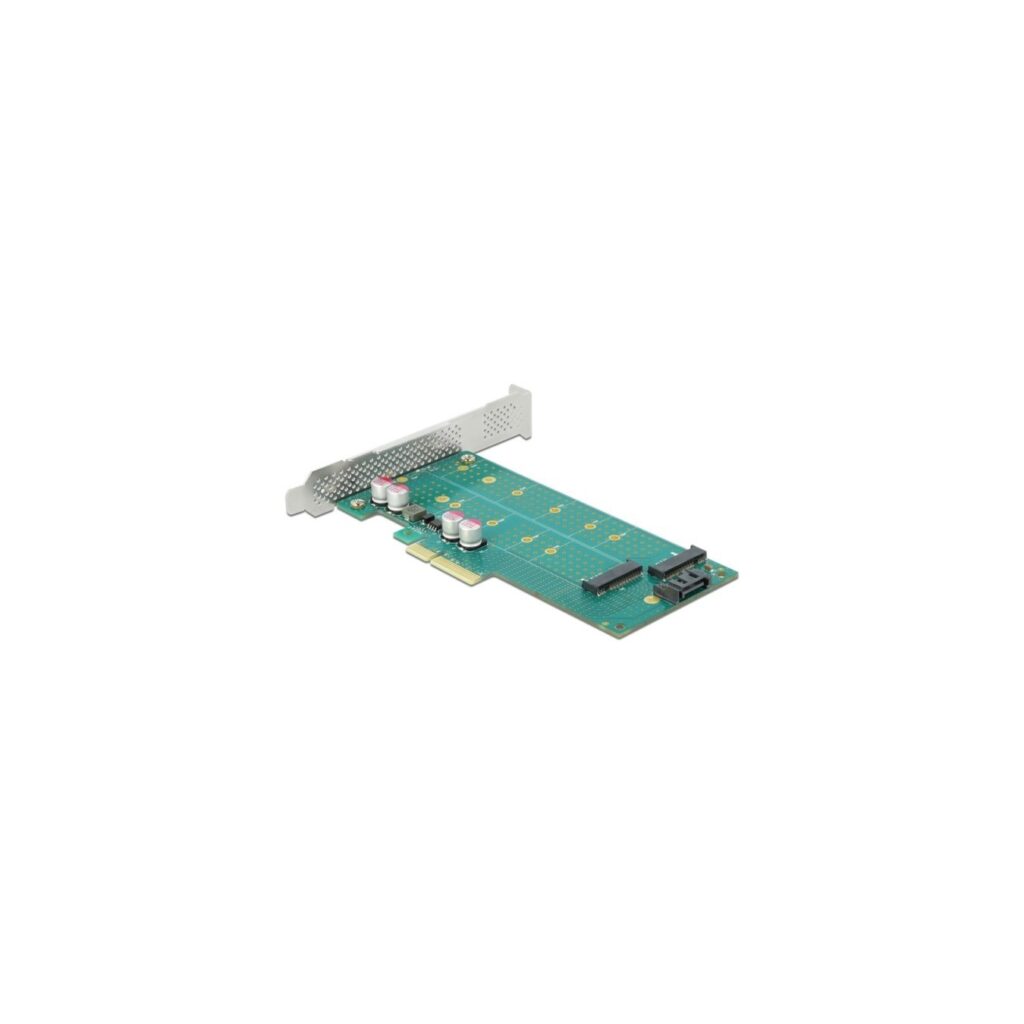

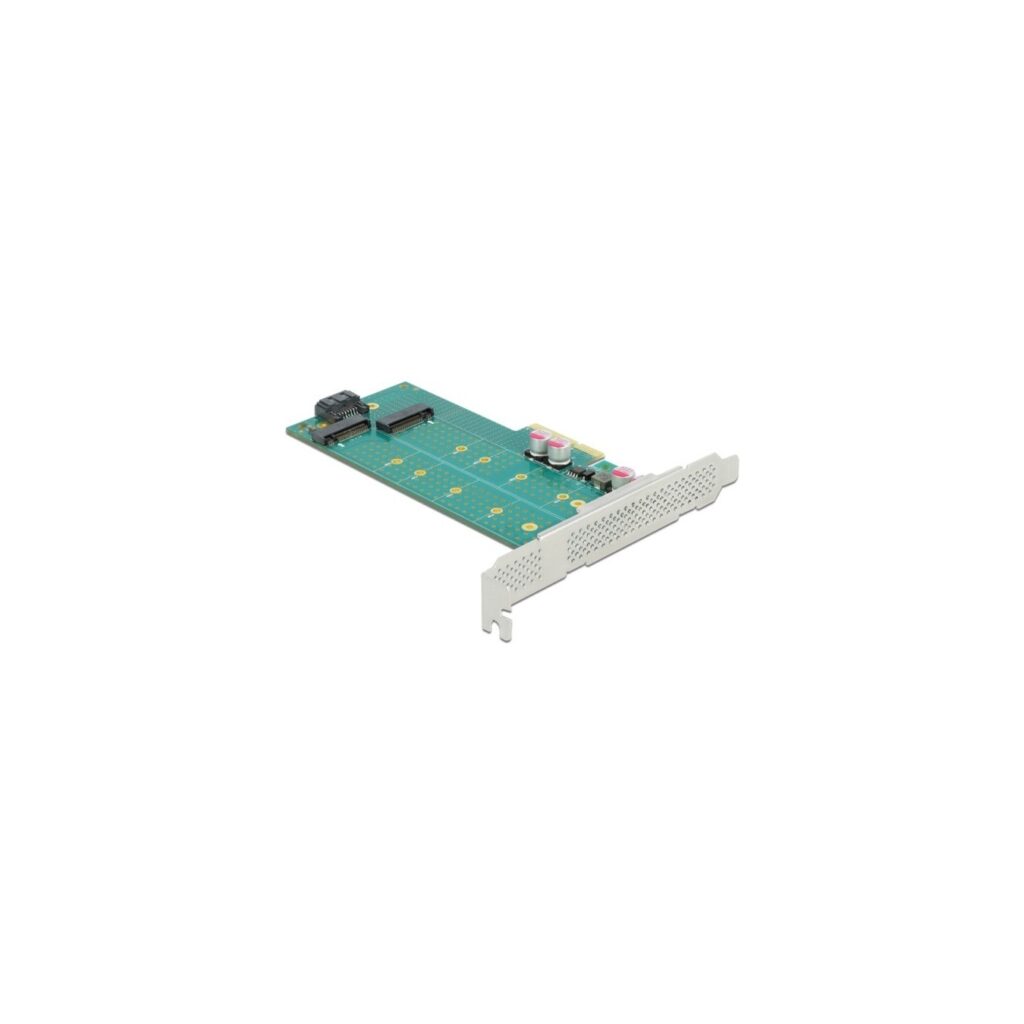

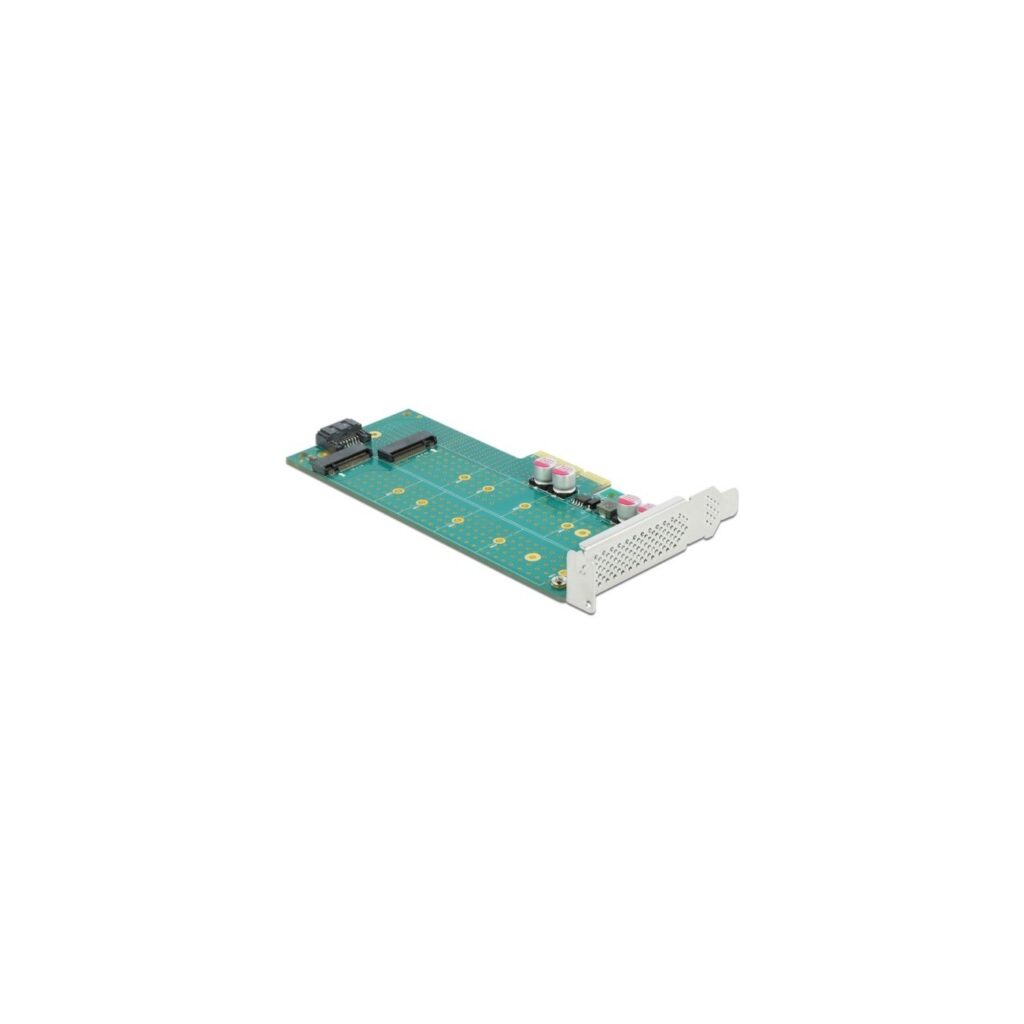

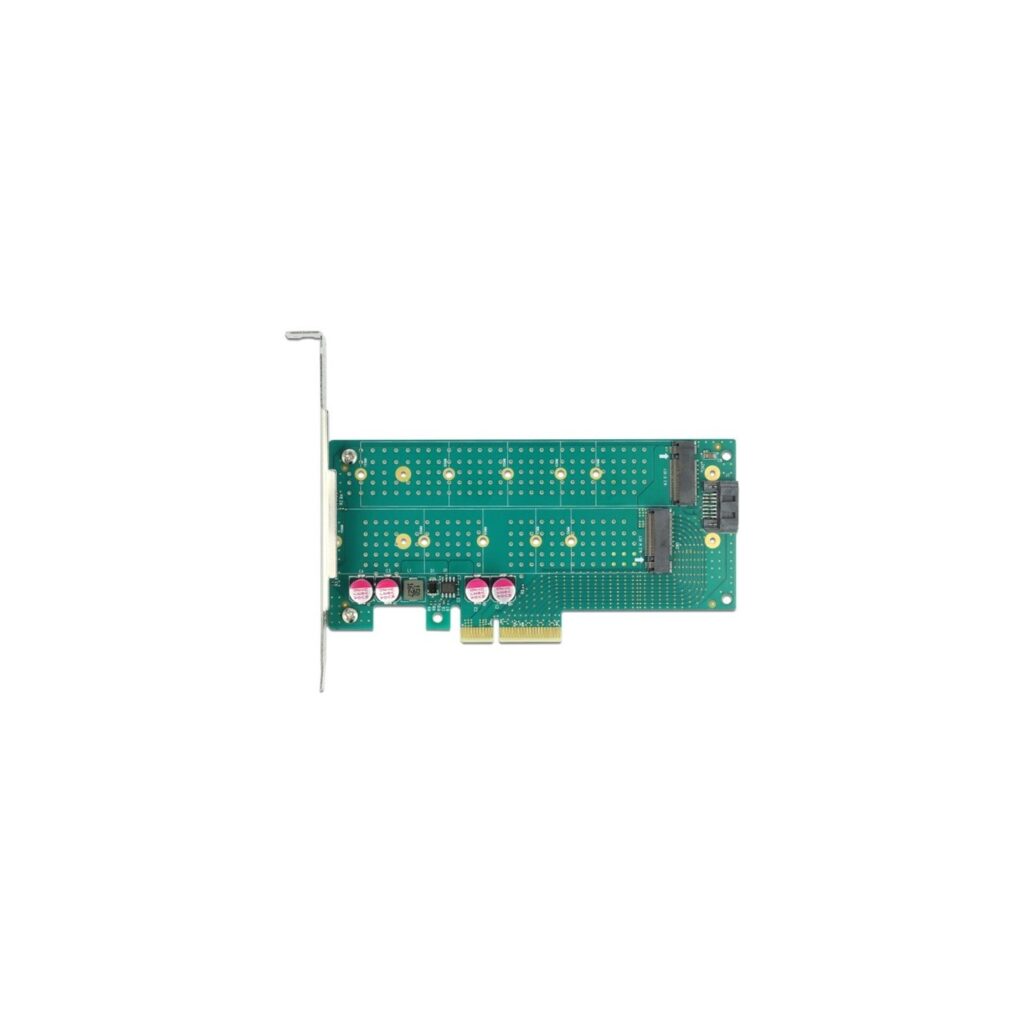

This Delock PCI Express x4 card with 1 x M.2 Key B + 1 x NVMe M.2 Key M expands the PC by two M.2 slots. An M.2 SATA module in 22110, 2280, 2260, 2242, 2230 format can be connected to this card and connected to the mainboard via SATA cable. An M.2 PCIe module in 22110, 2280, 2260, 2242, 2230 format can also be connected. Both slots can be used at the same time.
| Typ | Controller |
| EAN | 4043619890477 |
| Manufacturer no. | 89047 |
| Controller Art | M.2 |
| slot | PCIe x4 Version 4.0 |
| Connections - internal | 2x M.2 |
| Operating System - Supported | Linux, Windows 8, Windows 10, Windows Server 2016 |
| Low Profile | optional |
| More information | Supports an M.2 module in the format 22110, 2280, 2260, 2242 and 2230 with Key B or Key B+M on a SATA basis and an M.2 module in the format 22110, 2280, 2260, 2242 and 2230 with Key M or Key B+M on a PCIe basis, maximum height of the components on the module: 1.5 mm, Use of modules equipped on both sides possible. System requirements: Linux Kernel 4.6.4 or higher, Windows Server 2016, Windows 8.1/8.1-64/10/10-64, PC with a free PCI Express x4 / x8 / x16 / x32 slot |

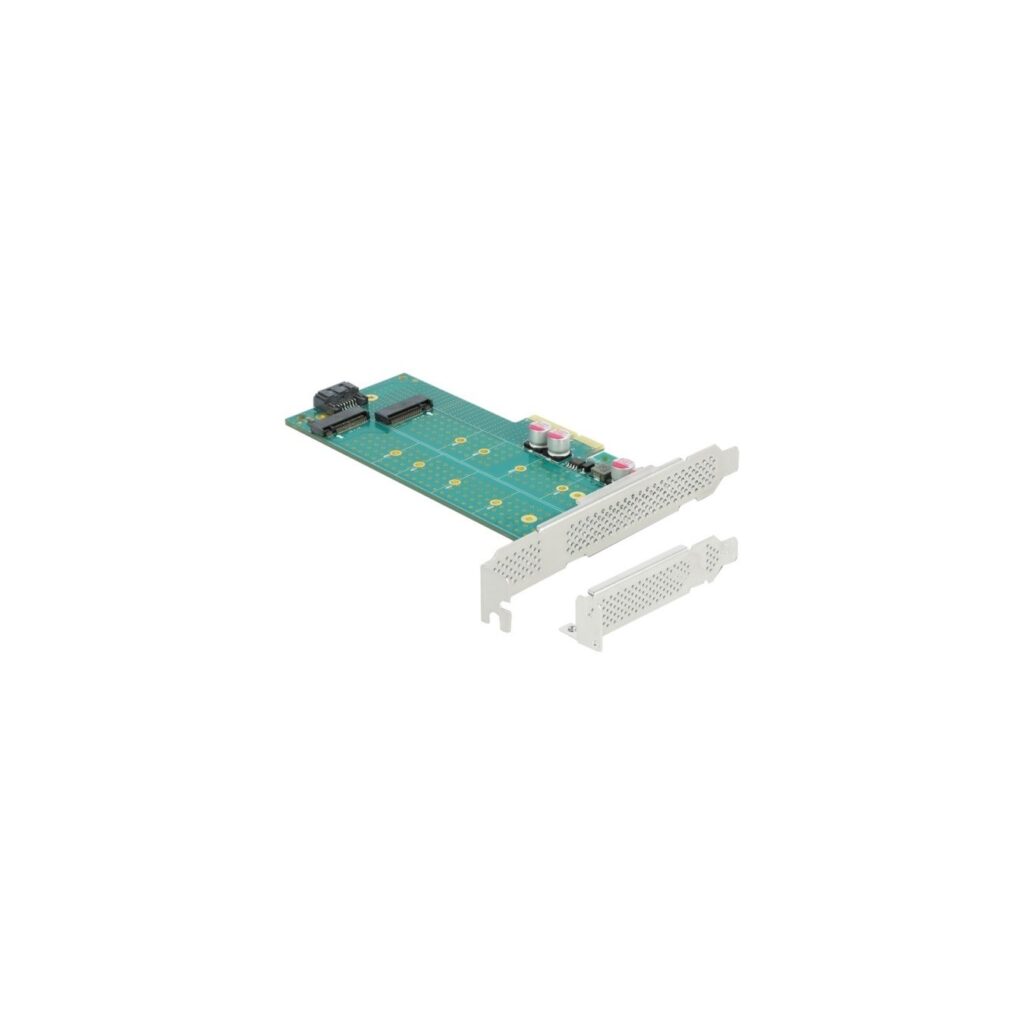

| Accessories - available | Low profile cover, mounting material, operating instructions |
