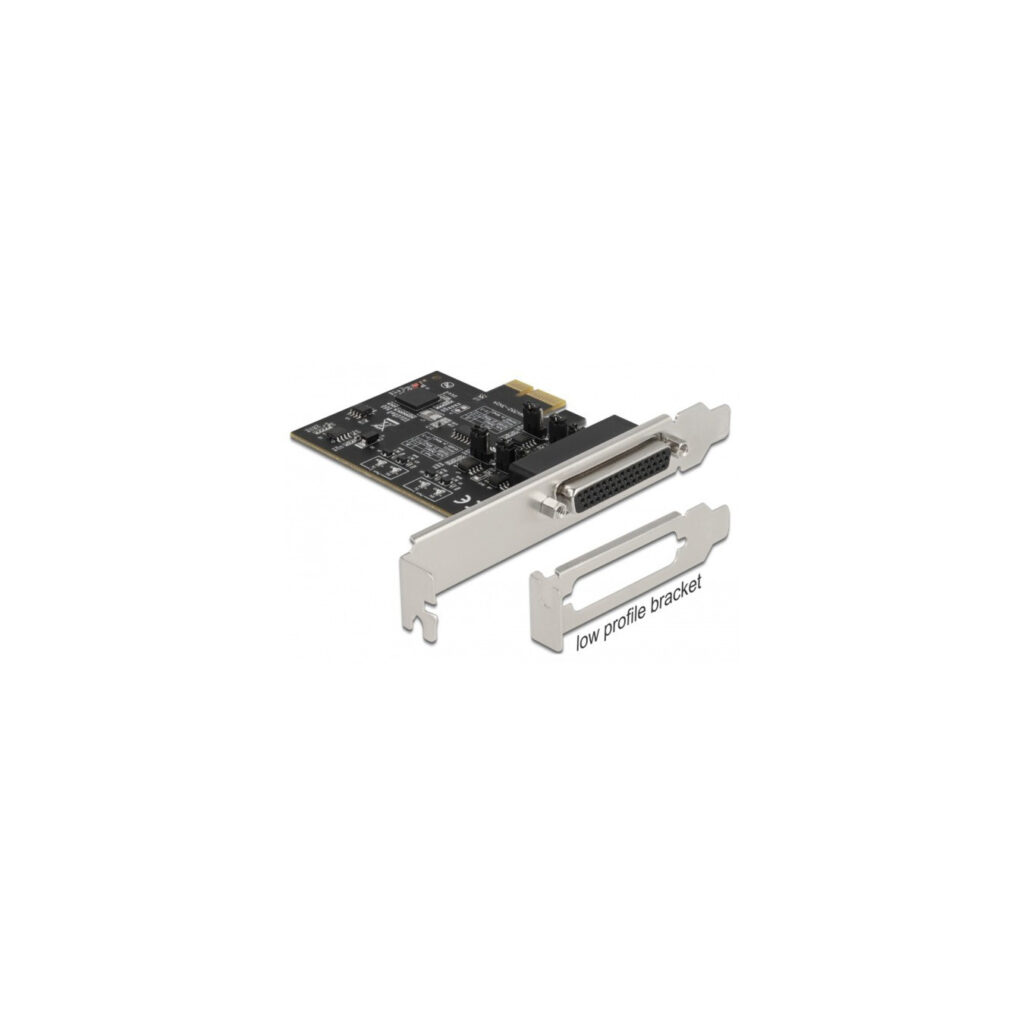

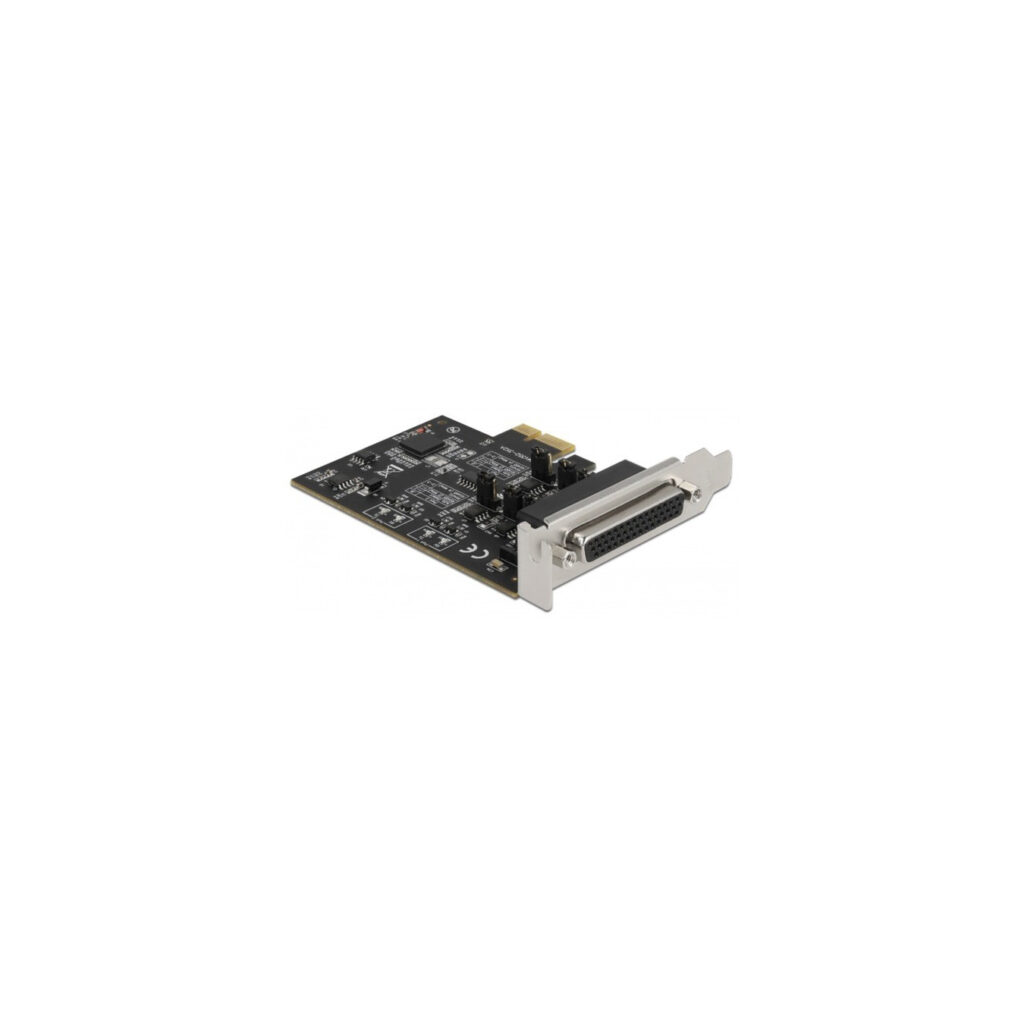

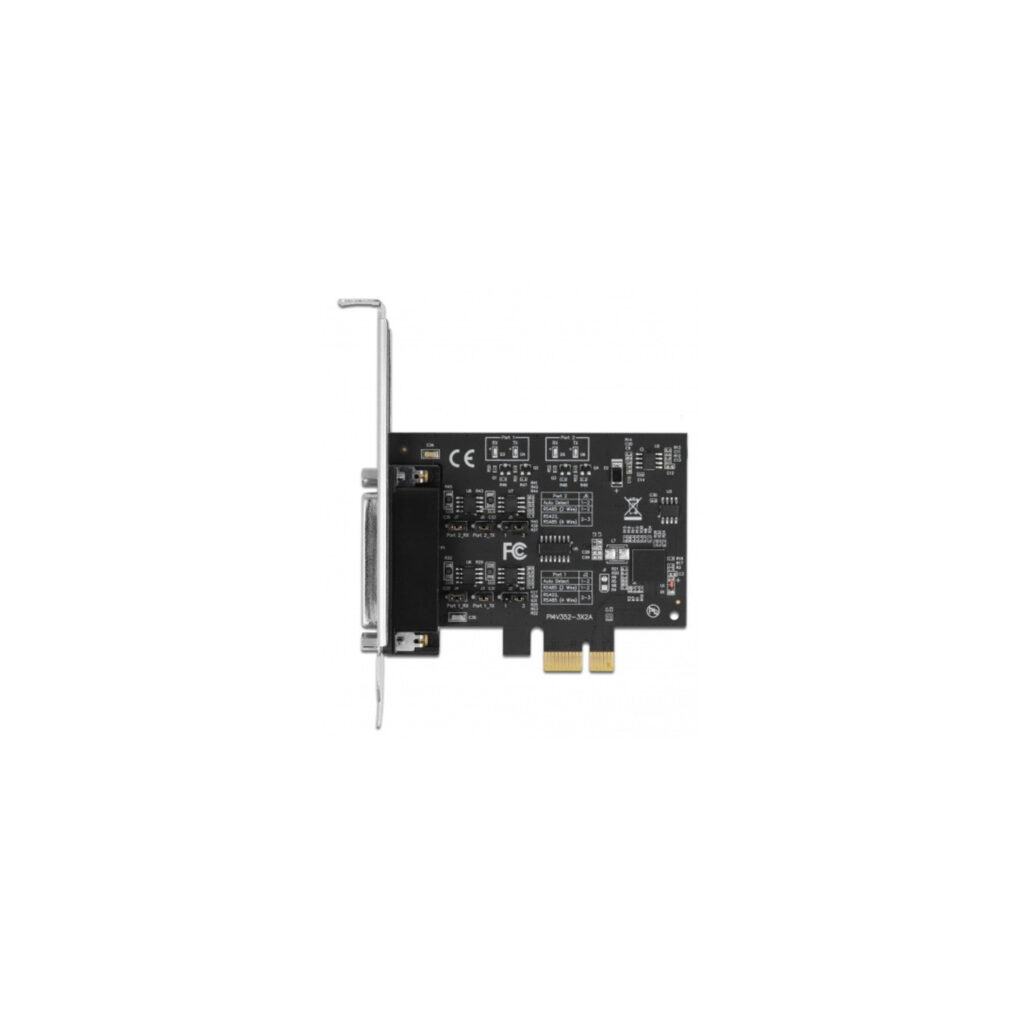

PCI Express card for 2 x serial RS-422 485 with 15 kV ESD protection
96.00 €
The Delock PCI Express card expands the PC with two external serial RS-422/485 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. a…
Available in 6–10 business days : 62 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Delock PCI Express card expands the PC with two external serial RS-422/485 ports. Devices such as: E.g. scanners, protocol converters, POS systems, infrared, IoT devices etc. and different modes can be used. The PCIe card supports 2- and 4-wire operation on both ports for both RS-422 and RS-485 devices. In addition, the integrated ones can be optionally added
| EAN | 4043619900480 |
| Manufacturer no. | 90048 |
| slot | PCIe x2 |
| Chip | MaxLinear XR17V352, SP3078E |
| Feature | external: 1 x DB44 socket | FIFO: 256 bytes |
| More information | The settings are made using the jumpers on the PCIe card and offer Auto Detect, RS-422 and RS-485 4-wire full duplex and RS-485 2-wire half-duplex modes. |

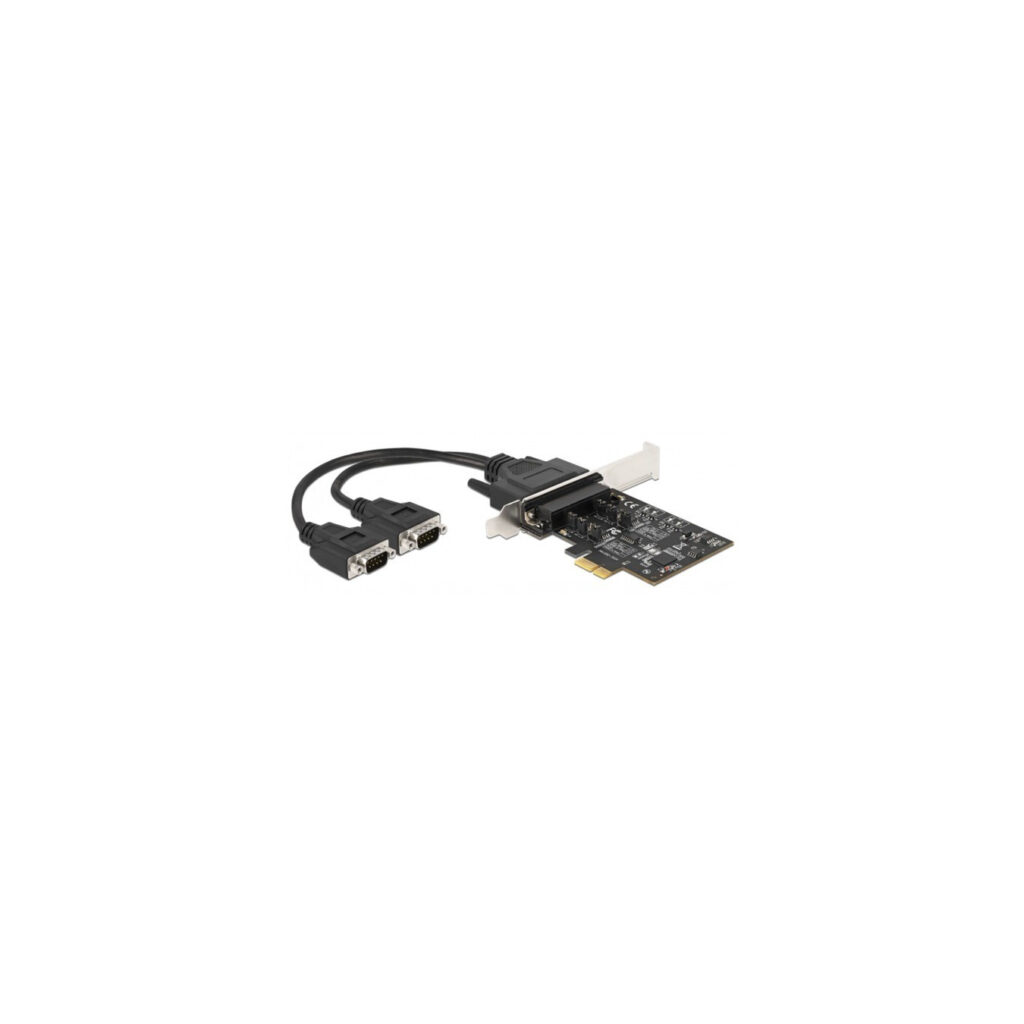

| Accessories - available | 1 serial connection cable, low profile cover, 4 x jumpers, driver CD, operating instructions |
