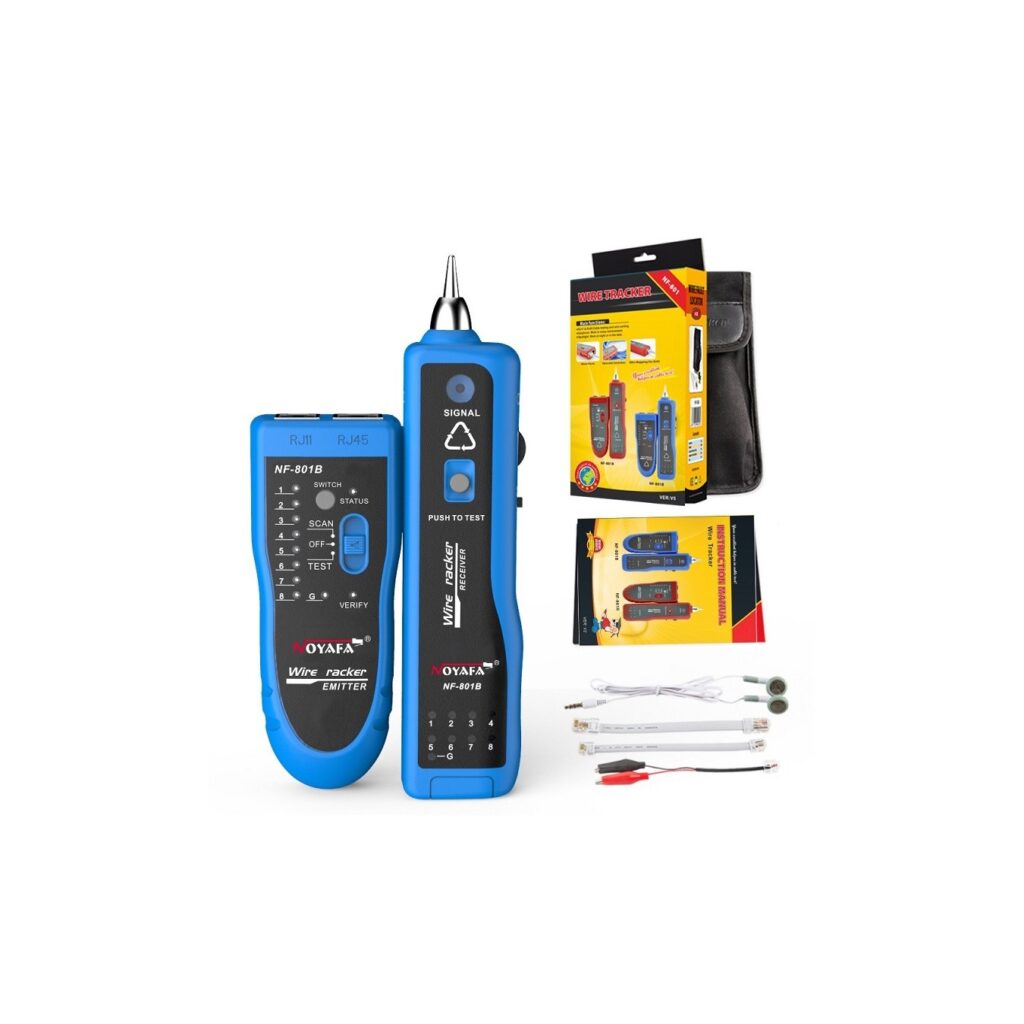

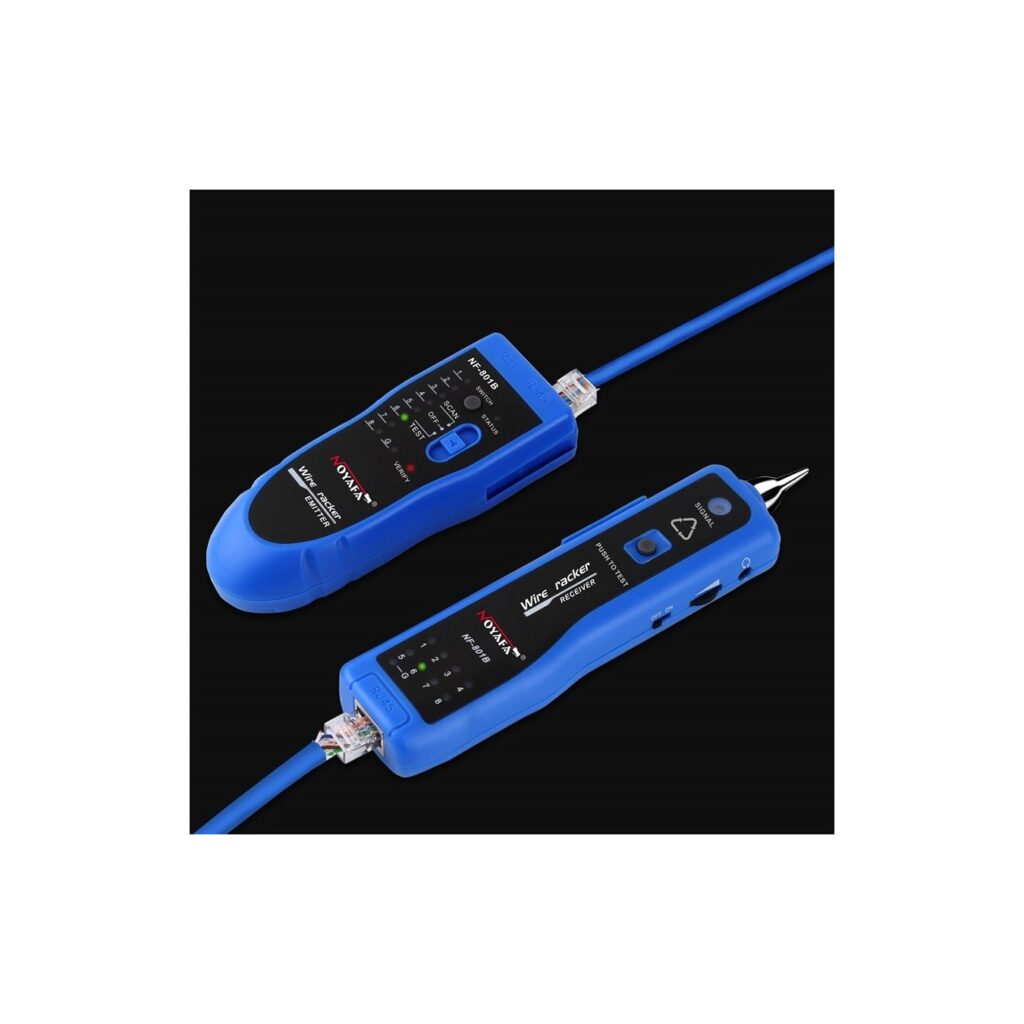

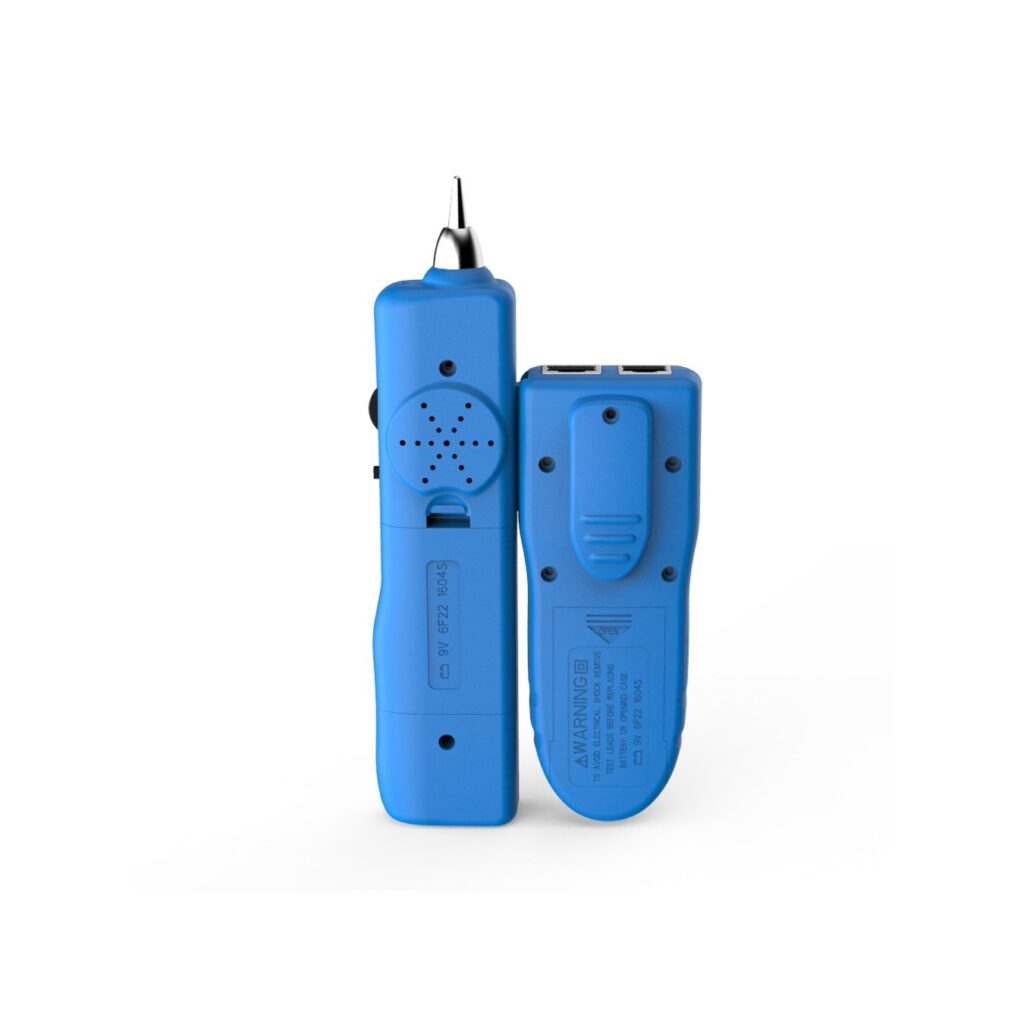

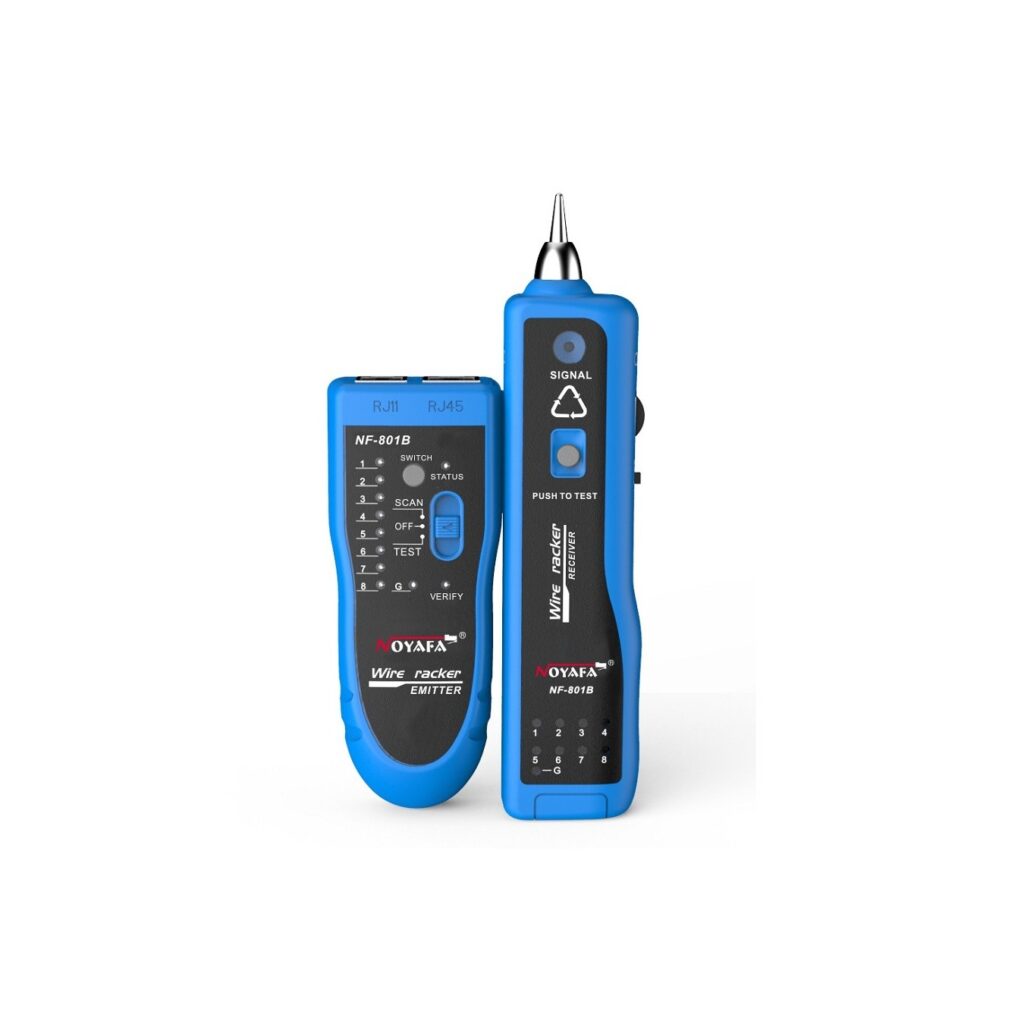

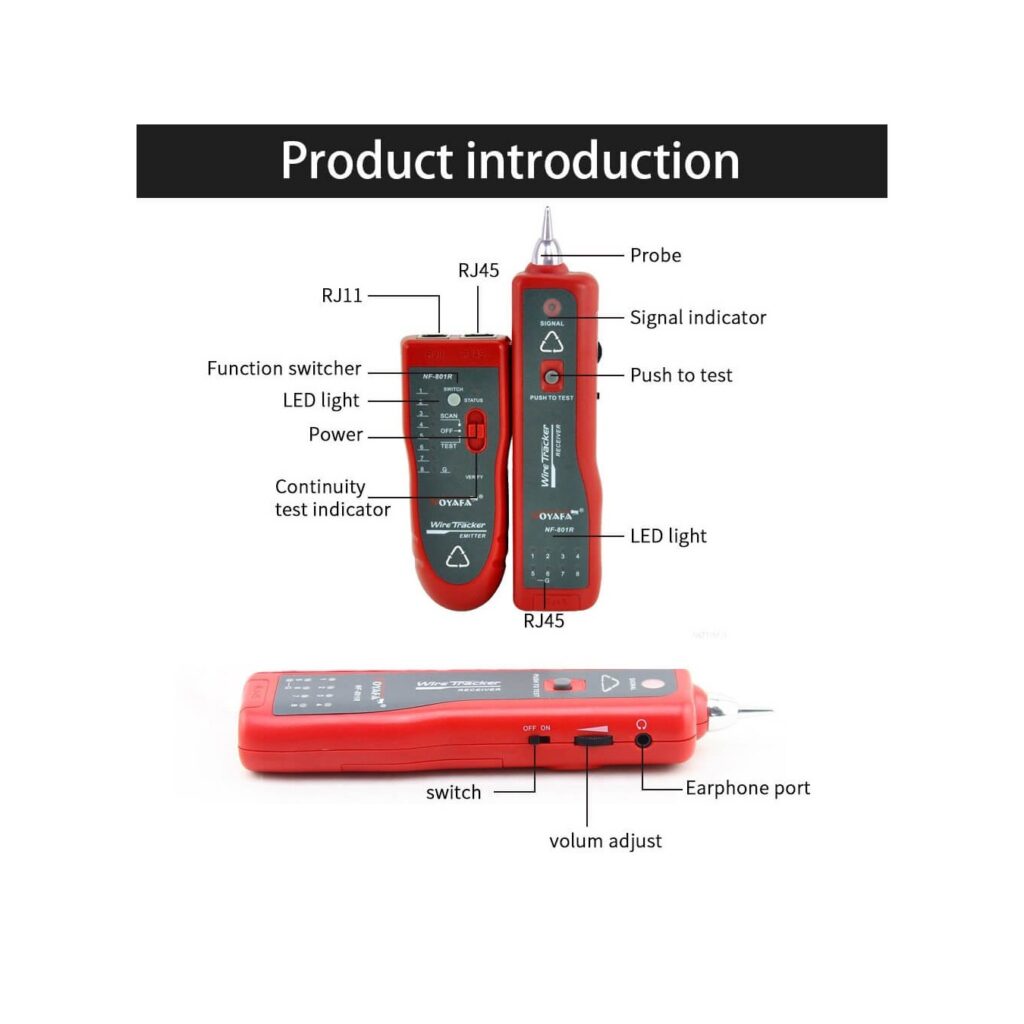

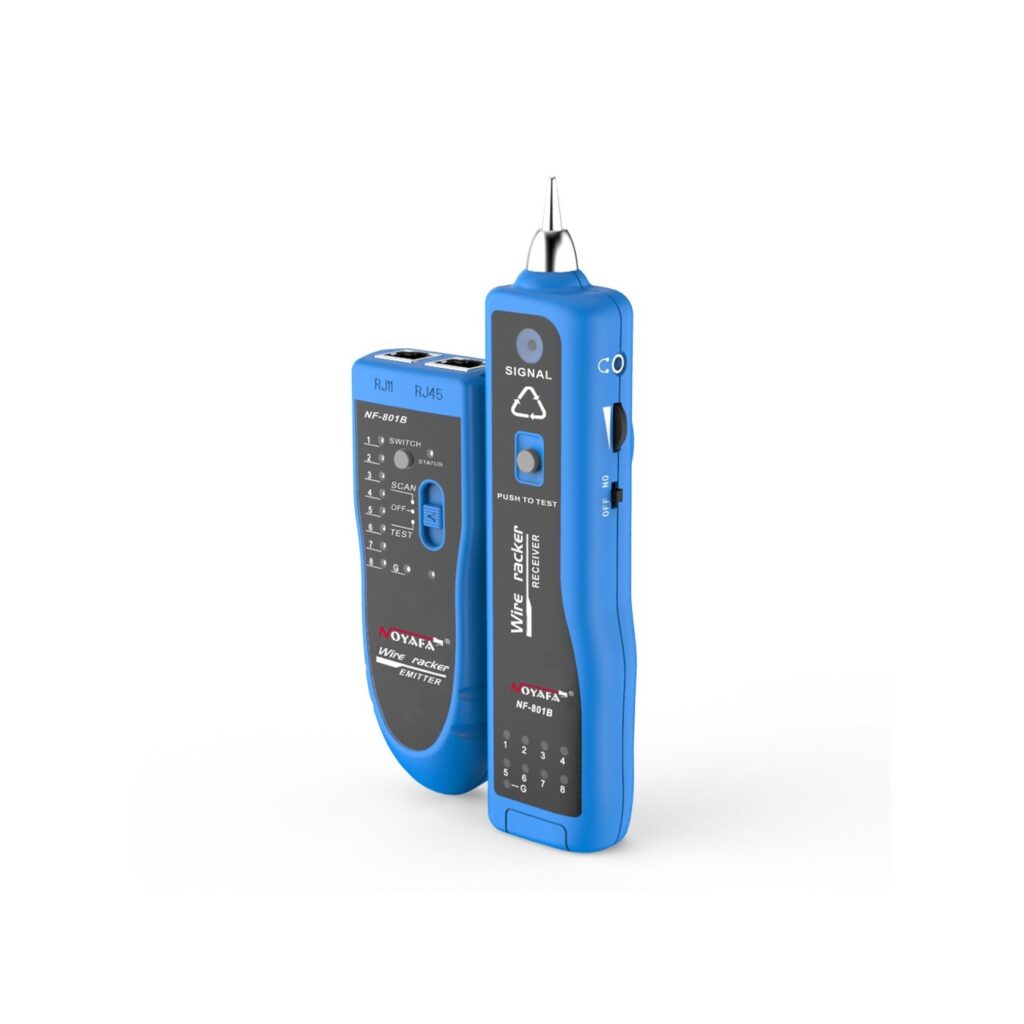

Noyafa Wire Tracker for Cable Tracing, Identification & Fault Detection NF-801

SKU:
Brand: Noyafa
Barcode:
35.50 €

Quickly trace and identify needed cables among lots of unknown cables
Check continuity for Lan cables
Track the cables, and diagnose the breakage
Visible indication: pin-to-pin cable map for indivi…

Available in 2–3 business days : 5 pieces

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Quickly trace and identify needed cables among lots of unknown cables
  • Check continuity for Lan cables
  • Track the cables, and diagnose the breakage
  • Visible indication: pin-to-pin cable map for individual cable (not by pairs)
  • Low Voltage alarm function
  • Earphone for using in noisy environment
  • LED light assists use in dark scenario
NF-801 Transmitter specifications

  • Tone frequency 200Hz
  • Max. distance of transmission Up to 2 kilometers
  • Max. working current 10mA
  • Volume Regulate Function Audio volume level control
  • Tone mode 2 Tones, adjustable
  • Compatible connectors RJ11, RJ45
  • Max. signal voltage 8Vp-p
  • LED lights display Wiremap, tone, tracing
  • Voltage protection DC 48V
  • Battery Type DC9.0V（NEDA 1604/6F22) x 1pc
  • Dimensions (LxWxD) 15 x 3.7 x 2cm

NF-801 Receiver specifications

  • Frequency 200kHz
  • Max. working current 30mA
  • Earphone jack 1
  • Battery Type DC9.0V（NEDA 1604/6F22) x1pc
  • Dimensions (LxWxD) 12.2 x 4.5 x 2.3cm
