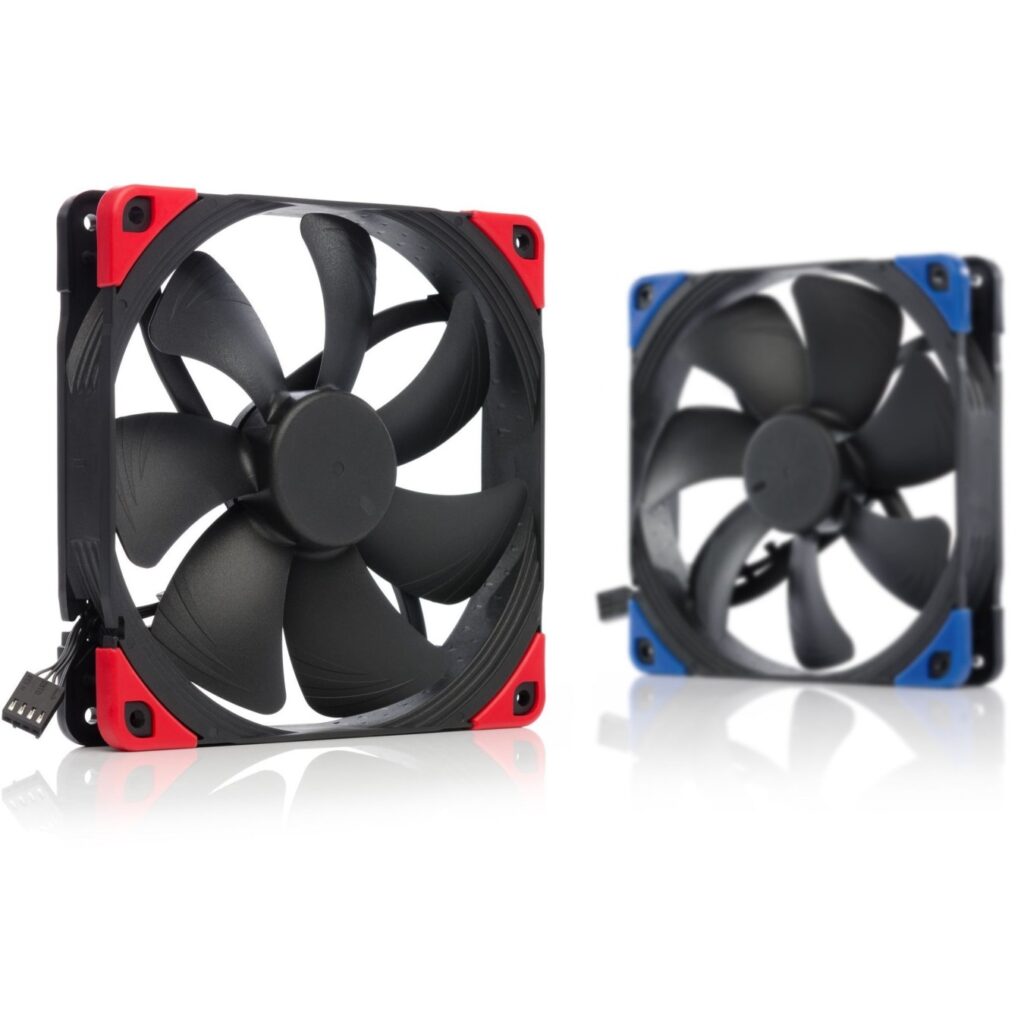

Noctua NF-A14 PWM chromax.black.swap 140mm Case Fan
Noctua NF-A14 PWM chromax.black.swap is a premium 140mm case fan with award-winning design. Delivers 82.5 CFM airflow, 2.08 mm H2O pressure at max 1500 RPM and only 24.6 dB(A). All-black with swappable anti-vibration pads.
Available in 6–10 business days : 100 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Noctua NF-A14 PWM chromax.black.swap is a high-performance 140mm fan renowned for its exceptional quiet cooling efficiency. Featuring the award-winning NF-A14 design, it provides outstanding airflow of 140.2 m³/h (82.52 CFM) and static pressure of 2.08 mm H₂O at up to 1500 RPM, while maintaining low noise levels at just 24.6 dB(A). Its square frame with 124.5mm mounting holes makes it ideal for case ventilation and 140mm radiators, ensuring full coverage and optimal performance.

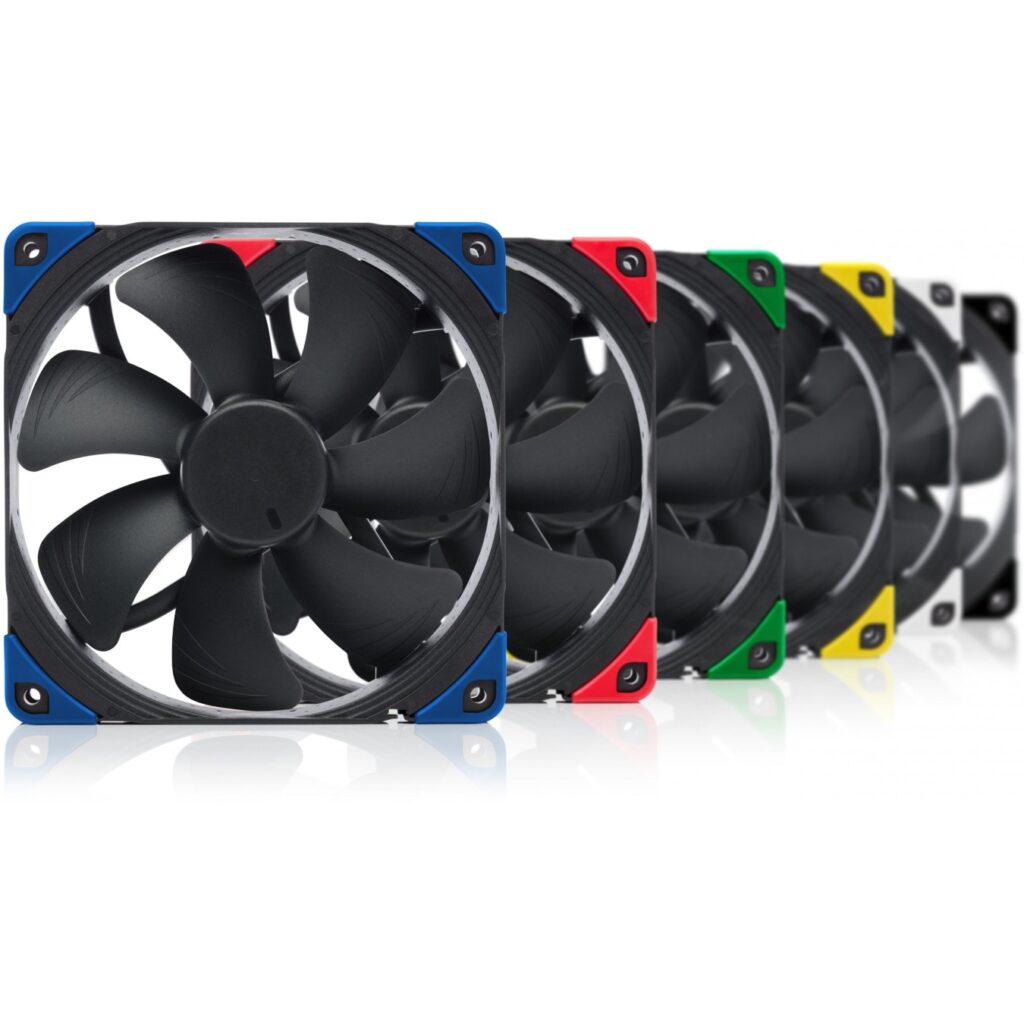

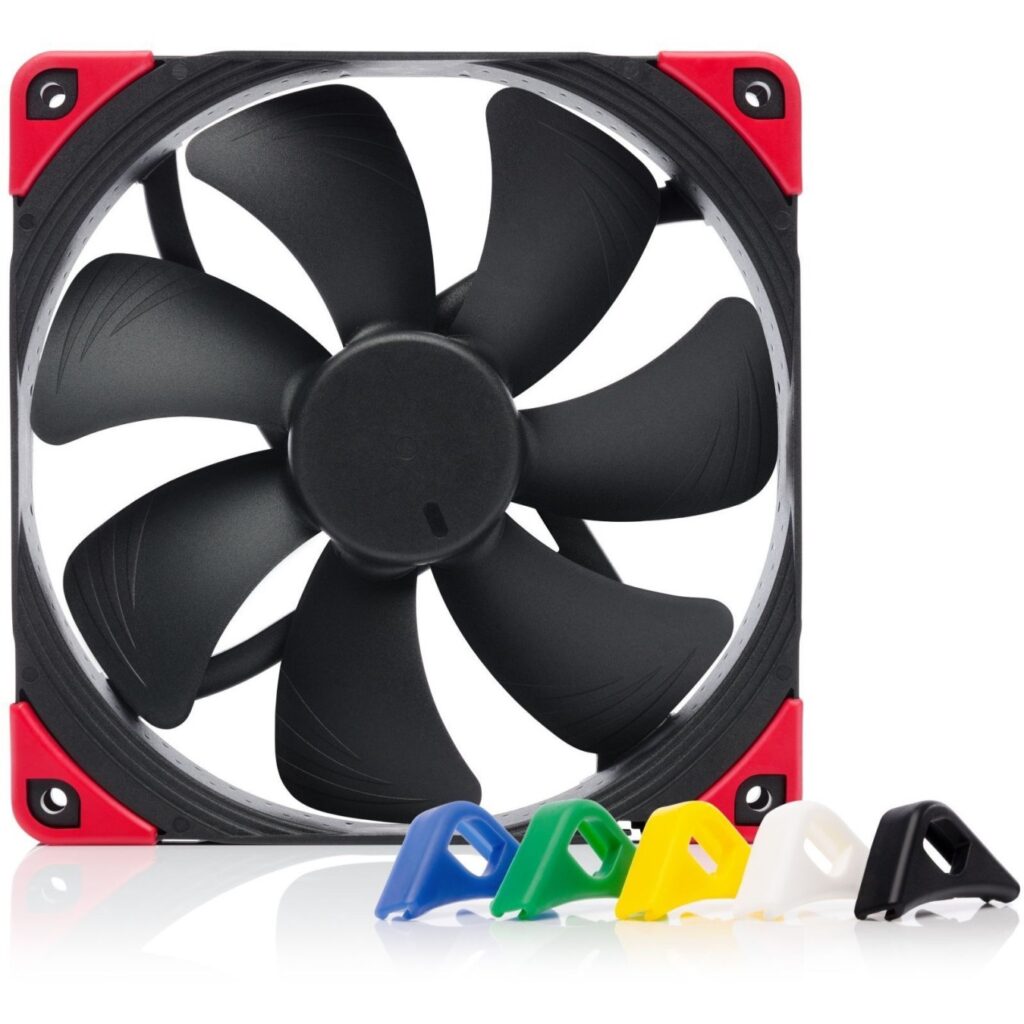

This chromax.black.swap edition combines all-black aesthetics with customizable swappable anti-vibration pads in six colors (black, red, white, blue, green, yellow). Equipped with Noctua’s premium SSO2 bearing for over 150,000 hours MTTF, 4-pin PWM control (300-1500 RPM), and 6-year warranty, it’s perfect for enthusiasts seeking top-tier quality and build flexibility. Includes NA-EC1 30cm extension cable.
- Size: 140 x 140 x 25 mm (141 x 141 x 27 mm with pads)
- Connector: 4-pin PWM, 12V operation
- Bearing: SSO2 with magnetic stabilization
- Weight: 195 g
- Low Noise Adaptor compatible
| Size | 140 x 140 x 25 mm (square) |
| Dimensions with pads | 141 x 141 x 27 mm |
| Mounting hole spacing | 124.5 x 124.5 mm |
| Weight | 195 g |
| Rotational speed (max) | 1500 rpm |
| Min rotational speed (PWM) | 300 rpm |
| Airflow (max) | 140.2 m³/h (82.52 CFM) |
| Acoustical noise (max) | 24.6 dB(A) |
| Static pressure (max) | 2.08 mm H₂O |
| Rated voltage | 12 V |
| Input power (max) | 1.56 W |
| Connector | 4-pin PWM |
| Cable length | 1cm + 30cm NA-EC1 extension |
| Bearing | SSO2 |
| MTTF | >150,000 hours |
| Warranty | 6 years |
