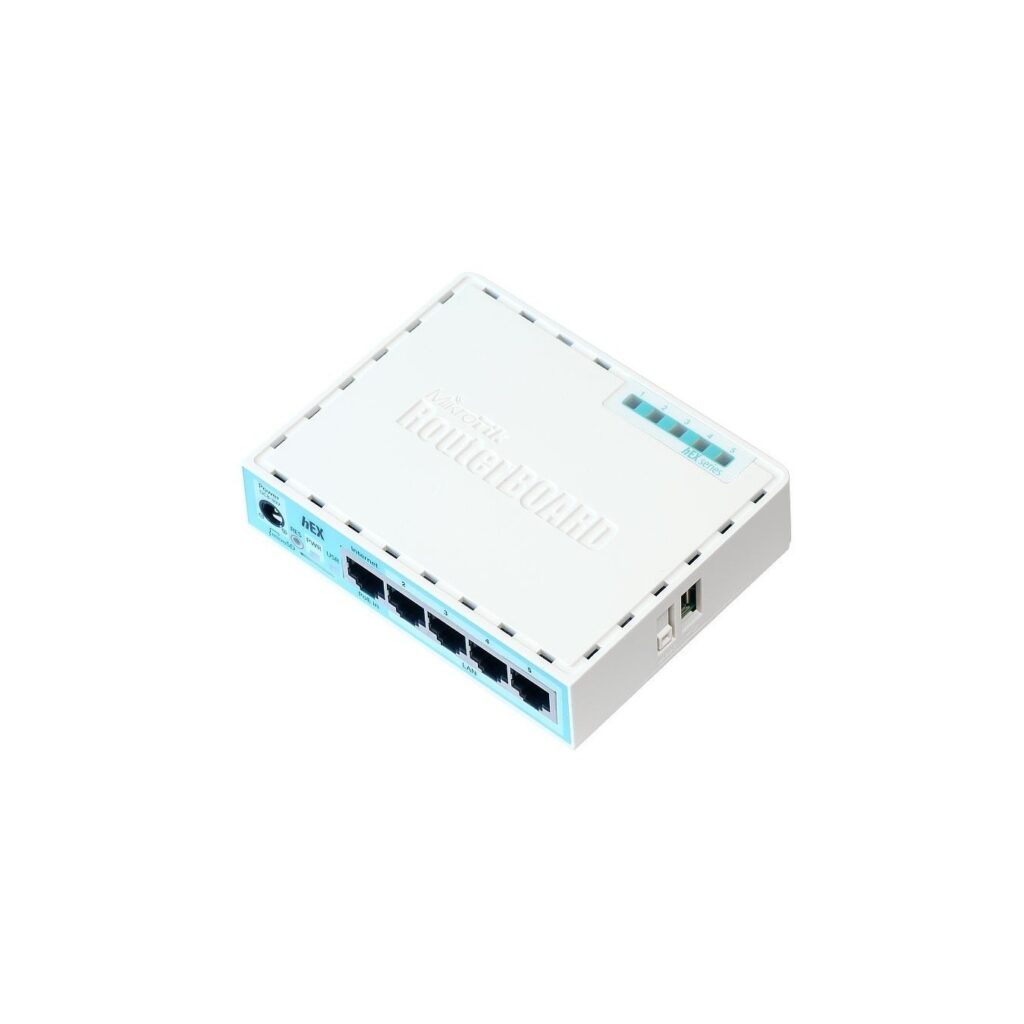

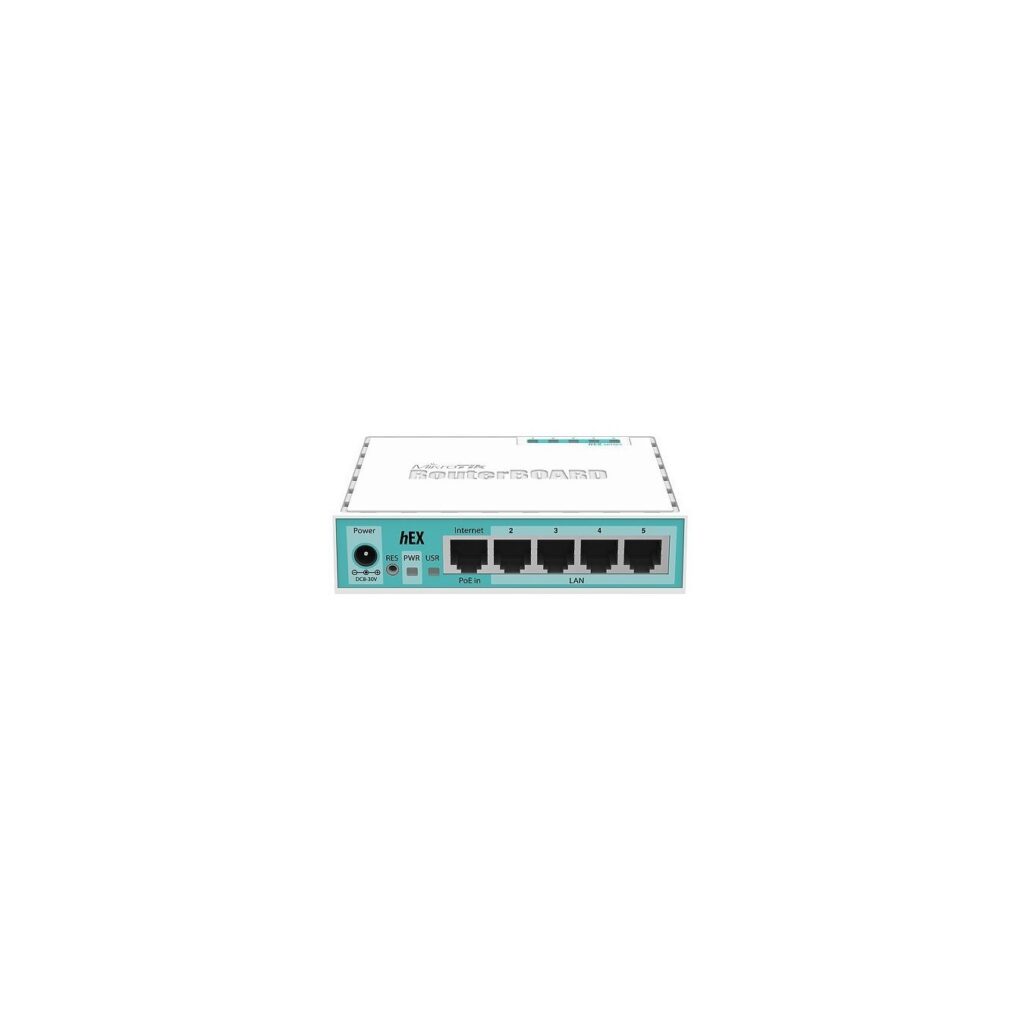

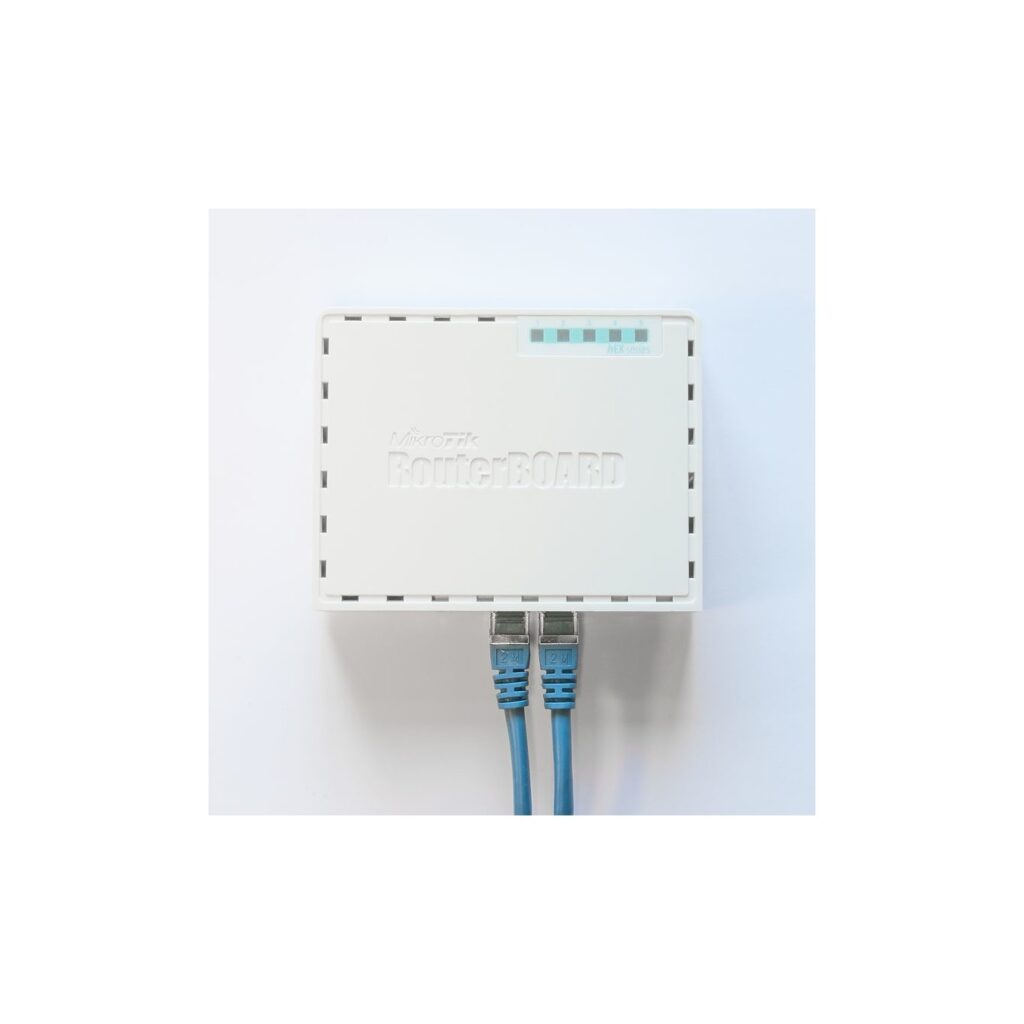

MikroTik RouterBOARD hEX RB750Gr3 5-Port Gigabit Ethernet Router
Compact 5-port Gigabit Ethernet router with dual-core 880MHz CPU and 256MB RAM. Ideal for small networks and edge deployments requiring reliable routing without wireless connectivity.
Available in 4–6 business days : 30 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The MikroTik RouterBOARD hEX RB750Gr3 is a compact, affordable five-port Gigabit Ethernet router designed for small networks and locations where wireless connectivity is not required. Featuring a powerful dual-core 880MHz MT7621A processor and 256MB of RAM, this device delivers reliable performance for advanced routing, firewall, and VPN tasks in a minimal footprint of just 113x89x28mm.
This updated revision of the hEX brings significant performance improvements while maintaining the same form factor and price point. The router includes passive PoE support (8-30V input), a full-size USB 2.0 port for device management, and a microSD card slot for Dude Server support. With RouterOS Level 4 license included, the RB750Gr3 offers comprehensive networking features including IPsec hardware acceleration (~450 Mbps AES-128), VLAN support, traffic monitoring, and failover capabilities. Maximum power consumption is just 10W, making it energy-efficient for continuous operation.
Key capabilities and features:
- 5x 10/100/1000 Gigabit Ethernet ports with 1972 Mbps throughput
- RouterOS Level 4 with VPN, Firewall, and advanced routing support
- Passive PoE input for flexible power options
- IPsec hardware acceleration for secure communications
- Compact desktop form factor suitable for any environment
- Operating temperature range: -40°C to 60°C
- MTBF approximately 100,000 hours at 25°C
| Product Code | RB750Gr3 |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU Core Count | 2 |
| CPU Thread Count | 4 |
| CPU Nominal Frequency | 880 MHz |
| RAM Size | 256 MB |
| Storage Size | 16 MB |
| Storage Type | FLASH |
| Gigabit Ethernet Ports | 5 |
| USB Ports | 1 |
| USB Type | USB 2.0 Type A |
| Memory Card Slot | microSD |
| PoE Input | Passive PoE |
| PoE Input Voltage | 8-30 V |
| DC Jack Input Voltage | 8-30 V |
| Max Power Consumption | 10 W |
| Max Power Consumption Without Attachments | 5 W |
| Cooling Type | Passive |
| Operating System | RouterOS |
| RouterOS License Level | Level 4 |
| Dimensions | 113 x 89 x 28 mm |
| Operating Temperature Range | -40°C to 60°C |
| MTBF | Approximately 100,000 hours at 25°C |
| Bridging Throughput (64 byte) | 523 Mbps |
| Bridging Throughput (1518 byte) | 1972 Mbps |
| Routing Throughput (64 byte) | 530 Mbps |
| Routing Throughput (1518 byte) | 1972 Mbps |
| IPsec Hardware Acceleration (AES-128) | ~450 Mbps (1400 byte packets) |
| Certifications | CE, FCC, EAC, RoHS |
| IP Rating | IP20 |
| USB Power Reset | Yes |
| Max USB Current | 1 A |
| PCB Temperature Monitor | Yes |
| Voltage Monitor | Yes |
