LtAP mini LTE kit, Access Point
The MikroTik LtAP Mini LTE Kit is a compact and robust Wi-Fi access point that connects any vehicle anywhere to the Internet and ensures location data can be uploaded. The LtAP min…
Available in 6–10 business days : 38 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

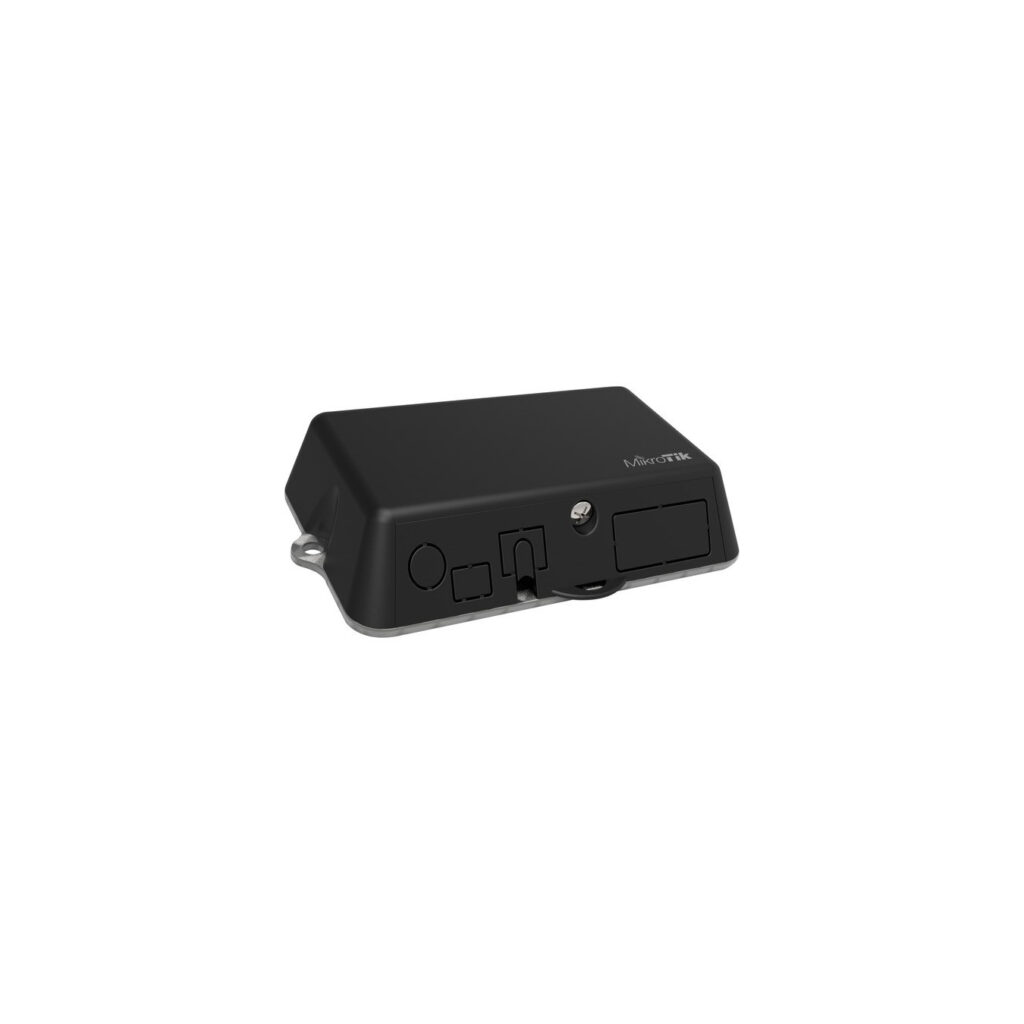

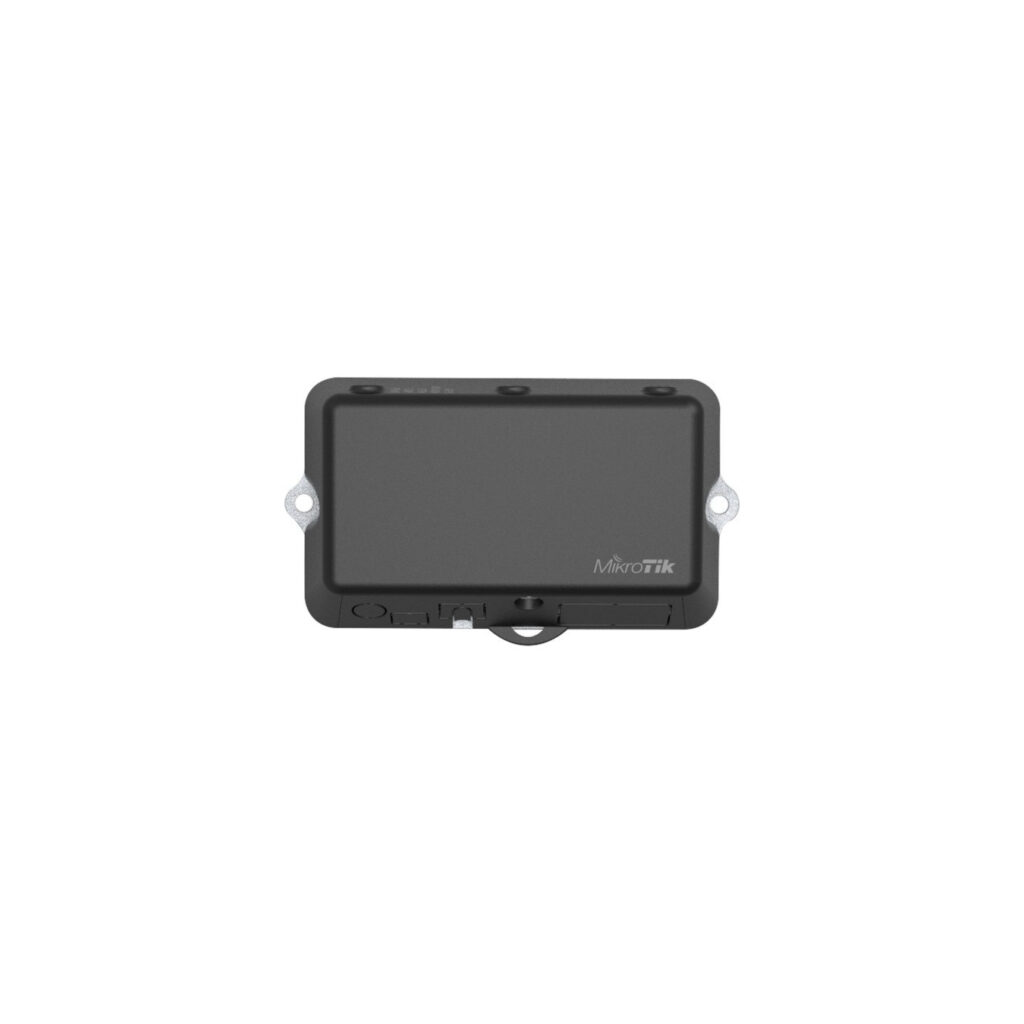

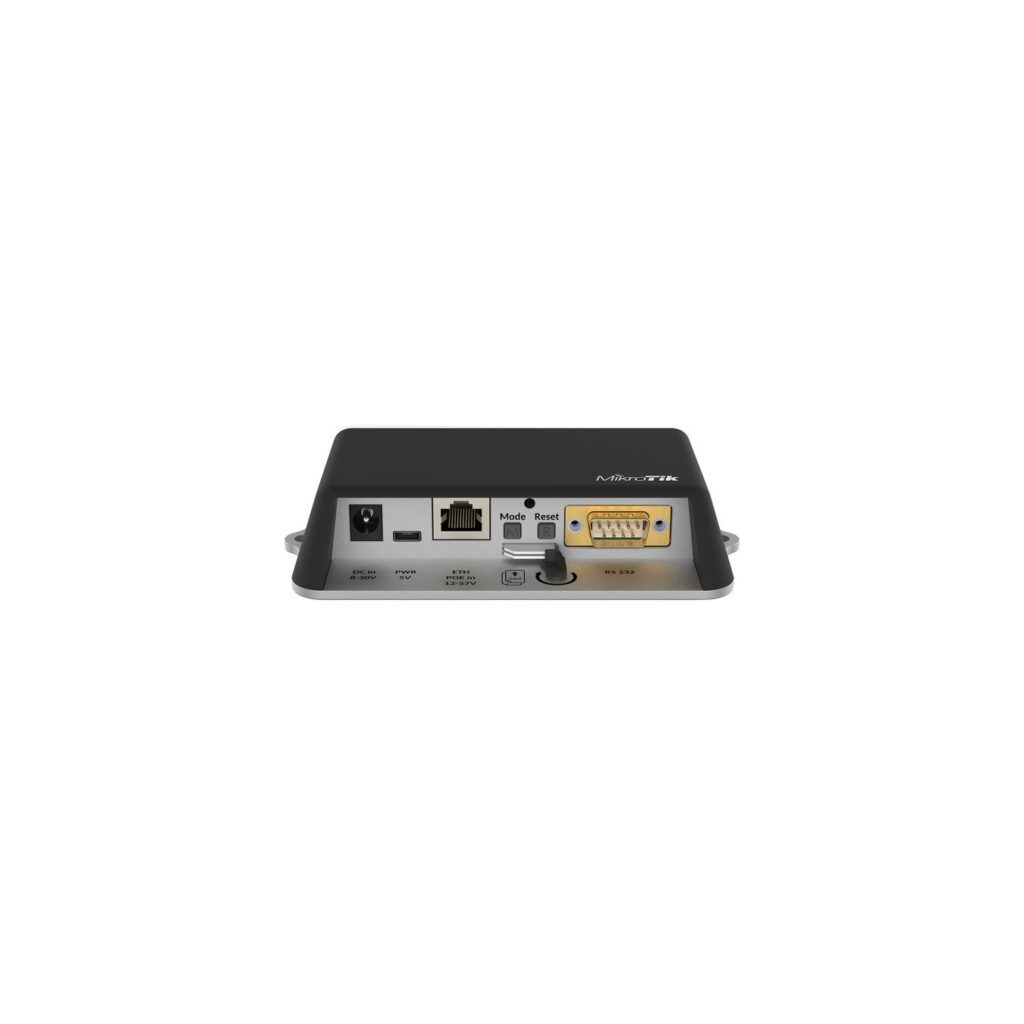

The MikroTik LtAP Mini LTE Kit is a compact and robust Wi-Fi access point that connects any vehicle anywhere to the Internet and ensures location data can be uploaded. The LtAP mini features a particularly robust housing with a wall mounting kit, two SIM card slots for switching between mobile providers and integrated GPS support. It has an Ethernet port for wired devices and a classic 2.4 GHz radio module. The serial RS232 interface provides access to the console for debugging. The power supply is maximally flexible. You can choose from a classic DC socket, an 802.3af/at PoE input and a micro USB port. The integrated LTE card supports the most popular LTE bands, including the B28 band.
| Typ | Access Point |
| Color | schwarz |
| EAN | 4752224009296 |
| Manufacturer no. | RB912R-2nD-LTm&EC200A-EU |
| Design | Wall mounting |
| Connections - Network | RJ-45 1x (of which: 1x 10/100) |
| WLAN - Standards | Wi-Fi 3 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n) - (2.4 GHz) |
| Mobile standards | 3G/UMTS, LTE (700 MHz), LTE (800 MHz), LTE (850 MHz), LTE (900 MHz), LTE (1800 MHz), LTE (2100 MHz), LTE (2300 MHz), LTE (2600 MHz) |
| Hardware - CPU | QCA9531, 650 MHz |
| Memory cards | mini-SIM-Card |
| Control buttons | Modus-Taste, Reset-Taste |
| Power supply | Power supply connection, power consumption operation: 8 W |
| Feature | B28 band support, RouterOS v7 operating system, 2x modem (mini-SIM) slots, uUFL GPS RF port type, IP54 |
| More information | PoE input voltage: 12-57V (802.3af/at), DC socket: 8-30V, Micro USB: 5V |

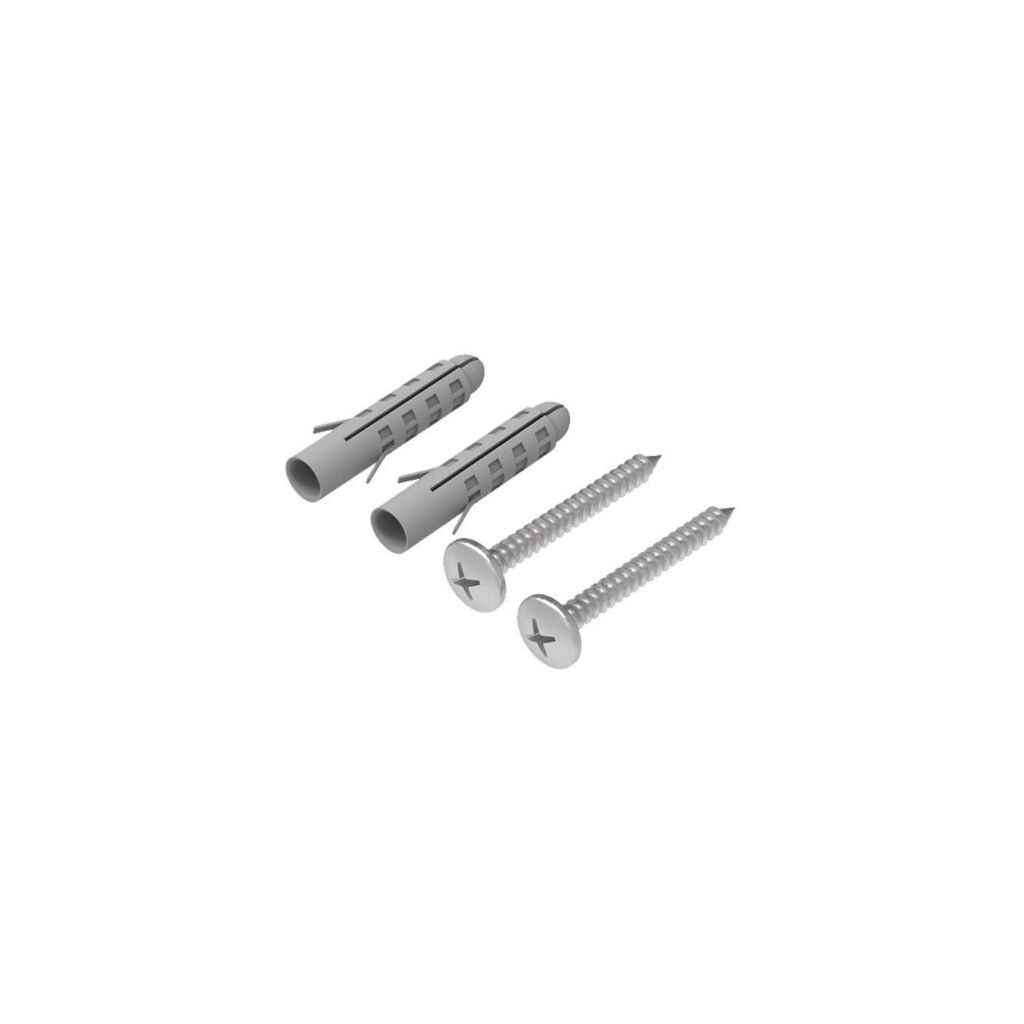

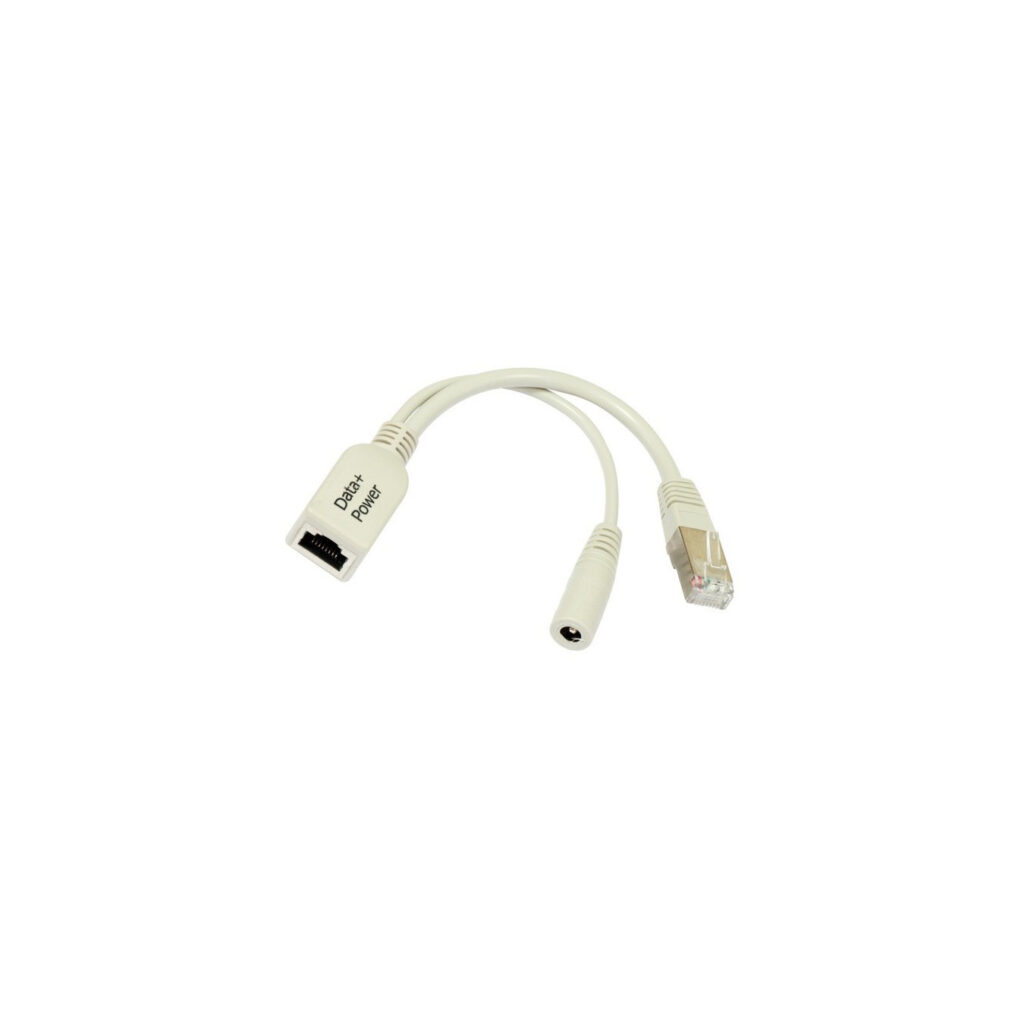

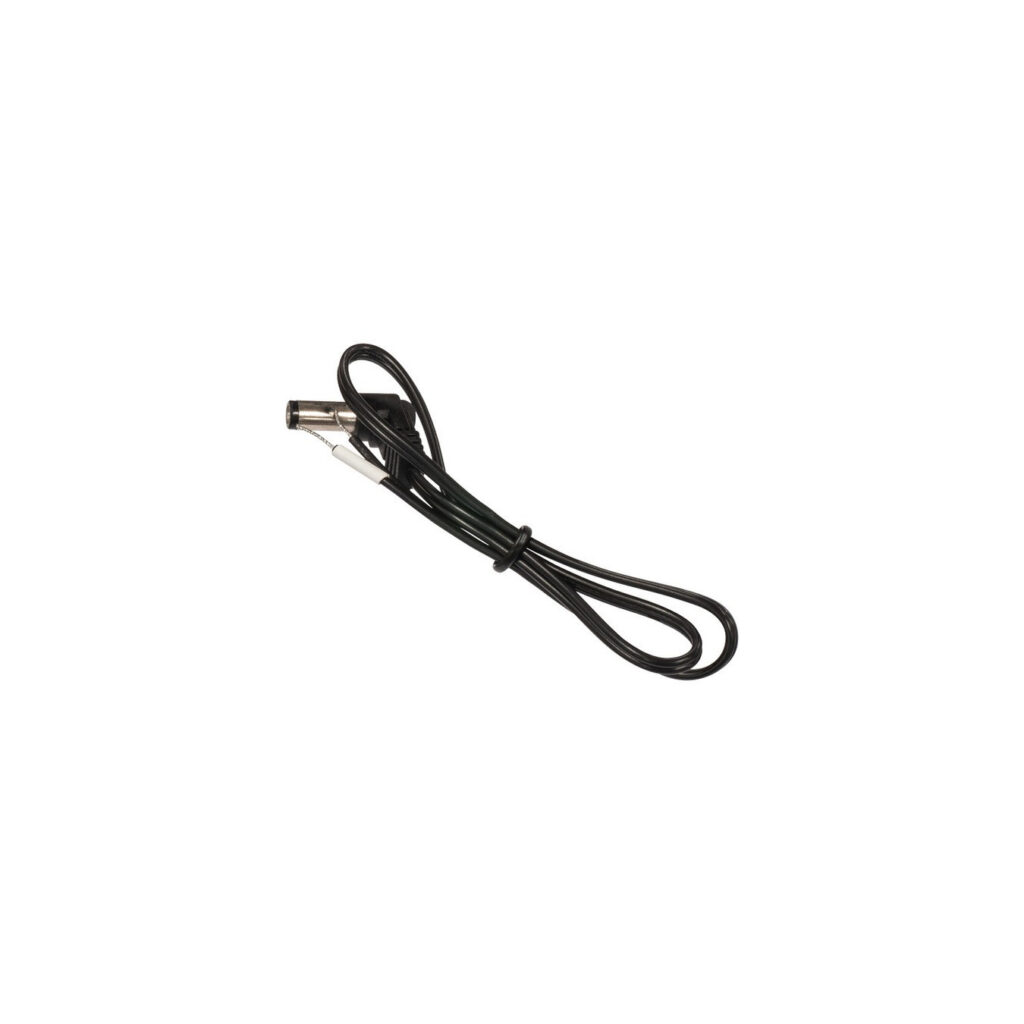

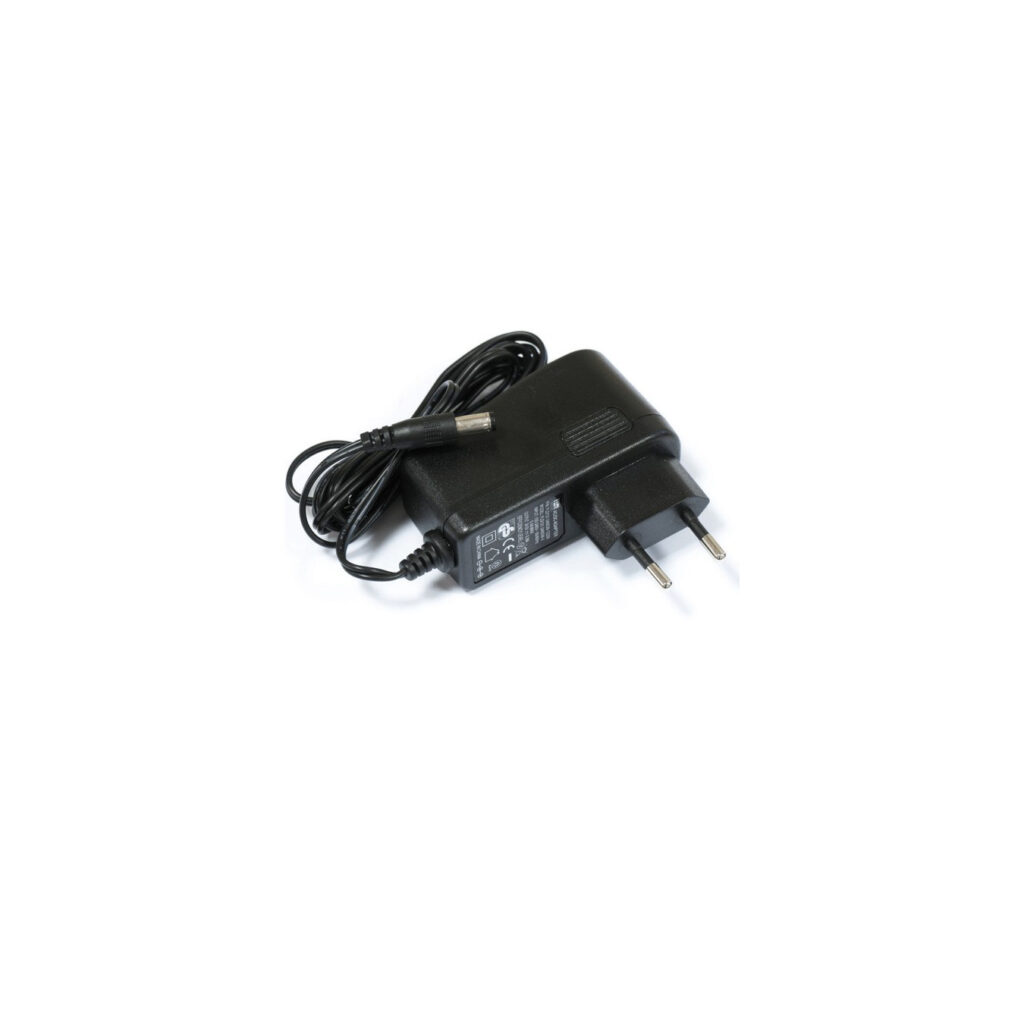

| Accessories - available | External DC cable, K-55 screw set, 24V 0.38A power supply, PoE injector |
