Lian Li SP850P 850W 80+ Platinum SFX PSU - 12V-2x6 - 10 Year Warranty
Compact 850W SFX PSU with 80 Plus Platinum efficiency (92%), fully modular design, 12V-2×6 connectors for next-gen GPUs, fanless operation below 40% load, and 10-year warranty.
Available in 10–14 business days : 28 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Compact SFX Form Factor with Broad Compatibility
The Lian Li SP850P delivers professional-grade power in a compact 125 x 63.5 x 100 mm SFX form factor, making it ideal for small form factor builds. The included SFX-to-ATX bracket extends compatibility to mid-size and full-size cases, providing flexibility for various system configurations. Built with 100% Japanese Rubycon 105°C capacitors and engineered for reliability, this PSU maintains stable full output even at 40°C ambient temperatures.
80 Plus Platinum Efficiency with Smart Cooling
Certified 80 Plus Platinum with up to 92% efficiency at 50% load, the SP850P delivers cooler operation, quieter acoustics, and lower energy costs. The intelligent fanless mode activates below 40% load for silent operation, with the 92mm double ball bearing fan engaging smoothly as load increases. Professional-grade voltage regulation and ultra-low ripple ensure stable performance for demanding GPUs and CPUs during power fluctuations.
Next-Generation Ready with ATX 3.1 & PCIe 5.1 Support
Designed for the latest high-performance graphics cards, the SP850P features Lian Li’s proprietary 12V-2×6 connectors with soldered alloy terminals, delivering lower resistance and superior heat tolerance. The fully modular cable design with braided insulation offers maximum flexibility and clean cable management. Backed by a comprehensive 10-year hardware warranty and full protection suite (OCP, OVP, OTP, OPP, SCP, UVP).
- 850W continuous output with 840W on 12V rail
- 80 Plus Platinum certified (92% efficiency at 115V)
- Fully modular with braided cables
- 12V-2×6 connectors for next-gen GPUs
- Fanless operation below 40% load (340W threshold)
- 100% Japanese 105°C capacitors
- 10-year hardware warranty
- SFX-to-ATX bracket included
| Model | SP0850P.B |
| Wattage | 850W |
| Type | SFX |
| Dimensions (W x H x D) | 125 x 63.5 x 100 mm |
| Weight (Unboxed) | 0.91 kg |
| Form Factor | SFX |
| Modularity | Fully Modular |
| 80 Plus Certification | Platinum |
| Efficiency (115V) | 92% (peak at 50% load) |
| Cybenetics Rating | Platinum (89-91% at 115V, 91-93% at 230V) |
| Max DC Output | 850W |
| 12V Rail Output | 840W |
| 3.3V + 5V Combined | 100W |
| 5VSB Output | 12.5W |
| Input Voltage | 100-240V AC |
| Input Frequency | 50-60 Hz |
| Power Factor Correction | Active PFC (>0.90 at full load) |
| Cooling | 92mm Double Ball Bearing Fan (D92LH-12B) |
| Fan Speed | 1000-2800 RPM |
| Semi-Passive Operation | Yes (Fanless below 40% load / 340W) |
| Noise Level | 17.1-40.6 dBA |
| Protection Features | OCP, OVP, OTP, OPP, SCP, UVP |

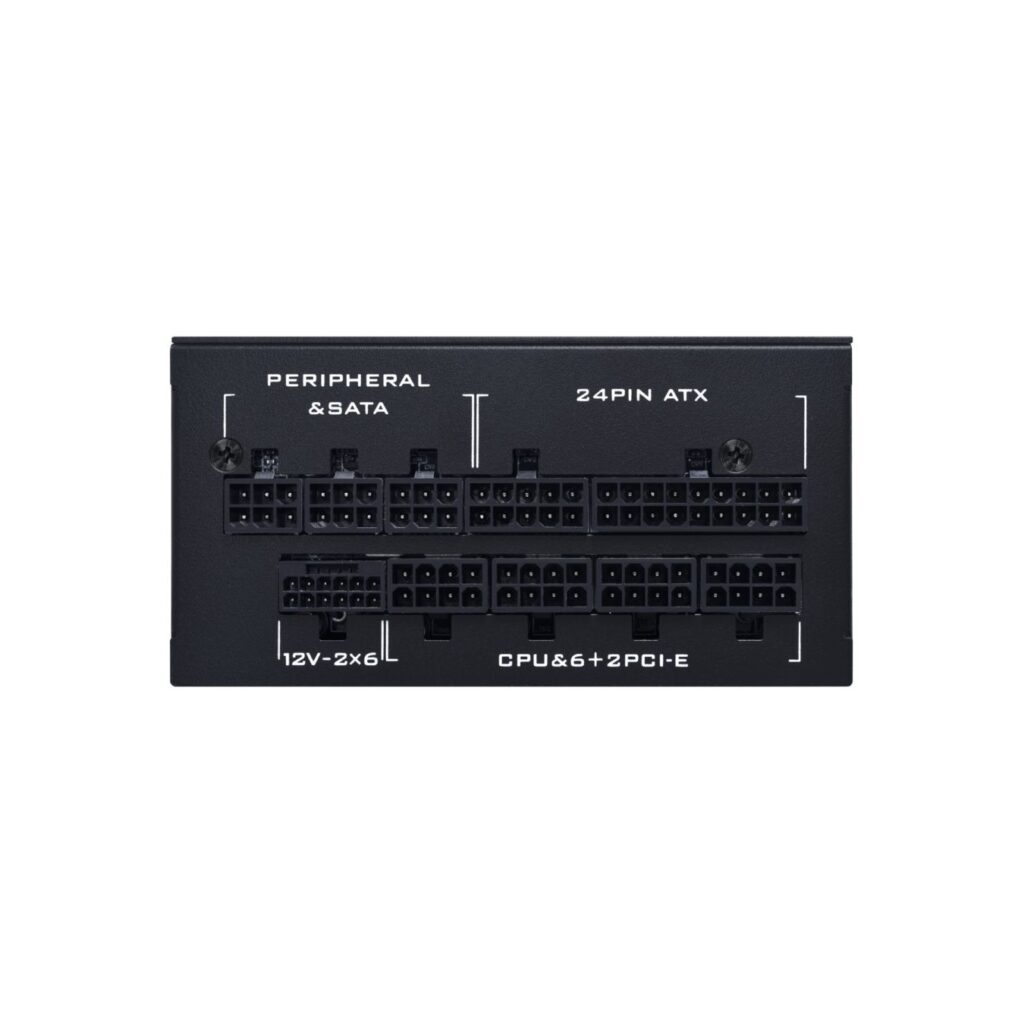

| EPS CPU Connectors | 2x 4+4-pin EPS12V |
| PCIe GPU Connectors | 1x 12V-2x6 (Proprietary Lian Li), 3x PCIe 6+2-pin |
| SATA Connectors | 8x SATA |
| Molex Connectors | 4x 4-pin Molex |
| ATX Cable Length | 300mm |
| EPS Cable Length | 600mm |
| Cable Type | Fully Modular, Individually Sleeved, Braided |
| Capacitors | 100% Japanese Rubycon 105°C |
| Compliance | ATX12V v2.53, EPS 2.92, ATX 3.1, PCIe 5.1 |
| Warranty | 10 Years |
| Color | Black |
| Accessories Included | SFX-to-ATX Bracket, IEC C14-C13 Power Cord with Switch |
