Lian Li RS1200G Black - 1200W 80+ Gold ATX 3.1 PSU - 12V-2x6 - RS Hub
Lian Li RS1200G: 1200W 80+ Gold ATX 3.1 PSU with 90° rotatable AC inlet, dual-sided 24-pin, 135mm FDB zero-RPM fan, 12V-2×6 cable, RS USB hub. Cybenetics Platinum efficiency, 10-year warranty.
Available in 10–14 business days : 4 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

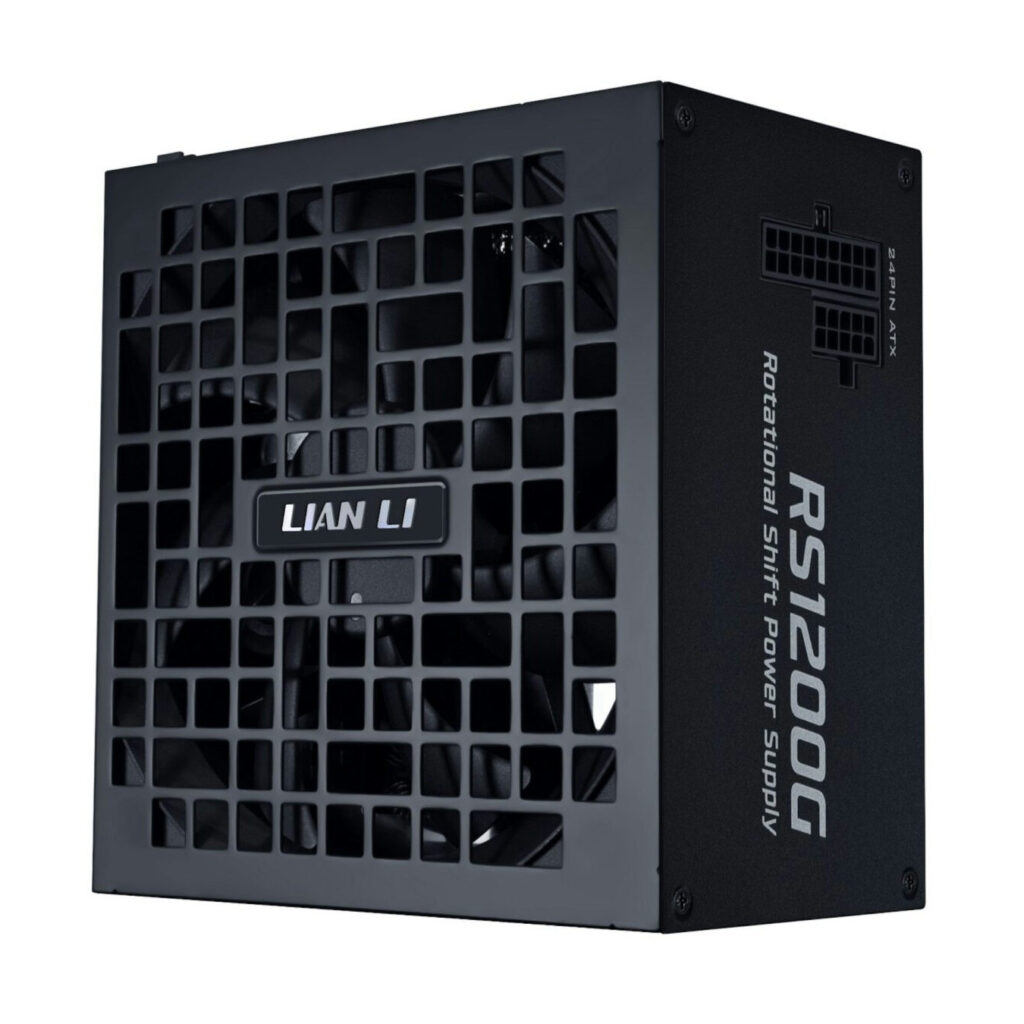

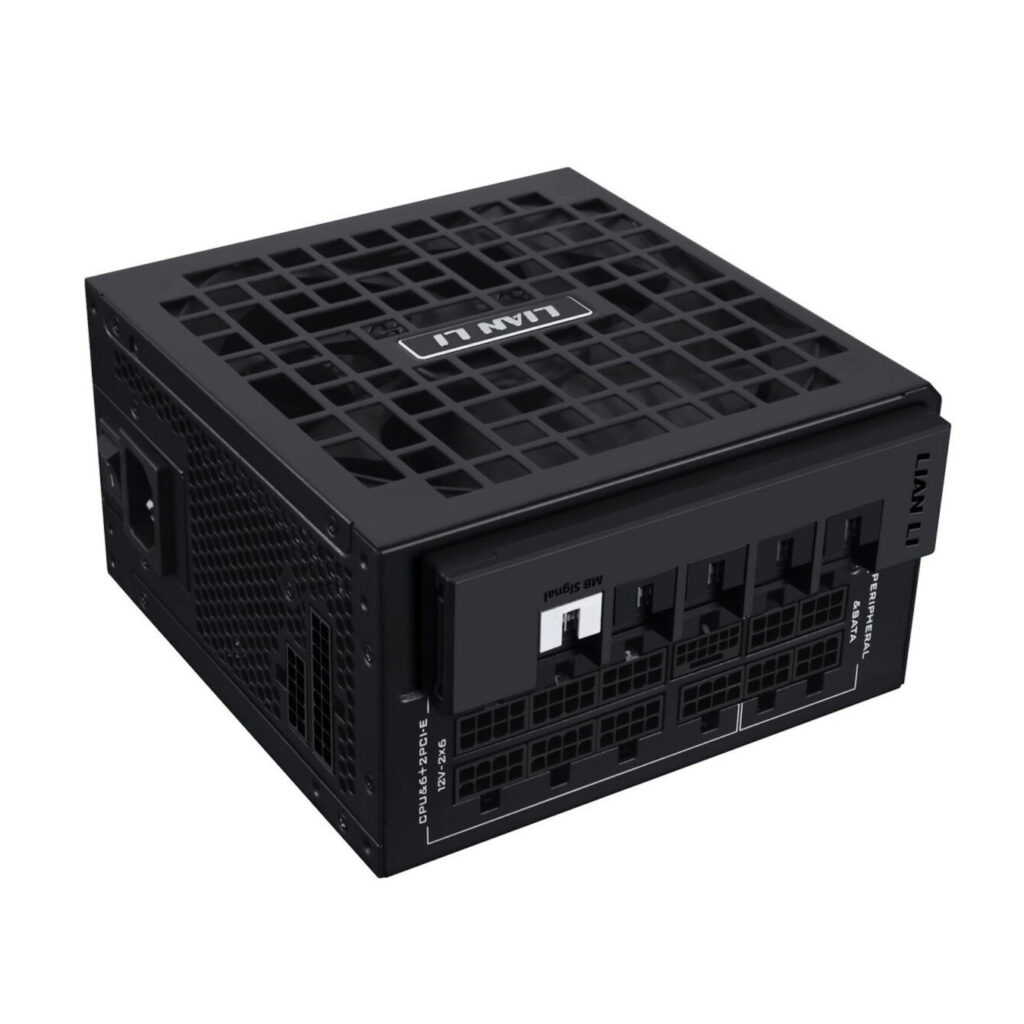

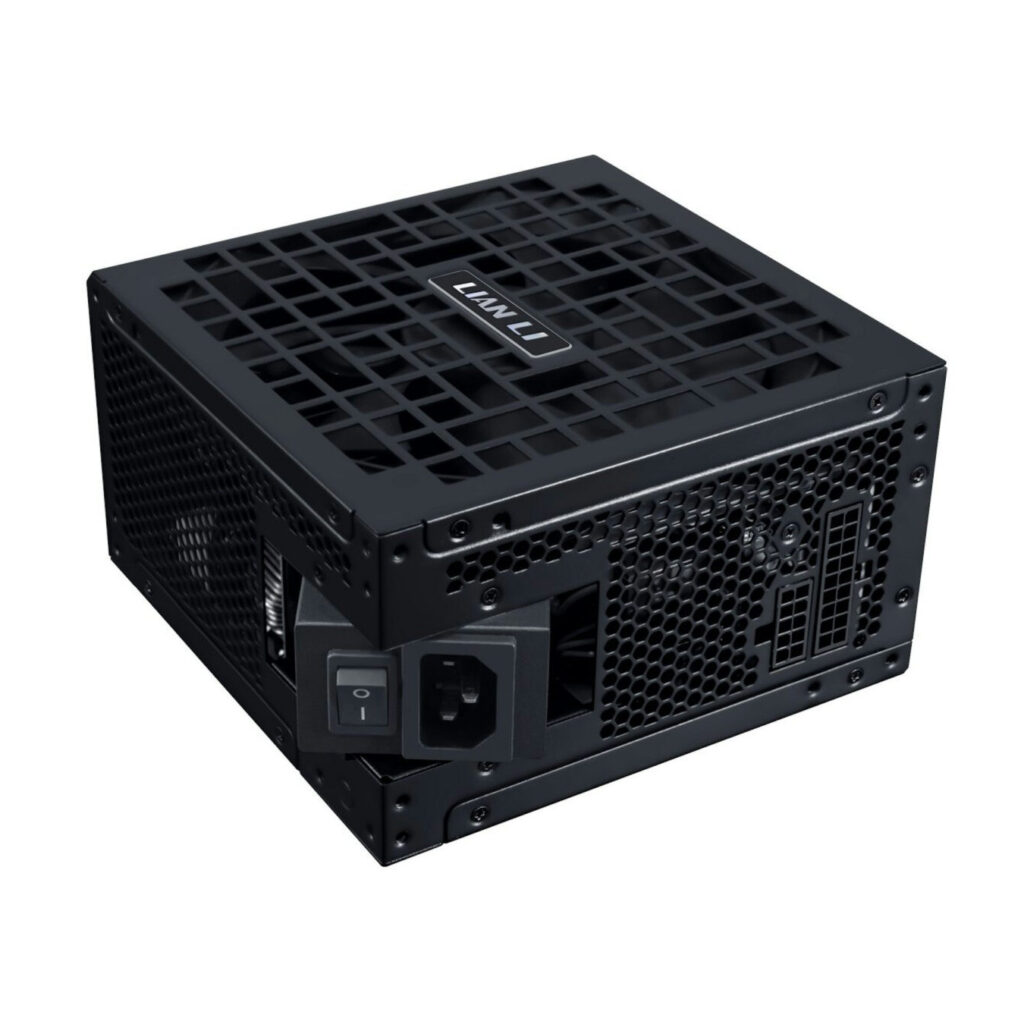

Lian Li RS1200G is a premium 1200W fully modular ATX 3.1 power supply featuring innovative 90° rotatable AC inlet for horizontal/vertical mounting in tight cases. It includes dual-sided 24-pin outputs for optimal cable routing and reduces clutter while improving airflow.

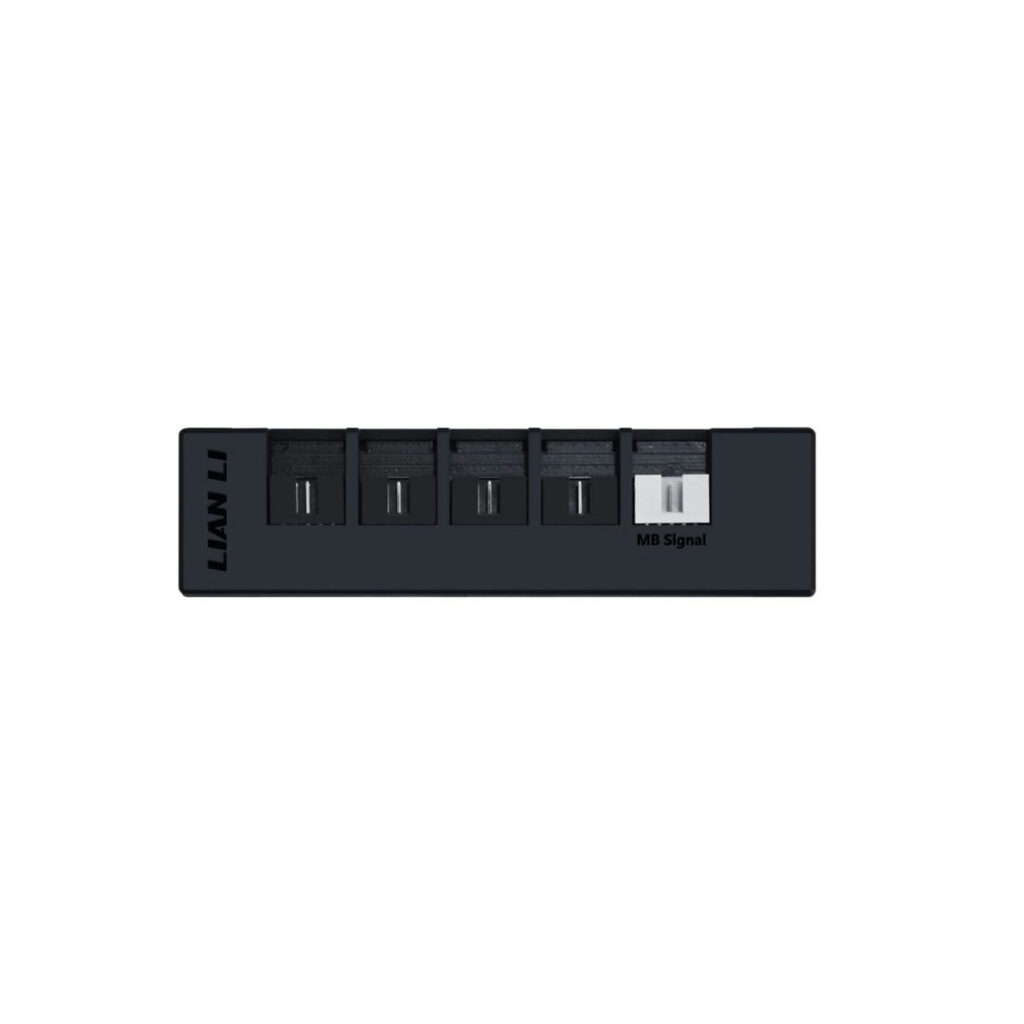

Certified 80 PLUS Gold, Cybenetics Platinum and PPLP Gold with >90% efficiency. Equipped with 135mm FDB fan (Zero RPM mode), German EPCOS capacitors, and native 12V-2×6 high-current GPU cable. Includes detachable magnetic RS USB Hub with 4x USB 2.0 ports for RGB/fans. 10-year warranty.
- ATX 3.1 compliant with OCP/OVP/OTP/OPP/SCP/UVP protections
- Compact 150x150x86mm design, Active PFC >0.90
- Ultra-low ripple: 26mV max on 12V rail
- MTBF 100,000 hours
| ATX12V VERSION | ATX 3.1 |
| EFFICIENCY | 80 PLUS Gold / Cybenetics Platinum / PPLP Gold |
| DC OUTPUT CABLE | Full-Modular |
| DIMENSIONS | (D)150 mm x (W)86 mm x (H)150 mm |
| COLOR | Black |
| MATERIAL | SECC |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| INPUT RATING | 100-240Vac 15-8A, 50-60Hz |
| MAX. DC OUTPUT | 1200W |
| COMBINED +12V | 1200W |
| COMBINED +3.3V & +5V | 100W |
| FAN SPEC | 135mm FDB Fan |
| FAN RPM | 2400rpm |
| FANLESS MODE | YES (Zero RPM) |
| NOISE LEVEL | 36.27dBA @ 30℃, 100cm |
| MTBF | 100,000 hrs minimum 25℃/75% Load |
| PROTECTION | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
| WORKING TEMPERATURE | 0-40℃ |
| WARRANTY | 10 Years |

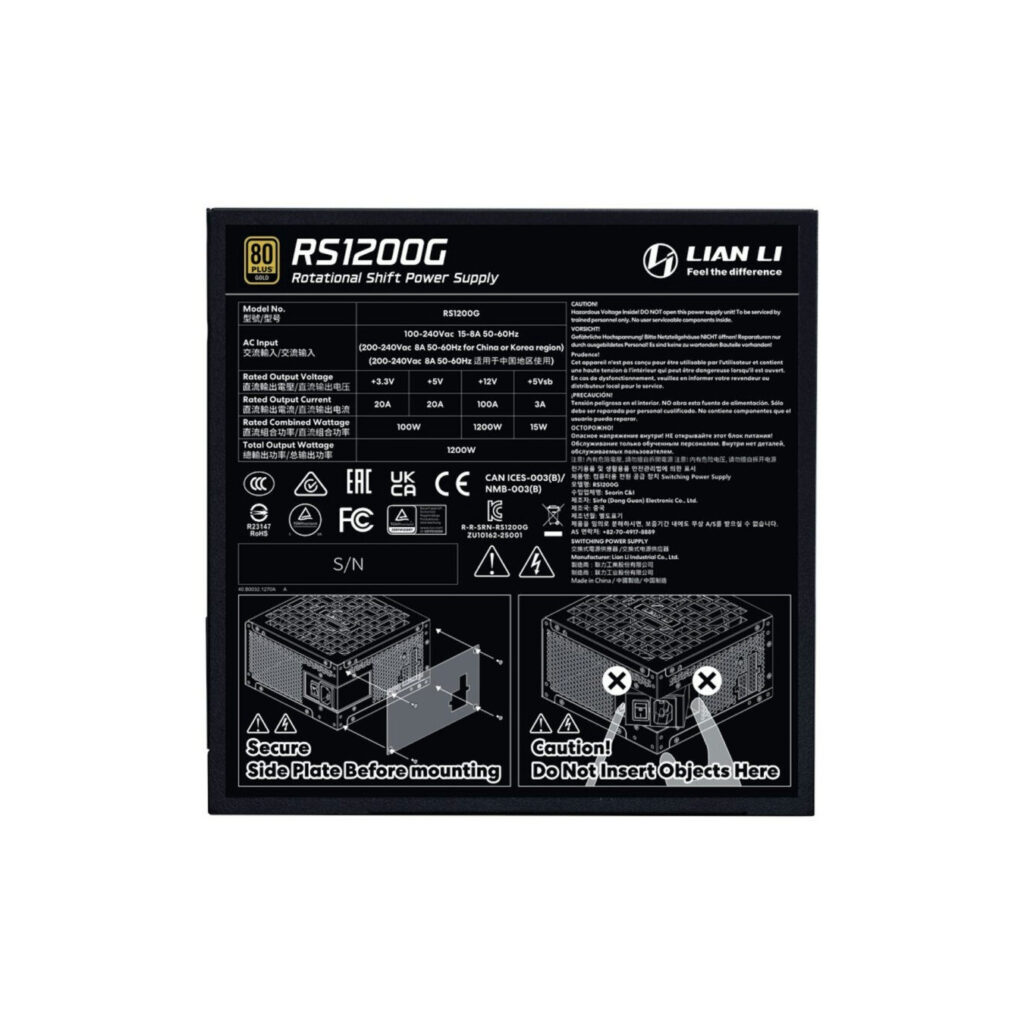

| RAIL OUTPUT | +3.3V:20A, +5V:20A, +12V:100A, +5Vsb:3A |
| CAPACITORS | German EPCOS + Japanese |
