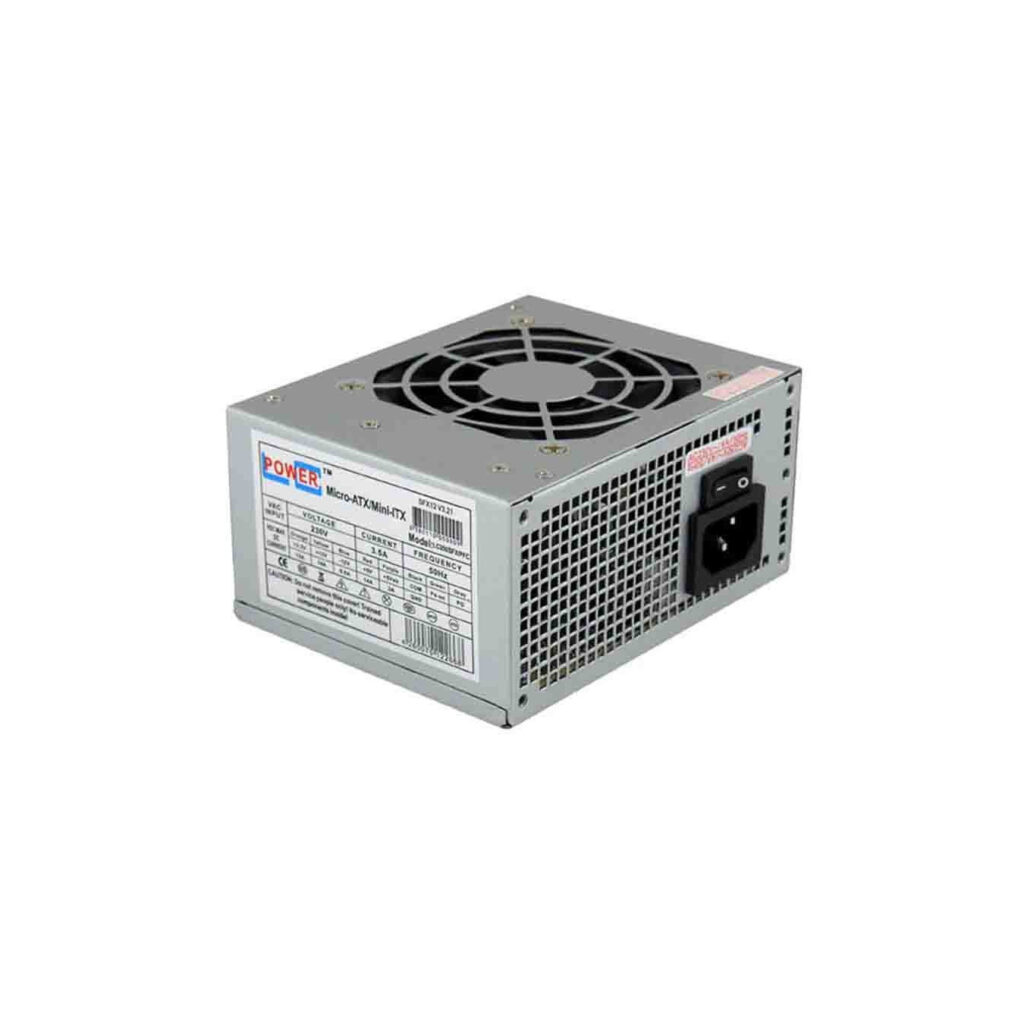

LC-Power LC200SFX V3.21 200W SFX PSU - 4260070122699
LC200SFX V3.21 by LC-Power is a compact 200W SFX power supply for small form factor PCs. Features 80mm fan, passive PFC, CE certification, and essential connectors: 20+4 pin ATX, 4-pin 12V, 3x SATA, 2x PATA, 1x FDD. Dimensions: 63x125x101mm. Haswell ready.
Available in 2–5 business days : 2 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The LC-Power LC200SFX V3.21 is a reliable 200W SFX power supply designed for Small Form Factor (SFF) systems and office PCs. Its compact dimensions of 63 x 125 x 101 mm fit perfectly in mini-ITX and SFF cases, while the 80mm fan ensures quiet operation with effective cooling through the rear ventilation grille.
Key features include passive PFC, CE certification, and low standby consumption of 0.34W (ErP 2013 compliant). It supports Haswell processors and provides stable power rails: +12V at 14A, +5V at 14A, +3.3V at 13A. Note it is not full-range input (requires 220V) and lacks PCIe connectors, making it ideal for basic systems without discrete GPUs.
- Connectors: 1x 20+4 Pin mainboard (35cm), 1x 4-pin 12V (45cm), 3x SATA, 2x PATA, 1x FDD
- Power Output: 200W total, non-modular cabling
- Dimensions (unit): HxWxD 63x125x101 mm | Retail box: 73x165x130 mm
- Weight: 0.911 kg (packaged)
- Compatibility: Haswell-ready, CE certified
| Power Supply Type | SFX V3.21 |
| Power Rating | 200W |
| +3.3V | 13A |
| +5V | 14A |
| +12V | 14A |
| Standby Consumption | 0.34W – ErP 2013 |
| Full Range (110V/220V) | NO |
| Haswell Compatible | YES |
| Mark of Conformity | CE |
| Fan | 80mm |
| PFC | Passive |
| Dimensions (HxWxD) | 63 x 125 x 101 mm |
| Dimension Retail | 73 x 165 x 130 mm |
| Weight (Retail) | 0.911 kg |
| 20+4 Pin Mainboard | 1x 35cm |
| 4 Pin Mainboard 12V | 1x 45cm |
| PCI-Express | None |
| SATA | 3 (1x35 / 1x50 / 1x65cm) |
| PATA | 2 (1x35 / 1x50cm) |
| FDD | 1x 65cm |
| Modularity | Non-modular |
