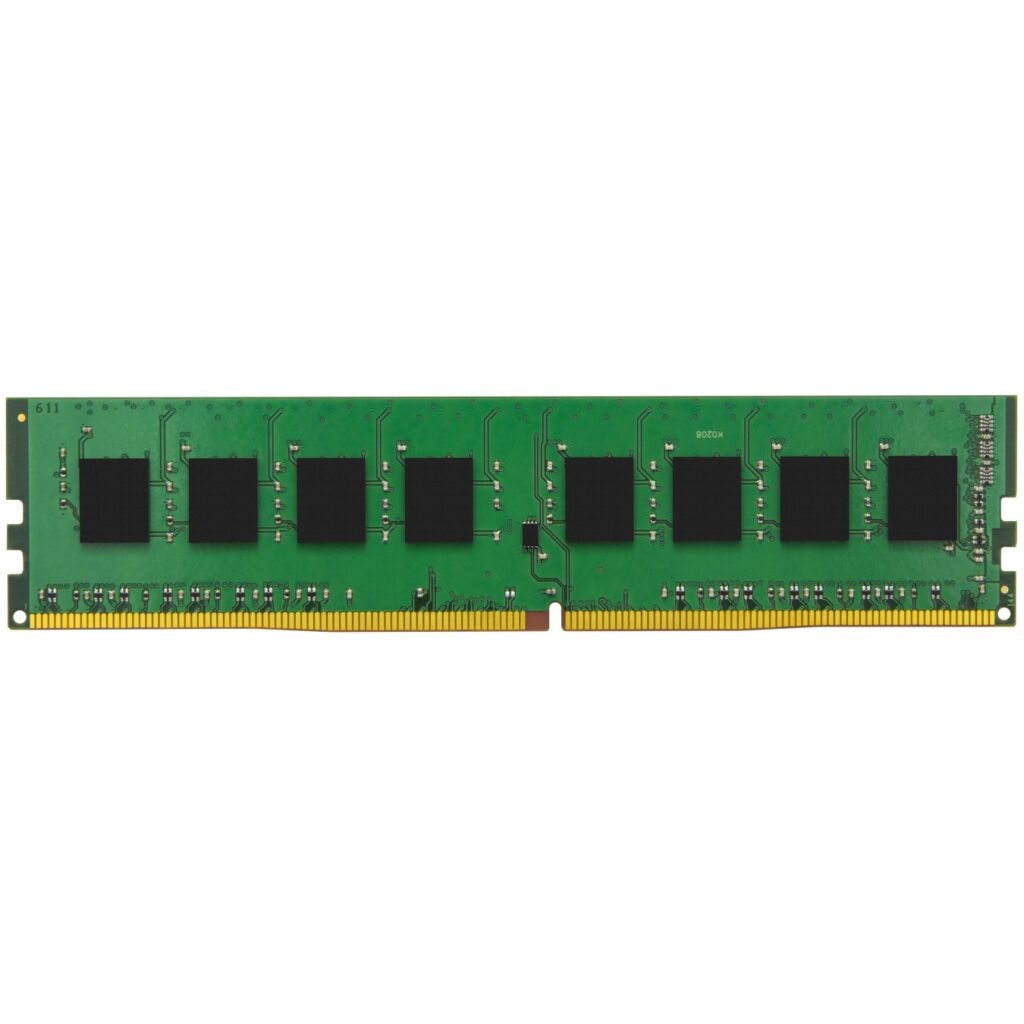

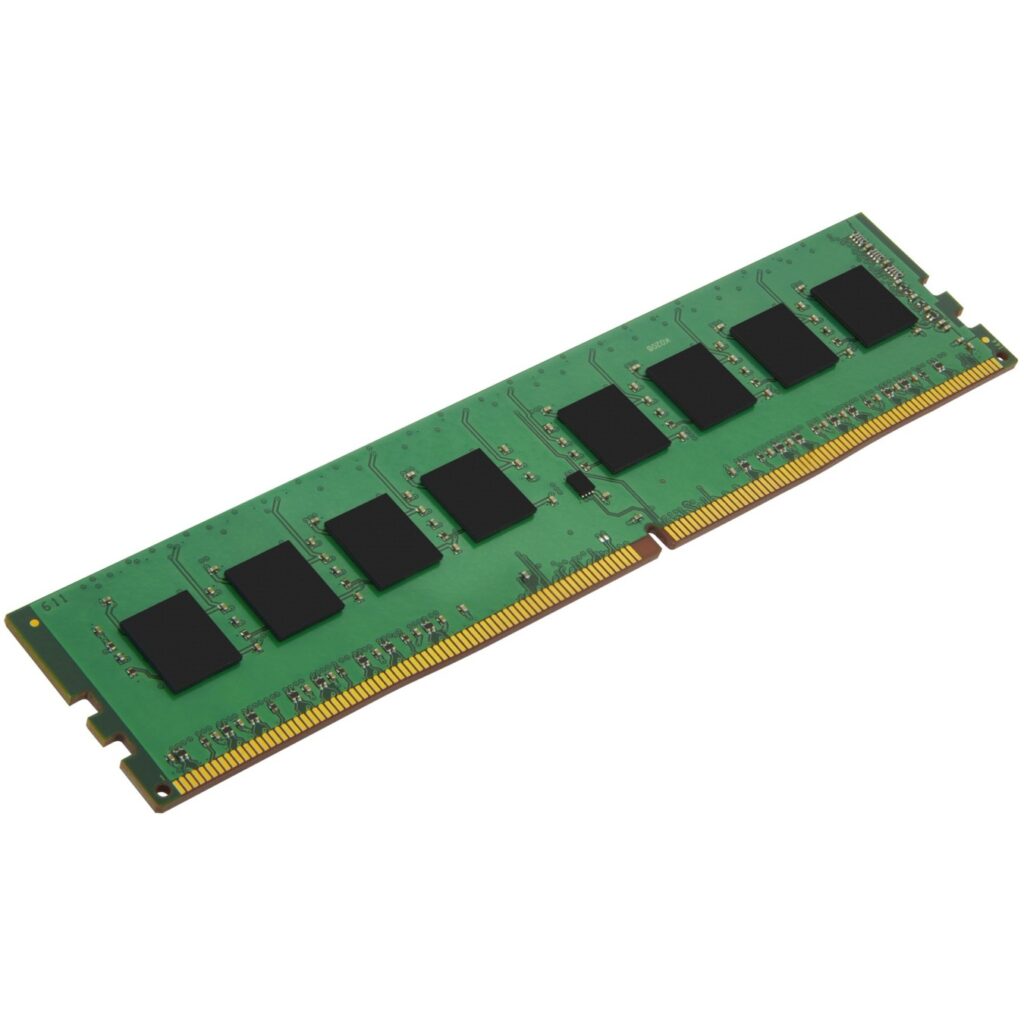

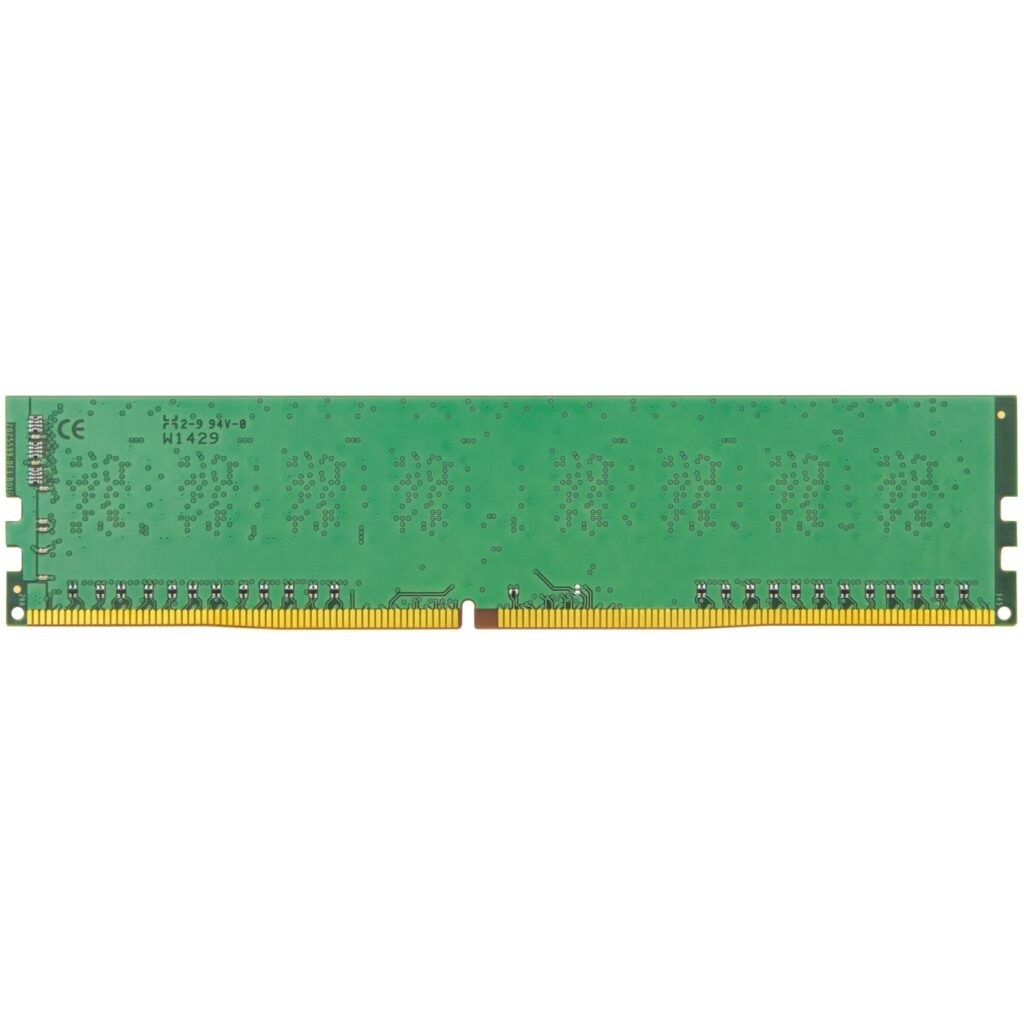

Kingston ValueRAM 32GB DDR4 3200MHz CL22 2Rx8 DIMM KVR32N22D8/32
Kingston ValueRAM KVR32N22D8/32 32GB DDR4-3200 CL22 Non-ECC 2Rx8 288-pin DIMM. JEDEC standard timings 22-22-22 at 1.2V. Ideal for PCs/servers. Retail pack.
Available in 4–6 business days : 10 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Kingston ValueRAM KVR32N22D8/32 is a high-capacity 32GB DDR4 memory module designed for reliable performance in desktop PCs and servers. Operating at 3200MT/s with CL22 timings (22-22-22) and 1.2V voltage, it follows JEDEC standards for broad compatibility without overclocking profiles.
This 2Rx8 dual-rank DIMM uses sixteen 2G x 8-bit FBGA components, featuring gold contacts, on-die VREFDQ, and fly-by topology for stability. Non-ECC unbuffered design suits general computing, gaming, and professional workloads. RoHS compliant and halogen-free.
- Capacity: 32GB (1 x 32GB module)
- Speed: DDR4-3200 PC4-25600
- Form Factor: 288-pin DIMM
- Compatibility: Intel/AMD PCs & Servers
- Warranty: Lifetime
| CAS latency | 22 |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 2.5 V |
| Country of origin | Taiwan |
| Lead plating | Gold |
| Feature | JEDEC standard |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Width | 133.3 mm |
| Height | 31.2 mm |
| Harmonized System (HS) code | 84733020 |
| Timings | 22-22-22 |
| Speed | PC4-25600 (DDR4-3200) |
| Chip organization | 2G x 8-bit, 16 chips |
| ECC | Non-ECC Unbuffered |
