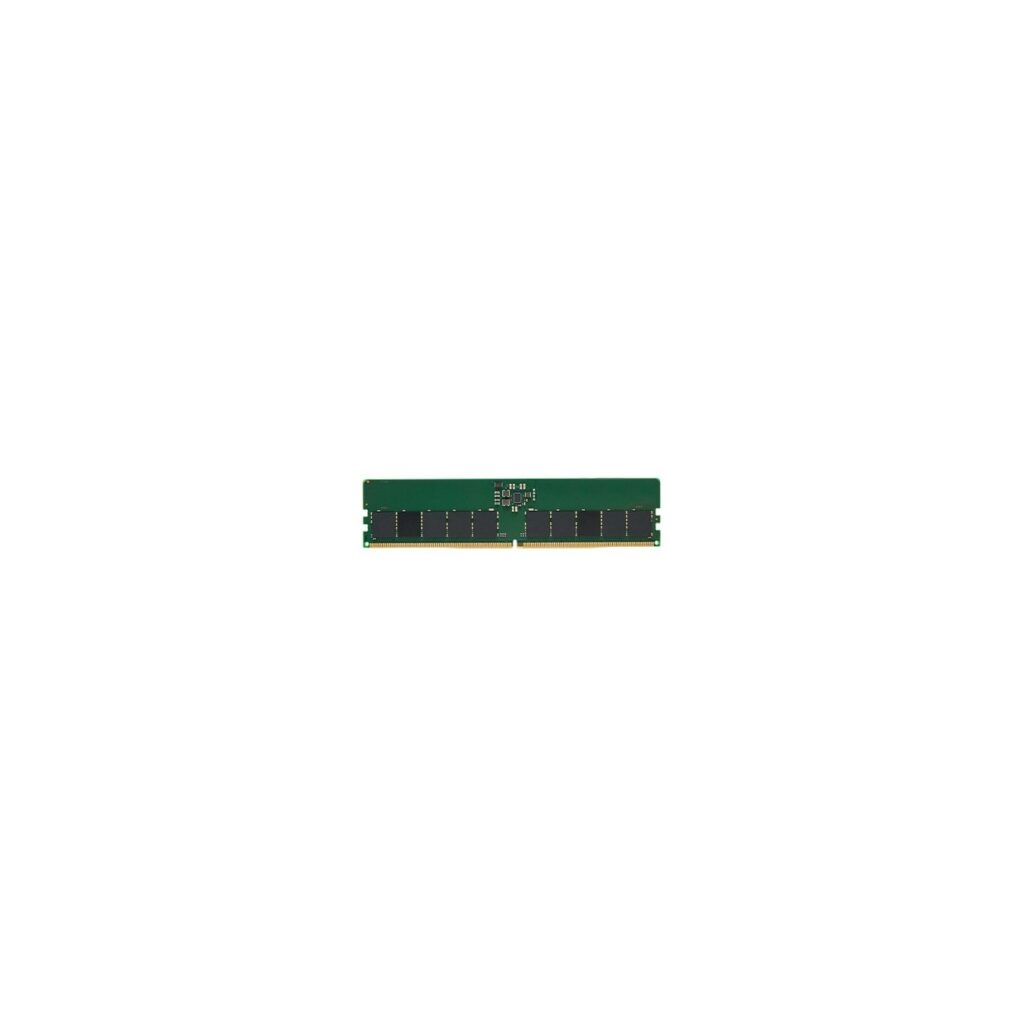

Kingston KSM56E46BS8KM-16HA 16GB DDR5-5600 ECC CL46 1Rx8 UDIMM
Kingston KSM56E46BS8KM-16HA 16GB DDR5 ECC UDIMM operates at 5600MT/s with CL46 timing, 1Rx8 Hynix A-die chips. Unbuffered ECC module for servers, 288-pin DIMM, 1.1V, On-Die ECC support. RoHS, halogen-free.
Available in 4–6 business days : 28 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Kingston KSM56E46BS8KM-16HA is a high-performance 16GB DDR5 ECC Unbuffered DIMM designed for server and data center applications. This module delivers 5600MT/s speed with CL46-45-45 timings at 1.1V, utilizing 1Rx8 configuration based on ten Hynix A-die 2G x 8-bit FBGA components for reliable operation and error correction.
Featuring On-Die ECC, x72 ECC support with two independent I/O sub-channels, 32 internal banks, and gold contact fingers on a 288-pin form factor. It supports JEDEC standard SPD programming, operates from 0°C to 95°C, and meets RoHS compliance with halogen-free materials. Ideal for demanding server environments requiring stability and data integrity.
- Capacity: 16GB (2G x 72-bit)
- Speed: DDR5-5600MT/s PC5-44800
- ECC: Yes, Unbuffered with On-Die ECC
- Voltage: 1.1V VDD/VDDQ, 1.8V VPP
- Dimensions: Height 31.25mm, Width 133.35mm
- Compatibility: Server systems supporting DDR5 ECC UDIMM
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Memory form factor | 288-pin DIMM |
| CAS latency | 46 |
| Memory ranking | 1 |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory voltage | 1.1 V |
| Programming power voltage (VPP) | 1.8 V |
| Module configuration | 2G x 72-Bit |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 ns |
| Product colour | Black/Green |
| Lead plating | Gold |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Width | 133.3 mm |
| Height | 31.2 mm |
| DRAM Manufacturer | Hynix A-die |
| On-Die ECC | Yes |
| Component for | Server |
