Keychron Q5 Max Q5M-M1 QMK/VIA Wireless 96% Mechanical Keyboard-Red Switch US
Original price was: 259.00 €.218.50 €Current price is: 218.50 €.
Keychron Q5 Max is a premium full-metal 96% wireless mechanical keyboard with QMK/VIA, 2.4GHz (1000Hz polling), Bluetooth 5.1, Gateron Jupiter Red switches, south-facing RGB, hot-swappable design and multi-layer acoustic foam for superior sound.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email [email protected].
Meet the Keychron Q5 Max, a fully metal wireless custom mechanical keyboard featuring QMK/VIA support, upgraded 2.4 GHz connectivity with 1000 Hz polling rate, and Bluetooth 5.1 for up to 3 devices. This 96% US layout keyboard delivers premium typing with Gateron Jupiter Red linear switches (pre-lubed, 80M lifespan), PBT double-shot keycaps (KSA profile), and south-facing RGB lighting with 22 effects.
Crafted from CNC-machined 6063 aluminum, it includes a double gasket design, screw-in stabilizers, and multiple acoustic foams (IXPE, PET, Latex) for a refined sound profile and feel. Hot-swappable PCB supports 3/5-pin MX switches, with easy modular assembly. Powered by ARM Cortex-M4 MCU (256KB Flash), it offers 4000mAh battery for up to 180hrs (backlight off) or 100hrs (RGB low). Compatible with Mac/Windows via switchable layouts and NKRO in all modes.
- ✅ 2.4GHz wireless (1000Hz) + Bluetooth 5.1 + wired USB-C
- ✅ South-facing per-key RGB + programmable via QMK/VIA/Web Launcher
- ✅ Hot-swappable + PBT OSA keycaps + screw-in stabs
- ✅ Double gasket + multi-layer foam for premium acoustics
- ✅ 4000mAh battery + up to 180hrs usage
- ✅ Includes 2.4G receiver, cables, tools, extra gaskets
| Layout | 96% / 1800 (US ANSI) |
| Switches | Gateron Jupiter Red (Linear, Pre-lubed) |
| Keycaps | PBT Double-shot (KSA Spherical-Osa profile) |
| Connectivity | 2.4 GHz (1000 Hz polling), Bluetooth 5.1 (90 Hz), Wired USB-C |
| Battery | 4000 mAh rechargeable Li-polymer |
| Battery Life | Up to 180 hours (backlit off); Up to 100 hours (RGB low) |

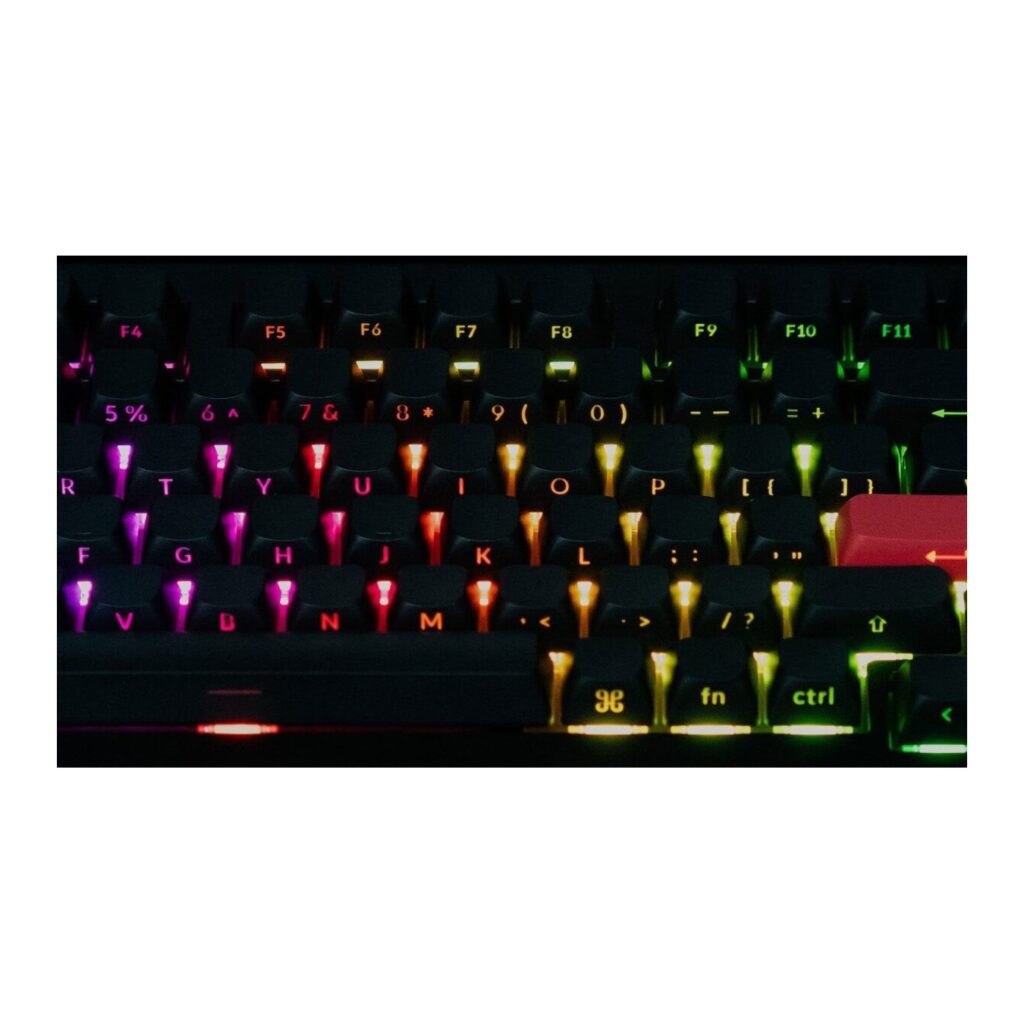

| Backlighting | South-facing RGB LED (22 effects) |

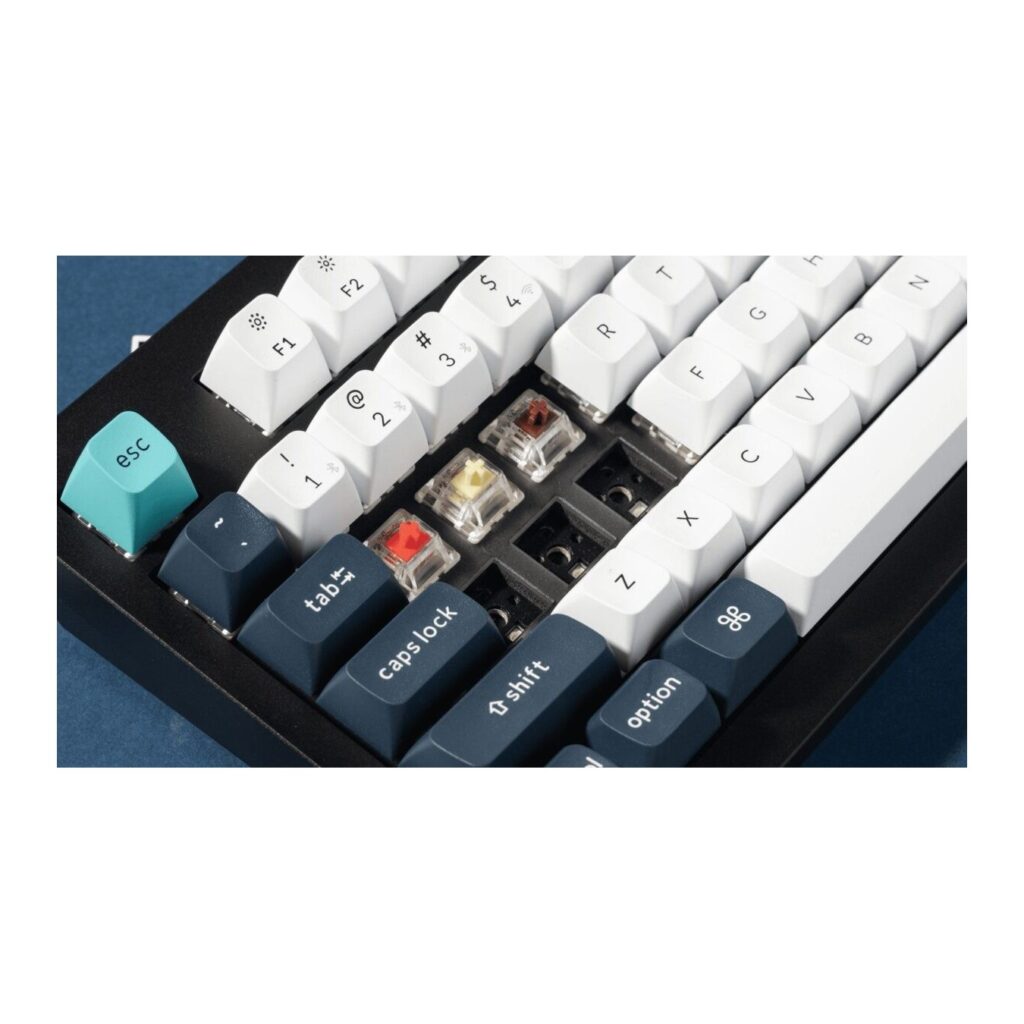

| Hot-swappable | Yes (3-pin & 5-pin MX style) |
| Polling Rate | 1000 Hz (2.4GHz/wired); 90 Hz (Bluetooth) |
| N-Key Rollover | Yes (wireless & wired) |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Body Material | Full metal CNC 6063 Aluminum |
| Dimensions (keyboard) | 392 x 149 x 22 mm |
| Weight (keyboard) | 925 g |
| Bluetooth Devices | 3 |
| Compatible OS | macOS / Windows / Linux |
