Keychron K1 Max K1M-H1 80% TKL ANSI Black Red Switch RGB Hot-Swap
Ultra-slim wireless mechanical keyboard with 80% TKL layout, low-profile Gateron red switches, RGB backlighting, hot-swappable design, and triple connectivity (2.4GHz, Bluetooth 5.1, USB-C wired).
Available in 10–14 business days : 9 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

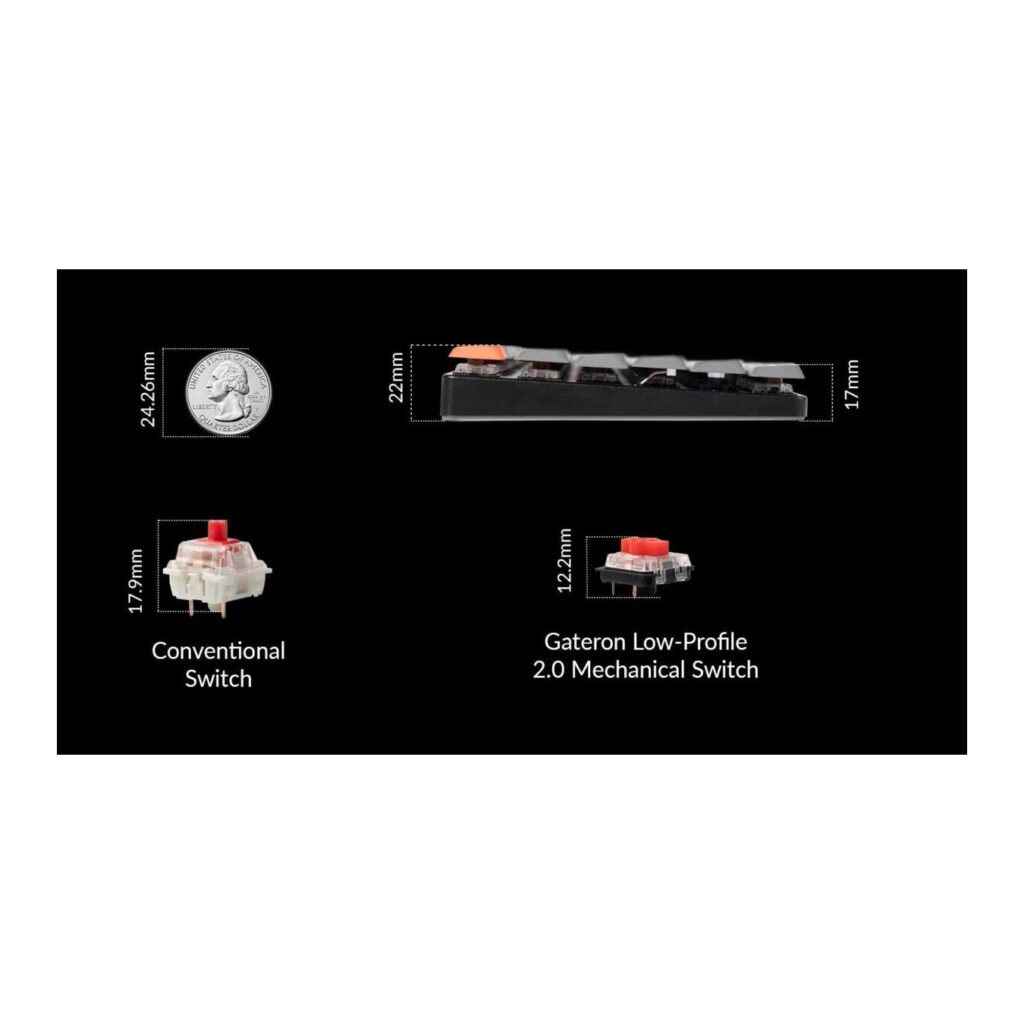

The Keychron K1 Max is an ultra-slim wireless mechanical keyboard featuring a TKL 80% layout with low-profile Gateron red mechanical switches. This innovative keyboard is 31% slimmer than conventional mechanical keyboards while maintaining distinguished tactile response. It supports three connectivity modes: 2.4GHz wireless with 1000Hz polling rate for gaming, Bluetooth 5.1 for connecting up to three devices simultaneously, and USB Type-C wired connection for reliable performance.
Powered by QMK/VIA open-source firmware, the K1 Max offers extensive customization including key remapping, macros, and programmable shortcuts through the Keychron Launcher web app. The keyboard features double-shot PBT keycaps with LSA (Low-profile Spherical-Angled) profile, 22+ RGB backlight modes with adjustable hue and brightness, and advanced IXPE acoustic foam combined with latex foam for silent, comfortable typing. The aluminum and ABS frame houses a 2000mAh rechargeable battery providing up to 166 hours of wireless runtime with backlighting off.

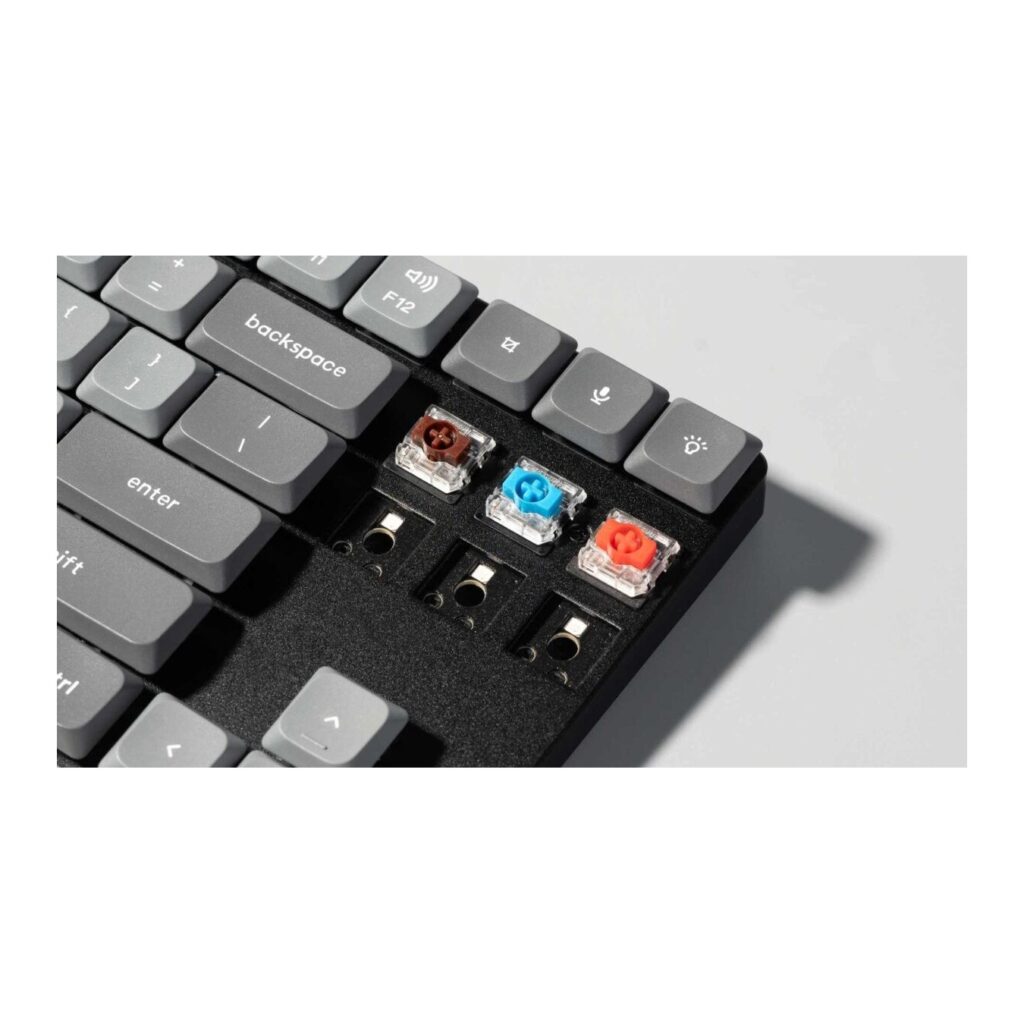

Designed for both macOS and Windows users with system-specific keycap sets included, the K1 Max features north-facing switches, 12 dedicated multimedia keys, and three adjustable typing angles for ergonomic support. The hot-swappable design allows users to customize their typing experience by swapping Gateron low-profile MX switches without soldering.
- Ultra-slim low-profile design (31% thinner than standard mechanical keyboards)
- Triple connectivity: 2.4GHz (1000Hz polling), Bluetooth 5.1, USB-C wired
- Hot-swappable Gateron low-profile red mechanical switches
- QMK/VIA firmware with full key remapping and macro support
- 22+ RGB backlight modes with per-key customization
- 2000mAh battery with up to 166 hours wireless runtime
- Double-shot PBT keycaps with LSA profile
- IXPE acoustic foam for silent keystrokes
- Compatible with macOS, Windows, and Linux
- Includes Type-C cable, 2.4GHz receiver, switch puller, and keycap puller
| Layout | ANSI 80% TKL (Tenkeyless) |
| Number of Keys | 88 keys |
| Switch Type | Gateron Low-Profile Mechanical (Linear Red) |
| Switch Face Orientation | North-facing |
| Keycap Material | Double-shot PBT, LSA (Low-profile Spherical-Angled) profile |
| Keycap Compatibility | Windows and macOS custom keycap sets included |
| Frame Material | ABS + Aluminum |
| Backlighting | Per-Key RGB (22+ modes) with adjustable hue, saturation, brightness, and speed |
| Multimedia Keys | 12 dedicated multimedia keys |
| Connectivity | 2.4GHz wireless (USB dongle), Bluetooth 5.1, USB Type-C wired |
| Polling Rate (2.4GHz) | 1000Hz |
| Polling Rate (Wired) | 1000Hz |
| Polling Rate (Bluetooth) | 90Hz |
| Bluetooth Version | Bluetooth 5.1 |
| Bluetooth Device Pairing | Up to 3 devices simultaneously |
| N-Key Rollover (NKRO) | Yes (all modes: 2.4GHz, Bluetooth, Wired) |
| Firmware | QMK/VIA (open-source, fully programmable) |
| Customization | Key remapping, macros, shortcuts via Keychron Launcher web app |
| Battery Capacity | 2000mAh rechargeable Li-polymer |
| Wireless Runtime (Backlight Off) | Up to 166 hours |
| Wireless Runtime (RGB Lowest Brightness) | Up to 86 hours |
| Charging Port | USB Type-C |
| Acoustic Dampening | IXPE acoustic foam + resilient latex foam |

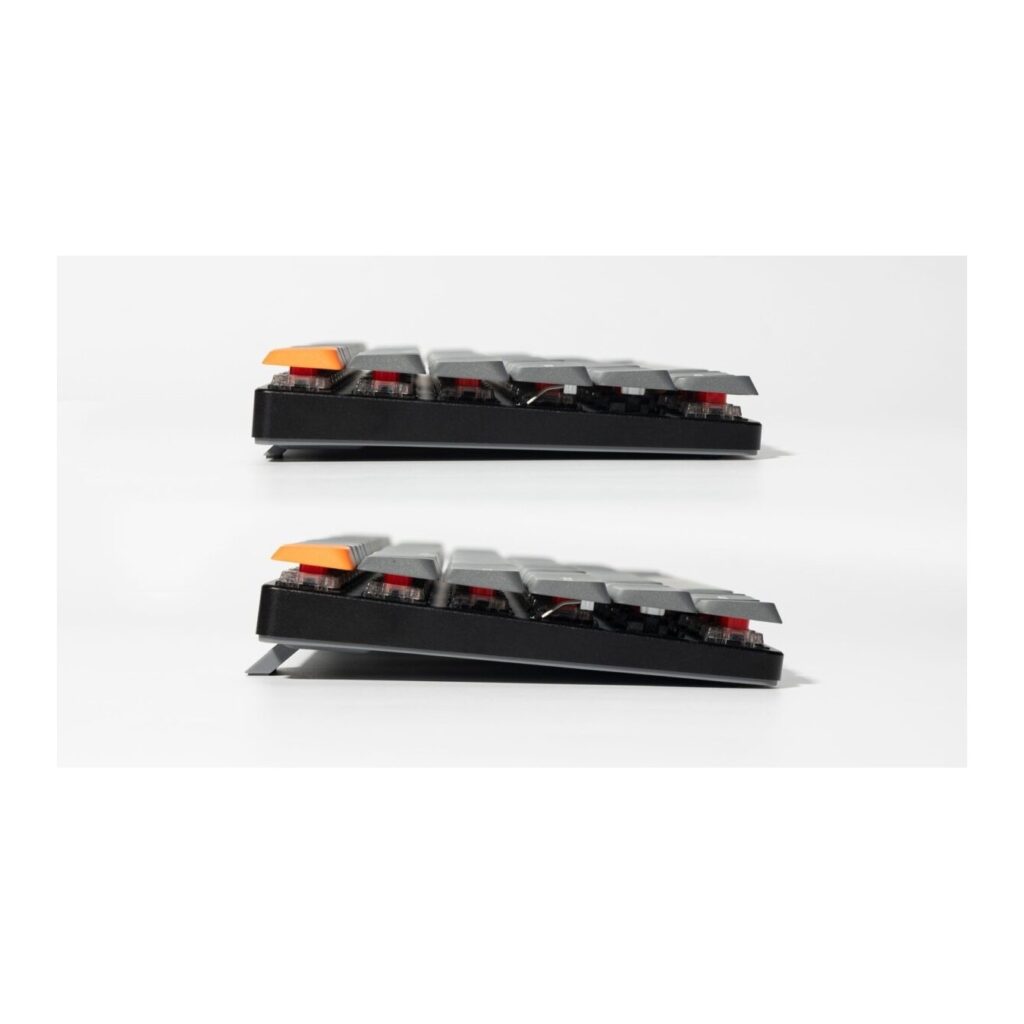

| Typing Angle Adjustment | 3 adjustable levels for ergonomic support |
| Stabilizers | Gold-plated PCB-mounted stabilizers (redesigned for reduced wobble) |
| Hot-Swappable | Yes (Gateron low-profile MX switches only; NOT compatible with optical switches) |
| MCU | ARM architecture with 256KB Flash memory |
| Compatible Operating Systems | macOS, Windows, Linux |
| Color | Black |
| Switch Color | Red (Linear) |
| Included Accessories | Type-A to Type-C cable, 2.4GHz USB receiver, switch puller, keycap puller |
| Model Number | K1M-H1 |
| EAN13 | 4895248866312 |
