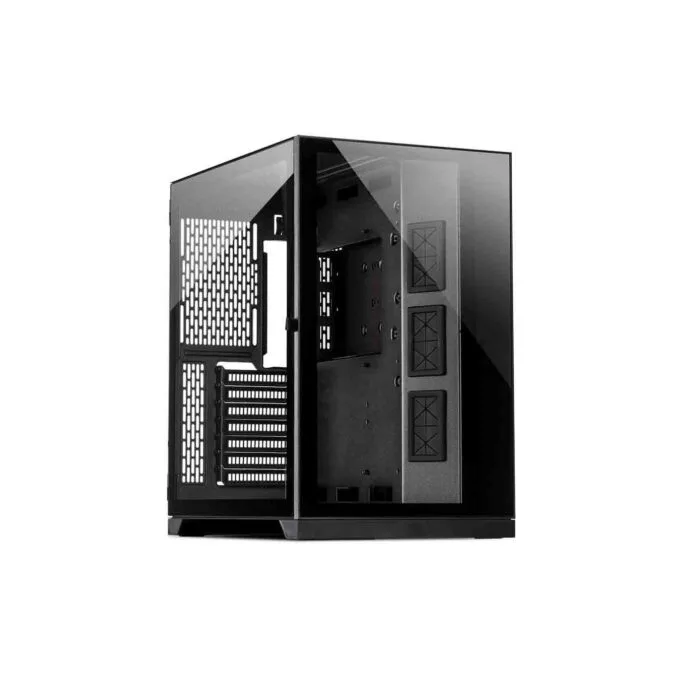

Inter-Tech C-702 Diorama ATX Mid Tower Case - No Fans/PSU
Inter-Tech C-702 Diorama is a black ATX mid-tower case w/o PSU & fans. Supports 160mm CPU coolers, 325mm GPUs, 120/240/280mm radiators. Tempered glass panels, 2×3.5″ + 3×2.5″ bays, magnetic dust filters. Dimensions: 430x285x360mm.
Available in 2–5 business days : 4 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Inter-Tech C-702 Diorama is a stylish ATX mid-tower PC case designed for gamers and builders seeking a balance of performance, cooling, and aesthetics. Featuring large tempered glass front and side panels with magnetic tool-free access, it showcases your components while providing excellent airflow potential. No power supply or fans are included, giving you full customization freedom.
Key specs include support for ATX, Micro-ATX, and ITX motherboards, up to 160mm CPU coolers, and 325mm graphics cards. Storage options are generous with 2x 3.5″ HDD bays and 3x 2.5″ SSD bays (2 dedicated + 1 rear mount). Front I/O offers 1x USB 3.0, 2x USB 2.0, and audio jacks. Cooling supports up to 5x 120mm or 4x 140mm fans, plus 120/240/280mm radiators at top/bottom.
- Tempered glass front & side panels with magnetic locks
- Drive bays: 2x 3.5″ internal, 3x 2.5″ (2+1 rear)
- Fan mounts: Rear 1x120mm, Top/Bottom 2×120/140mm each
- Dust filters: Magnetic top/side, bottom filter
- Cable management: Rubber grommets, velcro ties, PSU shroud
- PSU: ATX mount behind motherboard tray
| Form Factor | ATX, Micro-ATX, Mini-ITX |
| Dimensions (HxWxD) | 430 x 285 x 360 mm |
| CPU Cooler Max Height | 160 mm |
| GPU Max Length | 325 mm |
| 3.5 | 2 |
| 2.5 | 3 (2 dedicated + 1 rear) |
| Front USB 3.0 | 1x |
| Front USB 2.0 | 2x |
| Front Audio | 1x Mic, 1x Headphone |
| Fan Mounts Rear | 1x 120 mm |
| Fan Mounts Top | 2x 120/140 mm |
| Fan Mounts Bottom | 2x 120/140 mm |
| Radiator Support | 120 mm, 240 mm, 280 mm |
| Power Supply | ATX (not included) |
| Side Panel | Tempered Glass |
| Front Panel | Tempered Glass |
| Included Fans | 0 |
| Color | Black |
