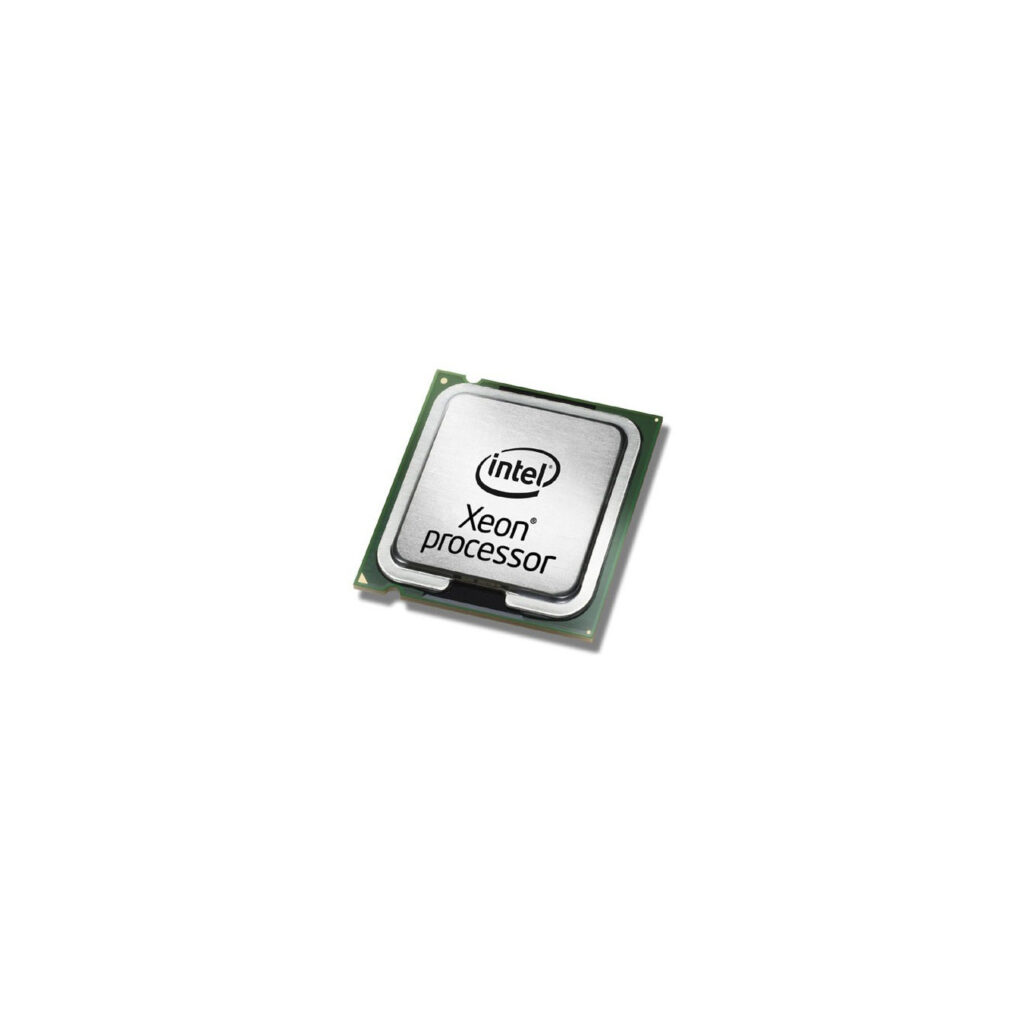

Intel Xeon E5-2430 v2 - E5-2430V2 - 6C/12T 2.5GHz (3.0GHz Turbo) LGA1356 Server CPU, 22nm, 15MB L3 Cache
Intel Xeon E5-2430 v2 (E5-2430V2) — 6 cores / 12 threads, 2.5GHz base (3.0GHz Turbo), LGA1356, 22nm, 15MB L3, 80W TDP, triple-channel DDR3, server/workstation CPU.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
Intel Xeon E5-2430 v2. Processor family: Intel® Xeon® E5 V2 Family. Processor socket: LGA 1356 (Socket B2). Processor lithography: 22 nm. Memory channels: Triple-channel. Maximum internal memory supported by processor: 384 GB. Memory types supported by processor: DDR3-SDRAM. Market segment: Server. Scalability: 2S. Package width: 42.5 mm. Package depth: 45 mm. Intel® Virtualization Technology (Intel® VT): VT-d. VT-x
| Processor manufacturer | Intel |
| Processor model | E5-2430V2 |
| Processor base frequency | 2.5 GHz |
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor cores | 6 |
| Processor socket | LGA 1356 (Socket B2) |
| Component for | Server/workstation |
| Processor lithography | 22 nm |
| Processor threads | 12 |
| System bus rate | 7.2 GT/s |
| Processor operating modes | 32-bit. 64-bit |
| Processor boost frequency | 3 GHz |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| Package type | Box |
| VID Voltage Range | 0.65 - 1.30 V |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
| Processor ARK ID | 75785 |
| Maximum internal memory supported by processor | 384 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800.1066.1333.1600 MHz |
| Memory channels | Triple-channel |
| Feature | Intel Virtualization Technology for Directed I/O (VT-d) |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Scalability | 2S |
| Intel® Turbo Boost Technology | 2.0 |
| Tcase | 76 °C |
| Package width | 42.5 mm |
| Package depth | 45 mm |
| Intel® Virtualization Technology (Intel® VT) | VT-d. VT-x |
