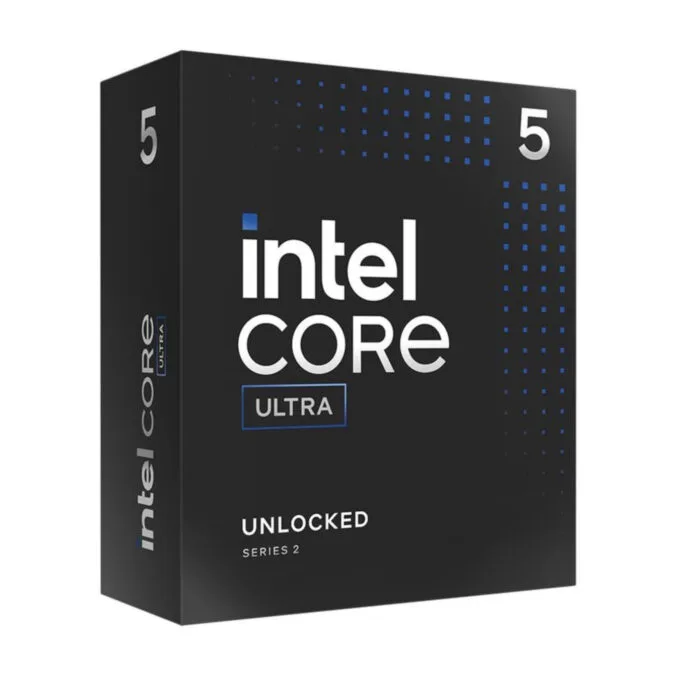

Intel Core Ultra 5 245K 14-Core 4.2GHz Base 5.2GHz Boost 24MB Cache LGA1851 (Boxed)
Intel Core Ultra 5 245K — 14 cores (6P+8E), up to 5.2 GHz boost, 24 MB Smart Cache, DDR5-6400 support, 125W base power, LGA1851 socket, integrated graphics, boxed without cooler.
Available in 4–6 business days : 51 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Intel Core Ultra 5 245K is a desktop processor featuring 14 cores (6 performance + 8 efficiency cores) with a base frequency of 4.2 GHz and boost up to 5.2 GHz. Built on the Arrow Lake architecture, it delivers strong multi-threaded performance with a 24 MB Smart Cache and supports DDR5-6400 memory on the LGA1851 socket. With a base TDP of 125W and maximum turbo power of 159W, it offers improved power efficiency compared to previous generations.
This processor includes integrated Intel Graphics with 4 Xe-cores, supporting up to 4 displays via DisplayPort 2.1, HDMI 2.1, and eDP 1.4b. It features Intel AI Boost NPU with up to 13 TOPs performance and supports advanced AI frameworks including DirectML, OpenVINO, and ONNX Runtime. The 245K excels in productivity workloads and content creation, though gaming performance trails slightly behind the previous-generation 14600K in most titles. The retail boxed version includes the processor only; no cooler is included.
- 14 cores (6 performance + 8 efficiency), 14 threads
- Base 4.2 GHz / Boost 5.2 GHz (P-cores), 3.6 GHz / 4.6 GHz (E-cores)
- 24 MB Smart Cache, LGA1851 socket
- DDR5-6400 dual-channel memory support, up to 192 GB
- 125W base TDP, 159W maximum turbo power
- Integrated Intel Graphics with 4 Xe-cores
- Intel AI Boost NPU (13 TOPs), supports Windows Studio effects
- PCIe 4.0/5.0 (24 lanes), DMI 4.0 (8 lanes)
- Boxed retail packaging, cooler not included
| Processor Manufacturer | Intel |
| Processor Generation | Intel Core Ultra (Series 2) |
| Processor Model | 245K |
| Processor Family | Intel Core Ultra 5 |
| Processor Cores | 14 (6 Performance + 8 Efficiency) |
| Processor Threads | 14 |
| Processor Socket | LGA1851 (Socket V1) |
| Performance Cores | 6 |
| Efficiency Cores | 8 |
| Performance-Core Base Frequency | 4.2 GHz |
| Performance-Core Boost Frequency | 5.2 GHz |
| Efficiency-Core Base Frequency | 3.6 GHz |
| Efficiency-Core Boost Frequency | 4.6 GHz |
| Processor Cache | 24 MB Smart Cache |
| L2 Cache | 26624 KB (6 x 3072 KB per P-core + 8 x 1024 KB per E-core) |
| L1 Instruction Cache | 6 x 64 KB |
| L1 Data Cache | 6 x 48 KB |
| Processor Base Power (TDP) | 125 W |
| Maximum Turbo Power | 159 W |
| Processor Codename | Arrow Lake |
| Stepping | B0 |
| Operating Modes | 64-bit |
| Memory Types Supported | DDR5-SDRAM |
| Memory Clock Speeds Supported | 6400 MHz |
| Memory Channels | Dual-channel |
| Maximum Internal Memory Supported | 192 GB |
| ECC Memory Support | Yes |
| Integrated Graphics | Yes - Intel Graphics |
| Graphics Card Model | Intel Graphics (4 Xe-cores) |
| Graphics Base Frequency | 300 MHz |
| Graphics Maximum Frequency | 1900 MHz |
| Number of Displays Supported | 4 |
| Graphics Output Interfaces | DisplayPort 2.1 UHBR20, HDMI 2.1 FRL 12GHz, eDP 1.4b |
| Graphics DirectX Version | 12.0 |
| Graphics OpenGL Version | 4.5 |
| Graphics Device ID | 0x7D67 |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance | 13 TOPs |
| Total Processor Performance | 30 TOPs |
| GPU Performance | 8 TOPs |
| AI Software Frameworks Supported | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| PCI Express Lanes | 24 lanes (PCIe 4.0 and 5.0) |
| Direct Media Interface (DMI) | DMI 4.0 (8 lanes) |
| Supported Instruction Sets | AVX 2.0, SSE4.1, SSE4.2 |
| Turbo Boost Technology | Intel Turbo Boost 2.0 |
| Speed Shift Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Virtualization Technology | Intel VT-x with EPT, Intel VT-d |
| Trusted Execution Technology | Yes |
| AES-NI | Yes |
| Quick Sync Video | Yes |
| Control-Flow Enforcement Technology (CET) | Yes |
| Thread Director | Yes |
| Deep Learning Boost (DL Boost) | Yes (CPU and GPU) |
| Boot Guard | Yes |
| OS Guard | Yes |
| Total Memory Encryption - Multi Key | Yes |
| Threat Detection Technology | Yes |
| vPro Enterprise Platform Eligibility | Yes |
| Hardware Shield Eligibility | Yes |
| Active Management Technology (AMT) | Yes |
| Standard Manageability (ISM) | Yes |
| Volume Management Device (VMD) | Yes |
| Remote Platform Erase (RPE) | Yes |
| One-Click Recovery | Yes |
| Stable IT Platform Program (SIPP) | Yes |
| Maximum Operating Temperature | 105 °C |
| Thermal Solution Specification | PCG 2020A |
| Scalability | 1S (Single Socket) |
| Market Segment | Desktop |
| Use Conditions | Workstation, PC/Client/Tablet |
| Launch Date | Q4 2024 |
| Status | Launched |
| Processor ARK ID | 241067 |
| Box Included | Yes |
| Cooler Included | No |
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) Code | 8542310050 |
| OpenCL Version | 3.0 |
| Cinebench 2024 Single-Core Score | 137 points |
| Cinebench 2024 Multi-Core Performance | 9% faster than 14600K, 26% faster than 9700X |
| 7-Zip Compression Efficiency | 1130.6 MIPS/W at 108.1W (47% more efficient than 14600K) |
| Gaming Performance (Average) | 7-12% slower than 14600K in most titles; 16-20% slower in Cyberpunk 2077 and Watch Dogs Legion |
