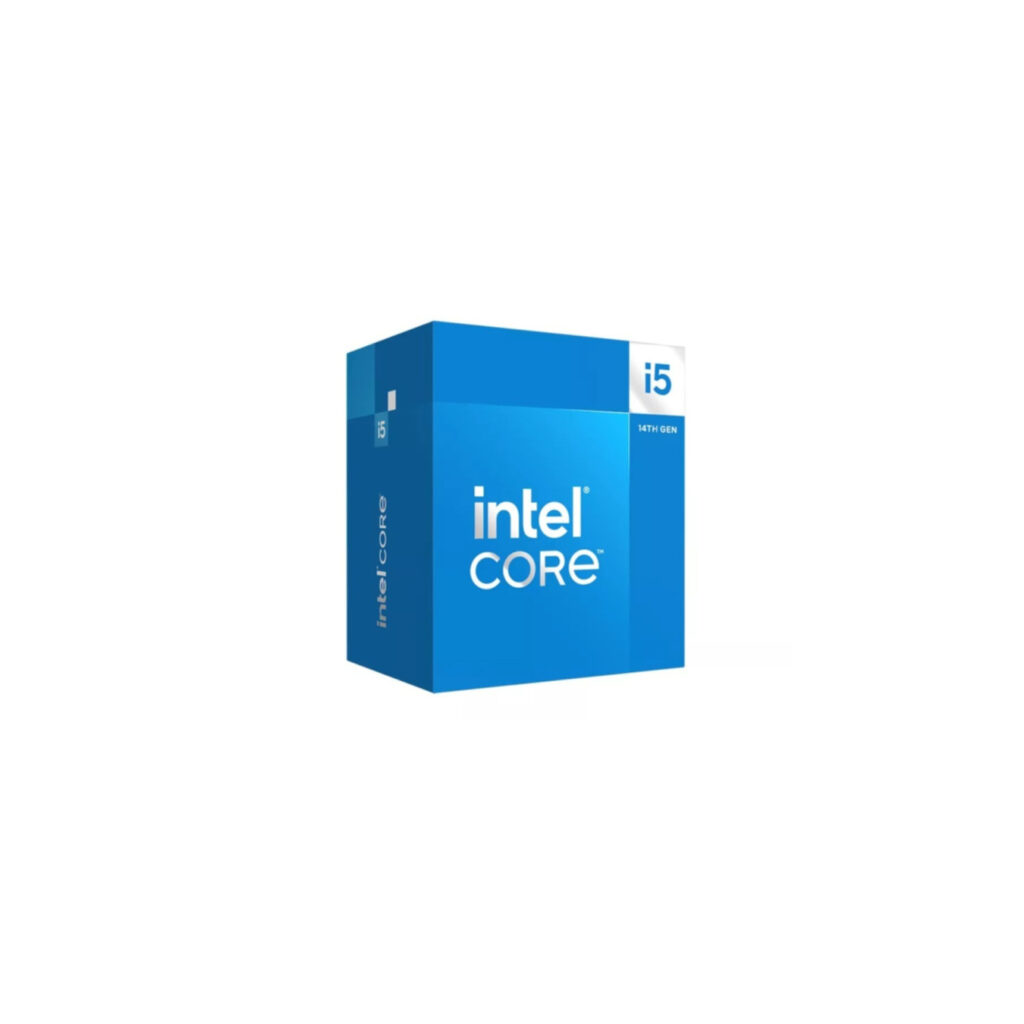

Intel Core i5-14500 - 14-core (6P+8E) 20-thread, up to 5.0GHz Boost, 24MB Cache, LGA1700, Boxed with Cooler
332.50 €
Intel Core i5-14500 (Raptor Lake): 14 cores (6P+8E)/20 threads, up to 5.0 GHz boost, 24 MB Smart Cache, 65W base power, LGA1700, Intel UHD 770 graphics. Boxed with cooler.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
| Processor manufacturer | Intel |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500 |
| Processor family | Intel® Core™ i5 |
| Processor cores | 14 |
| Processor socket | LGA 1700 |
| Processor threads | 20 |
| Processor operating modes | 64-bit |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor boost frequency | 5 GHz |
| Performance-core boost frequency | 5 GHz |
| Performance-core base frequency | 2.6 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Box | Yes |
| Cooler included | Yes |
| Processor base power | 65 W |
| Maximum turbo power | 154 W |
| Maximum number of DMI lanes | 8 |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor codename | Raptor Lake |
| Processor ARK ID | 236784 |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Memory bandwidth (max) | 76.8 GB/s |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| On-board graphics card dynamic frequency (max) | 1550 MHz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card ID | 0x4680 |
| Discrete graphics card model | Not available |
| Number of execution units | 32 |
| Multi-Format Codec Engines | 2 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| Use conditions | Workstation, PC/Client/Tablet |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0, 5.0 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Direct Media Interface (DMI) Revision | 4.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Thread Director | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Tjunction | 100 °C |
| OpenCL version | 3.0 |
| Launch date | Q1'24 |
| Status | Launched |
| Harmonized System (HS) code | 8542310001 |
| Processor package size | 45 x 37.5 mm |
| L2 cache | 11776 KB |
| Maximum internal memory | 192 GB |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
