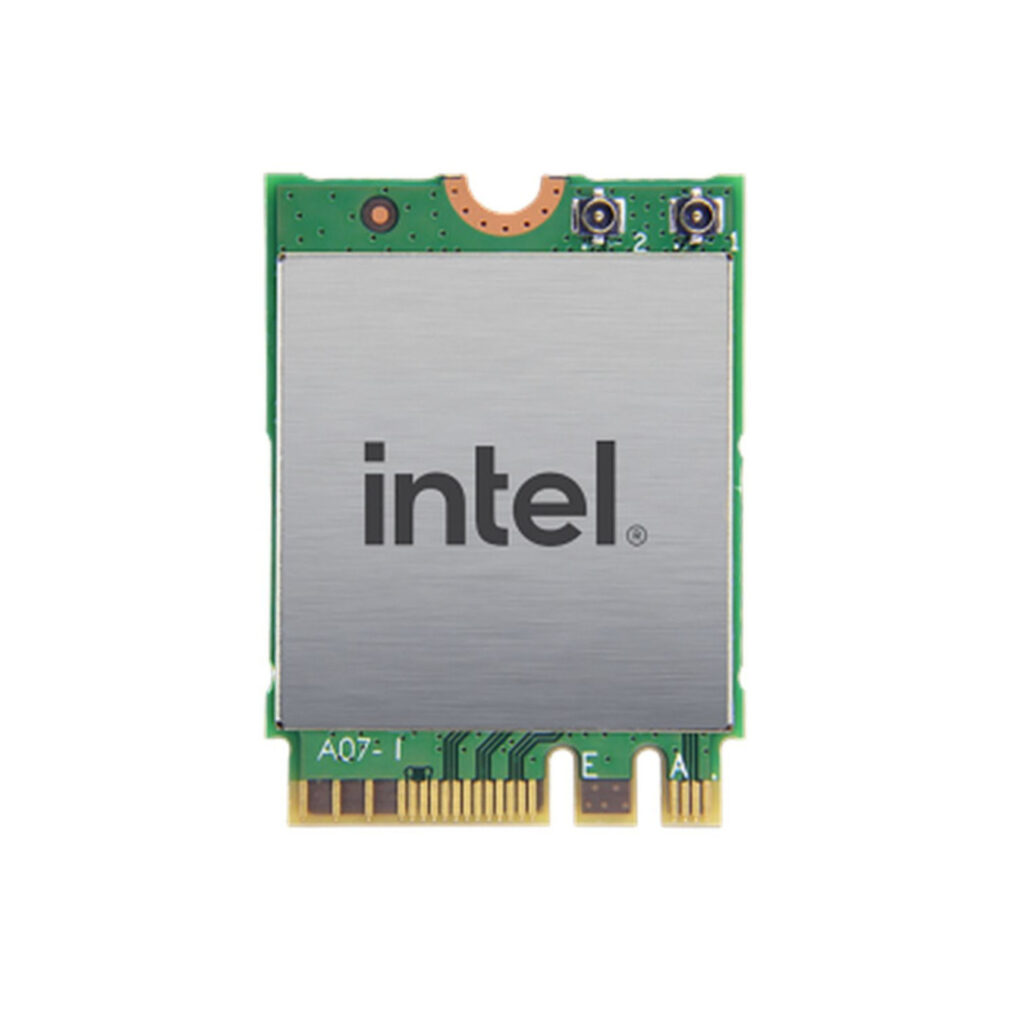

Intel AX200 Wi-Fi 6 (802.11ax) M.2 2230 2x2 Dual-Band Wireless + Bluetooth 5.0
13.50 €
M.2 2230 Intel AX200 Wi‑Fi 6 (802.11ax) 2×2 dual-band up to 2400 Mbps with Bluetooth 5.0; PCIe internal wireless card for PCs and laptops.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| Maximum data transfer rate | 2400 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Security algorithms | 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS |
| MU-MIMO | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5 |
| Component for | PC/Laptop |
| Internal | Yes |
| Antenna type | 2x2 |
| Package size | 22 x 30 x 2.4 mm |
| Compatible operating systems | Windows 10, 64-bit*|Linux* |
| Windows operating systems supported | Windows 10 x64 |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 80 °C |
| Width | 22 mm |
| Depth | 30 mm |
| Height | 2.4 mm |
| Weight | 2.83 g |
| Harmonized System (HS) code | 85176990 |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 80 °C |
| Supported Under vPro | Yes |
| Interface type | Wi-Fi(PCIe), BT(USB) |
| Launch date | Q2'19 |
| Product brief URL | https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf |
| Product type | Wireless |
| Status | Launched |
| Processor family | Intel Wi-Fi 6 Products |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Compliance | FIPS, FISMA |
| Product series | Intel® Wireless Products |
| Product codename | Cyclone Peak |
