ICY BOX IB-M2HSF-703 M.2 SSD Heatsink w/ 20mm Fan 10000 RPM - Black
ICY BOX IB-M2HSF-703 M.2 SSD heatsink with 20mm fan (10000 RPM, 4-pin 12V). Aluminum, 8 fins, silicone thermal pad (1.5 W/mK). For 22x80mm SSDs. Reduces temps up to 25%. 75x24x13mm, 51g.
Available in 2–5 business days : 7 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

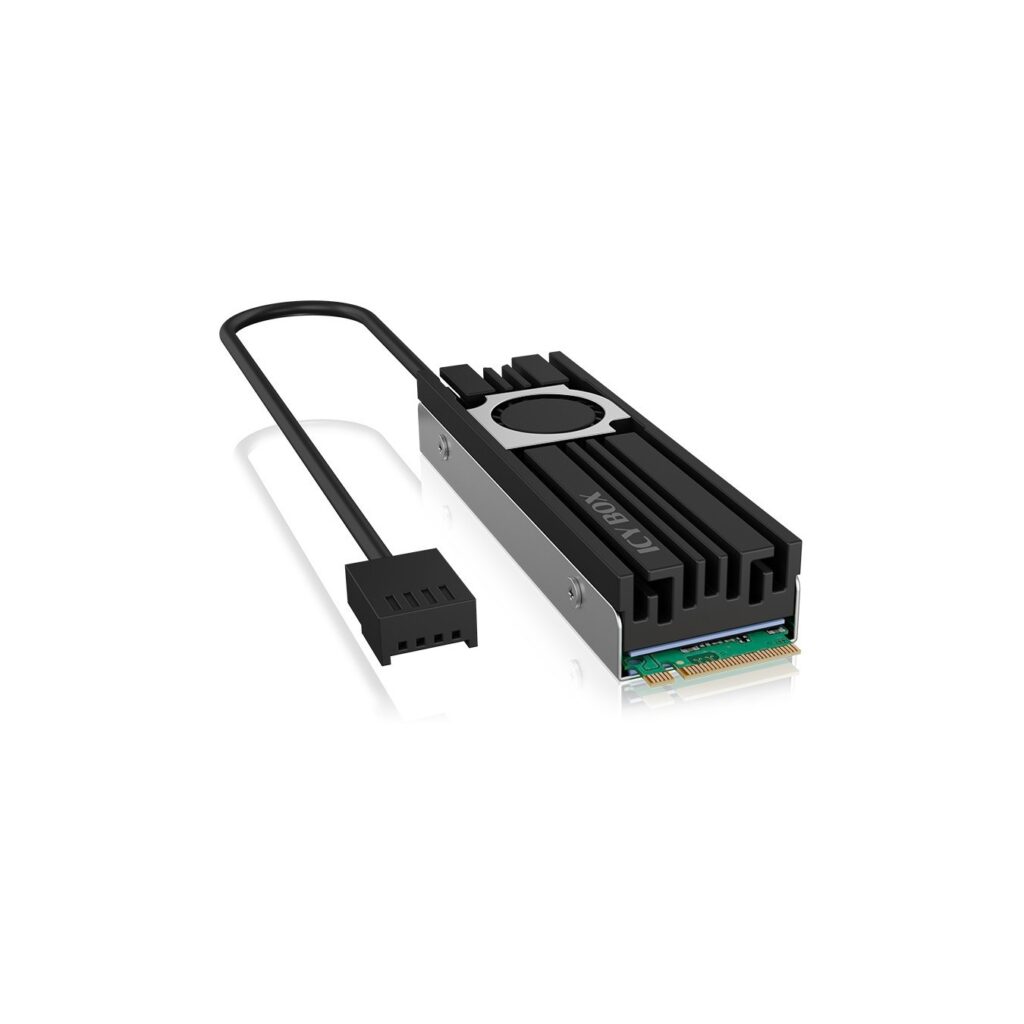

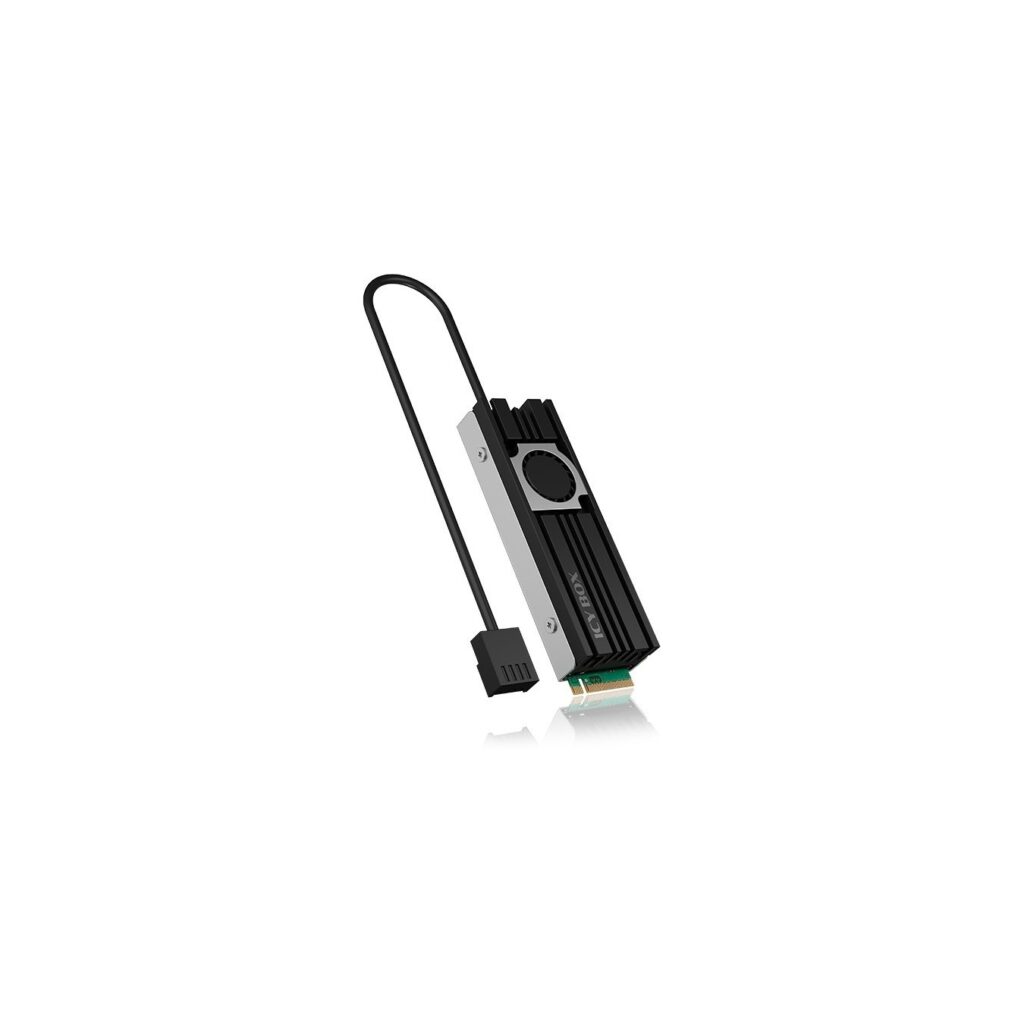

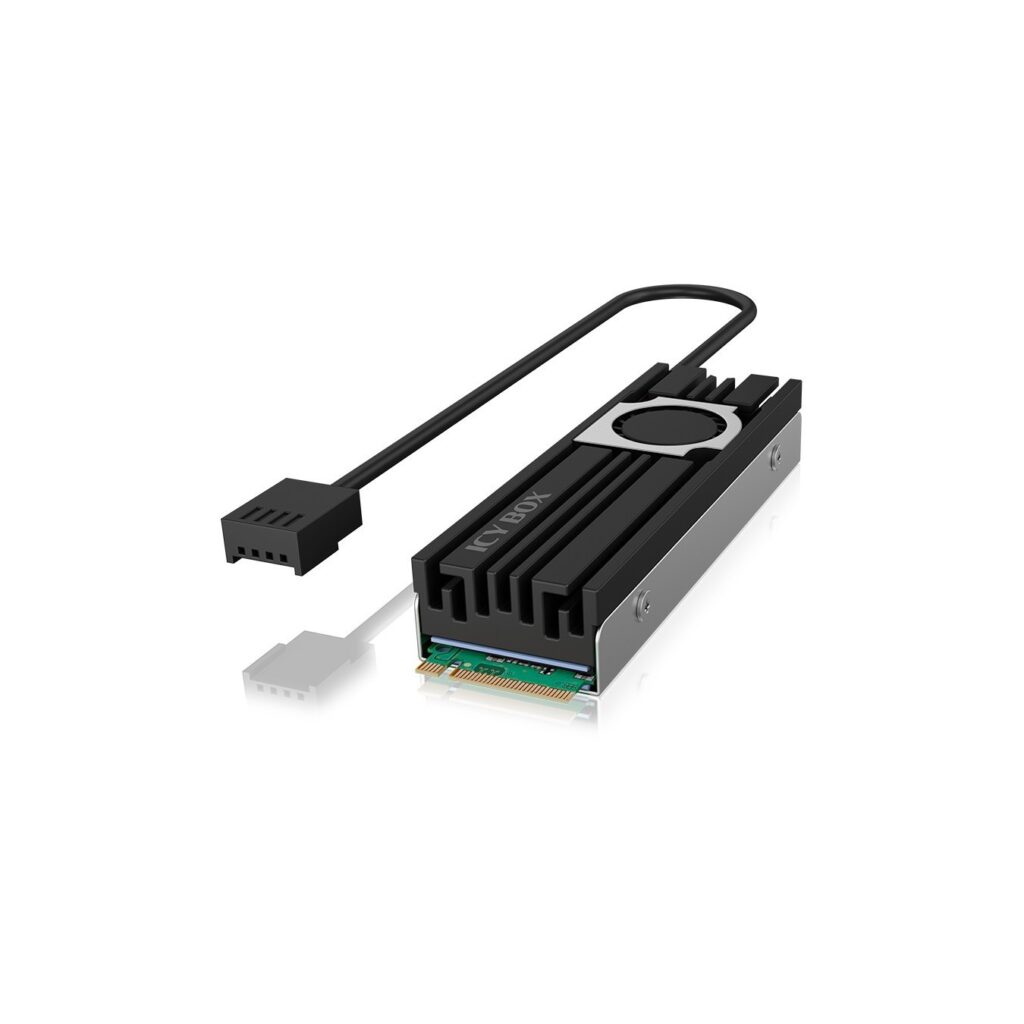

The ICY BOX IB-M2HSF-703 is a high-performance heatsink with integrated 20mm fan designed specifically for M.2 SSDs (22x80mm / 2280 size). It combines a solid aluminum heatsink with 8 cooling fins and a silent fan spinning at 10000 RPM to reduce SSD temperatures by up to 25%, ensuring stable performance during intensive workloads.

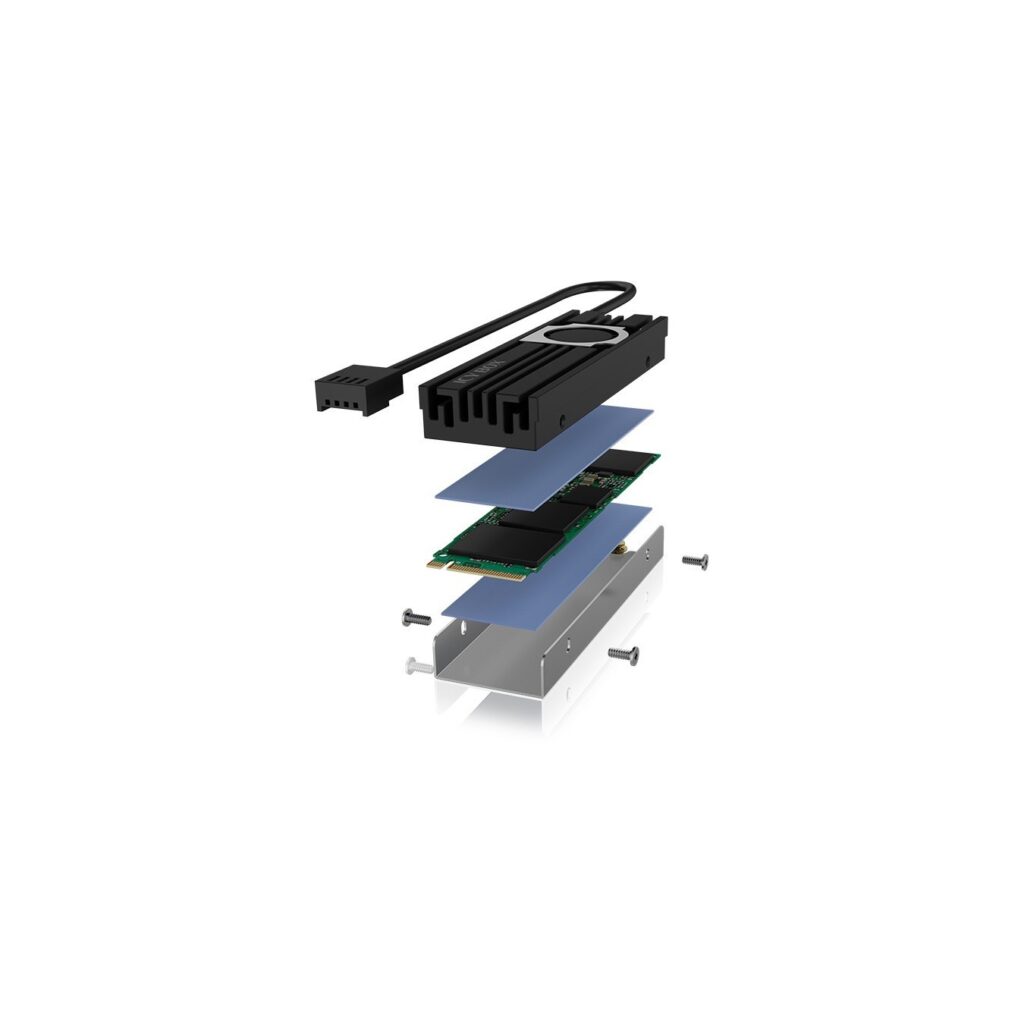

Made from high-grade aluminum with silicone thermal pads (1.5 W/mK, -20 to 180°C), it includes all necessary mounting hardware: counter plate, screws, screwdriver, and quick guide. The low-profile design (13mm height) fits most motherboards without clearance issues. Fan uses 4-pin DC 12V connector (0.04A), independent of OS.
- ✅ Compatible with M.2 NVMe SSDs up to 80mm length
- ✅ Temperature reduction up to 25%*
- ✅ Includes 2x thermal pads & mounting tools
- ✅ Mounting height: 16mm max
- ✅ Weight: 51g (product), 123g packaged
| Suitable location | Solid-state drive |
| Type | Heatsink/Radiator |
| Fan diameter | 2 cm |
| Number of speeds | 1 |
| Rotational speed (max) | 10000 RPM |
| Quantity per pack | 1 pc(s) |
| Thermal conductivity | 1.5 W/m·K |
| Operating temperature (T-T) | -20 - 180 °C |
| Product colour | Black, Grey |
| Material | Aluminium, Silicone |
| Number of fans | 1 fan(s) |
| Number of fins | 8 |
| Fan connector | 4-pin |
| Voltage | 12 V |
| Rated current | 0.04 A |
| Width | 75 mm |
| Depth | 24 mm |
| Height | 13 mm |
| Weight | 51 g |
| Fan dimensions (W x D x H) | 20 x 20 x 6 mm |
| M.2 card size | 22 x 80 mm |
| Mounting height | 16 mm |
| Package width | 105 mm |
| Package depth | 200 mm |
| Package height | 27 mm |
| Package weight | 123 g |
| Feature | Thermal pad included |
| Temperature reduction | Up to 25% |
| Harmonized System (HS) code | 84733080 |
