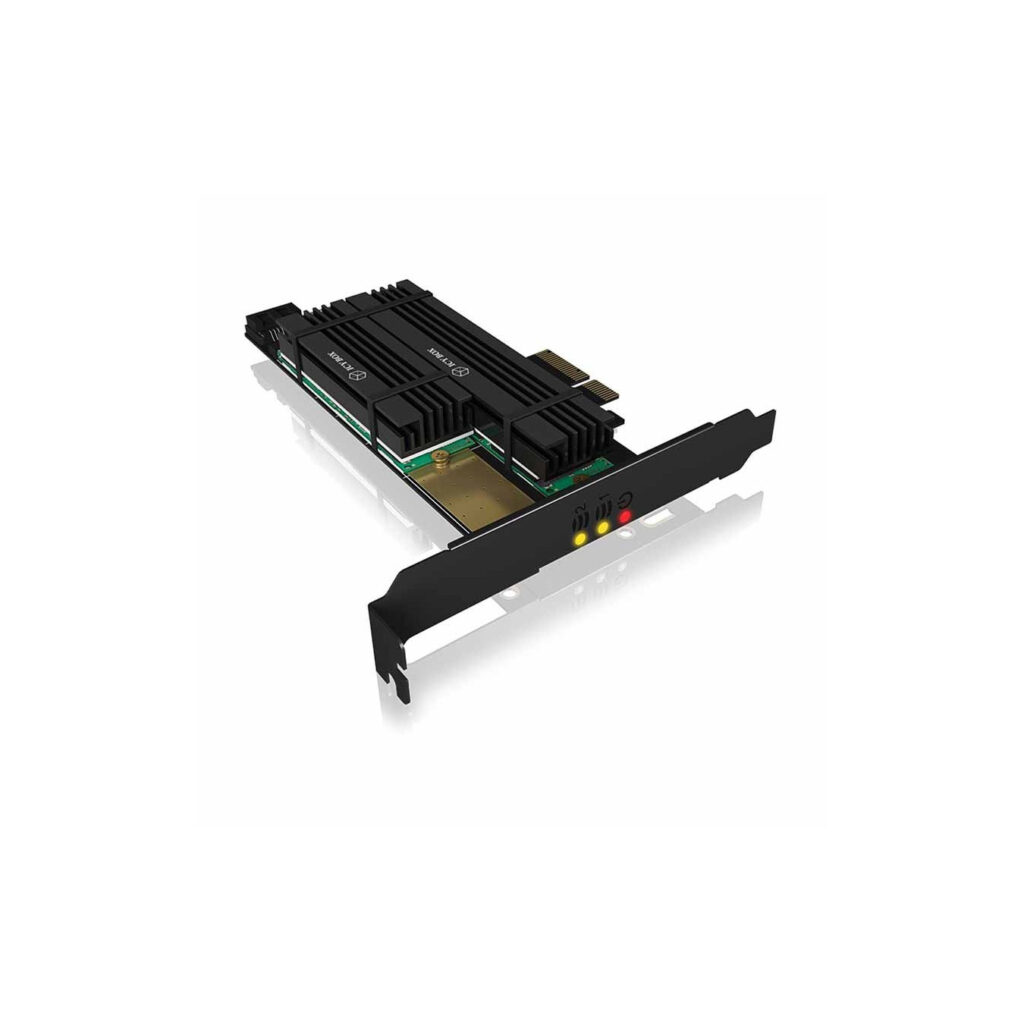

IB-PCI215M2-HSL PCIe Card for 2x M.2 SSDs w/ Heatsinks ICY BOX
PCIe card for 1x M.2 SATA (6 Gbit/s) + 1x M.2 NVMe SSD (up to 64 Gbit/s). Supports 22×30-110mm sizes, incl. heatsinks for 2280/22110, modular low/full profile brackets.
Available in 2–5 business days : 1 piece
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ICY BOX IB-PCI215M2-HSL is a versatile PCIe extension card that adds support for two M.2 SSDs to your system: one SATA (B-Key or B+M-Key) with up to 6 Gbit/s transfer rate and one PCIe NVMe (M-Key) with up to 64 Gbit/s bandwidth.
It supports various M.2 sizes from 22×30/42/60/80/110 mm and includes passive heatsinks for 2280 and 22110 SSDs, with customizable thermal pads for optimal cooling. Modular slot covers allow use in both low-profile (80mm) and full-height (120mm) cases.
- Easy PCIe installation for enhanced storage
- 1x SATA M.2 + 1x NVMe M.2 slots
- Included heatsinks prevent thermal throttling
- Backward compatible with PCIe 3.0 systems
| Product Type | M.2 SATA/NVMe SSD to PCIe Adapter |
| MPN | IB-PCI215M2-HSL |
| M.2 Slots | 1x B-Key (SATA AHCI) + 1x M-Key (PCIe NVMe) |
| SATA Transfer Rate | up to 6 Gbit/s |
| PCIe Transfer Rate | up to 64 Gbit/s (PCIe x4) |
| Supported M.2 Sizes | 22x30/42/60/80/110 mm |
| Heatsinks Included | For 2280 and 22110 M.2 SSDs |
| Bracket Options | Low-profile 80mm / Full-height 120mm |
| Weight (unboxed) | 64 g |
