Motion & Presence Sensors

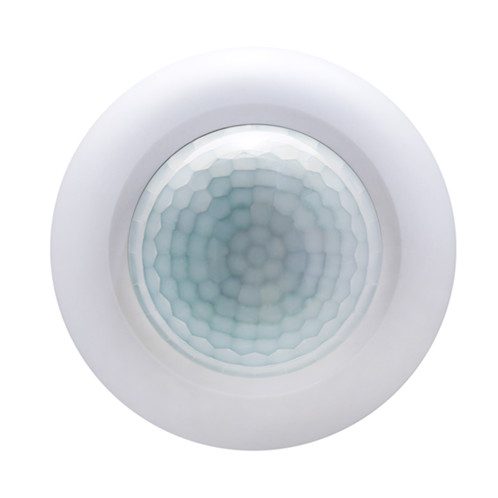

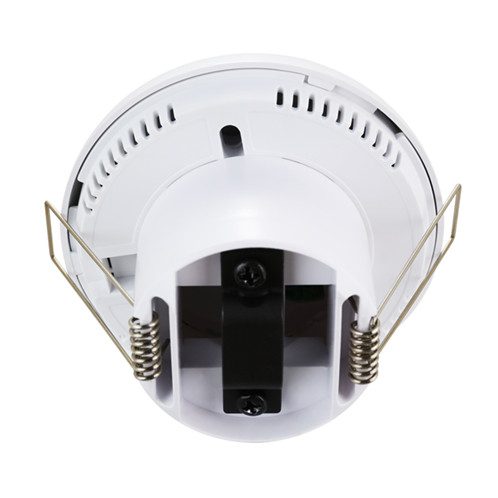

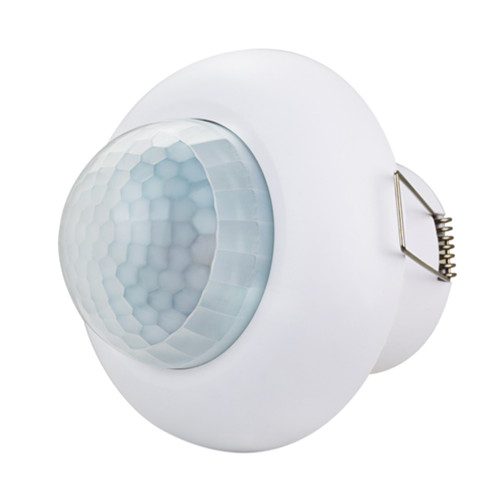

HDL Sensor PIR & Lux Reccess Mount M/IS05.1

SKU:
Brand: -
Barcode:
90.00 €

Available to order: 5 pieces (2–3 business days)Order today22 NovAt our store24–25 NovDelivered to you26–30 Nov

For any questions about this item, availability, or delivery times, please contact us at 22 270068

Questions? Call 22 270068

  • 5 piecesAvailable to order
  • 4–6 business daysdelivered to you
  • 2–3 business daysat our store in Nicosia
  • Pay your waycards, Apple Pay, Google Pay or in store

Product information

Details

  • Includes Motion sensor, LUX sensor and External Telegram Detection
  • Motion detection range H:3m D:9m
  • With 2CH lighting control, 4 levels of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking
  • With 2CH constant brightness control, 4 pre-set dimming values are supported and forced dimming can be set
  • The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact, telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking
  • Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control, Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control
  • Logic inputs: PIR sensor status, brightness value,  temperature and external telegrams
  • 2 logical relations: AND, OR 2 working modes: Single mode and master/slave mode
  • The logic validity can be set by external telegram
