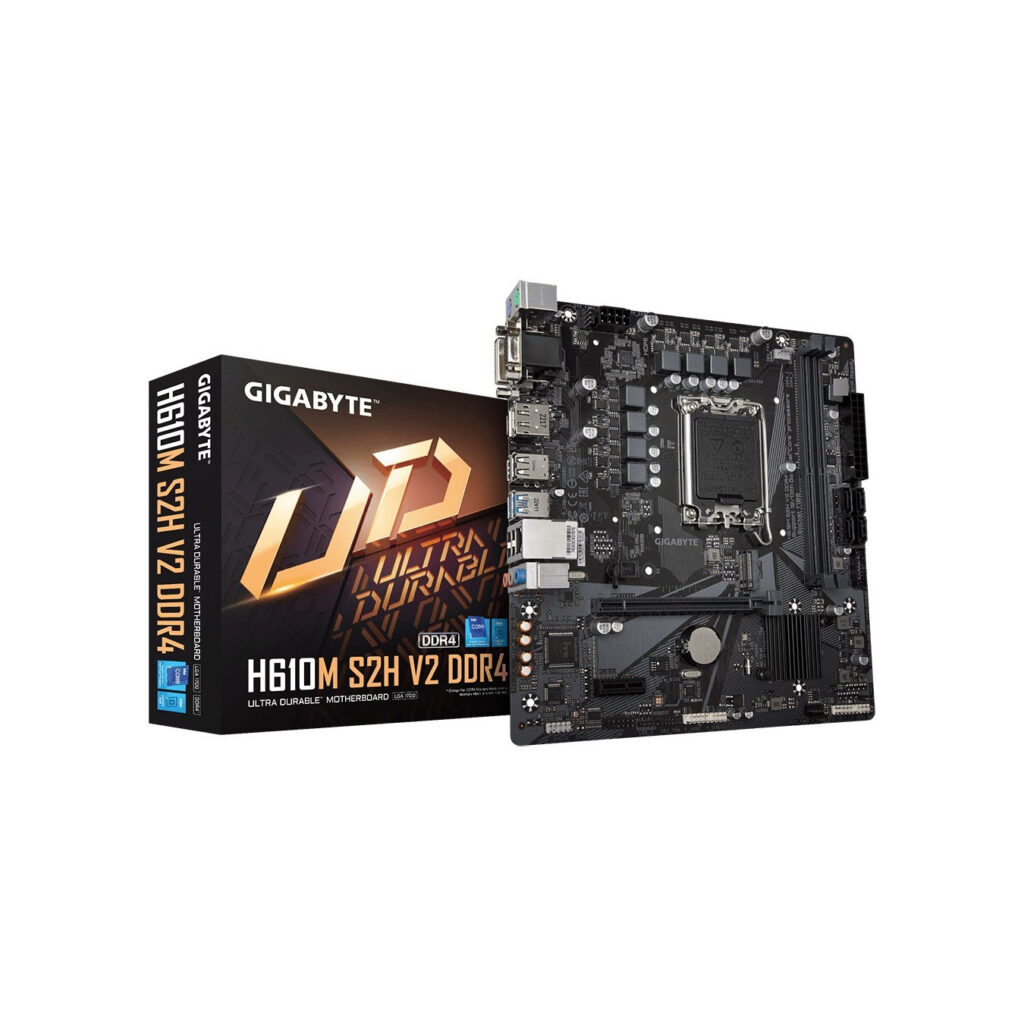

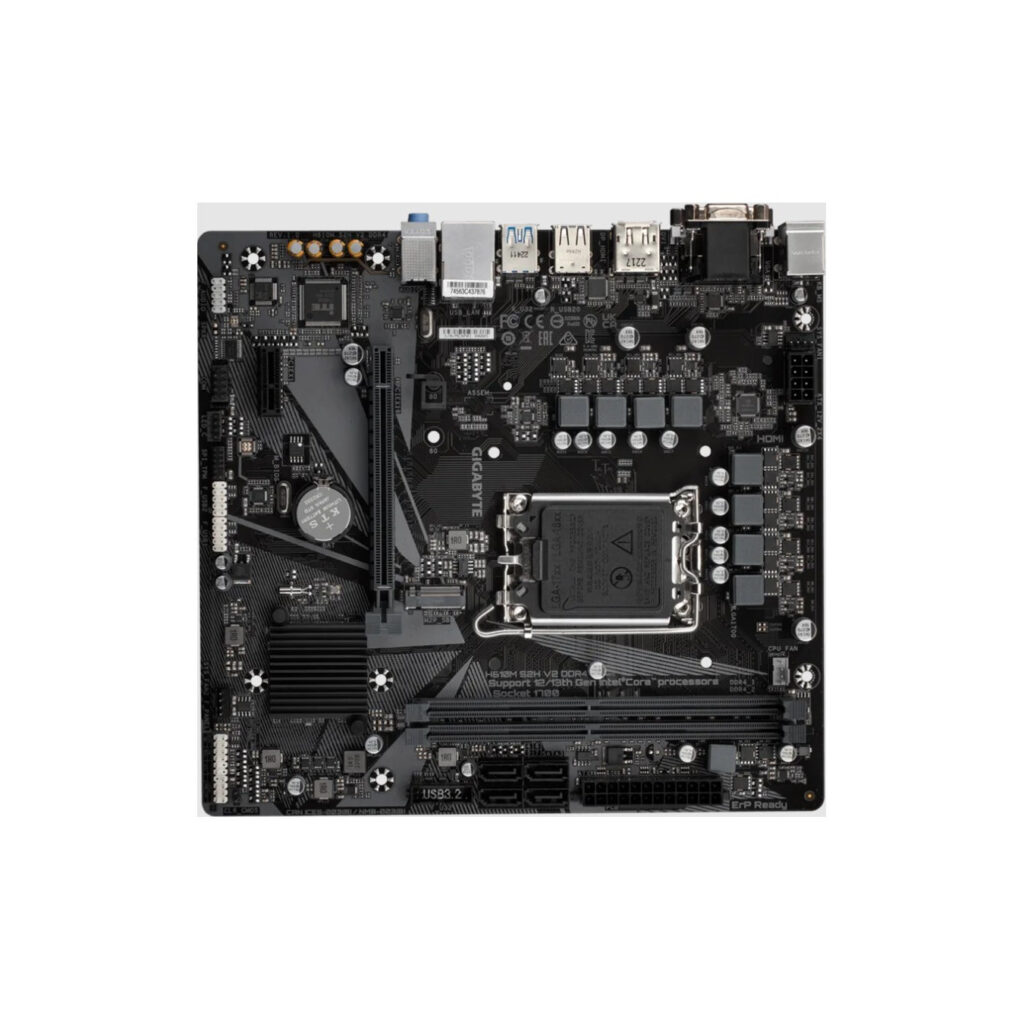

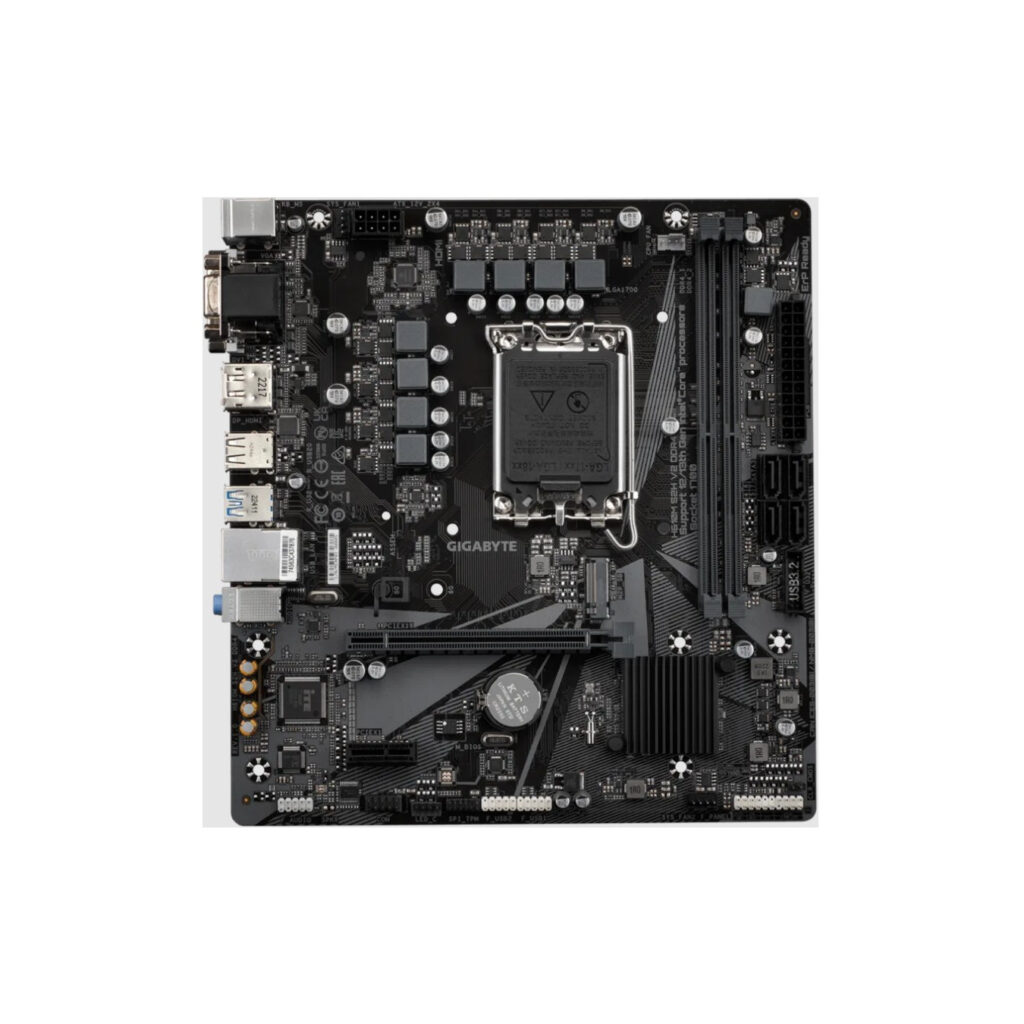

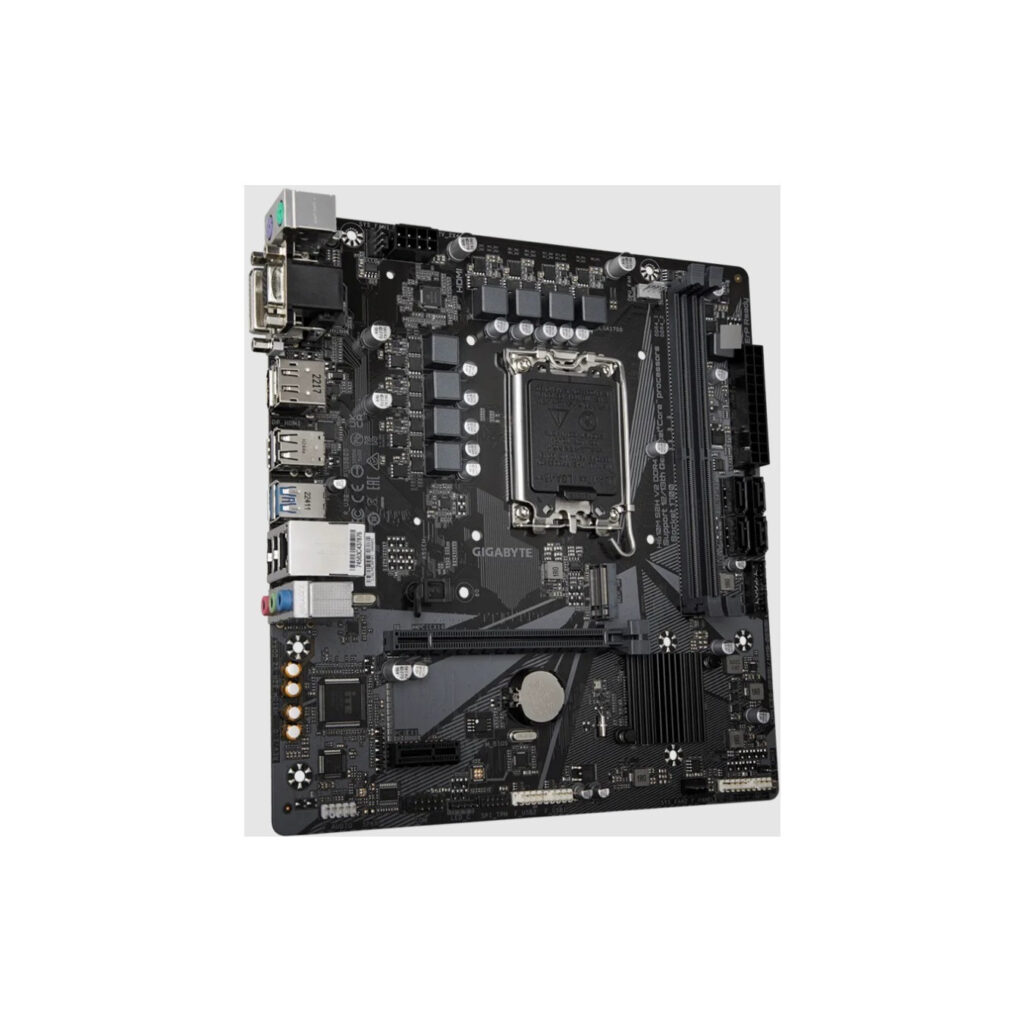

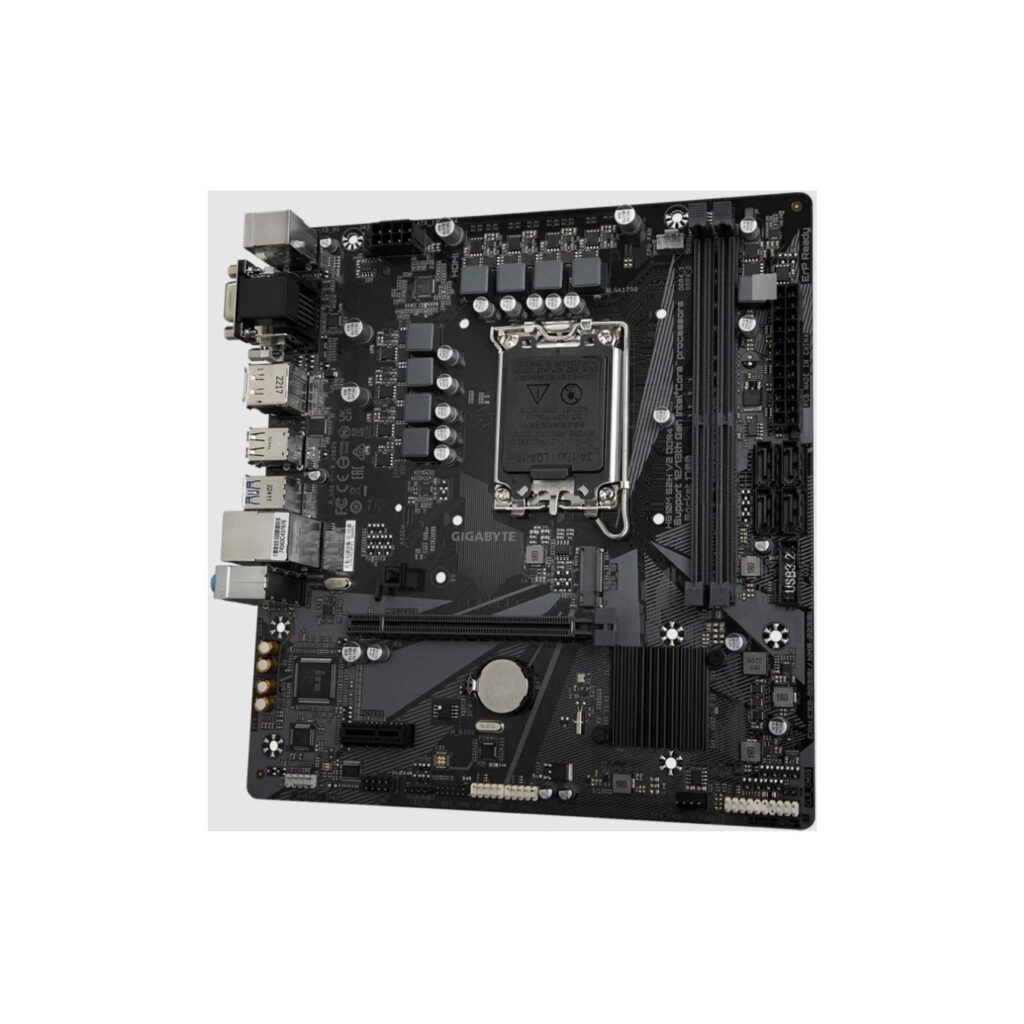

GIGABYTE H610M S2H V2 DDR4 Motherboard - LGA1700, Supports 14th Gen Intel, DDR4 up to 3200MHz, 64GB, M.2, GbE, USB 3.2 Gen1
Micro-ATX LGA1700 motherboard for 14th Gen Intel CPUs, DDR4 up to 3200MHz (OC), 64GB max, 1x M.2 PCIe 3.0, Gigabit LAN, USB 3.2 Gen1
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
GIGABYTE H610M S2H V2 DDR4 Motherboard – Supports Intel Core 14th CPUs. 6+1+1 Hybrid Phases Digital VRM. up to 3200MHz DDR4 (OC). 1xPCIe 3.0 M.2. GbE LAN. USB 3.2 Gen 1. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9….. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA. Supported storage drive types: HDD & SSD. Graphics card family: Intel. Graphics card: HD Graphics. On-board graphics card model: Intel® HD Graphics. Ethernet interface type: Gigabit Ethernet
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133.2400.2666.2933.3000.3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 1GB. 2GB. 4GB. 8GB. 12GB. 16GB. 32GB |
| Feature | Batteries included |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| DirectX version | 12.0 |
| On-board graphics card model | Intel® HD Graphics |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Serial port headers | 1 |

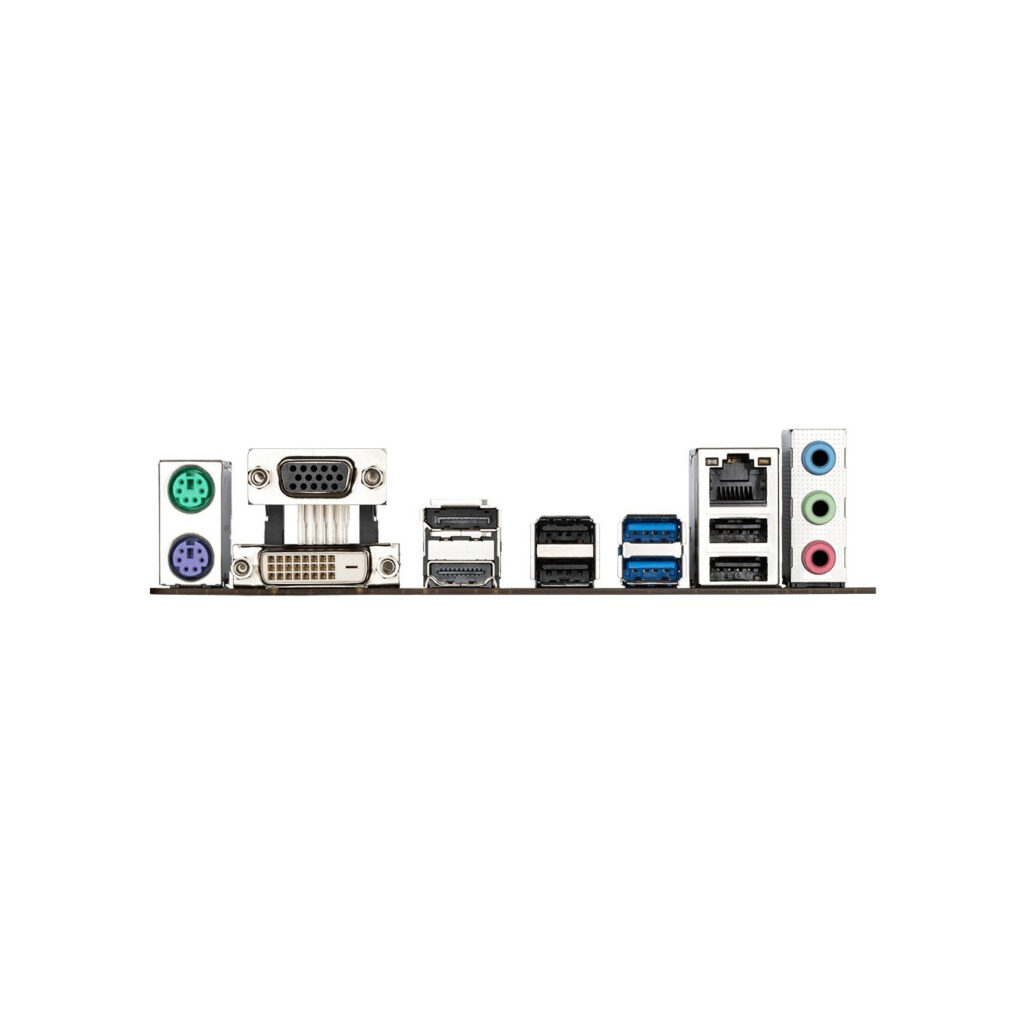

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | Intel H610 Express |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan. LED. Temperature. Voltage. Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 857 g |
| Width | 230 mm |
| Depth | 215 mm |
| Height | 35 mm |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Supported DIMM module capacities | 8GB. 16GB |
| Warranty period | 3 year(s) |
