Gigabyte GA-B760 DS3H WF6E GEN5 - GA-B760 DS3H WF6E GEN5 - ATX DDR5, 256 GB max, LGA1700, PCIe 4.0, 2x M.2, 4 SATA, RGB, WiFi 6E
159.50 €

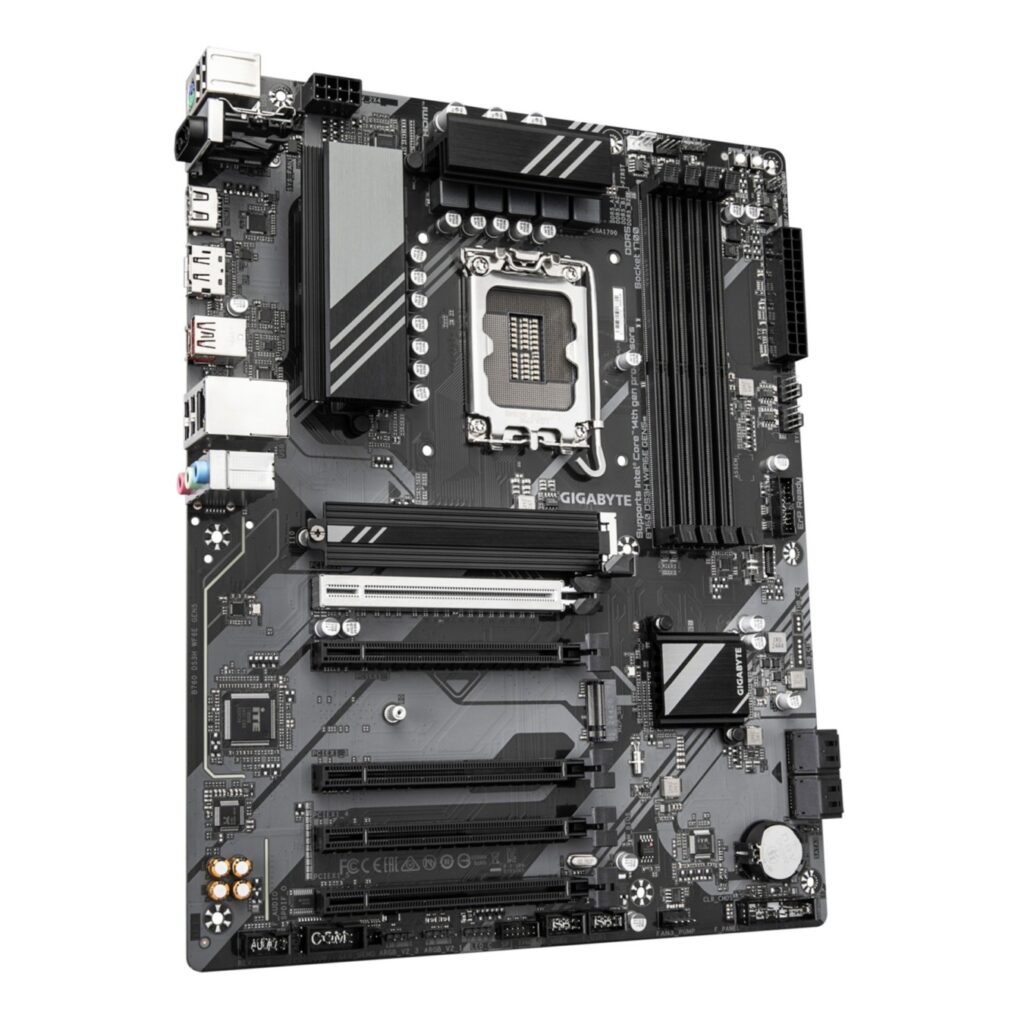

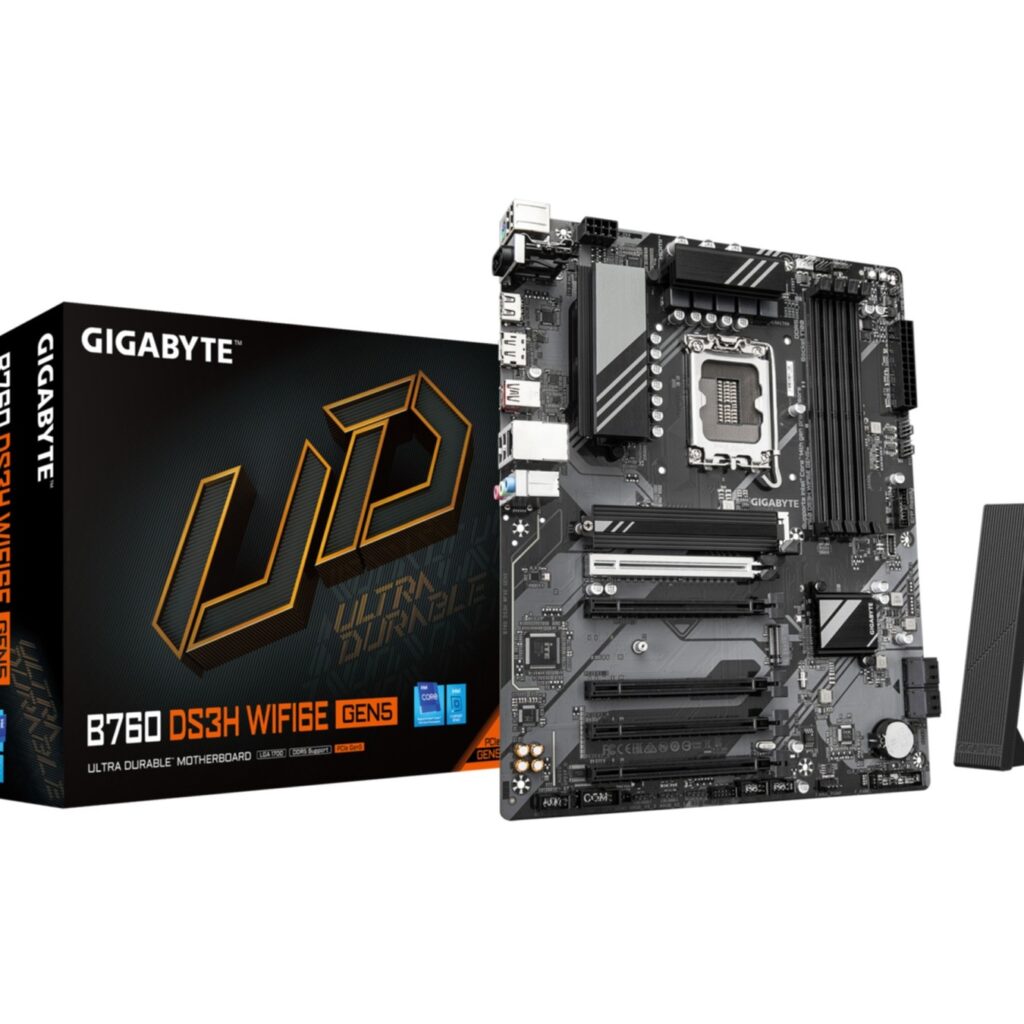

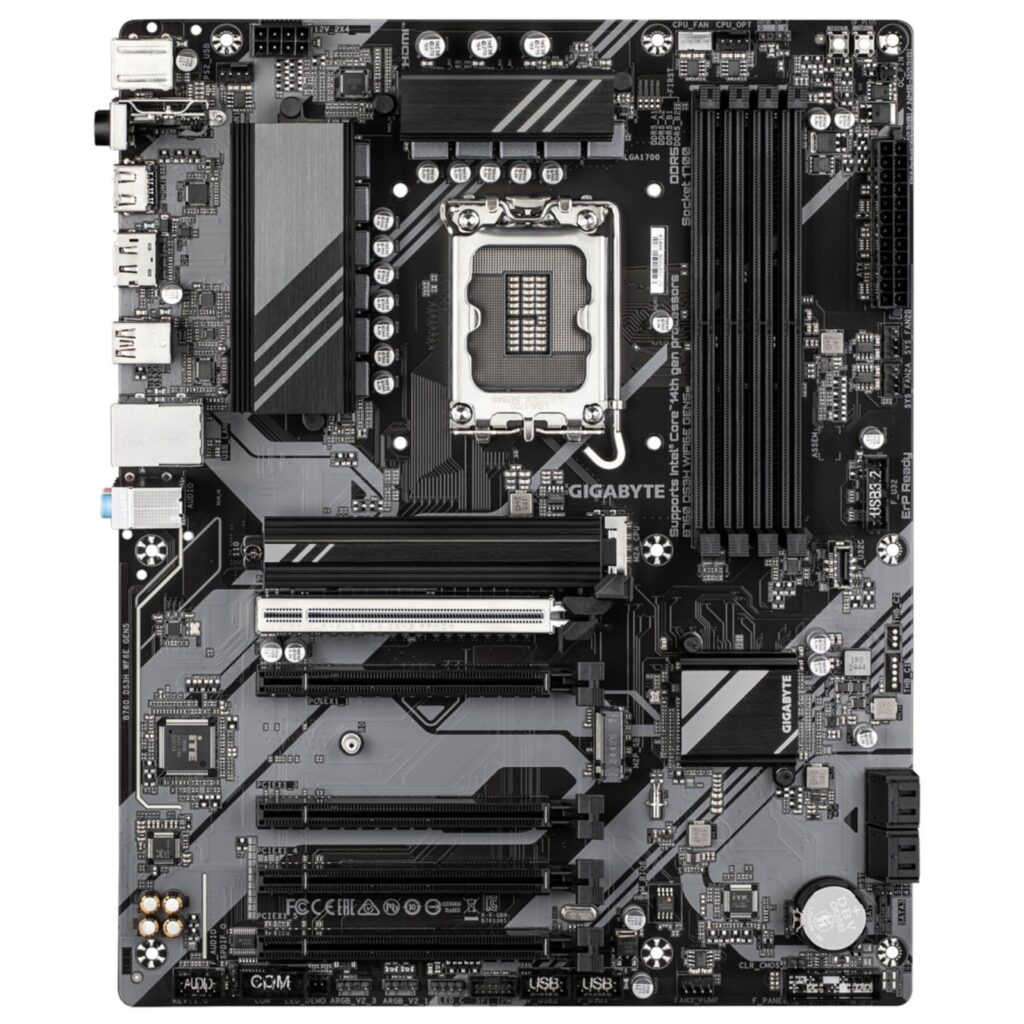

Gigabyte GA-B760 DS3H WF6E GEN5 motherboard for LGA1700 CPUs; ATX, DDR5, 4 DIMMs, 256 GB max, 2x M.2, PCIe 4.0, 4 SATA, RGB headers, ECC/Non-ECC, WiFi 6E AX210, BT 5.3
Available in 6–10 business days : 19 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5600, 5200, 4800, 4400 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

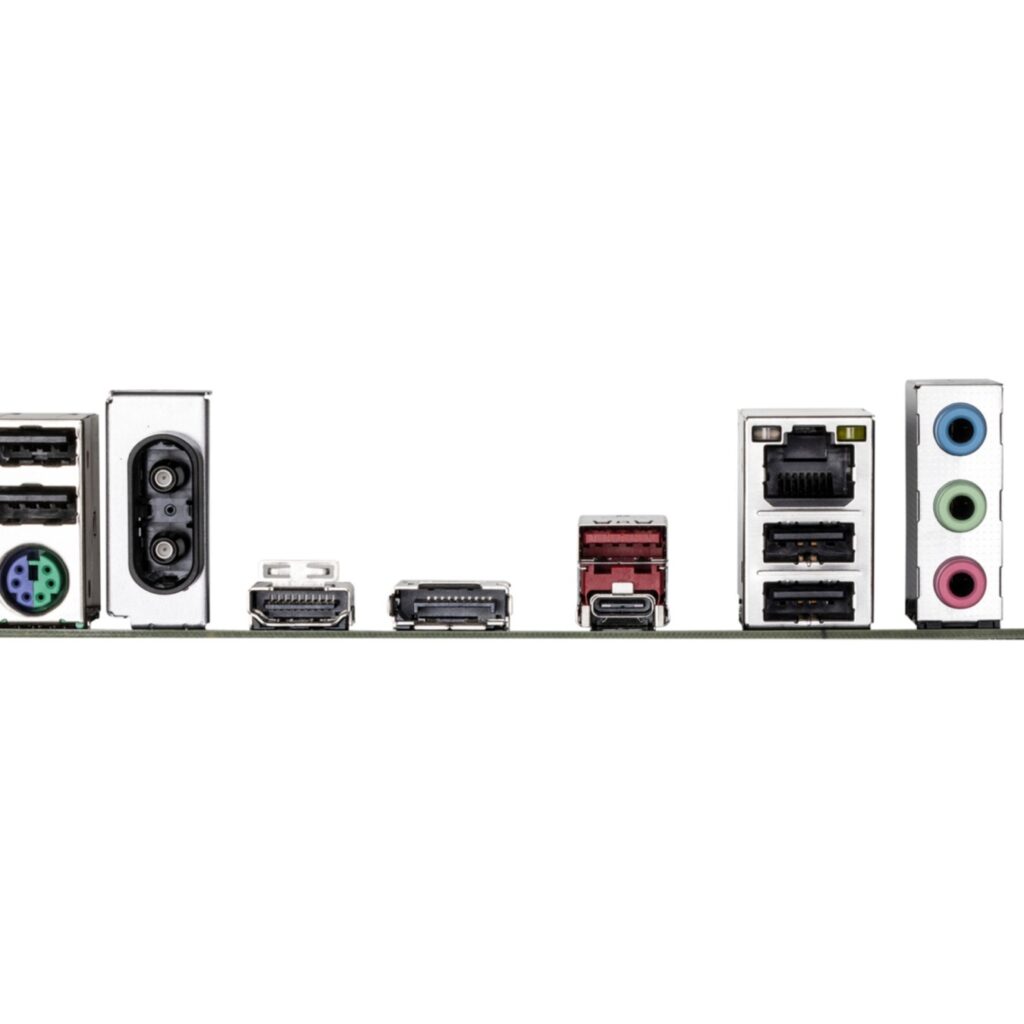

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel B760 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.55 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Weight | 1.31 kg |
| Warranty period | 3 year(s) |
