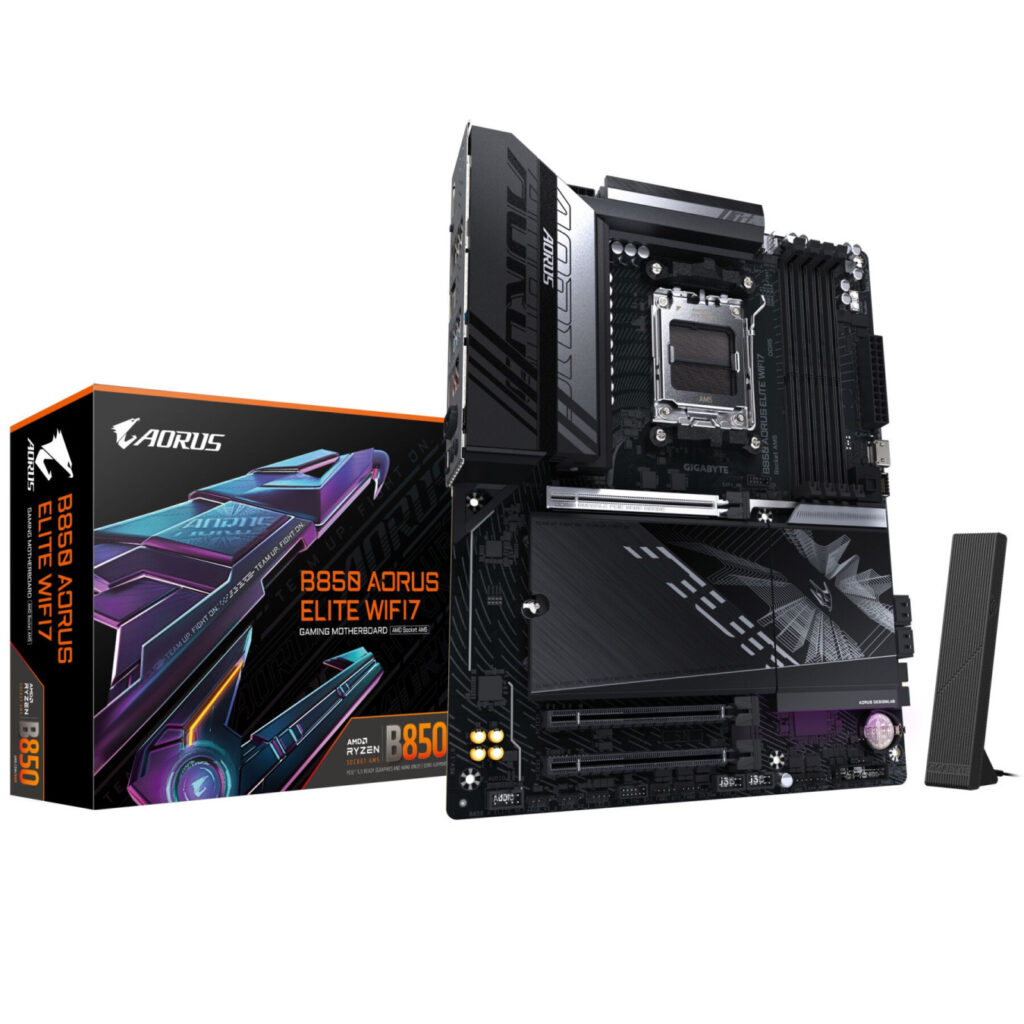

Gigabyte B850 AORUS ELITE WIFI7 AM5 ATX Motherboard
AM5 ATX motherboard with DDR5 (4x DIMM, up to 256GB), AMD B850 chipset, PCIe 5.0 GPU/SSD support, 3x M.2 slots, Wi-Fi 7, 2.5Gb LAN, Bluetooth 5.4.
Available in 4–6 business days : 49 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

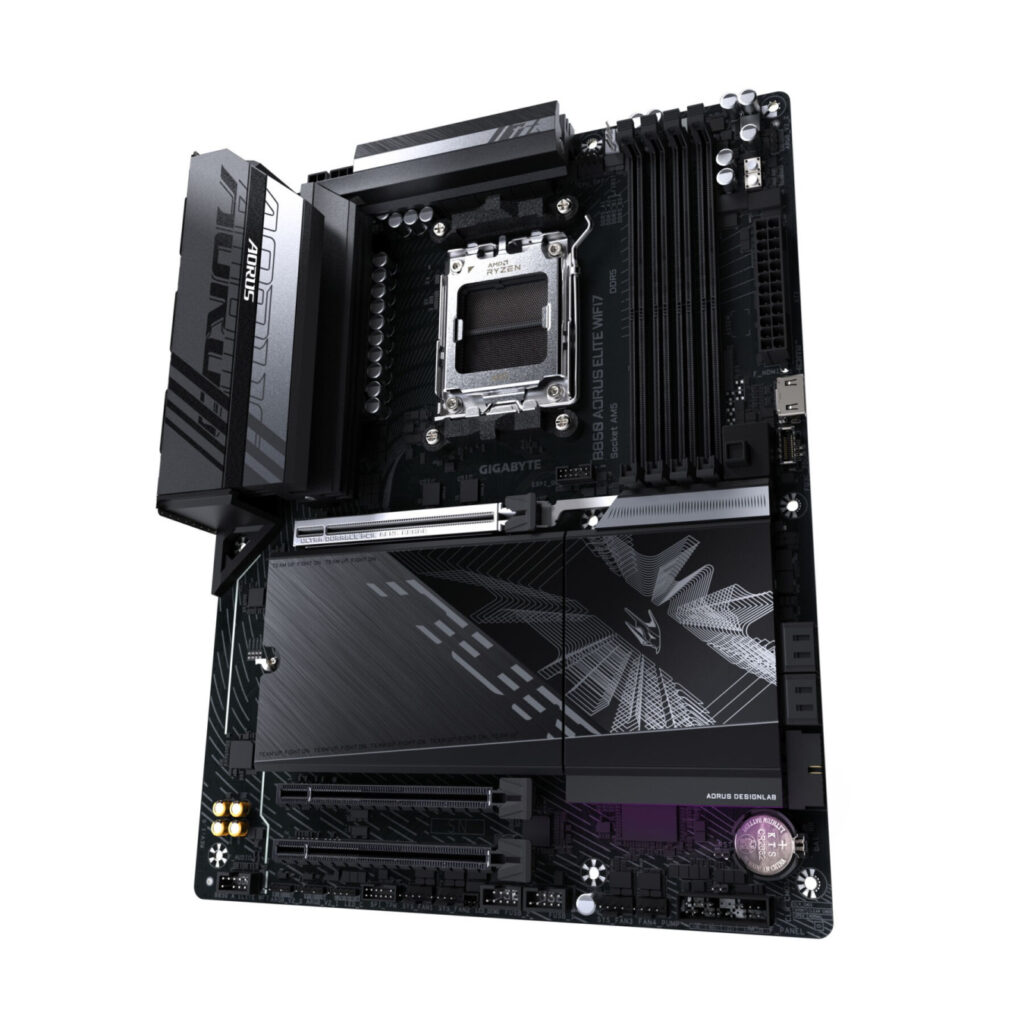

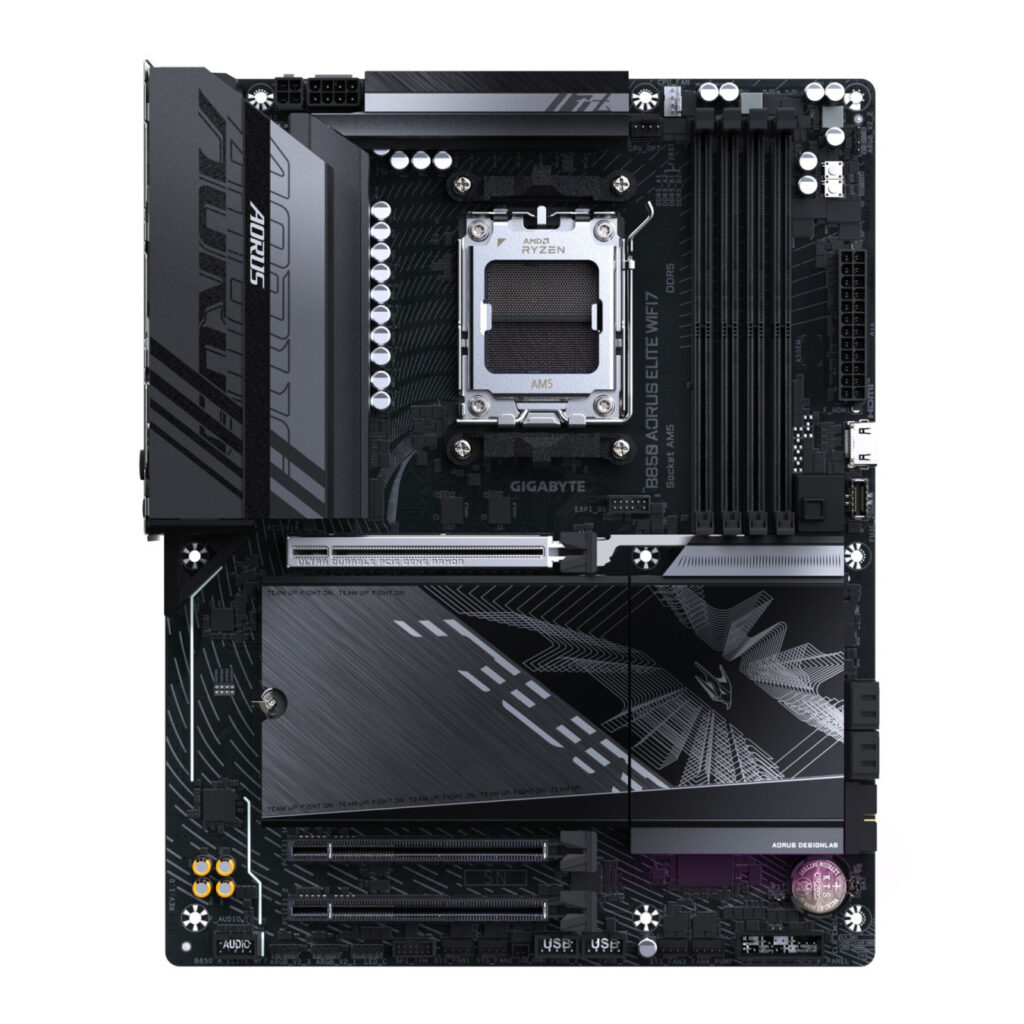

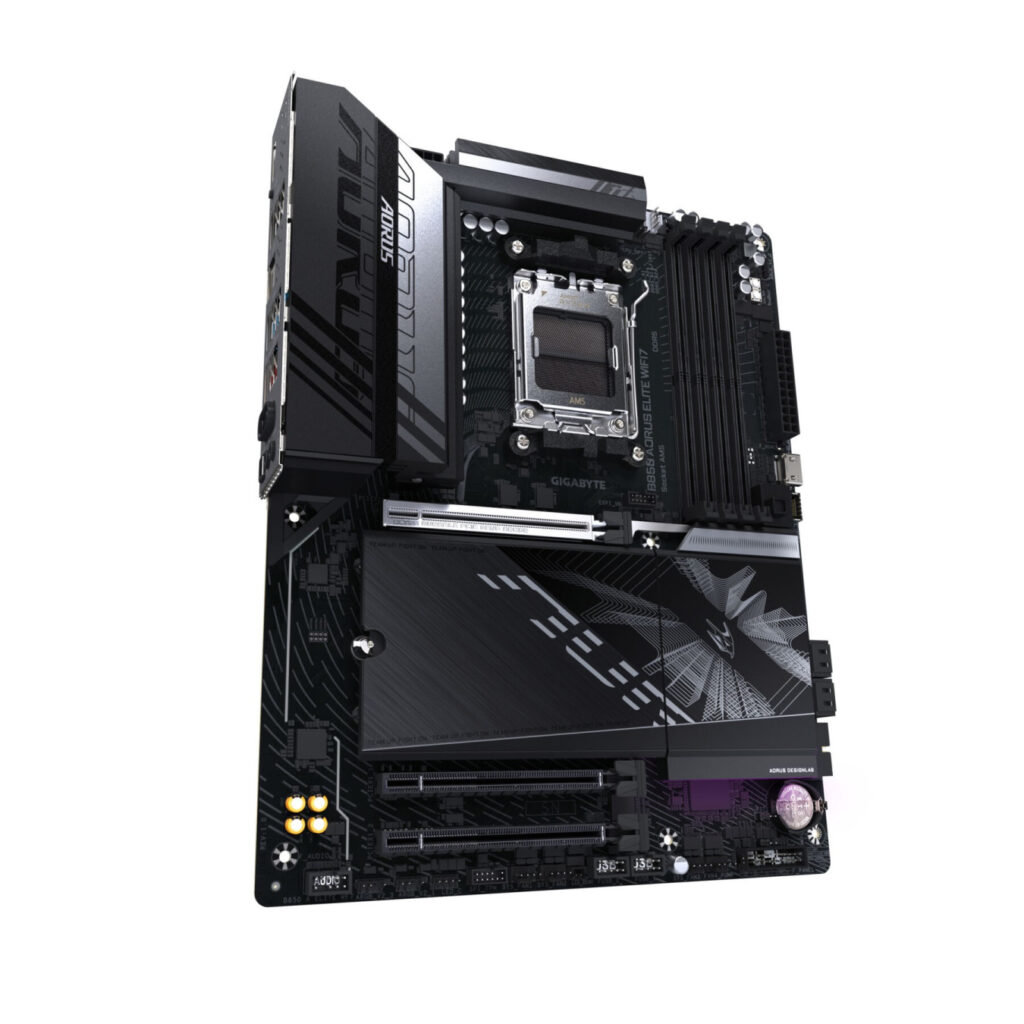

The Gigabyte B850 AORUS ELITE WIFI7 is a feature-rich AM5 ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. Built on the AMD B850 chipset, this board delivers excellent value with modern connectivity and performance features suitable for gaming and content creation workloads.
Key technical highlights include a robust 18-phase digital VRM (14+2+2 configuration) with 80A DrMOS MOSFETs for stable power delivery, support for DDR5 memory up to 8200MHz (OC) across 4 DIMM slots with 256GB maximum capacity, and comprehensive PCIe 5.0 support featuring one x16 slot for graphics cards and one x4 M.2 slot for NVMe SSDs. The board includes three M.2 sockets total (1x PCIe 5.0 x4, 2x PCIe 4.0 x4), four SATA III ports for traditional storage, and extensive connectivity with 2.5Gb Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.4, USB 3.2 Gen 2×2 Type-C, and multiple USB 3.2 ports. Advanced features include X3D Turbo Mode for enhanced gaming performance, Smart Fan 6 with dual fan curve modes, and comprehensive thermal management with VRM Thermal Armor and M.2 Thermal Guard.
Connectivity and expansion options include:
- 1x DisplayPort 1.4 and 1x HDMI 1.4 for display output
- 1x USB 3.2 Gen 2×2 Type-C (20 Gbps) and 1x USB 3.2 Gen 2 Type-C (10 Gbps)
- 2x USB 3.2 Gen 2 Type-A (10 Gbps) and 7x USB 3.2 Gen 1 (5 Gbps)
- 8x USB 2.0 ports and 4x SATA III connectors with RAID 0/1/10 support
- 6x PWM/DC fan headers for comprehensive cooling control
- 4x RGB LED headers (3-pin 5V ARGB and 4-pin 12V RGB)
| Processor Socket | Socket AM5 (LGA 1718) |
| Chipset | AMD B850 |
| Form Factor | ATX (305 × 244 mm) |
| CPU Power Delivery | 18-phase digital VRM (14+2+2 configuration, 80A DrMOS MOSFETs) |
| Supported Processors | AMD Ryzen 7000, 8000, and 9000 series |
| Memory Type | DDR5-SDRAM |
| Memory Slots | 4x DIMM |
| Maximum Memory | 256 GB |
| Memory Speed Support | DDR5-8200+ MHz (OC), supports DDR5-6400 at 1:1 IMC ratio |
| Memory Profiles | XMP, EXPO |
| PCIe Slots | 1x PCIe 5.0 x16 (GPU), 2x PCIe 3.0 x16 (x1 mode) |
| M.2 Sockets | 3 total: 1x PCIe 5.0 x4 (CPU-connected, up to 80mm), 2x PCIe 4.0 x4 (up to 80mm) |
| SATA Ports | 4x SATA III (6 Gbps) with RAID 0/1/10 support |
| Display Outputs | 1x DisplayPort 1.4, 1x HDMI 1.4 |

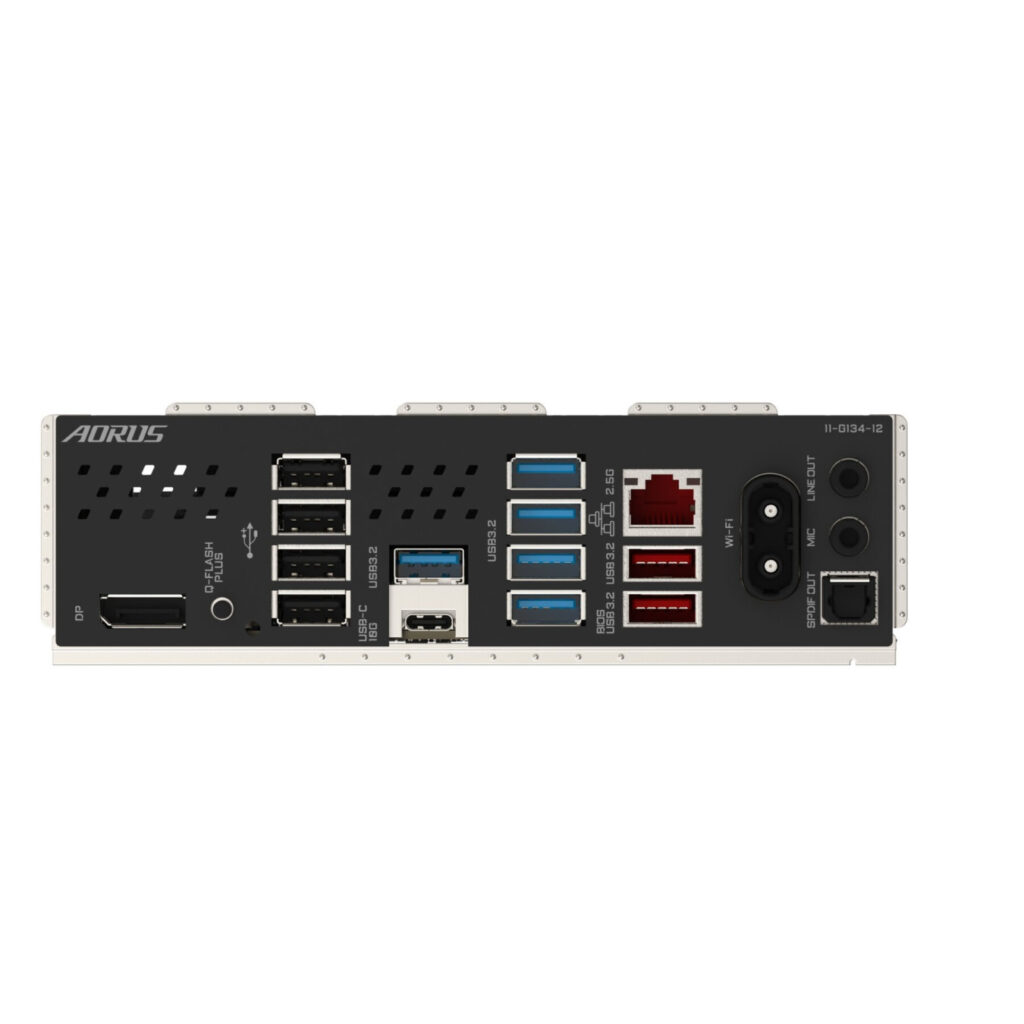

| USB Rear Ports | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 1x USB 3.2 Gen 2 Type-C (10 Gbps), 2x USB 3.2 Gen 2 Type-A (10 Gbps), 7x USB 3.2 Gen 1 (5 Gbps), 4x USB 2.0 |
| USB Headers | 1x USB 3.2 Gen 2 Type-C header, 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers |
| Fan Headers | 6x PWM/DC fan headers (CPU, chassis, water pump) |
| RGB Headers | 4x RGB LED headers (3-pin 5V ARGB and 4-pin 12V RGB) |
| Networking | 2.5Gb Ethernet (Realtek), Wi-Fi 7 (802.11be) with Realtek RTL8922AE, Bluetooth 5.4 |
| Audio | Realtek ALC897 with 7.1 channels |
| BIOS | UEFI AMI, 256 Mbit |
| Power Connectors | 24-pin ATX, 1x 8-pin EPS, 1x 4-pin Molex |
| PCB Layers | 6-layer PCB with mid-loss design |
| Thermal Management | VRM Thermal Armor Advanced, M.2 Thermal Guard Extended, Smart Fan 6 with dual fan curve mode |
| Special Features | X3D Turbo Mode, M.2 EZ-Latch Plus, PCIe EZ-Latch Plus, EZ-Debug Zone with multi-key and debug LEDs |
| Supported Operating Systems | Windows 10 x64, Windows 11 x64 |
| Warranty | 3 years |
| Country of Origin | China |
| CMOS Battery | CR2032 (3V Lithium-Manganese Dioxide) |
