FSP NanoFit 600 600VA/360W Offline UPS w/ 2x USB Charger 6x Schuko
FSP NanoFit 600 Offline UPS: 600VA/360W standby topology, simulated sine wave, 6x Schuko outlets + 2x USB 5V/1A chargers. Compact design for desktop/wall mount, 12V/4.5Ah battery, cold start capable. Ideal for PC/monitor backup.
Available in 6–10 business days : 10 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

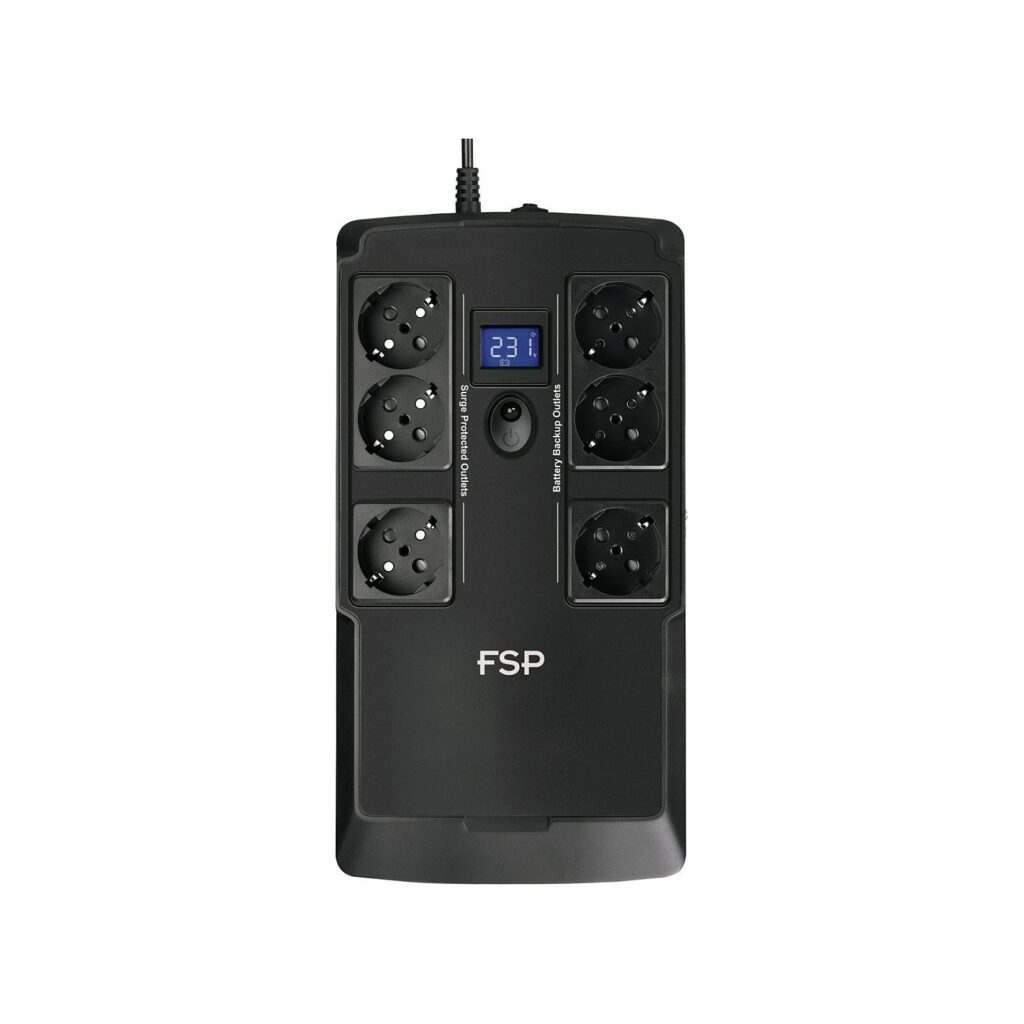

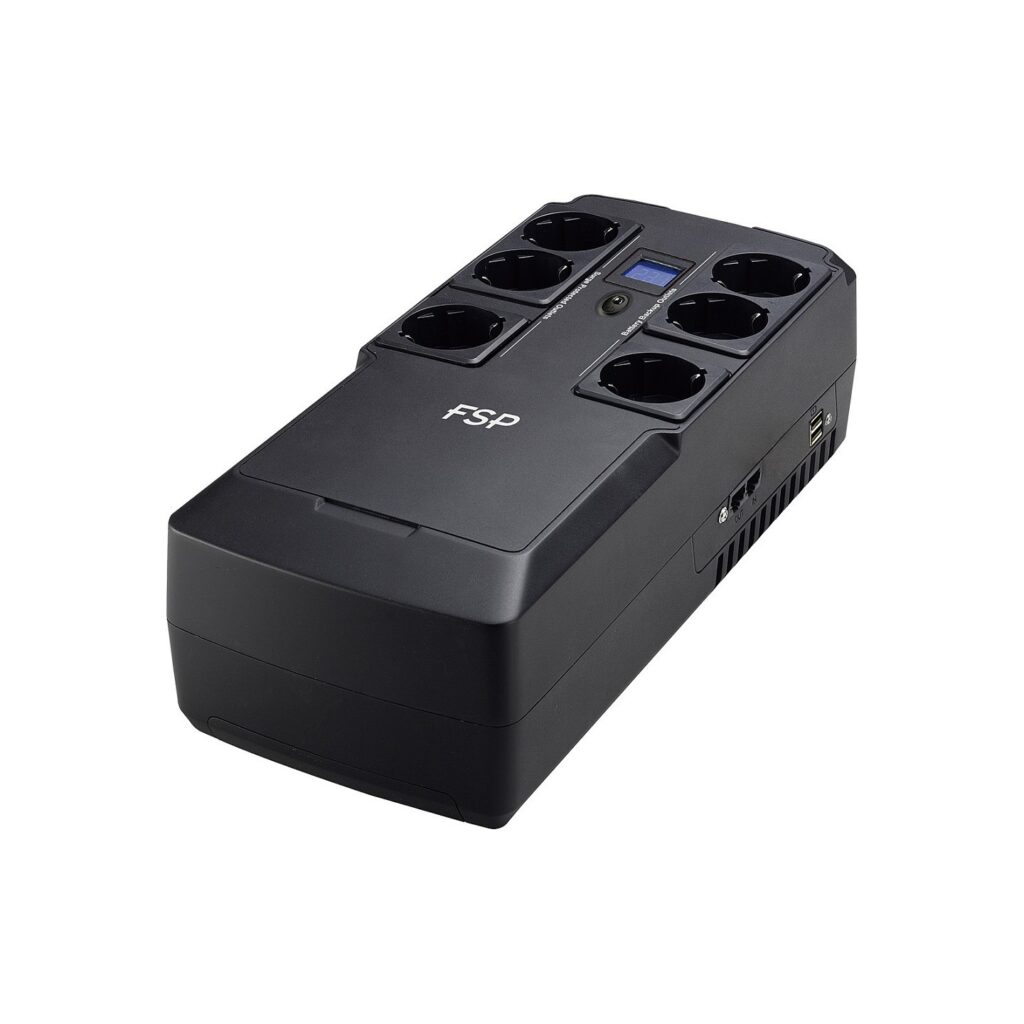

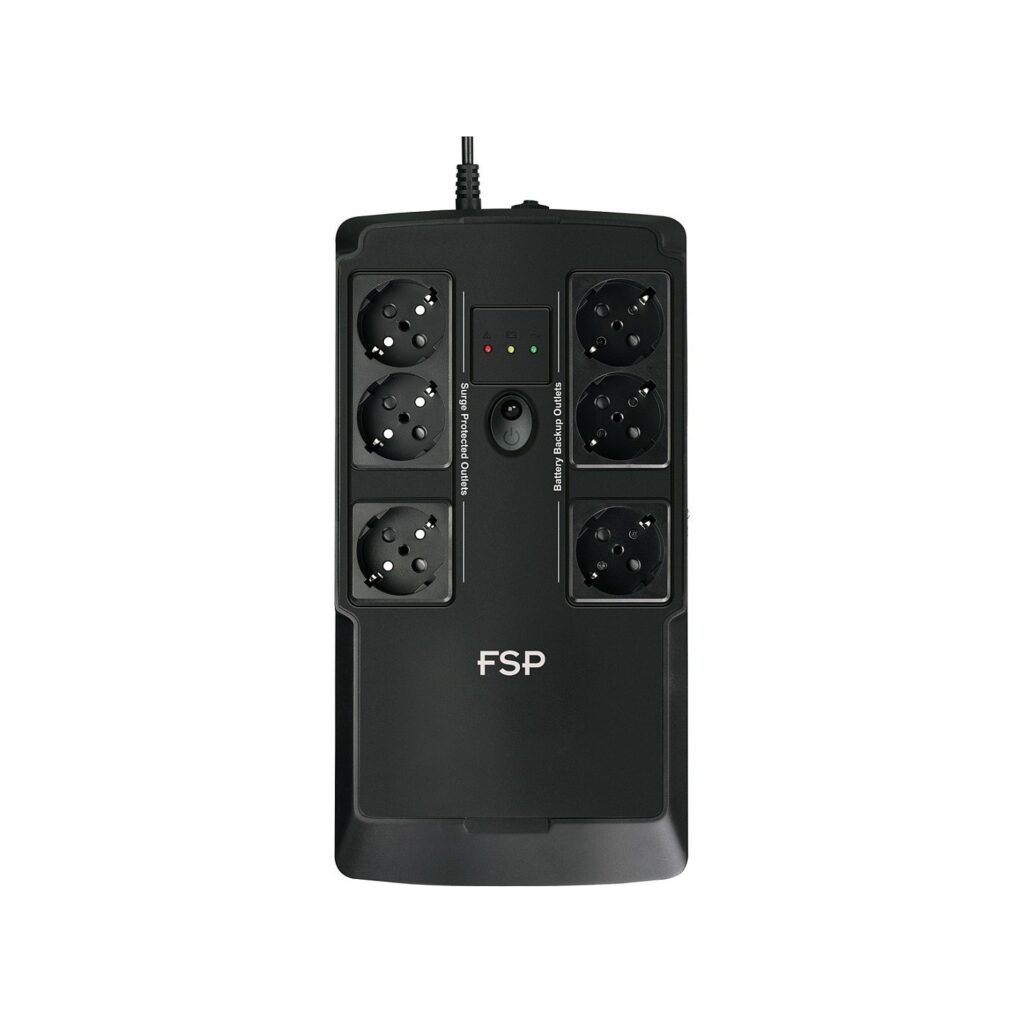

The FSP NanoFit 600 is a compact standby (offline) UPS designed for home and small office use, providing essential power protection for computers, monitors, and peripherals. With 600VA/360W capacity, it delivers simulated sine wave output during battery mode and features 6 surge-protected Schuko (Type F) outlets plus 2 USB Type-A charging ports rated at 5V/1A max.
This UPS automatically switches to battery power within 2-6ms (typical) during outages, powered by a single 12V/4.5Ah sealed lead-acid battery that recharges in about 8 hours to 90% capacity. It supports cold start functionality for operation without mains power and includes microprocessor control for reliability, auto-restart when AC recovers, and overload/low battery protection. The compact black tower/desktop form factor (158.5 x 305 x 95 mm, 2.6kg net) allows flexible placement.
Key benefits include safeguarding against power surges, spikes, and brief outages while enabling safe device shutdown. Note: 3 outlets are battery-backed; others provide surge protection only. Optional USB communication and LCD available on some variants.
- ✅ 600VA/360W capacity with ±10% voltage regulation
- ✅ Simulated sine wave, 50/60Hz auto-sensing
- ✅ 2x USB chargers + cold start capable
- ✅ Compact & wall-mountable design
- ✅ CE certified safety features
| UPS Topology | Standby (Offline) |
| Output Capacity | 600VA / 360W |
| Output Waveform | Simulated Sine Wave |
| Input Voltage Range | 180-270 Vac |
| Input Frequency | 50/60 Hz (Auto sensing) |
| Output Voltage Regulation | ±10% |
| Output Frequency | 50/60 Hz ±1 Hz |
| Transfer Time | Typical 2-6 ms (Max 10 ms) |
| AC Outlet Types | Typ F (Schuko) x6 |
| USB Ports | 2x USB Type-A 5V/1A (Max) |
| Battery Type | 12V / 4.5 Ah x1 |
| Typical Backup Time Full Load | 13 min |
| Recharge Time | 8 hours (to 90%) |
| Cold Start | Yes |
| Form Factor | Compact Tower/Desktop |
| Product Color | Black |
| Dimensions (W x D x H) | 158.5 x 305 x 95 mm |
| Net Weight | 2.6 kg |
| Operating Temperature | 0 - 40 °C |
| Safety | CE |
| Noise Level | 40 dB |
