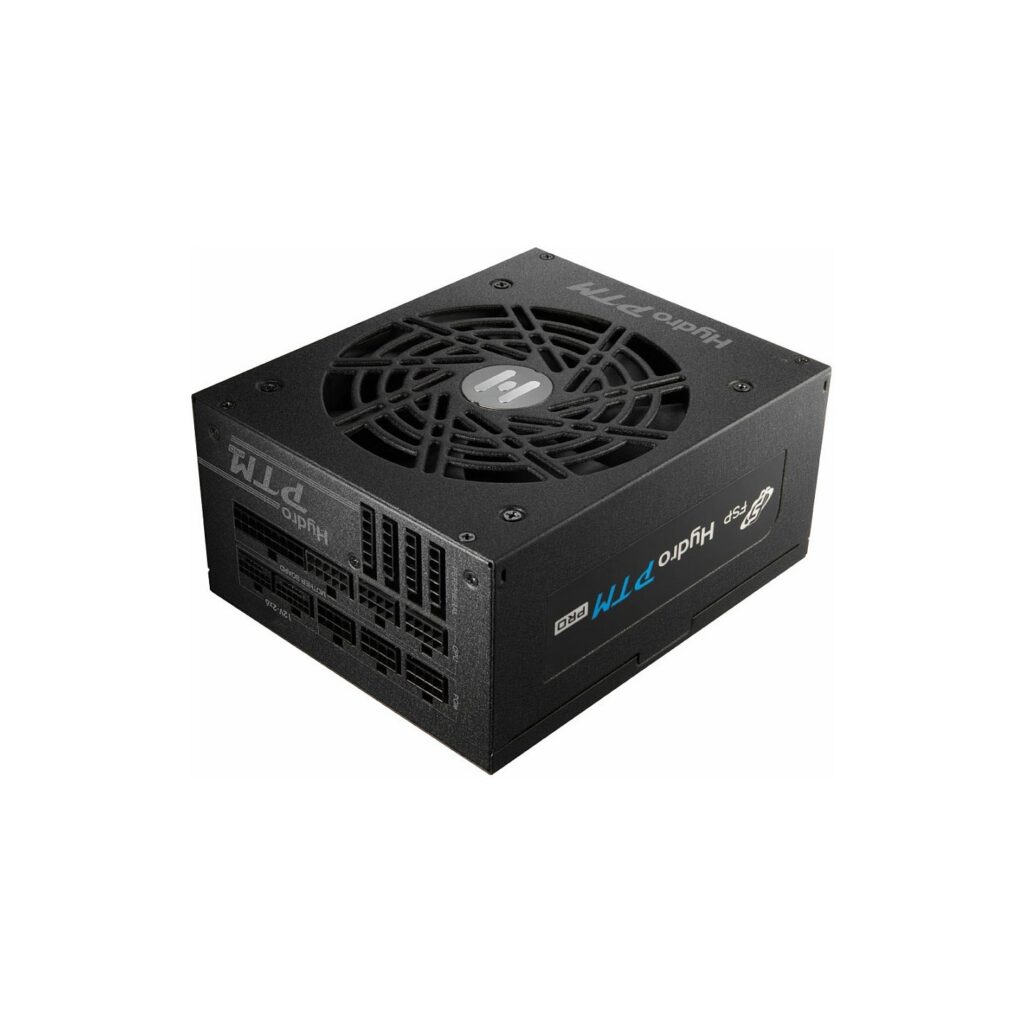

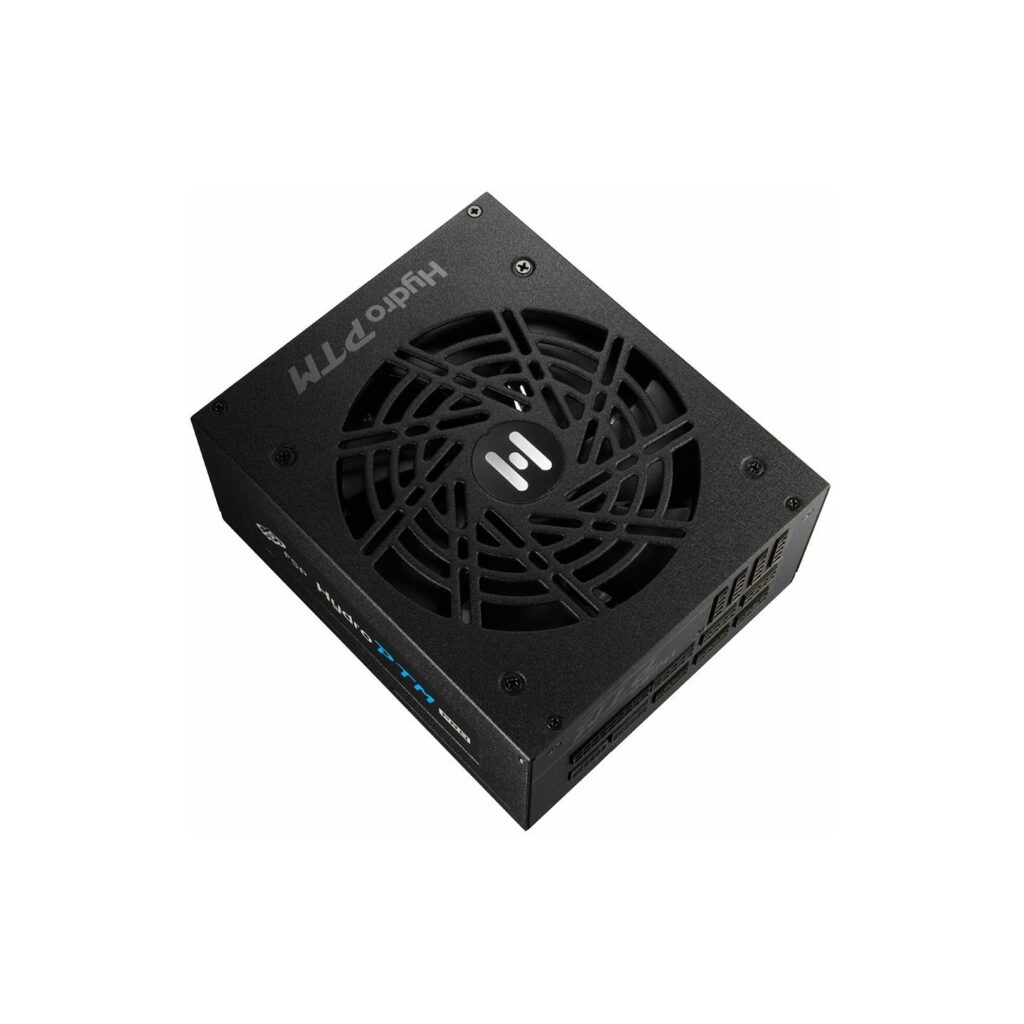

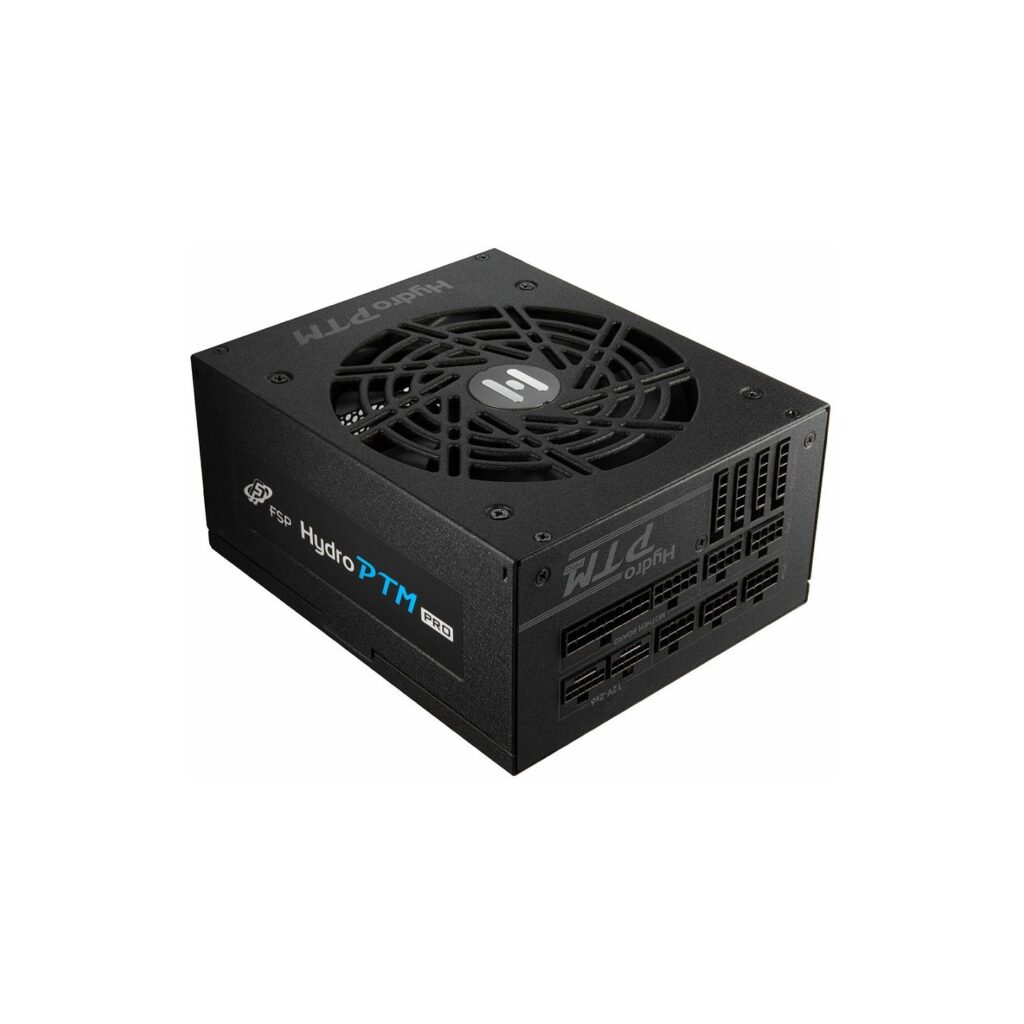

FSP Hydro PTM PRO HPT2-1350M 1350W ATX 3.1 80+ Platinum
FSP Hydro PTM PRO HPT2-1350M 1350W ATX 3.1 PSU. 80+ Platinum, full modular, 2x 12V-2×6 PCIe5, 4x 6+2pin, 135mm FDB fan, Japanese caps. Single +12V rail 112.5A. Efficiency ≥92%. OCP/OVP/OPP/SCP/OTP/UVP.
Available in 4–6 business days : 6 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The FSP Hydro PTM PRO HPT2-1350M is a premium 1350W power supply unit compliant with ATX 3.1 and EPS12V 2.92 standards, featuring the latest 12V-2×6 (PCIe Gen5) connectors for next-gen GPUs like NVIDIA RTX 40 series. This fully modular PSU delivers exceptional efficiency with 80 PLUS Platinum certification (≥92% at typical load) and a single +12V rail providing 112.5A / 1350W for high-power systems.
Key highlights include a quiet 135mm FDB fan with semi-fanless ECO mode, Japanese electrolytic capacitors for longevity, ribbon cables for clean builds, and changeable side stickers for customization. It offers comprehensive protection: OCP, OVP, OPP, SCP, OTP, UVP. Compact dimensions (150 x 86 x 180 mm) fit most cases. Backed by a 10-year warranty.

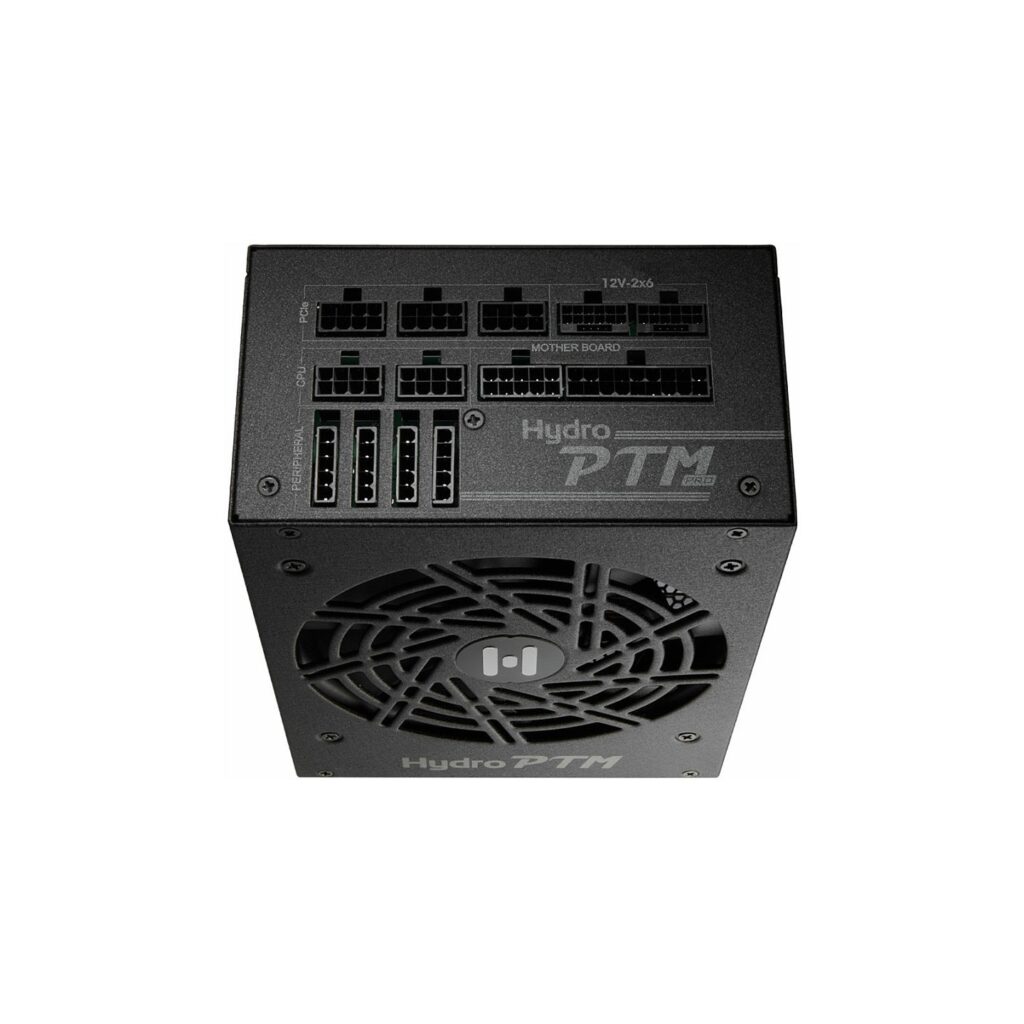

- Connectors: 1x 20+4pin ATX, 2x 4+4pin EPS, 2x 12V-2×6 (Gen5), 4x 6+2pin PCIe, 12x SATA, 4x Molex

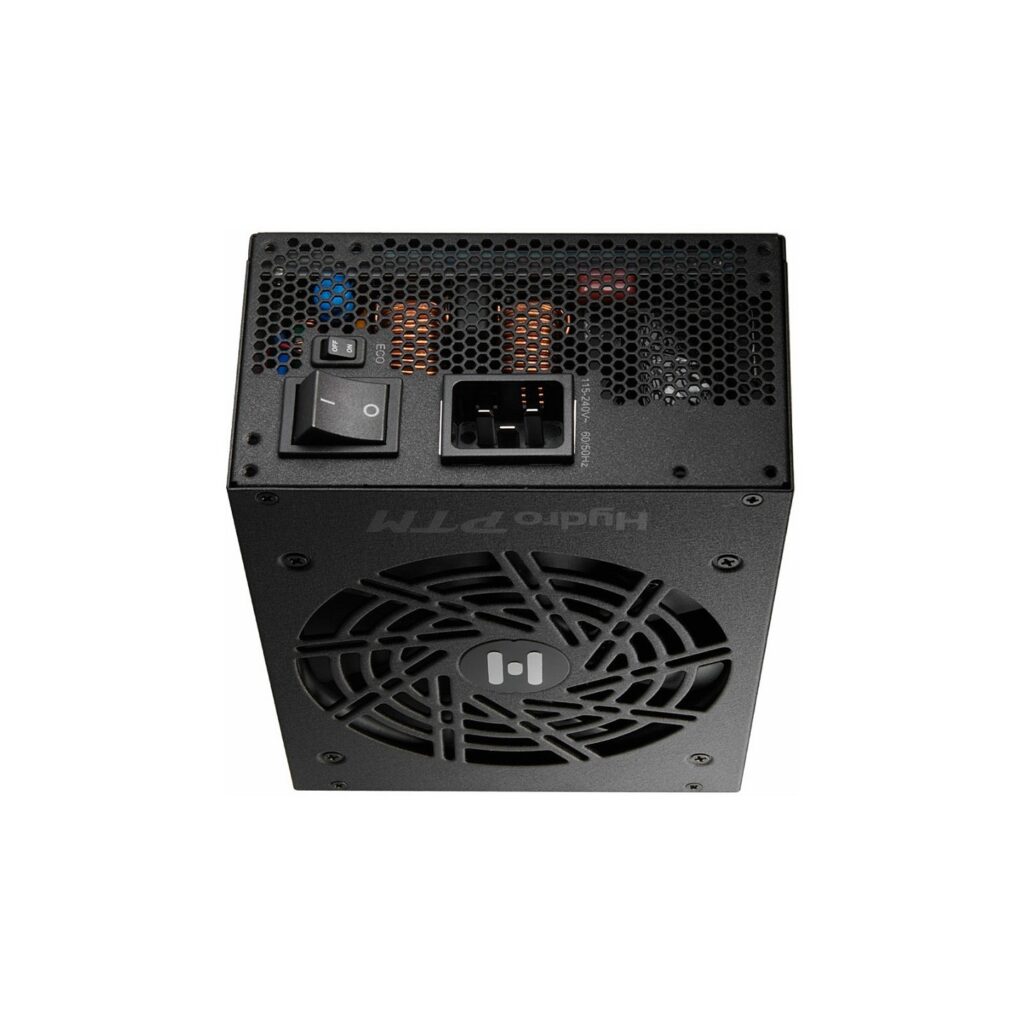

- Active PFC, 110-240V input, DC-DC design for +5V/+3.3V
- Semi-passive cooling, full-bridge topology
| Model | HPT2-1350M |
| Rated Output Power | 1350W |
| Form Factor | ATX |
| 80 PLUS Certification | Platinum |
| ATX Version | 3.1 |
| EPS Version | 2.92 |
| Input Voltage | 110-240V |
| Input Current | 15-8A |
| Input Frequency | 50-60Hz |
| PFC | Active |
| Efficiency | ≥92% at typical load |
| Fan Type | 135mm FDB, semi-fanless |
| Dimensions (W x H x D) | 150 x 86 x 180 mm |
| Main Connector | 20+4 pin ATX |
| EPS/CPU Connectors | 2x 4+4 pin |
| PCIe 12V-2x6 Connectors | 2x |
| PCIe 6+2 pin Connectors | 4x |
| SATA Connectors | 12x |
| Molex Connectors | 4x |
| Max Output Current (+3.3V) | 20A |
| Max Output Current (+5V) | 20A |
| Max Output Current (+12V) | 112.5A |
| Max Output Current (-12V) | 0.3A |
| Max Output Current (+5Vsb) | 3A |
| Combined Power (+3.3V +5V) | 120W |
| Combined Power (+12V) | 1350W |
| Combined Power (-12V) | 3.6W |
| Combined Power (+5Vsb) | 15W |
| Protection | OCP/OVP/OPP/SCP/OTP/UVP |
| Modularity | Fully modular |
| Fan Bearing | FDB |
| Warranty | 10 years |
