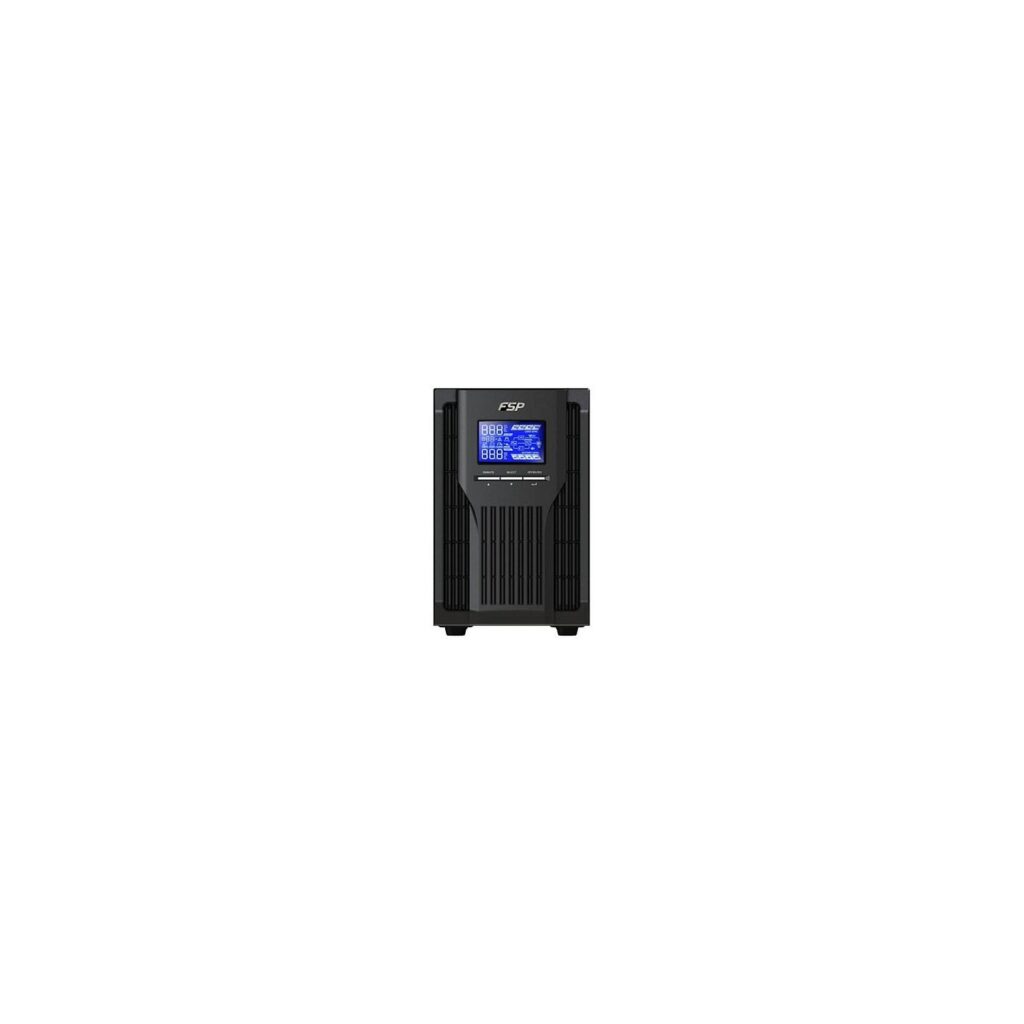

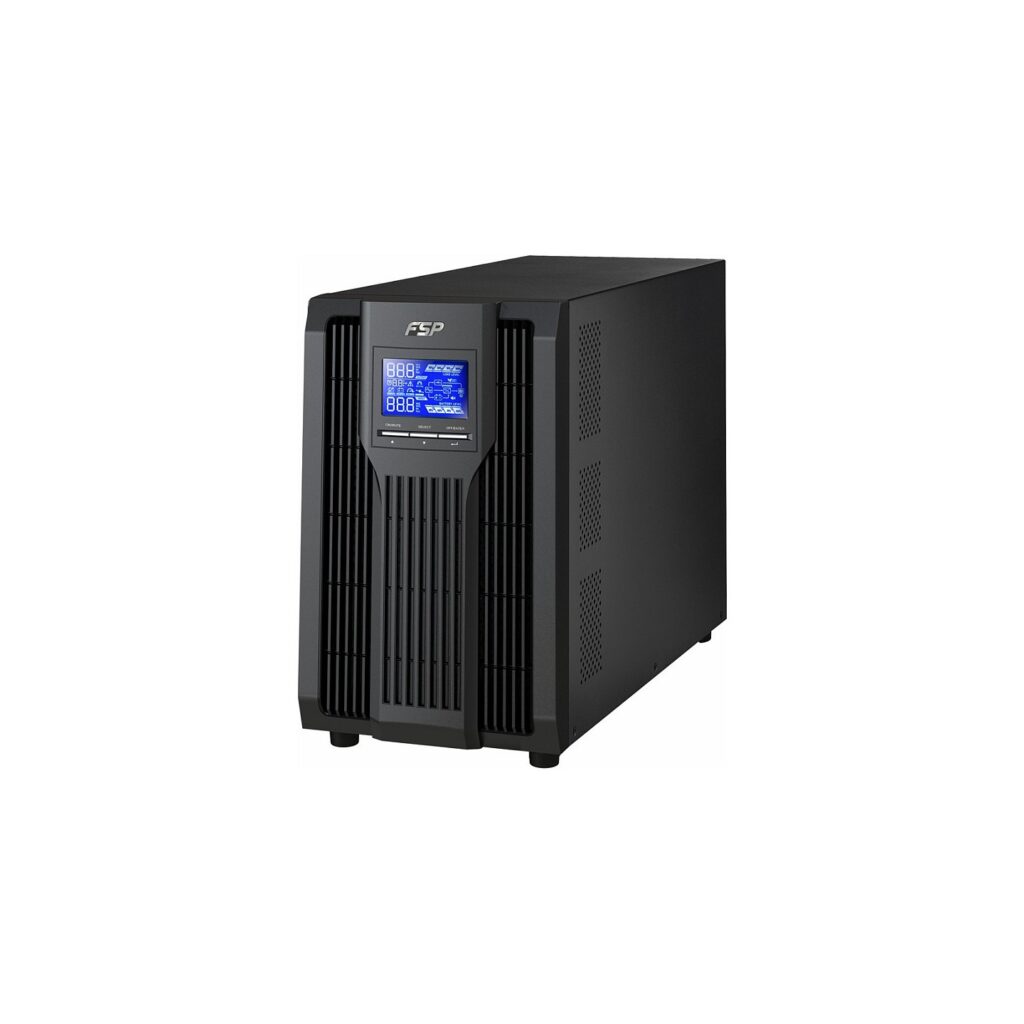

FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xIEC
FSP Champ 3K Tower Online UPS (double-conversion) delivers 3000VA/2700W pure sine wave output. Features wide 120-300V input, 0ms transfer, LCD display, USB/RS-232. 4x IEC C13 outlets, 3.5min full/9.8min half backup. Ideal for servers.
Available in 4–6 business days : 1 piece
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The FSP Champ 3K Tower is a true online double-conversion UPS providing 3000VA/2700W capacity with pure sine wave output, perfect for servers, workstations, and critical IT equipment. It features microprocessor control, wide input voltage range of 120-300V, and 0ms transfer time for uninterrupted power.

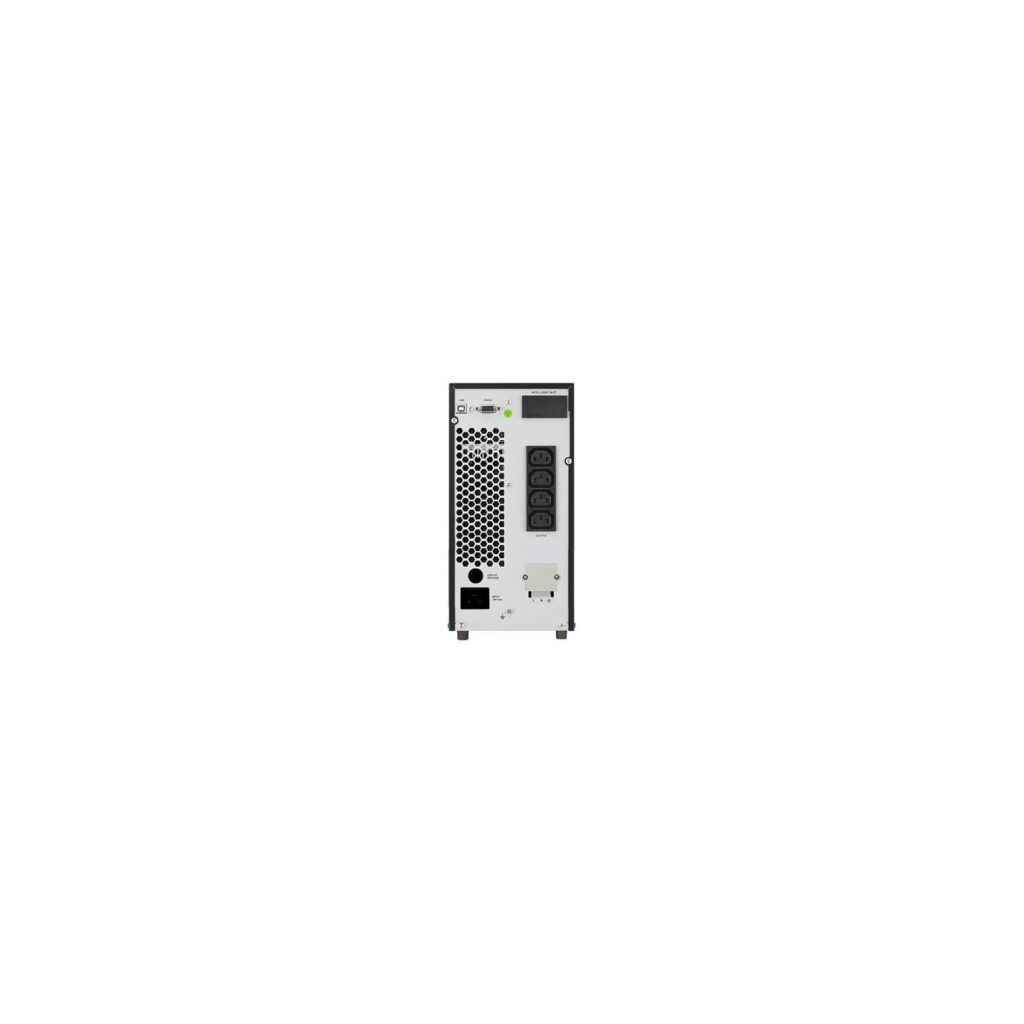

Equipped with 4x IEC C13 outlets, USB Type-B, RS-232 ports, and LCD display for comprehensive monitoring. ECO mode saves energy, generator compatibility, and high power factor (0.99 input, 0.9 output). Batteries: 6x 12V/9Ah, backup 3.5min full load, 9.8min half load, 4h recharge.
- Topology: Online Double Conversion
- Output: 2700W Pure Sine Wave, ±1% regulation
- Backup Times: 3.5min full, 9.8min half load
- Interfaces: USB, RS-232, LCD display
- Dimensions: Tower form factor, 27.6kg net weight
| UPS Topology | Double Conversion (Online) |
| Output Capacity | 3000 VA |
| Output Power | 2700 W |
| Waveform | Pure Sine Wave |
| Input Voltage Range | 120-300 V |
| Input Frequency | 40-70 Hz |
| Output Voltage | 200-240 V |
| Output Frequency | 47/63 Hz |
| Voltage Regulation | ±1% |
| Transfer Time | 0 ms |
| Power Factor | 0.99 (input) |
| THD Linear Load | 3% |
| Noise Level | 50 dB |
| AC Outlet Types | 4x IEC C13 |
| USB Ports | 1x USB Type-B |
| Serial Interface | 1x RS-232 |
| Battery Capacity | 9 Ah |
| Battery Voltage | 12 V (6 cells) |
| Backup Time Full Load | 3.5 min |
| Backup Time Half Load | 9.8 min |
| Recharge Time | 4 hours (to 90%) |
| Form Factor | Tower |
| Color | Black |
| Display Type | LCD |
| Width | 190 mm |
| Depth | 421 mm |
| Height | 318 mm |
| Weight | 27.6 kg (net) |
| MPN | PPF24A1807 |
