FSP Champ 1K Rack Online UPS 1000VA 900W
FSP Champ 1K Rack is a double-conversion online UPS with 1000VA/900W capacity, pure sine wave output, and 3 Type F outlets. Features LCD display, USB and RS-232 connectivity, and 12V/9Ah battery with 4-hour recharge time.
Available in 4–6 business days : 8 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The FSP Champ 1K Rack Online UPS is a professional-grade uninterruptible power supply designed for rack-mounted deployment in data centers and server environments. Utilizing double-conversion (online) technology, this UPS delivers a pure sine wave output with 1000VA/900W capacity, ensuring clean and stable power to sensitive equipment even during input voltage fluctuations. The unit supports input voltage ranges from 120-300 VAC at 40-70 Hz frequency, with selectable output voltages (110/115/120/127 VAC or 208/220/230/240 VAC).
Built into a compact 2U rackmount form factor measuring 310x438x88mm, the Champ 1K features an internal battery system with 2 cells rated at 12V/9Ah capacity, providing approximately 4 hours to reach 90% charge. Communication capabilities include RS-232 and USB Type-B ports for remote monitoring and management via compatible software (Windows, Linux, Unix, MAC). The unit operates quietly at less than 50dB and maintains functionality across 0-40°C operating temperatures with 20-90% relative humidity tolerance.
Key specifications and features include:
- Output Power Factor: 0.9
- Output Voltage Regulation: 1%

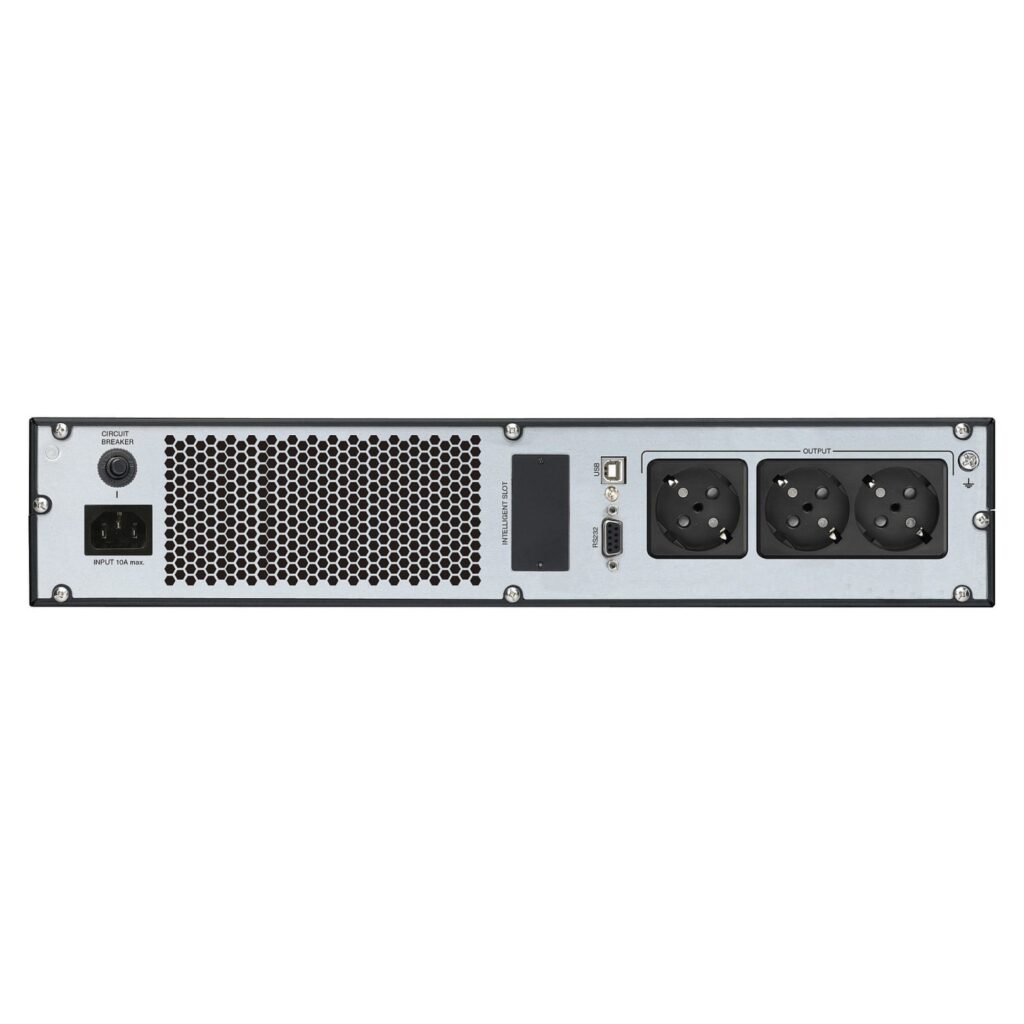

- 3x Type F (Schuko) AC outlets

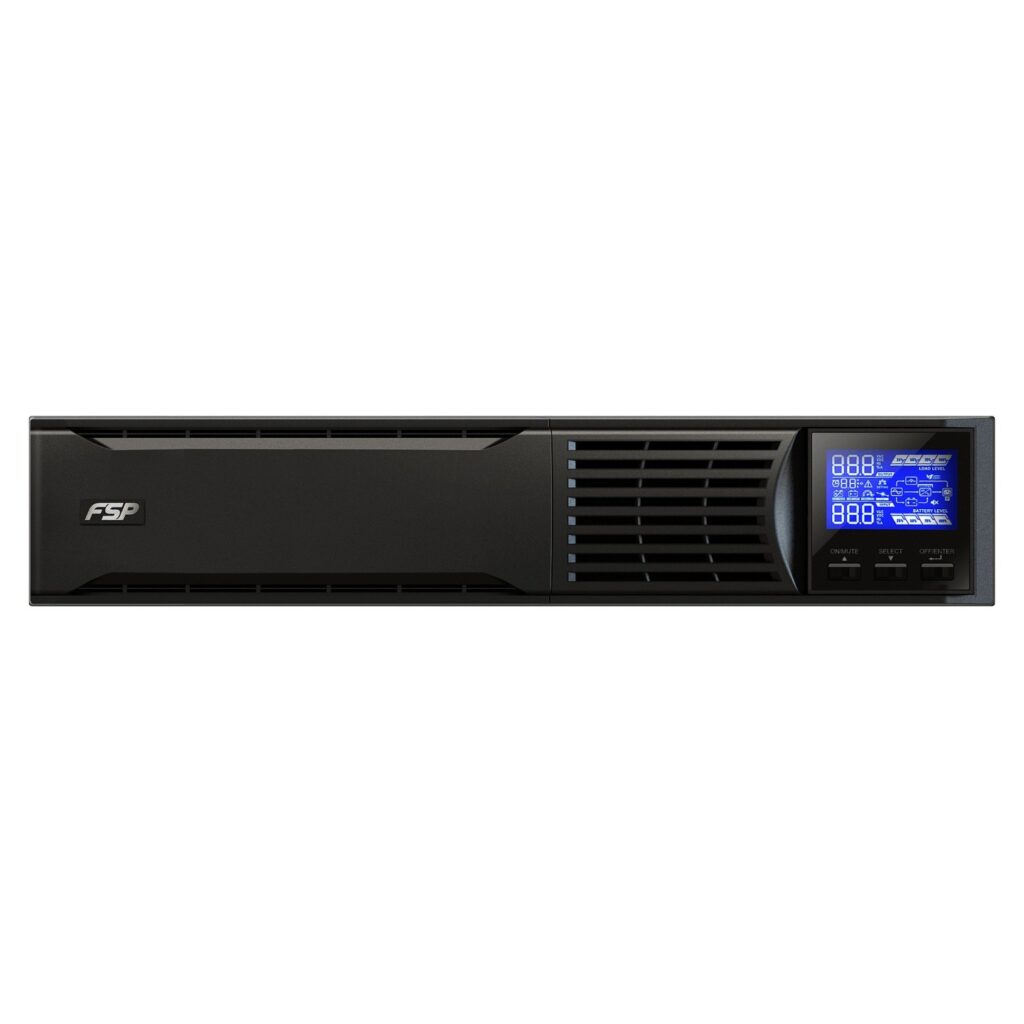

- LCD display with status monitoring
- Active cooling system
- Noise Level: <50 dB at 1 meter
- 2-year warranty
- CE compliance certification
| UPS Topology | Double Conversion (Online) |
| Output Capacity | 1000 VA |
| Output Power | 900 W |
| Waveform | Pure Sine Wave |
| Input Voltage Range | 120-300 VAC |
| Input Frequency Range | 40-70 Hz |
| Output Voltage Options | 110/115/120/127 VAC or 208/220/230/240 VAC |
| Output Frequency | 47/63 Hz |
| Output Voltage Regulation | 1% |
| Output Power Factor | 0.9 |
| Input Power Factor | ≥0.99 @ nominal voltage |
| Response Time | 0 ms |
| Crest Factor | 3:1 |
| Total Harmonic Distortion (Linear Load) | 3% |
| Total Harmonic Distortion (Non-Linear Load) | 6% |
| Noise Level | <50 dB at 1 meter |
| AC Outlet Type | Type F (Schuko) |
| Number of AC Outlets | 3 |
| USB Ports | 1x USB Type-B |
| Serial Interface | 1x RS-232 |
| Battery Type | Internal sealed lead-acid |
| Battery Voltage | 12 V |
| Battery Capacity | 9 Ah |
| Number of Battery Cells | 2 |
| Battery Recharge Time (90%) | 4 h |
| Charging Voltage | 27.4 VDC ±1% |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Cooling | Active |
| Display Type | LCD |
| Control Method | Push buttons |
| Width | 438 mm |
| Depth | 310 mm |
| Height | 88 mm |
| Weight (Unit Only) | 12 kg |
| Operating Temperature | 0-40 °C |
| Operating Humidity | 20-90% RH |
| Input Phase | Single phase with ground |
| Compliance Certifications | CE |
| Harmonized System Code (HS) | 85078000 |
| EAN13 | 4713224520600 |
| Warranty | 2 years |
| Communication Software Support | Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, macOS; Optional SNMP |
| Alarm Modes | Battery mode alarm, fault alarm, low battery warning, overload alarm |
