Fiber Optic Patch Cord - 59630 - OS2 LC-LC, 3m, APC, Yellow
77.00 €

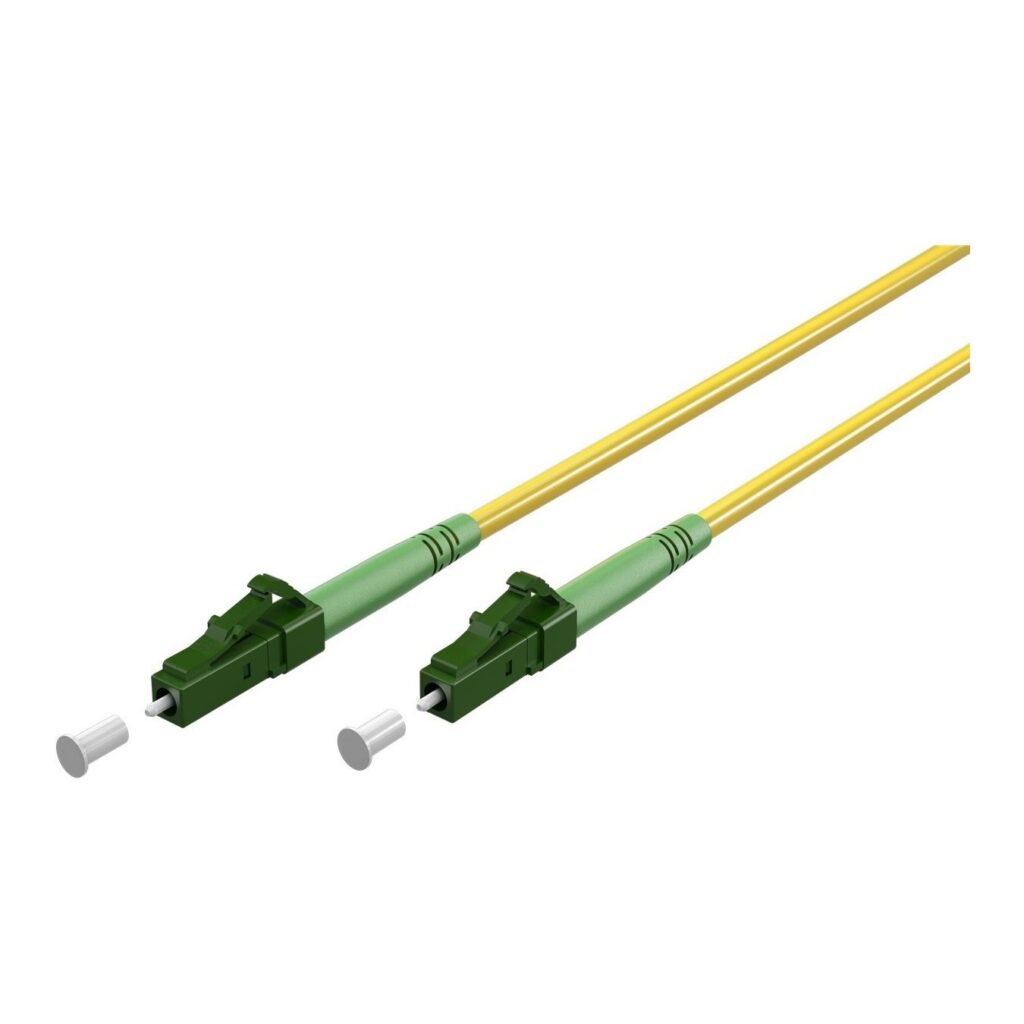

Goobay 59630 FTTH OS2 single-mode LC-LC patch cord, 3 m, APC polish, LSZH jacket, ceramic connectors, yellow.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
Goobay 59630. Cable length: 3 m. Cable type: FTTH. Fibre optic type: OS2. Connector 1: LC. Connector 2: LC. Core diameter: 9 µm
| Cable length | 3 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | APC |
| Cable type | FTTH |
| Product colour | Yellow |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1310 nm |
| Data transfer rate | 100 Gbit/s |
| Insertion loss | 0.25 dB |
| Return loss | 60 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector material | Ceramic |
| Operating temperature (T-T) | -40 - 85 °C |
| Cable diameter | 3 mm |
| Bending radius | 3 cm |

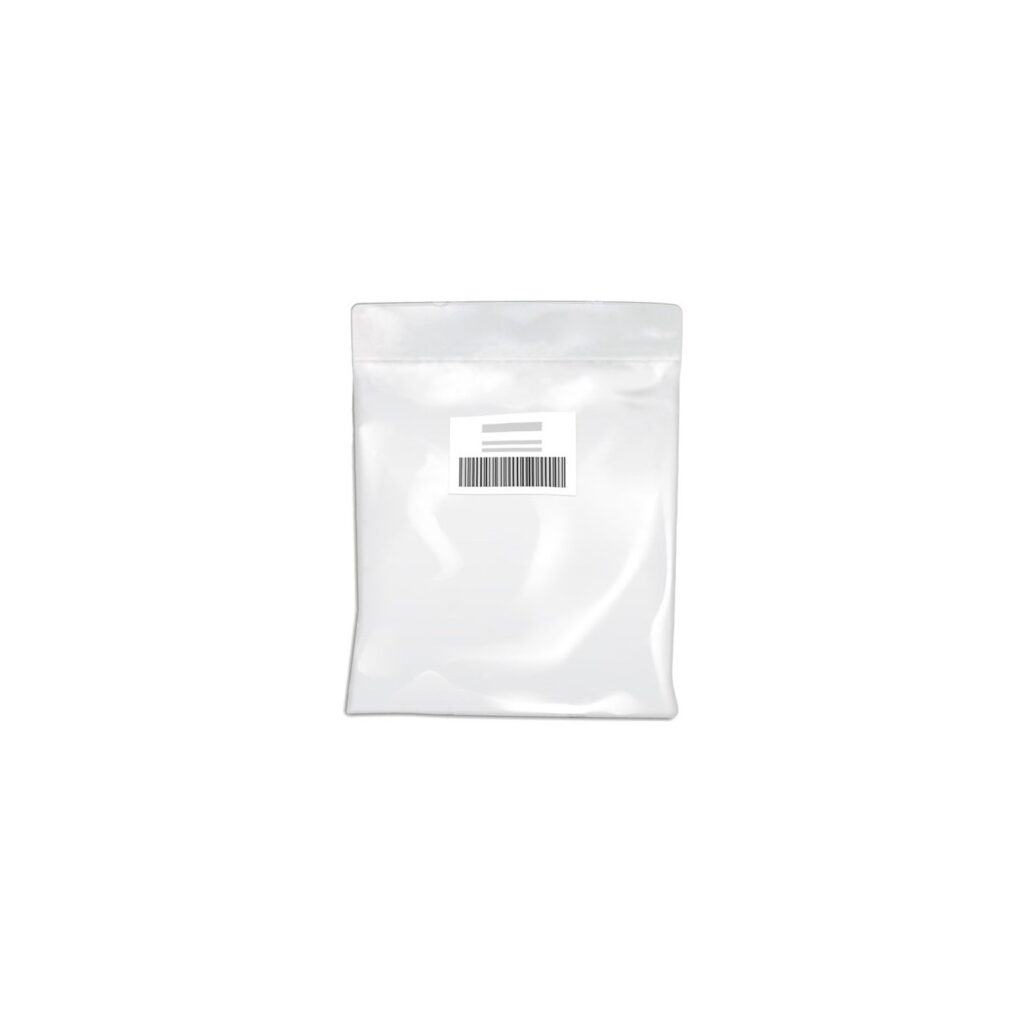

| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
